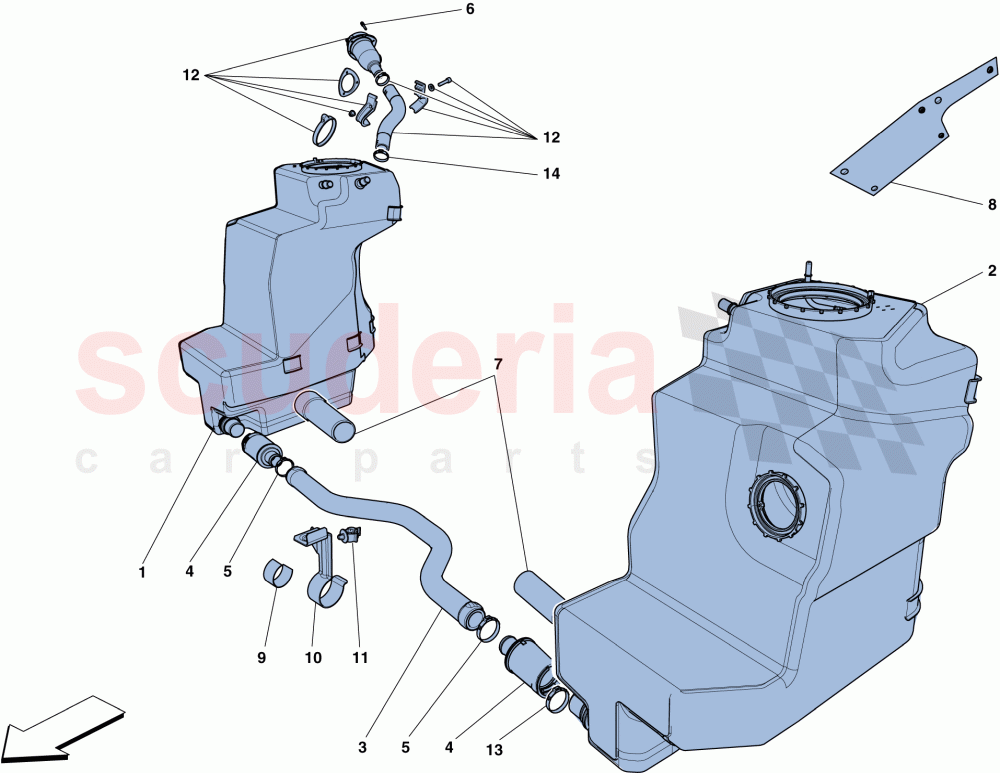

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	276666	RH FUEL TANK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	276667	LH FUEL TANK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	266693	TANK CONNECTOR PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	266694	DUAL DIAMETER HOSE CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	302682	COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	791355	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	284429	PROTECTIVE SLEEVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	284428	FILLER NECK HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	275275	RUBBER SHIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	264936	CONNECTOR PIPE MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	302524	FUEL FILLER NECK COMPL. WITH PIPES	Enquire	To Order
	301227	FUEL FILLER NECK COMPLETE WITH PIPES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11449470	COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11449470	COLLAR	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	276666	RH FUEL TANK	276666 RH FUEL TANK	-	1	Enquire
2	276667	LH FUEL TANK	276667 LH FUEL TANK	-	1	Enquire
3	266693	TANK CONNECTOR PIPE	266693 TANK CONNECTOR PIPE	-	1	Enquire
4	266694	DUAL DIAMETER HOSE CONNECTOR	266694 DUAL DIAMETER HOSE CONNECTOR	-	2	Enquire
5	302682	COLLAR	302682 COLLAR	-	2	Enquire
6	791355	SCREW	791355 SCREW	-	3	Enquire
7	284429	PROTECTIVE SLEEVE	284429 PROTECTIVE SLEEVE	-	2	Enquire
8	284428	FILLER NECK HEAT SHIELD	284428 FILLER NECK HEAT SHIELD	-	1	Enquire
9	275275	RUBBER SHIM	275275 RUBBER SHIM 77X 22X 3	-	1	Enquire
10	264936	CONNECTOR PIPE MOUNTING BRACKET	264936 CONNECTOR PIPE MOUNTING BRACKET	-	1	Enquire
11	236475	CLIP	236475 CLIP	-	1	Enquire
11	259508	CLIP	259508 CLIP	-	1	Enquire
12	302524	FUEL FILLER NECK COMPL. WITH PIPES	302524 FUEL FILLER NECK COMPL. WITH PIPES Applicable for USA, CDN	-	1	Enquire
12	301227	FUEL FILLER NECK COMPLETE WITH PIPES	301227 FUEL FILLER NECK COMPLETE WITH PIPES Not for USA, CDN	-	1	Enquire
13	11449470	COLLAR	11449470 COLLAR	-	2	Enquire
14	11449470	COLLAR	11449470 COLLAR	-	1	Enquire
