Name: FRONT SUSPENSION - ARMS
Rating: 4.7 (1 reviews)

FRONT SUSPENSION - ARMS of Ferrari Ferrari 458 Speciale Aperta

View All

Ferrari 458 Speciale Aperta - FRONT SUSPENSION - ARMS

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	248758	LH Front Upper Arm	$850.42	To Order
	248760	RH Front Upper Arm	$850.42	To Order

Photo	Part No	Description	Price (each)	Stock
	264523	Lower LH Front Arm	$1,407.15	To Order
	264524	Lower RH Front Arm	$1,407.15	To Order

Photo	Part No	Description	Price (each)	Stock
	304731	FRONT LH HUB CARRIER	$2,548.09	To Order
	304732	FRONT RH HUB CARRIER	$2,548.09	To Order

Photo	Part No	Description	Price (each)	Stock
	149807	NUT	$1.18	To Order

Photo	Part No	Description	Price (each)	Stock
	12646921	WASHER	$0.53	To Order

Photo	Part No	Description	Price (each)	Stock
	343376	BALL JOINT	$22.45	To Order

Photo	Part No	Description	Price (each)	Stock
	203795	NUT	$2.58	To Order

Photo	Part No	Description	Price (each)	Stock
	241689	WASHER	$7.68	To Order

Photo	Part No	Description	Price (each)	Stock
	264528	THREADED ROD	$3.94	To Order

Photo	Part No	Description	Price (each)	Stock
	12646821	WASHER D.10 20-25 X 2	$0.11	To Order
	126648	WASHER D.10.5-21 X 2	$1.91	To Order

Photo	Part No	Description	Price (each)	Stock
	12574521	Nyloc Nut	$0.92	To Order

Photo	Part No	Description	Price (each)	Stock
	238884	ADJUSTMENT SHIM	$5.59	To Order
	238883	ADJUSTMENT SHIM	$5.59	To Order
	238882	ADJUSTMENT SHIM	$5.59	To Order

...and 4 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	269415	ABS SENSOR	$401.13	To Order

Photo	Part No	Description	Price (each)	Stock
	304734	FRONT RH JOINT BRACKET	$51.59	To Order
	304733	FRONT LH JOINT BRACKET	$51.59	To Order

Photo	Part No	Description	Price (each)	Stock
	250657	SCREW	$7.60	To Order

View All

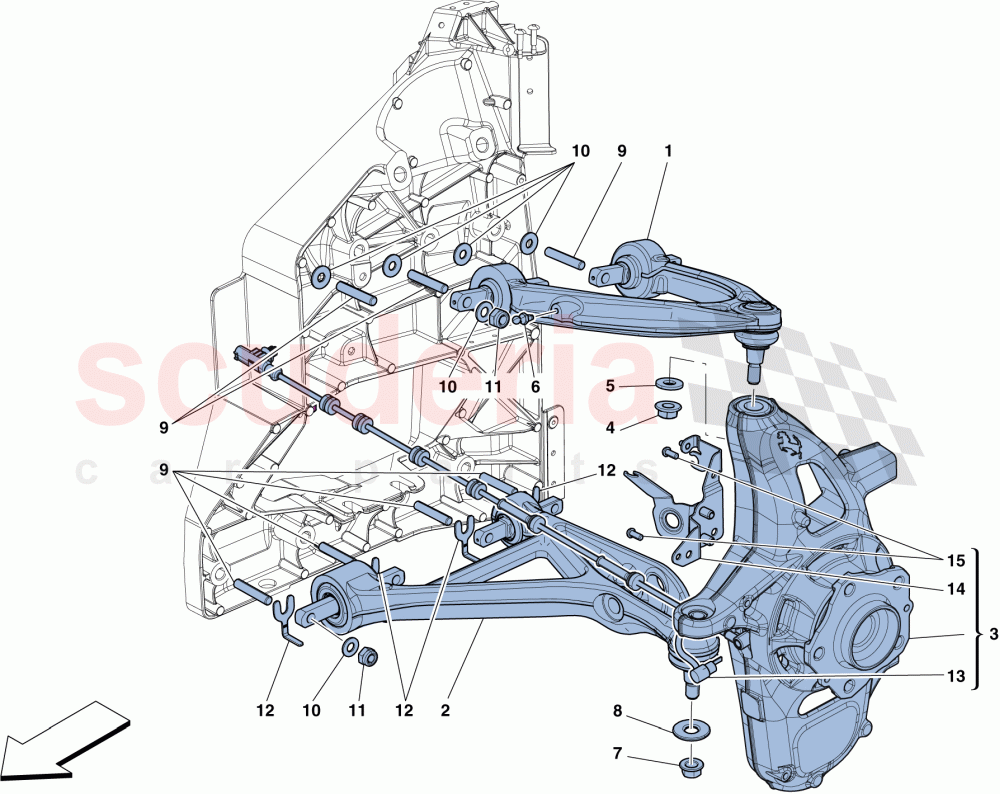

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	248758	LH Front Upper Arm	248758 LH Front Upper Arm	$850.42 MSRP: ~~1,384.38~~ (38.6% off)	1
1	248760	RH Front Upper Arm	248760 RH Front Upper Arm	$850.42 MSRP: ~~1,384.38~~ (38.6% off)	1
2	264523	Lower LH Front Arm	264523 Lower LH Front Arm	$1,407.15	1
2	264524	Lower RH Front Arm	264524 Lower RH Front Arm	$1,407.15	1
3	304731	FRONT LH HUB CARRIER	304731 FRONT LH HUB CARRIER	$2,548.09	1
3	304732	FRONT RH HUB CARRIER	304732 FRONT RH HUB CARRIER	$2,548.09	1
4	149807	NUT	149807 NUT	$1.18 MSRP: ~~2.00~~ (41% off)	2
5	12646921	WASHER	12646921 WASHER	$0.53	2
6	343376	BALL JOINT	343376 BALL JOINT	$22.45	2
7	203795	NUT	203795 NUT	$2.58	2
8	241689	WASHER	241689 WASHER	$7.68	2
9	264528	THREADED ROD	264528 THREADED ROD	$3.94	16
10	12646821	WASHER D.10 20-25 X 2	12646821 WASHER D.10 20-25 X 2	$0.11 MSRP: ~~0.50~~ (78% off)	8
10	126648	WASHER D.10.5-21 X 2	126648 WASHER D.10.5-21 X 2	$1.91	16
11	12574521	Nyloc Nut	12574521 Nyloc Nut	$0.92 MSRP: ~~2.00~~ (54% off)	16
12	238884	ADJUSTMENT SHIM	238884 ADJUSTMENT SHIM Th. 3.5 mm; Installed if necessary	$5.59 MSRP: ~~6.25~~ (10.6% off)	8
12	238883	ADJUSTMENT SHIM	238883 ADJUSTMENT SHIM Th. 3 mm; Installed if necessary	$5.59 MSRP: ~~6.25~~ (10.6% off)	8
12	238882	ADJUSTMENT SHIM	238882 ADJUSTMENT SHIM Th. 2.5 mm; Installed if necessary	$5.59 MSRP: ~~6.25~~ (10.6% off)	8
12	238694	ADJUSTMENT SHIM	238694 ADJUSTMENT SHIM Th. 2 mm; Installed if necessary	$5.59 MSRP: ~~6.15~~ (9.1% off)	8
12	238881	CAMBER SPACER 1.5MM	238881 CAMBER SPACER 1.5MM Th. 1.5 mm; Installed if necessary	$5.77 MSRP: ~~6.15~~ (6.2% off)	8
12	238693	ADJUSTMENT SHIM	238693 ADJUSTMENT SHIM Th. 1 mm; Installed if necessary	$5.77 MSRP: ~~6.25~~ (7.7% off)	8
12	238885	CAMBER SPACER 4MM	238885 CAMBER SPACER 4MM Th. 4 mm; Installed if necessary	$5.77 MSRP: ~~6.25~~ (7.7% off)	8
13	269415	ABS SENSOR	269415 ABS SENSOR	$401.13	1
14	304734	FRONT RH JOINT BRACKET	304734 FRONT RH JOINT BRACKET	$51.59	1
14	304733	FRONT LH JOINT BRACKET	304733 FRONT LH JOINT BRACKET	$51.59	1
15	250657	SCREW	250657 SCREW	$7.60	4
