Ferrari 456 GT/GTA - LUBRICATION - OIL SUMP AND FILTERS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
154643 OIL SUMP -With complete oil sump- Enquire To Order
Photo Part No Description Price (each) Stock
12601374 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
16104411 Selflocking nut Enquire To Order
Photo Part No Description Price (each) Stock
13971134 STUD BOLT Enquire To Order
Photo Part No Description Price (each) Stock
153423 STUD BOLT Enquire To Order
Photo Part No Description Price (each) Stock
13543424 STUD BOLT Enquire To Order
Photo Part No Description Price (each) Stock
13543624 STUD BOLT Enquire To Order
Photo Part No Description Price (each) Stock
100041 CENTERING DOWEL Enquire To Order
Photo Part No Description Price (each) Stock
13541224 STUD BOLT Enquire To Order
Photo Part No Description Price (each) Stock
13541824 STUD Enquire To Order
Photo Part No Description Price (each) Stock
13543524 STUD BOLT Enquire To Order
Photo Part No Description Price (each) Stock
13543824 STUD BOLT Enquire To Order
Photo Part No Description Price (each) Stock
13543924 Stud Bolt Enquire To Order
Photo Part No Description Price (each) Stock
13541024 STUD BOLT Enquire To Order
Photo Part No Description Price (each) Stock
13525770 THREADED INSERT Enquire To Order
Photo Part No Description Price (each) Stock
13541224 STUD BOLT Enquire To Order
Photo Part No Description Price (each) Stock
13525470 THREADED INSERT Enquire To Order
Photo Part No Description Price (each) Stock
145085 CONNECTOR Enquire To Order
Photo Part No Description Price (each) Stock
898271 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
154602 OIL SUMP COVER Enquire To Order
Photo Part No Description Price (each) Stock
898271 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
153903 OIL DRAIN PLUG Enquire To Order
Photo Part No Description Price (each) Stock
10280060 WASHER COPPER D14. 20 X 1.5 Enquire To Order
Photo Part No Description Price (each) Stock
13526570 THREADED INSERT Enquire To Order
Photo Part No Description Price (each) Stock
125308 OIL PICKUP FILTER Enquire To Order
Photo Part No Description Price (each) Stock
13540724 STUD BOLT Enquire To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 Enquire To Order
Photo Part No Description Price (each) Stock
12601374 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
138149 THREADED CONNECTOR Enquire To Order
Photo Part No Description Price (each) Stock
141960 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 Enquire To Order
Photo Part No Description Price (each) Stock
11197774 WAVY WASHER D.6.4 X 12 X 1.2 Enquire To Order
Photo Part No Description Price (each) Stock
156144 THREADED PLUG Enquire To Order
Photo Part No Description Price (each) Stock
10303460 Gasket Enquire To Order
Photo Part No Description Price (each) Stock
206166 Oil Filter Enquire To Order
Photo Part No Description Price (each) Stock
141707 CONNECTOR Enquire To Order
Photo Part No Description Price (each) Stock
143866 SUPPORT Enquire To Order
Photo Part No Description Price (each) Stock
135940 Transmitter Oil Pressure Enquire To Order
Photo Part No Description Price (each) Stock
132248 O-RING Enquire To Order
Photo Part No Description Price (each) Stock
14305324 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
12601374 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
282753 THREADED PLUG Enquire To Order
Photo Part No Description Price (each) Stock
13525870 THREADED INSERT Enquire To Order
Photo Part No Description Price (each) Stock
13525570 THREADED INSERT Enquire To Order
Photo Part No Description Price (each) Stock
13525870 THREADED INSERT Enquire To Order
Photo Part No Description Price (each) Stock
13525570 THREADED INSERT Enquire To Order
Photo Part No Description Price (each) Stock
10441290 BRACKET WITH SHEATH Enquire To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 Enquire To Order
Photo Part No Description Price (each) Stock
12639724 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
127494 WASHER Enquire To Order
View All

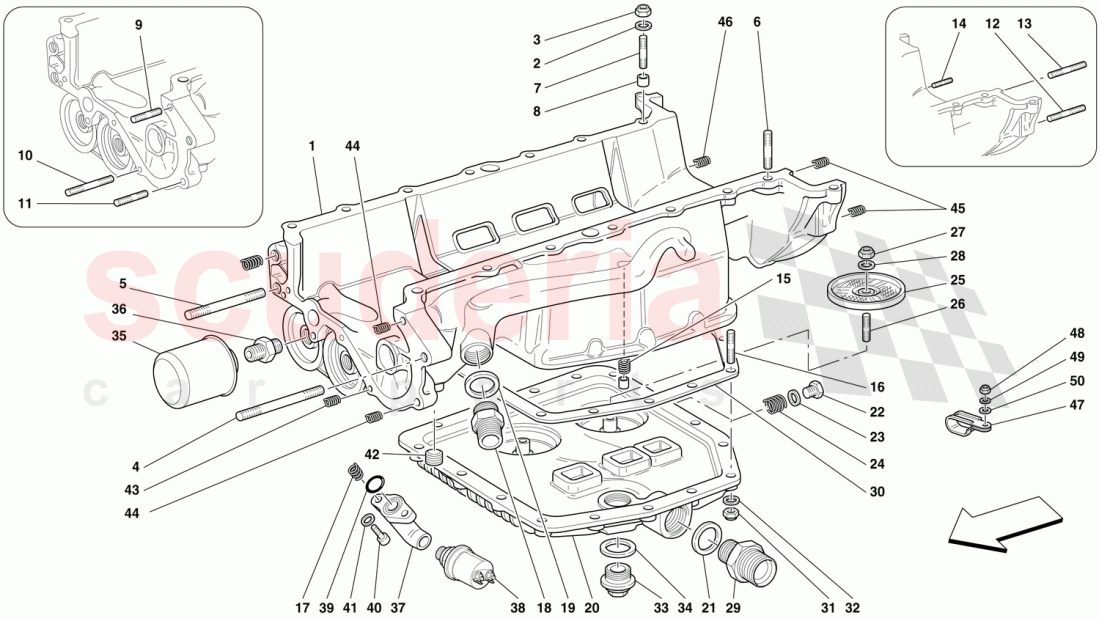

LUBRICATION - OIL SUMP AND FILTERS of Ferrari Ferrari 456 GT/GTA Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 157959
COMPLETE OIL SUMP
Valid from engine Nr. 36183 		- 1 Enquire
- 154643
OIL SUMP -With complete oil sump-
Valid till engine Nr. 36182 		- 1 Enquire
1 154643
OIL SUMP -With complete oil sump- 		- 1 Enquire
2 12601374
WASHER 		- 14 Enquire
3 16104411
Selflocking nut 		- 14 Enquire
4 13971134
STUD BOLT 		- 1 Enquire
5 153423
STUD BOLT 		- 1 Enquire
6 13543424
STUD BOLT 		- 12 Enquire
7 13543624
STUD BOLT 		- 2 Enquire
8 100041
CENTERING DOWEL 		- 2 Enquire
9 13541224
STUD BOLT
Valid till engine Nr. 36182 		- 2 Enquire
10 13541824
STUD
Valid till engine Nr. 36182 		- 2 Enquire
11 13543524
STUD BOLT
Valid till engine Nr. 36182 		- 2 Enquire
12 13543824
STUD BOLT
Valid till engine Nr. 36182 		- 3 Enquire
13 13543924
Stud Bolt
Valid till engine Nr. 36182 		- 1 Enquire
14 13541024
STUD BOLT
Valid till engine Nr. 36182 		- 3 Enquire
15 13525770
THREADED INSERT 		- 4 Enquire
16 13541224
STUD BOLT 		- 16 Enquire
17 13525470
THREADED INSERT 		- 2 Enquire
18 145085
CONNECTOR 		- 1 Enquire
19 898271
GASKET 		- 1 Enquire
20 154602
OIL SUMP COVER 		- 1 Enquire
21 898271
GASKET 		- 1 Enquire
22 153903
OIL DRAIN PLUG 		- 1 Enquire
23 10280060
WASHER COPPER D14. 20 X 1.5 		- 1 Enquire
24 13526570
THREADED INSERT 		- 1 Enquire
25 125308
OIL PICKUP FILTER 		- 2 Enquire
26 13540724
STUD BOLT 		- 2 Enquire
27 14059290
FLANGED NUT M6 		- 2 Enquire
28 12601374
WASHER 		- 2 Enquire
29 138149
THREADED CONNECTOR 		- 1 Enquire
30 141960
GASKET 		- 1 Enquire
31 14059290
FLANGED NUT M6 		- 16 Enquire
32 11197774
WAVY WASHER D.6.4 X 12 X 1.2 		- 16 Enquire
33 156144
THREADED PLUG 		- 1 Enquire
34 10303460
Gasket 		- 1 Enquire
35 206166
Oil Filter 		- 2 Enquire
36 141707
CONNECTOR 		- 2 Enquire
37 143866
SUPPORT 		- 1 Enquire
38 135940
Transmitter Oil Pressure 		- 1 Enquire
39 132248
O-RING 		- 1 Enquire
40 14305324
SCREW 		- 2 Enquire
41 12601374
WASHER 		- 2 Enquire
42 282753
THREADED PLUG 		- 2 Enquire
43 13525870
THREADED INSERT
Valid from engine Nr. 36183 		- 2 Enquire
44 13525570
THREADED INSERT
Valid from engine Nr. 36183 		- 4 Enquire
45 13525870
THREADED INSERT
Valid from engine Nr. 36183 		- 4 Enquire
46 13525570
THREADED INSERT
Valid from engine Nr. 36183 		- 3 Enquire
47 10441290
BRACKET WITH SHEATH 		- 2 Enquire
48 14059290
FLANGED NUT M6 		- 2 Enquire
49 12639724
WASHER 		- 2 Enquire
50 127494
WASHER 		- 2 Enquire
