LUBRICATION - OIL PUMPS of Ferrari Ferrari 456 GT/GTA

View All

Ferrari 456 GT/GTA - LUBRICATION - OIL PUMPS

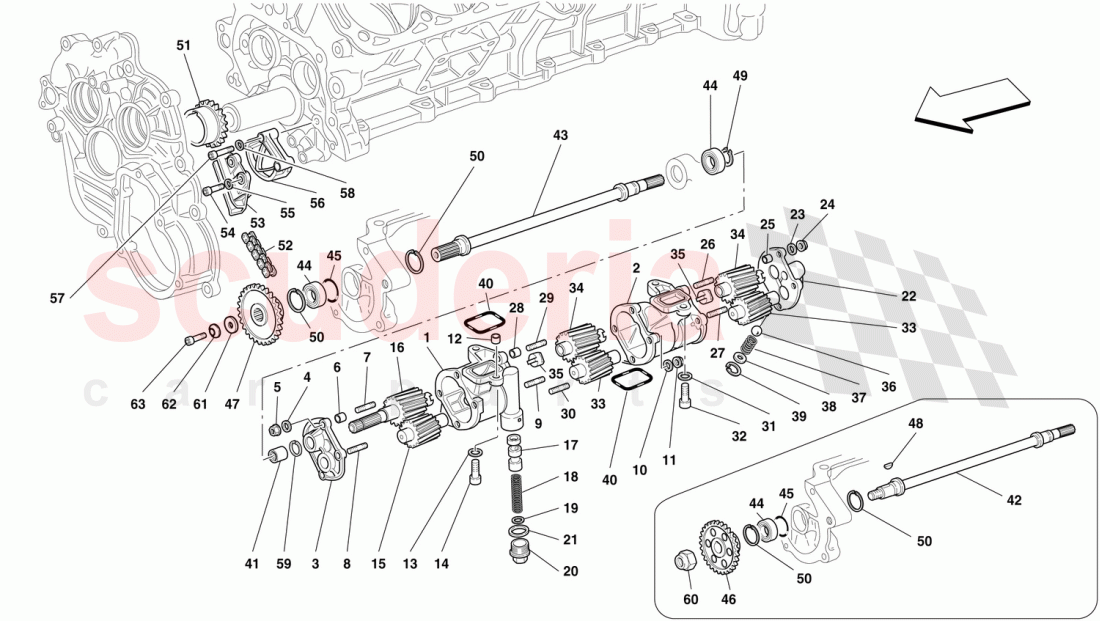

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	153197	COMPLETE DELIVERY PUMP BODY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	153198	COMPLETE SCAVENGE PUMP BODY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	141837	DELIVERY PUMP COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	134041	NUT	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	102725	CENTERING DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13541124	STUD BOLT	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	13540824	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11500224	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	153366	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	102704	ALIGNMENT DOWEL	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11193874	WASHER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	231629	SOCKET HEAD ALLEN SCREW WITH WASHER M8 X 30	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	154518	DRIVEN GEAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	154519	DRIVE GEAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	156950	PISTON	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	137614	SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10519424	WASHER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	156143	CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10257460	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	141838	SCAVENGE PUMP COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	134041	NUT	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	102725	CENTERING DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13541124	STUD BOLT	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	13540824	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	102725	CENTERING DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13541224	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13540924	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11193874	WASHER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14306424	SCREW	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	154516	DRIVEN GEAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	154517	DRIVE GEAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	109309	JOINT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	121306	BALL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	109980	SPRING FOR BALL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	196077	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11057876	SEEGER RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	154588	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	141252	JOINT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	157042	SHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	157042	SHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	140915	BEARING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	140071	O-Ring	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	154514	DRIVEN GEAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	157041	DRIVEN GEAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10205820	Feather key	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11066576	SEEGER RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11058876	SEEGER RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	154513	DRIVING GEAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	154515	OIL PUMP CONTROL CHAIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	154484	CHAIN TENSIONER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14306424	SCREW	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14499421	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	154483	FIXED TENSIONER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14305521	ALLEN SCREW SOCKET HEAD M6 X 30	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	238108	WASHER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11066376	SEEGER RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	132876	NUT -As an alternative-	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	106744	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	IN STOCK

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	152536	FIXED SHOE	152536 FIXED SHOE Valid for 456 GTA	-	1	Enquire
-	163753	OIL PUMP DRIVE CHAIN	163753 OIL PUMP DRIVE CHAIN Valid for 456 GTA	-	1	Enquire
-	141525	CHAIN GUIDE SHOE	141525 CHAIN GUIDE SHOE Valid for 456 GTA	-	1	Enquire
-	141459	DRIVE GEAR	141459 DRIVE GEAR Valid for 456 GTA	-	1	Enquire
-	163750	DRIVEN GEAR	163750 DRIVEN GEAR Valid from engine Nr. 36183 / Valid for 456 GTA	-	1	Enquire
-	153198	COMPLETE SCAVENGE PUMP BODY	153198 COMPLETE SCAVENGE PUMP BODY BODY	-	1	Enquire
-	153197	COMPLETE DELIVERY PUMP BODY	153197 COMPLETE DELIVERY PUMP BODY BODY	-	1	Enquire
1	153197	COMPLETE DELIVERY PUMP BODY	153197 COMPLETE DELIVERY PUMP BODY complete delivery pump body	-	1	Enquire
2	153198	COMPLETE SCAVENGE PUMP BODY	153198 COMPLETE SCAVENGE PUMP BODY complete recovery pump body /	-	1	Enquire
3	141837	DELIVERY PUMP COVER	141837 DELIVERY PUMP COVER	-	1	Enquire
4	12601374	WASHER IN STOCK	12601374 WASHER IN STOCK	-	4	Enquire
5	134041	NUT IN STOCK	134041 NUT IN STOCK	-	4	Enquire
6	102725	CENTERING DOWEL	102725 CENTERING DOWEL	-	2	Enquire
7	13541124	STUD BOLT IN STOCK	13541124 STUD BOLT IN STOCK	-	2	Enquire
8	13540824	STUD BOLT	13540824 STUD BOLT	-	2	Enquire
9	11500224	STUD BOLT	11500224 STUD BOLT	-	1	Enquire
10	153366	WASHER	153366 WASHER	-	4	Enquire
11	14059290	FLANGED NUT M6 IN STOCK	14059290 FLANGED NUT M6 IN STOCK	-	4	Enquire
12	102704	ALIGNMENT DOWEL IN STOCK	102704 ALIGNMENT DOWEL IN STOCK	-	2	Enquire
13	11193874	WASHER IN STOCK	11193874 WASHER IN STOCK	-	2	Enquire
14	231629	SOCKET HEAD ALLEN SCREW WITH WASHER M8 X 30 IN STOCK	231629 SOCKET HEAD ALLEN SCREW WITH WASHER M8 X 30 IN STOCK	-	2	Enquire
15	154518	DRIVEN GEAR	154518 DRIVEN GEAR	-	1	Enquire
16	154519	DRIVE GEAR	154519 DRIVE GEAR	-	1	Enquire
17	156950	PISTON	156950 PISTON	-	1	Enquire
18	137614	SPRING	137614 SPRING	-	1	Enquire
19	10519424	WASHER IN STOCK	10519424 WASHER IN STOCK	-	5	Enquire
20	156143	CAP	156143 CAP	-	1	Enquire
21	10257460	GASKET	10257460 GASKET	-	1	Enquire
22	141838	SCAVENGE PUMP COVER	141838 SCAVENGE PUMP COVER	-	1	Enquire
23	12601374	WASHER IN STOCK	12601374 WASHER IN STOCK	-	4	Enquire
24	134041	NUT IN STOCK	134041 NUT IN STOCK	-	4	Enquire
25	102725	CENTERING DOWEL	102725 CENTERING DOWEL	-	2	Enquire
26	13541124	STUD BOLT IN STOCK	13541124 STUD BOLT IN STOCK	-	2	Enquire
27	13540824	STUD BOLT	13540824 STUD BOLT	-	2	Enquire
28	102725	CENTERING DOWEL	102725 CENTERING DOWEL	-	2	Enquire
29	13541224	STUD BOLT	13541224 STUD BOLT	-	2	Enquire
30	13540924	STUD BOLT	13540924 STUD BOLT	-	1	Enquire
31	11193874	WASHER IN STOCK	11193874 WASHER IN STOCK	-	2	Enquire
32	14306424	SCREW IN STOCK	14306424 SCREW IN STOCK	-	2	Enquire
33	154516	DRIVEN GEAR	154516 DRIVEN GEAR	-	2	Enquire
34	154517	DRIVE GEAR	154517 DRIVE GEAR	-	2	Enquire
35	109309	JOINT	109309 JOINT	-	2	Enquire
36	121306	BALL	121306 BALL	-	1	Enquire
37	109980	SPRING FOR BALL	109980 SPRING FOR BALL	-	1	Enquire
38	196077	SPACER	196077 SPACER	-	1	Enquire
39	11057876	SEEGER RING	11057876 SEEGER RING	-	1	Enquire
40	154588	O-RING	154588 O-RING	-	5	Enquire
41	141252	JOINT	141252 JOINT	-	1	Enquire
42	157042	SHAFT	157042 SHAFT Valid till engine Nr. 36182	-	1	Enquire
43	157042	SHAFT	157042 SHAFT Valid from engine Nr. 36183	-	1	Enquire
44	140915	BEARING	140915 BEARING	-	2	Enquire
45	140071	O-Ring IN STOCK	140071 O-Ring IN STOCK	-	1	Enquire
46	154514	DRIVEN GEAR	154514 DRIVEN GEAR Valid till engine Nr. 36182	-	1	Enquire
47	157041	DRIVEN GEAR	157041 DRIVEN GEAR Valid from engine Nr. 36183 / Not for 456 GTA	-	1	Enquire
48	10205820	Feather key	10205820 Feather key Valid till engine Nr. 36182	-	1	Enquire
49	11066576	SEEGER RING	11066576 SEEGER RING	-	1	Enquire
50	11058876	SEEGER RING	11058876 SEEGER RING	-	2	Enquire
51	154513	DRIVING GEAR	154513 DRIVING GEAR Not for 456 GTA	-	1	Enquire
52	154515	OIL PUMP CONTROL CHAIN	154515 OIL PUMP CONTROL CHAIN Not for 456 GTA	-	1	Enquire
53	154484	CHAIN TENSIONER	154484 CHAIN TENSIONER Not for 456 GTA	-	1	Enquire
54	14306424	SCREW IN STOCK	14306424 SCREW IN STOCK	-	2	Enquire
55	14499421	WASHER	14499421 WASHER	-	2	Enquire
56	154483	FIXED TENSIONER	154483 FIXED TENSIONER Not for 456 GTA	-	1	Enquire
57	14305521	ALLEN SCREW SOCKET HEAD M6 X 30 IN STOCK	14305521 ALLEN SCREW SOCKET HEAD M6 X 30 IN STOCK	-	2	Enquire
58	238108	WASHER IN STOCK	238108 WASHER IN STOCK	-	2	Enquire
59	11066376	SEEGER RING	11066376 SEEGER RING	-	2	Enquire
60	132876	NUT -As an alternative-	132876 NUT -As an alternative- Valid till engine Nr. 36182	-	1	Enquire
61	106744	WASHER	106744 WASHER Valid from engine Nr. 36183	-	1	Enquire
62	12601374	WASHER IN STOCK	12601374 WASHER Valid from engine Nr. 36183 IN STOCK	-	1	Enquire
63	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER IN STOCK	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER Valid from engine Nr. 36183 IN STOCK	-	1	Enquire
