INJECTION DEVICE of Ferrari Ferrari 456 GT/GTA

View All

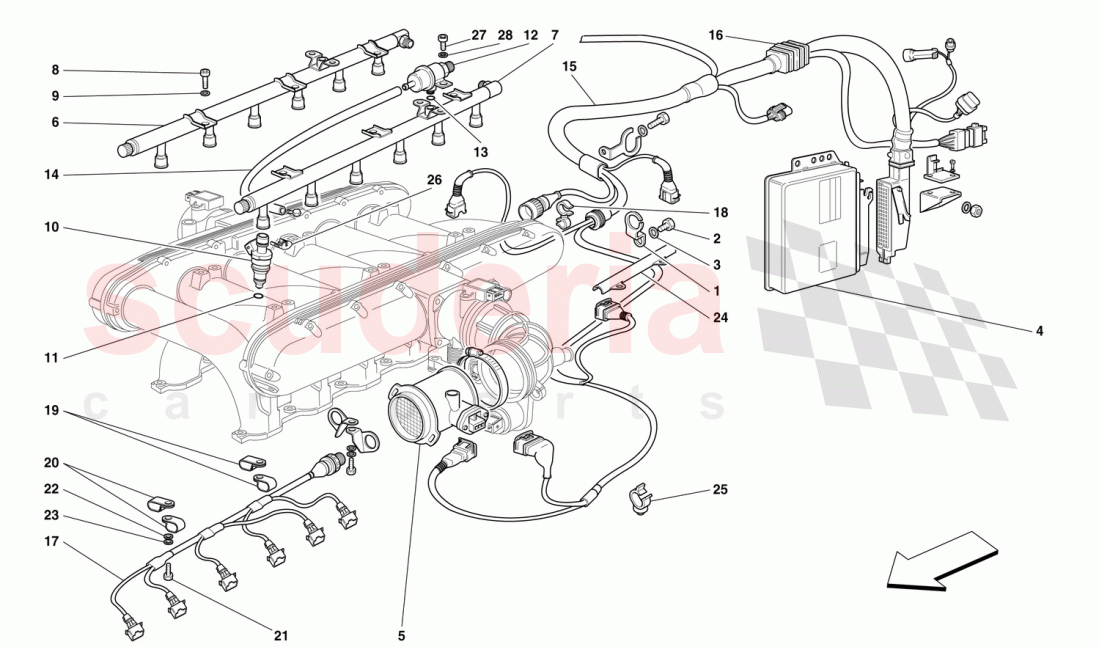

Ferrari 456 GT/GTA - INJECTION DEVICE

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	155327	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16043124	SCREW M8 X 14	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127496	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	164922	ELECTRONIC CONTROL STATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	154916	AIR FLOW METER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	161019	R.H. INJECTORS COMPLETE TUBE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	161020	L.H. INJECTORS COMPLETE TUBE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	143891	ELECTRO INJECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	133902	O-Ring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	167321	PRESSURE REGULATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	152211	SEAL RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	118901	RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	152470	LH ENGINE SIDE CONNECTION CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	139465	BELLOWS FOR CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	168529	INJECTORS CONNECTION CABLES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	145545	SPRINGS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10418801	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10418601	BRACKET WITH SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10977524	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12639724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127494	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	154772	BRACKET FOR CABLES FIXING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	159740	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	144763	INJECTOR RETAINING SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	172763	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127494	WASHER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	168529	INJECTORS CONNECTION CABLES	168529 INJECTORS CONNECTION CABLES Valid after stock exhaustion of 154787	-	2	Enquire
-	172761	CABLES FOR RH MAIN BEARINGS CONNECTION	172761 CABLES FOR RH MAIN BEARINGS CONNECTION BEARINGS CONNECTION / Valid for MOTRONIC 5.2-Valid for GD / Valid from engine Nr. 44750 for 456 GT / ing5r	-	1	Enquire
-	168908	CABLES FOR RH MAIN BEARINGS CONNECTION	168908 CABLES FOR RH MAIN BEARINGS CONNECTION BEARINGS CONNECTION / Valid for MOTRONIC 5.2	-	1	Enquire
-	168943	CABLES FOR RH MAIN BEARINGS CONNECTION	168943 CABLES FOR RH MAIN BEARINGS CONNECTION BEARINGS CONNECTION / Valid for MOTRONIC 5.2-Valid for GD / Valid till engine Nr. 44749 for 456 GT / ing5r	-	1	Enquire
-	167383	RH ENGINE SIDE CONNECTION CABLE	167383 RH ENGINE SIDE CONNECTION CABLE BEARINGS CONNECTION / Valid for MOTRONIC 2.7 / Valid for GD	-	1	Enquire
-	167382	RH ENGINE SIDE CONNECTION CABLE	167382 RH ENGINE SIDE CONNECTION CABLE BEARINGS CONNECTION / Valid for MOTRONIC 2.7 / Valid for USA, CDN and CH	-	1	Enquire
-	156576	RH ENGINE SIDE CONNECTION CABLE	156576 RH ENGINE SIDE CONNECTION CABLE BEARINGS CONNECTION / Valid for MOTRONIC 2.7 / Valid for GD	-	1	Enquire
-	152469	RH ENGINE SIDE CONNECTION CABLE	152469 RH ENGINE SIDE CONNECTION CABLE BEARINGS CONNECTION / Valid for MOTRONIC 2.7 / Not for USA, CDN, CH and GD	-	1	Enquire
-	167381	RH ENGINE SIDE CONNECTION CABLE	167381 RH ENGINE SIDE CONNECTION CABLE BEARINGS CONNECTION / Valid for MOTRONIC 2.7 / Not for USA, CDN, CH and GD	-	1	Enquire
-	158117	RH ENGINE SIDE CONNECTION CABLE	158117 RH ENGINE SIDE CONNECTION CABLE BEARINGS CONNECTION / Valid for MOTRONIC 2.7 / Valid for USA, CDN and CH	-	1	Enquire
-	172762	CABLES FOR LH MAIN BEARINGS CONNECTION	172762 CABLES FOR LH MAIN BEARINGS CONNECTION BEARINGS CONNECTION / Valid for MOTRONIC 5.2 456 GTA / Valid for GD	-	1	Enquire
-	169347	CABLES FOR LH MAIN BEARINGS CONNECTION	169347 CABLES FOR LH MAIN BEARINGS CONNECTION BEARINGS CONNECTION / Valid for MOTRONIC 5.2 456 GT / Valid for GD	-	1	Enquire
-	172764	CABLES FOR LH MAIN BEARINGS CONNECTION	172764 CABLES FOR LH MAIN BEARINGS CONNECTION BEARINGS CONNECTION / Valid for MOTRONIC 5.2 456 GT / Valid for GD	-	1	Enquire
-	168907	CABLES FOR LH MAIN BEARINGS CONNECTION	168907 CABLES FOR LH MAIN BEARINGS CONNECTION BEARINGS CONNECTION / Valid for MOTRONIC 5.2 456 GTA	-	1	Enquire
-	168944	CABLES FOR LH MAIN BEARINGS CONNECTION	168944 CABLES FOR LH MAIN BEARINGS CONNECTION BEARINGS CONNECTION / Valid for MOTRONIC 5.2 456 GTA / Valid for GD	-	1	Enquire
-	158116	LH ENGINE SIDE CONNECTION CABLE	158116 LH ENGINE SIDE CONNECTION CABLE BEARINGS CONNECTION / Valid for MOTRONIC 2.7	-	1	Enquire
-	156577	LH ENGINE SIDE CONNECTION CABLE	156577 LH ENGINE SIDE CONNECTION CABLE BEARINGS CONNECTION / Valid for MOTRONIC 2.7	-	1	Enquire
-	169346	CABLES FOR LH MAIN BEARINGS CONNECTION	169346 CABLES FOR LH MAIN BEARINGS CONNECTION BEARINGS CONNECTION / Valid for MOTRONIC 5.2 456 GT	-	1	Enquire
-	162613	ELECTRO-INJECTOR	162613 ELECTRO-INJECTOR Valid for MOTRONIC 5.2	-	12	Enquire
-	173745	L.H. INJECTORS COMPLETE TUBE	173745 L.H. INJECTORS COMPLETE TUBE Valid for MOTRONIC 5.2 / Valid from engine Nr. 43161 and till / engine Nr. 47018 / ing5r	-	1	Enquire
-	173745	L.H. INJECTORS COMPLETE TUBE	173745 L.H. INJECTORS COMPLETE TUBE Valid for MOTRONIC 5.2 / Valid till engine Nr. 47019 / Substitutes 153748 and 171842	-	1	Enquire
-	149375	L.H. INJECTORS COMPLETE TUBE	149375 L.H. INJECTORS COMPLETE TUBE Valid for MOTRONIC 2.7 / Valid from engine Nr. 35663	-	1	Enquire
-	173745	L.H. INJECTORS COMPLETE TUBE	173745 L.H. INJECTORS COMPLETE TUBE Valid for MOTRONIC 5.2 / Valid till engine Nr. 43160 / Substituted by 173745	-	1	Enquire
-	149374	R.H. INJECTORS COMPLETE TUBE	149374 R.H. INJECTORS COMPLETE TUBE Valid for MOTRONIC 2.7 / Valid from engine Nr. 35663	-	1	Enquire
-	173751	R.H. INJECTORS COMPLETE TUBE	173751 R.H. INJECTORS COMPLETE TUBE Valid for MOTRONIC 5.2 / Valid till engine Nr. 43160 / Substituted by 173751	-	1	Enquire
-	173751	R.H. INJECTORS COMPLETE TUBE	173751 R.H. INJECTORS COMPLETE TUBE Valid for MOTRONIC 5.2 / Valid till engine Nr. 43161 and till / engine Nr. 47018 / ing5r	-	1	Enquire
-	173751	R.H. INJECTORS COMPLETE TUBE	173751 R.H. INJECTORS COMPLETE TUBE Valid for MOTRONIC 5.2 / Valid till engine Nr. 47019 / Substitutes 153747 and 171841	-	1	Enquire
-	170133	ELECTRONIC CONTROL STATION PROGRAMMED	170133 ELECTRONIC CONTROL STATION PROGRAMMED PROGRAMMED / Valid for MOTRONIC 5.2 / Not for 456 GTA / ing5r	-	2	Enquire
-	171969	ELECTRONIC CONTROL STATION PROGRAMMED	171969 ELECTRONIC CONTROL STATION PROGRAMMED PROGRAMMED / Valid for MOTRONIC 5.2 / Valid for 456 GTA / ing5r	-	2	Enquire
-	162530	AIR FLOW METER	162530 AIR FLOW METER Valid for MOTRONIC 5.2	-	2	Enquire
-	170134	ELECTRONIC CONTROL STATION PROGRAMMED	170134 ELECTRONIC CONTROL STATION PROGRAMMED PROGRAMMED / Valid for MOTRONIC 5.2-Valid for 456 GTA / Valid for catalyzed cars / ing5r	-	2	Enquire
-	168893	ELECTRONIC CONTROL STATION PROGRAMMED	168893 ELECTRONIC CONTROL STATION PROGRAMMED PROGRAMMED / Valid for MOTRONIC 5.2 / Not for 456 GTA / ing5r	-	2	Enquire
-	170135	ELECTRONIC CONTROL STATION PROGRAMMED	170135 ELECTRONIC CONTROL STATION PROGRAMMED PROGRAMMED / Valid for MOTRONIC 5.2 / Valid for 456 GTA / ing5r	-	2	Enquire
-	168892	ELECTRONIC CONTROL STATION PROGRAMMED	168892 ELECTRONIC CONTROL STATION PROGRAMMED PROGRAMMED / Valid for MOTRONIC 5.2-Not for 456 GTA / Valid for catalyzed cars / ing5r	-	2	Enquire
1	155327	BRACKET	155327 BRACKET	-	2	Enquire
2	16043124	SCREW M8 X 14	16043124 SCREW M8 X 14	-	2	Enquire
3	127496	WASHER	127496 WASHER	-	2	Enquire
4	164922	ELECTRONIC CONTROL STATION	164922 ELECTRONIC CONTROL STATION Valid for MOTRONIC 2.7 / Not for 456 GTA	-	2	Enquire
5	154916	AIR FLOW METER	154916 AIR FLOW METER Valid for MOTRONIC 2.7	-	2	Enquire
6	161019	R.H. INJECTORS COMPLETE TUBE	161019 R.H. INJECTORS COMPLETE TUBE Valid for MOTRONIC 2.7 / Valid till engine Nr. 35662	-	1	Enquire
7	161020	L.H. INJECTORS COMPLETE TUBE	161020 L.H. INJECTORS COMPLETE TUBE Valid for MOTRONIC 2.7 / Valid till engine Nr. 35662	-	1	Enquire
8	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM	-	6	Enquire
9	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	6	Enquire
10	143891	ELECTRO INJECTOR	143891 ELECTRO INJECTOR Valid for MOTRONIC 2.7	-	12	Enquire
11	133902	O-Ring	133902 O-Ring	-	12	Enquire
12	167321	PRESSURE REGULATOR	167321 PRESSURE REGULATOR	-	2	Enquire
13	152211	SEAL RING	152211 SEAL RING	-	2	Enquire
14	118901	RUBBER PIPE	118901 RUBBER PIPE	-	2	Enquire
15	152470	LH ENGINE SIDE CONNECTION CABLE	152470 LH ENGINE SIDE CONNECTION CABLE BEARINGS CONNECTION / Valid for MOTRONIC 2.7	-	1	Enquire
16	139465	BELLOWS FOR CABLE	139465 BELLOWS FOR CABLE BUSHING	-	2	Enquire
17	168529	INJECTORS CONNECTION CABLES	168529 INJECTORS CONNECTION CABLES	-	2	Enquire
18	145545	SPRINGS	145545 SPRINGS	-	2	Enquire
19	10418801	BRACKET	10418801 BRACKET	-	2	Enquire
20	10418601	BRACKET WITH SHEATH	10418601 BRACKET WITH SHEATH	-	2	Enquire
21	10977524	SCREW	10977524 SCREW	-	2	Enquire
22	12639724	WASHER	12639724 WASHER	-	2	Enquire
23	127494	WASHER	127494 WASHER	-	2	Enquire
24	154772	BRACKET FOR CABLES FIXING	154772 BRACKET FOR CABLES FIXING	-	2	Enquire
25	159740	CLIP	159740 CLIP	-	1	Enquire
26	144763	INJECTOR RETAINING SPRING	144763 INJECTOR RETAINING SPRING	-	12	Enquire
27	172763	SCREW	172763 SCREW	-	4	Enquire
28	127494	WASHER	127494 WASHER	-	4	Enquire
