CRANKCASE - COVERS of Ferrari Ferrari 456 GT/GTA

View All

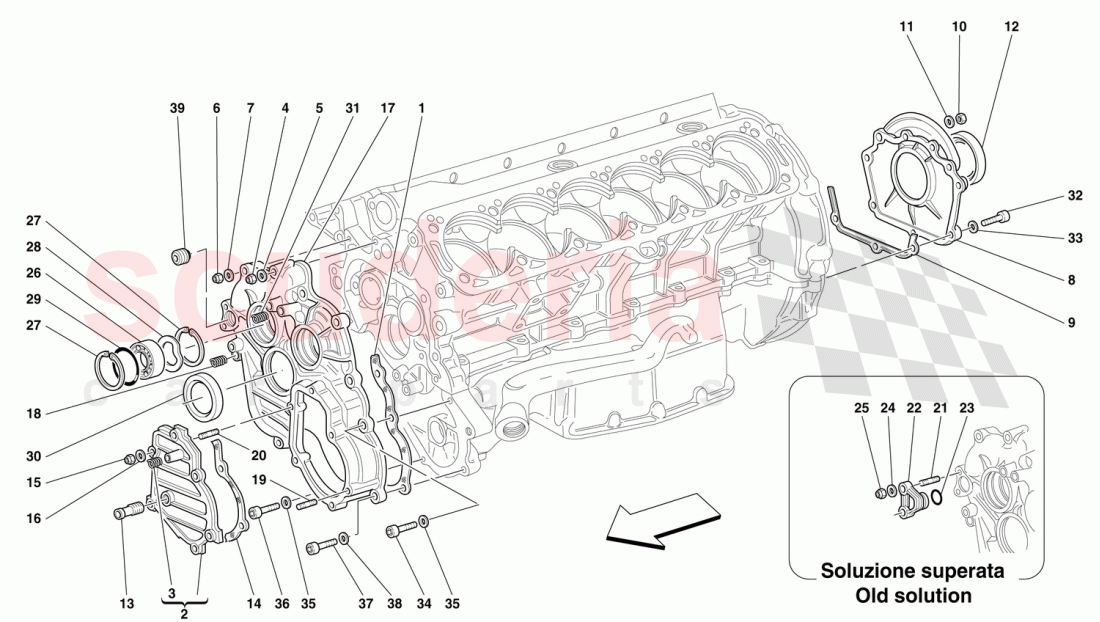

Ferrari 456 GT/GTA - CRANKCASE - COVERS

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	154527	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	154549	SMALL FRONT COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13525570	THREADED INSERT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	147985	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	141343	REAR COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	141291	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	200323	REAR MAIN OIL SEALING RING D.80-100X10	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	154525	THREADED UNION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	154543	GASKET -For 5 fixages small cover-	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	157120	FRONT COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13525570	THREADED INSERT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13541024	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13540824	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13541024	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	151159	CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	109724	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	170787	ROLER BEARING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11060576	SNAP RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	133377	Conic Washer 45-51.5 x 0.35	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	136140	O-RING D.50.52 X 1	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	134714	Copper Gasket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13525570	THREADED INSERT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	156828	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231629	SOCKET HEAD ALLEN SCREW WITH WASHER M8 X 30	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11193874	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	163528	THREADED PLUG	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	170787	ROLER BEARING	170787 ROLER BEARING Valid after stock exhaustion of 144690	-	2	Enquire
-	13525470	THREADED INSERT	13525470 THREADED INSERT Replace the 13525570	-	1	Enquire
-	157119	FRONT COVER	157119 FRONT COVER (6 fixages small cover) / With the complete cover 153212	-	1	Enquire
-	178601	COMPLETE FRONT COVER	178601 COMPLETE FRONT COVER (6 fixages small cover) / With the complete cover 178601	-	1	Enquire
-	178601	COMPLETE FRONT COVER	178601 COMPLETE FRONT COVER (6 fixages small cover) / Valid from engine Nr. 39700, for / USA from engine Nr. 38754, for / ing5r	-	1	Enquire
-	154528	FRONT COVER (5 fixages small	154528 FRONT COVER (5 fixages small cover) / Not as spare part / Replace by 157119	-	1	Enquire
-	157121	GASKET	157121 GASKET For 6 fixages small cover	-	1	Enquire
-	200323	REAR MAIN OIL SEALING RING D.80-100X10	200323 REAR MAIN OIL SEALING RING D.80-100X10 Valid after stock exhaustion of 136527	-	1	Enquire
-	157120	FRONT COVER	157120 FRONT COVER (Nr. 6 fixages) / For front cover 153212	-	1	Enquire
1	154527	GASKET	154527 GASKET	-	1	Enquire
2	154549	SMALL FRONT COVER	154549 SMALL FRONT COVER (Nr. 5 fixages)	-	1	Enquire
3	13525570	THREADED INSERT	13525570 THREADED INSERT	-	1	Enquire
4	147985	NUT	147985 NUT	-	7	Enquire
5	12601374	WASHER	12601374 WASHER From engine Nr. 36183 q.ty 4	-	7	Enquire
6	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	6	Enquire
7	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2 From engine Nr. 36183 q.ty 3	-	6	Enquire
8	141343	REAR COVER	141343 REAR COVER	-	1	Enquire
9	141291	GASKET	141291 GASKET	-	1	Enquire
10	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	7	Enquire
11	12643724	WASHER	12643724 WASHER From engine Nr. 36183 q.ty 4	-	7	Enquire
12	200323	REAR MAIN OIL SEALING RING D.80-100X10	200323 REAR MAIN OIL SEALING RING D.80-100X10	-	1	Enquire
13	154525	THREADED UNION	154525 THREADED UNION	-	1	Enquire
14	154543	GASKET -For 5 fixages small cover-	154543 GASKET -For 5 fixages small cover-	-	1	Enquire
15	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	6	Enquire
16	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	6	Enquire
17	157120	FRONT COVER	157120 FRONT COVER (6 fixages small cover) / Valid till engine Nr. 39699 / For USA till engine Nr. 38753 / For CH till engine Nr. 38733	-	1	Enquire
18	13525570	THREADED INSERT	13525570 THREADED INSERT Not as spare part replaced by 13525470	-	1	Enquire
19	13541024	STUD BOLT	13541024 STUD BOLT	-	5	Enquire
20	13540824	STUD BOLT	13540824 STUD BOLT	-	1	Enquire
21	13541024	STUD BOLT	13541024 STUD BOLT Valid till engine Nr. 39699 / For USA till engine Nr. 38753 / For CH till engine Nr. 38733	-	2	Enquire
22	151159	CAP	151159 CAP Valid till engine Nr. 39699 / For USA till engine Nr. 38753 / For CH till engine Nr. 38733	-	1	Enquire
23	109724	O-RING	109724 O-RING Valid till engine Nr. 39699 / For USA till engine Nr. 38753 / For CH till engine Nr. 38733	-	1	Enquire
24	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2 Valid till engine Nr. 39699 / For USA till engine Nr. 38753 / For CH till engine Nr. 38733	-	2	Enquire
25	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6 Valid till engine Nr. 39699 / For USA till engine Nr. 38753 / For CH till engine Nr. 38733	-	2	Enquire
26	170787	ROLER BEARING	170787 ROLER BEARING	-	2	Enquire
27	11060576	SNAP RING	11060576 SNAP RING	-	4	Enquire
28	133377	Conic Washer 45-51.5 x 0.35	133377 Conic Washer 45-51.5 x 0.35	-	2	Enquire
29	136140	O-RING D.50.52 X 1	136140 O-RING D.50.52 X 1	-	2	Enquire
30	134714	Copper Gasket	134714 Copper Gasket	-	1	Enquire
31	13525570	THREADED INSERT	13525570 THREADED INSERT	-	2	Enquire
32	231620	SCREW	231620 SCREW	-	3	Enquire
33	12601374	WASHER	12601374 WASHER Valid from engine Nr. 36183	-	3	Enquire
34	231620	SCREW	231620 SCREW	-	2	Enquire
35	12601374	WASHER	12601374 WASHER Valid from engine Nr. 36183	-	4	Enquire
36	156828	SCREW	156828 SCREW	-	2	Enquire
37	231629	SOCKET HEAD ALLEN SCREW WITH WASHER M8 X 30	231629 SOCKET HEAD ALLEN SCREW WITH WASHER M8 X 30	-	2	Enquire
38	11193874	WASHER	11193874 WASHER Valid from engine Nr. 36183	-	2	Enquire
39	163528	THREADED PLUG	163528 THREADED PLUG Valid from engine Nr. 39700, for / USA from engine Nr. 38754, for / CH from engine Nr. 38734	-	1	Enquire
