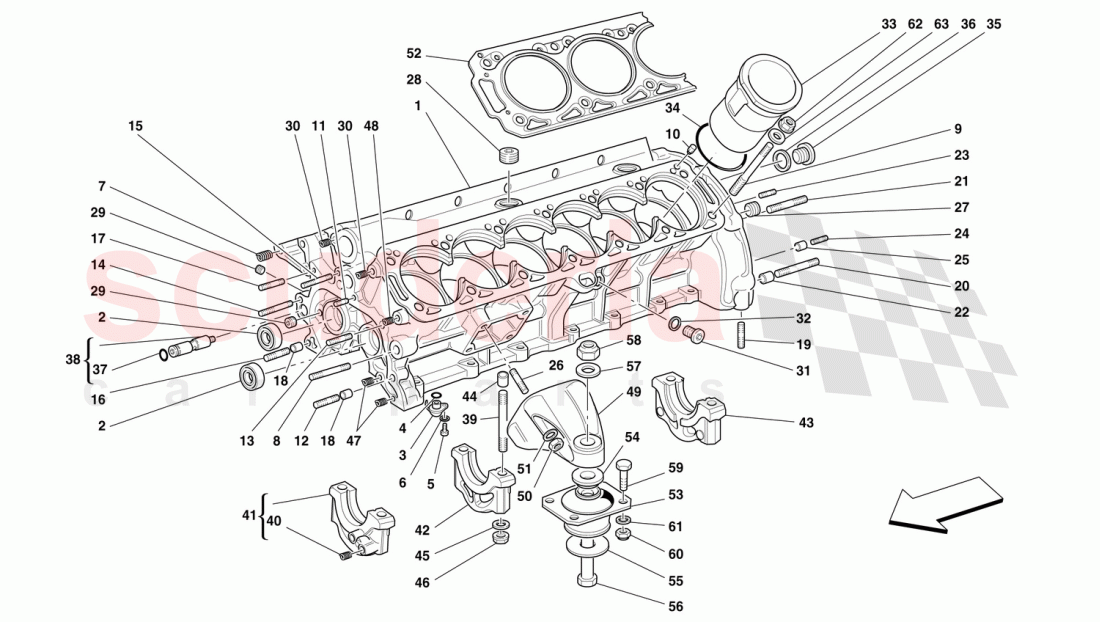

Ferrari 456 GT/GTA - CRANKCASE

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	153384	CRANKCASE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	171177	BALL RACE BEARING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	152382	NOZZLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	143856	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14303123	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11181474	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13526170	THREADED INSERT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13972234	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	140591	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	152627	DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13541224	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13543924	Stud Bolt	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13543524	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13541924	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13541724	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13543424	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13543824	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	100041	CENTERING DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13517224	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13543924	Stud Bolt	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13543824	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	102704	ALIGNMENT DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13541024	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13541224	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	103038	DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13546524	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	163528	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14325540	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10275550	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13525870	THREADED INSERT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	150731	CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10280060	WASHER COPPER D14. 20 X 1.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	140316	CYLINDER LINER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	140321	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10304640	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10264560	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	134232	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	151160	OIL PRESSURE LIMITING VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	140553	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13525770	THREADED INSERT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	140545	FRONT HAT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	140499	INTERMEDIATE HAT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	140565	REAR HAT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	145493	DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	142588	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	142590	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13525570	THREADED INSERT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13525570	THREADED INSERT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	141892	SUPPORT FOR MOTOR FIXING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	133988	HEX NUT M10 X 1.25 X 8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11190579	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	142865	HEAD GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	159423	Gearbox supporting pad	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	132268	UPPER SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	132269	LOWER SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15981634	SCREW -Valid till Ass. Nr. 16066-	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601774	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	176573	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15970634	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	133988	HEX NUT M10 X 1.25 X 8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127497	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	140664	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	140603	WASHER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	133988	HEX NUT M10 X 1.25 X 8	133988 HEX NUT M10 X 1.25 X 8 Valid after stock exhaustion of 15501121	-	8	Enquire
-	15981634	SCREW -Valid till Ass. Nr. 16066-	15981634 SCREW -Valid till Ass. Nr. 16066-	-	2	Enquire
-	166991	CYLINDER LINER	166991 CYLINDER LINER Valid for MOTRONIC 5.2	-	12	Enquire
-	171177	BALL RACE BEARING	171177 BALL RACE BEARING Replace the 144713	-	2	Enquire
-	159345	CRANKCASE	159345 CRANKCASE With the compl. crankcase 169545	-	1	Enquire
-	164849	CRANKCASE	164849 CRANKCASE With the compl. crankcase 173504	-	1	Enquire
-	173504	COMPLETE BASE PLATE	173504 COMPLETE BASE PLATE Valid for MOTRONIC 2.7 / Valid from engine Nr. 39700 / For USA from engine Nr. 38754 / For CH from engine Nr. 38734	-	1	Enquire
-	173504	COMPLETE BASE PLATE	173504 COMPLETE BASE PLATE Valid for MOTRONIC 5.2	-	1	Enquire
-	153192	COMPLETE BASE PLATE	153192 COMPLETE BASE PLATE Valid for MOTRONIC 2.7 / Valid till engine Nr. 39699 / For USA till engine Nr. 38753 / For CH till engine Nr. 38733	-	1	Enquire
1	153384	CRANKCASE	153384 CRANKCASE With the compl. crankcase 153192	-	1	Enquire
2	171177	BALL RACE BEARING	171177 BALL RACE BEARING Not as spare part replaced by 171177	-	2	Enquire
3	152382	NOZZLE	152382 NOZZLE Valid till engine Nr. 39699 / For USA till engine Nr. 38753 / For CH till engine Nr. 38733	-	12	Enquire
4	143856	O-RING	143856 O-RING Valid till engine Nr. 39699 / For USA till engine Nr. 38753 / For CH till engine Nr. 38733	-	12	Enquire
5	14303123	SCREW	14303123 SCREW Valid till engine Nr. 39699 / For USA till engine Nr. 38753 / For CH till engine Nr. 38733	-	12	Enquire
6	11181474	WASHER	11181474 WASHER Valid till engine Nr. 39699 / For USA till engine Nr. 38753 / For CH till engine Nr. 38733	-	12	Enquire
7	13526170	THREADED INSERT	13526170 THREADED INSERT	-	3	Enquire
8	13972234	STUD BOLT	13972234 STUD BOLT	-	1	Enquire
9	140591	STUD BOLT	140591 STUD BOLT	-	28	Enquire
10	152627	DOWEL	152627 DOWEL	-	4	Enquire
11	13541224	STUD BOLT	13541224 STUD BOLT	-	1	Enquire
12	13543924	Stud Bolt	13543924 Stud Bolt	-	1	Enquire
13	13543524	STUD BOLT	13543524 STUD BOLT	-	1	Enquire
14	13541924	STUD BOLT	13541924 STUD BOLT	-	1	Enquire
15	13541724	STUD BOLT	13541724 STUD BOLT	-	1	Enquire
16	13543424	STUD BOLT	13543424 STUD BOLT	-	1	Enquire
17	13543824	STUD BOLT	13543824 STUD BOLT	-	1	Enquire
18	100041	CENTERING DOWEL	100041 CENTERING DOWEL	-	2	Enquire
19	13517224	STUD BOLT	13517224 STUD BOLT	-	2	Enquire
20	13543924	Stud Bolt	13543924 Stud Bolt	-	2	Enquire
21	13543824	STUD BOLT	13543824 STUD BOLT	-	3	Enquire
22	102704	ALIGNMENT DOWEL	102704 ALIGNMENT DOWEL	-	2	Enquire
23	13541024	STUD BOLT	13541024 STUD BOLT	-	2	Enquire
24	13541224	STUD BOLT	13541224 STUD BOLT	-	2	Enquire
25	103038	DOWEL	103038 DOWEL	-	2	Enquire
26	13546524	STUD BOLT	13546524 STUD BOLT	-	8	Enquire
27	163528	THREADED PLUG	163528 THREADED PLUG	-	2	Enquire
28	14325540	THREADED PLUG	14325540 THREADED PLUG	-	2	Enquire
29	10275550	THREADED PLUG	10275550 THREADED PLUG Valid till engine Nr. 39699 / For USA till engine Nr. 38753 / For CH till engine Nr. 38733	-	3	Enquire
30	13525870	THREADED INSERT	13525870 THREADED INSERT	-	2	Enquire
31	150731	CAP	150731 CAP	-	2	Enquire
32	10280060	WASHER COPPER D14. 20 X 1.5	10280060 WASHER COPPER D14. 20 X 1.5	-	2	Enquire
33	140316	CYLINDER LINER	140316 CYLINDER LINER Valid for MOTRONIC 2.7	-	12	Enquire
34	140321	GASKET	140321 GASKET	-	12	Enquire
35	10304640	THREADED PLUG	10304640 THREADED PLUG	-	1	Enquire
36	10264560	GASKET	10264560 GASKET	-	1	Enquire
37	134232	O-RING	134232 O-RING Valid till engine Nr. 39699 / For USA till engine Nr. 38753 / For CH till engine Nr. 38733	-	1	Enquire
38	151160	OIL PRESSURE LIMITING VALVE	151160 OIL PRESSURE LIMITING VALVE Valid till engine Nr. 39699 / For USA till engine Nr. 38753 / For CH till engine Nr. 38733	-	1	Enquire
39	140553	STUD	140553 STUD	-	14	Enquire
40	13525770	THREADED INSERT	13525770 THREADED INSERT	-	2	Enquire
41	140545	FRONT HAT	140545 FRONT HAT With complete crankase	-	1	Enquire
42	140499	INTERMEDIATE HAT	140499 INTERMEDIATE HAT With complete crankase	-	5	Enquire
43	140565	REAR HAT	140565 REAR HAT With complete crankase	-	1	Enquire
44	145493	DOWEL	145493 DOWEL	-	14	Enquire
45	142588	WASHER	142588 WASHER	-	14	Enquire
46	142590	NUT	142590 NUT	-	14	Enquire
47	13525570	THREADED INSERT	13525570 THREADED INSERT	-	2	Enquire
48	13525570	THREADED INSERT	13525570 THREADED INSERT	-	1	Enquire
49	141892	SUPPORT FOR MOTOR FIXING	141892 SUPPORT FOR MOTOR FIXING	-	2	Enquire
50	133988	HEX NUT M10 X 1.25 X 8	133988 HEX NUT M10 X 1.25 X 8	-	8	Enquire
51	11190579	WASHER	11190579 WASHER	-	8	Enquire
52	142865	HEAD GASKET	142865 HEAD GASKET	-	2	Enquire
53	159423	Gearbox supporting pad	159423 Gearbox supporting pad	-	2	Enquire
54	132268	UPPER SPACER	132268 UPPER SPACER	-	2	Enquire
55	132269	LOWER SPACER	132269 LOWER SPACER	-	2	Enquire
56	15981634	SCREW -Valid till Ass. Nr. 16066-	15981634 SCREW -Valid till Ass. Nr. 16066-	-	2	Enquire
57	12601774	WASHER	12601774 WASHER	-	2	Enquire
58	176573	NUT	176573 NUT	-	2	Enquire
59	15970634	SCREW	15970634 SCREW	-	8	Enquire
60	133988	HEX NUT M10 X 1.25 X 8	133988 HEX NUT M10 X 1.25 X 8	-	8	Enquire
61	127497	WASHER	127497 WASHER	-	8	Enquire
62	140664	NUT	140664 NUT	-	28	Enquire
63	140603	WASHER	140603 WASHER	-	28	Enquire
