Name: SECONDARY AIR PUMP
Rating: 4.7 (1 reviews)

SECONDARY AIR PUMP of Ferrari Ferrari 456 GT/GTA

View All

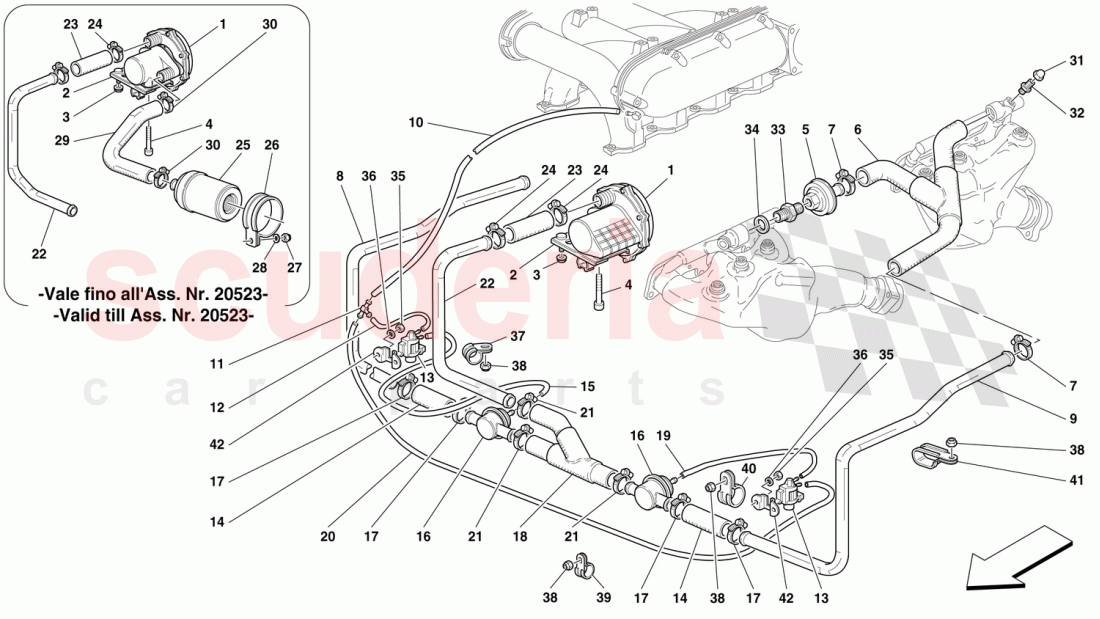

Ferrari 456 GT/GTA - SECONDARY AIR PUMP

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	148049	COMPLETE ELECTRIC AIR PUMP	$577.64	To Order

Photo	Part No	Description	Price (each)	Stock
	149111	Air pump fixing bracket	$32.08	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	14306724	SCREW	$0.92	To Order

Photo	Part No	Description	Price (each)	Stock
	148494	SECONDARY AIR VALVE	$663.96	To Order

Photo	Part No	Description	Price (each)	Stock
	154873	CONNECTION PIPE	$342.64	To Order

Photo	Part No	Description	Price (each)	Stock
	262111	JUBILEE CLAMP	$1.60	To Order

Photo	Part No	Description	Price (each)	Stock
	155103	R.H. PIPE	$87.43	To Order

Photo	Part No	Description	Price (each)	Stock
	155104	L.H. PIPE	$107.49	To Order

Photo	Part No	Description	Price (each)	Stock
	122762	PIPE FROM UNION TO PLENUM CHAMBER	$11.82	To Order

Photo	Part No	Description	Price (each)	Stock
	121793	3-WAY UNION	$0.63	To Order

Photo	Part No	Description	Price (each)	Stock
	122759	RUBBER PIPE	$6.42	To Order

Photo	Part No	Description	Price (each)	Stock
	159177	SOLENOID VALVE	$208.58	To Order

Photo	Part No	Description	Price (each)	Stock
	165446	HOSE FROM CUT-OFF VALVE	$32.08	To Order

Photo	Part No	Description	Price (each)	Stock
	122126	RUBBER PIPE	$10.89	To Order

Photo	Part No	Description	Price (each)	Stock
	147390	CUT-OFF VALVE	$244.30	To Order

Photo	Part No	Description	Price (each)	Stock
	13000490	Screw Collar	$0.83	To Order

Photo	Part No	Description	Price (each)	Stock
	154871	CONNECTION SLEEVE	$243.82	To Order

Photo	Part No	Description	Price (each)	Stock
	122126	RUBBER PIPE	$10.89	To Order

Photo	Part No	Description	Price (each)	Stock
	117170	PIPE FROM UNION TO VACUUM TANK	$10.31	To Order

Photo	Part No	Description	Price (each)	Stock
	65424800	SCREW COLLAR	$4.18	To Order

Photo	Part No	Description	Price (each)	Stock
	179552	PIPE	$138.58	To Order

Photo	Part No	Description	Price (each)	Stock
	155116	SLEEVE	$19.24	To Order

Photo	Part No	Description	Price (each)	Stock
	13000490	Screw Collar	$0.83	To Order

Photo	Part No	Description	Price (each)	Stock
	70000967	AIR FILTER	$91.35	To Order

Photo	Part No	Description	Price (each)	Stock
	126353	BRACKET WITH SHEATH	$29.77	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	155874	PIPE FROM AIR FILTER TO PUMP	$450.70	To Order

Photo	Part No	Description	Price (each)	Stock
	65424800	SCREW COLLAR	$4.18	To Order

Photo	Part No	Description	Price (each)	Stock
	150595	CAP NUT	$0.89	To Order

Photo	Part No	Description	Price (each)	Stock
	152630	THREADED CONNECTOR	$52.82	To Order

Photo	Part No	Description	Price (each)	Stock
	152631	THREADED UNION	$50.15	To Order

Photo	Part No	Description	Price (each)	Stock
	10257460	GASKET	$0.28	To Order

Photo	Part No	Description	Price (each)	Stock
	319201	FUEL FILLER PIPE ASSEMBLY	$770.19	To Order

Photo	Part No	Description	Price (each)	Stock
	14496324	WASHER	$3.23	To Order

Photo	Part No	Description	Price (each)	Stock
	291225	P clip Bracket With Sheath	$5.12	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	10441290	BRACKET WITH SHEATH	$0.57	To Order

Photo	Part No	Description	Price (each)	Stock
	291225	P clip Bracket With Sheath	$5.12	To Order

Photo	Part No	Description	Price (each)	Stock
	61712500	BRACKET WITH SHEATH	$1.77	To Order

Photo	Part No	Description	Price (each)	Stock
	145472	SOLENOID VALVE FIXING PLATE	$4.64	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
-	155105	PIPE	155105 PIPE Valid from Ass. Nr. 20524	$176.49	1
-	159177	SOLENOID VALVE	159177 SOLENOID VALVE Valid after stock exhaustion of 154384	$208.58 MSRP: ~~265.12~~ (21.3% off)	2
-	165903	COMPLETE ELECTRIC AIR PUMP	165903 COMPLETE ELECTRIC AIR PUMP Valid from Ass. Nr. 20524	$652.89 MSRP: ~~1,797.17~~ (63.7% off)	1
1	148049	COMPLETE ELECTRIC AIR PUMP	148049 COMPLETE ELECTRIC AIR PUMP Valid till Ass. Nr. 20523	$577.64	1
2	149111	Air pump fixing bracket	149111 Air pump fixing bracket	$32.08	1
3	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	$1.51	3
4	14306724	SCREW	14306724 SCREW	$0.92	1
5	148494	SECONDARY AIR VALVE	148494 SECONDARY AIR VALVE	$663.96 MSRP: ~~1,014.20~~ (34.5% off)	4
6	154873	CONNECTION PIPE	154873 CONNECTION PIPE	$342.64	2
7	262111	JUBILEE CLAMP	262111 JUBILEE CLAMP	$1.60	6
8	155103	R.H. PIPE	155103 R.H. PIPE	$87.43	1
9	155104	L.H. PIPE	155104 L.H. PIPE	$107.49	1
10	122762	PIPE FROM UNION TO PLENUM CHAMBER	122762 PIPE FROM UNION TO PLENUM CHAMBER CHAMBER	$11.82	1
11	121793	3-WAY UNION	121793 3-WAY UNION	$0.63 MSRP: ~~2.45~~ (74.3% off)	1
12	122759	RUBBER PIPE	122759 RUBBER PIPE SOLENOID VALVE	$6.42	1
13	159177	SOLENOID VALVE	159177 SOLENOID VALVE	$208.58 MSRP: ~~265.12~~ (21.3% off)	2
14	165446	HOSE FROM CUT-OFF VALVE	165446 HOSE FROM CUT-OFF VALVE	$32.08 MSRP: ~~64.52~~ (50.3% off)	2
15	122126	RUBBER PIPE	122126 RUBBER PIPE SOLENOID VALVE	$10.89	1
16	147390	CUT-OFF VALVE	147390 CUT-OFF VALVE	$244.30 MSRP: ~~418.79~~ (41.7% off)	2
17	13000490	Screw Collar	13000490 Screw Collar	$0.83 MSRP: ~~1.90~~ (56.3% off)	4
18	154871	CONNECTION SLEEVE	154871 CONNECTION SLEEVE	$243.82	1
19	122126	RUBBER PIPE	122126 RUBBER PIPE SOLENOID VALVE	$10.89	1
20	117170	PIPE FROM UNION TO VACUUM TANK	117170 PIPE FROM UNION TO VACUUM TANK SOLENOID VALVE	$10.31	1
21	65424800	SCREW COLLAR	65424800 SCREW COLLAR	$4.18	3
22	179552	PIPE	179552 PIPE Valid till Ass. Nr. 20523	$138.58	1
23	155116	SLEEVE	155116 SLEEVE	$19.24	1
24	13000490	Screw Collar	13000490 Screw Collar	$0.83 MSRP: ~~1.90~~ (56.3% off)	2
25	70000967	AIR FILTER	70000967 AIR FILTER Valid till Ass. Nr. 20523	$91.35	1
26	126353	BRACKET WITH SHEATH	126353 BRACKET WITH SHEATH Valid till Ass. Nr. 20523	$29.77 MSRP: ~~52.02~~ (42.8% off)	1
27	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6 Valid till Ass. Nr. 20523	$1.51	1
28	11197774	WASHER	11197774 WASHER Valid till Ass. Nr. 20523	$0.06 MSRP: ~~0.30~~ (80% off)	1
29	155874	PIPE FROM AIR FILTER TO PUMP	155874 PIPE FROM AIR FILTER TO PUMP Valid till Ass. Nr. 20523	$450.70	1
30	65424800	SCREW COLLAR	65424800 SCREW COLLAR Valid till Ass. Nr. 20523	$4.18	2
31	150595	CAP NUT	150595 CAP NUT	$0.89 MSRP: ~~1.50~~ (40.7% off)	4
32	152630	THREADED CONNECTOR	152630 THREADED CONNECTOR	$52.82	4
33	152631	THREADED UNION	152631 THREADED UNION	$50.15	4
34	10257460	GASKET	10257460 GASKET	$0.28 MSRP: ~~1.25~~ (77.6% off)	4
35	319201	FUEL FILLER PIPE ASSEMBLY	319201 FUEL FILLER PIPE ASSEMBLY	$770.19	4
36	14496324	WASHER	14496324 WASHER	$3.23	4
37	291225	P clip Bracket With Sheath	291225 P clip Bracket With Sheath	$5.12	2
38	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	$1.51	5
39	10441290	BRACKET WITH SHEATH	10441290 BRACKET WITH SHEATH	$0.57 MSRP: ~~1.68~~ (66.1% off)	1
40	291225	P clip Bracket With Sheath	291225 P clip Bracket With Sheath	$5.12	1
41	61712500	BRACKET WITH SHEATH	61712500 BRACKET WITH SHEATH	$1.77	1
42	145472	SOLENOID VALVE FIXING PLATE	145472 SOLENOID VALVE FIXING PLATE PLATE	$4.64	2
