TIMING - CONTROLS of Ferrari Ferrari 456 GT/GTA

View All

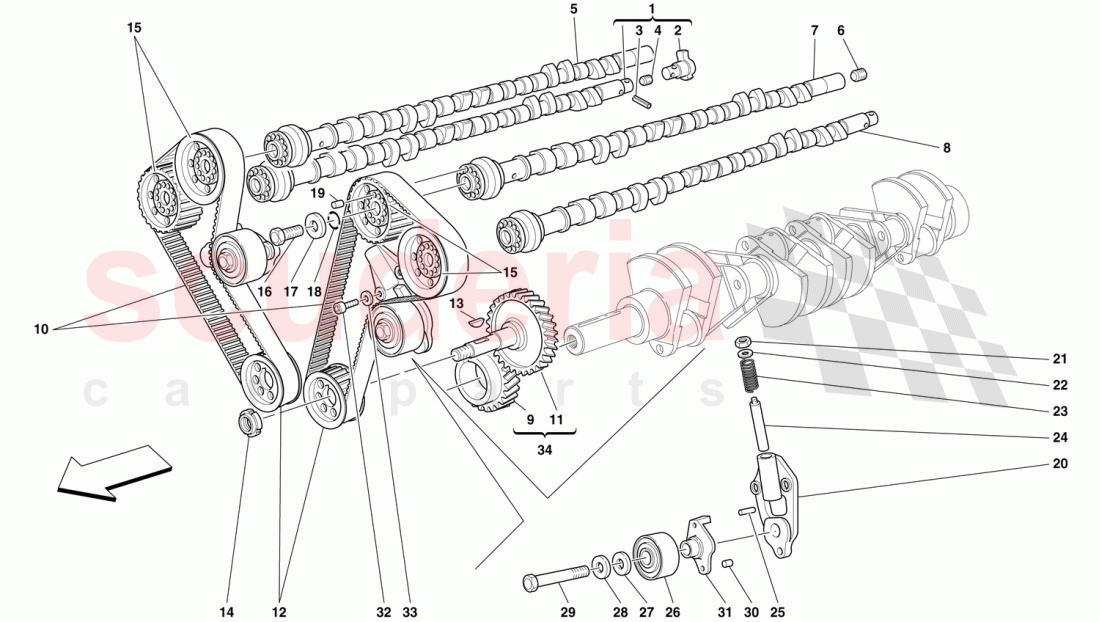

Ferrari 456 GT/GTA - TIMING - CONTROLS

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	151516	COMPLETE RH EXHAUST CAM SHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	151194	COUPLING ON THE CAM SHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	149859	DOWEL BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10158501	PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	155147	COMPLETE RH INDUCTION DISTRIBUTION SHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10269550	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	155149	COMPLETE LH INDUCTION DISTRIBUTION SHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	151514	COMPLETE LH EXHAUST CAM SHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	70000876	PINION KIT GEAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	187744	Timing Belt	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	70000876	PINION KIT GEAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	149928	TIMING GEAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10206320	DISC TAB	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	104919	RING LOCK NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	159382	DRIVEN GEAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	146540	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	114802	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	114808	O-Ring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	114803	DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	149346	BELT TENSIONER BODY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	121558	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	121249	SPRING FOR BELT TENSIONER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	121047	PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13933570	PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	70000933	Cam Bearing Kit	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	111460	SHIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	102824	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	149461	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	125717	CENTRING DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	121045	Belt stretcher support plate	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14306424	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11193874	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	70000876	PINION KIT GEAR	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	171060	PLATE	171060 PLATE Valid from Ass. Nr. 28614	-	2	Enquire
-	171057	Cam Belt Tensioner Pulley ARRIVING SOON	171057 Cam Belt Tensioner Pulley Valid from Ass. Nr. 28614 ARRIVING SOON	-	2	Enquire
-	159382	DRIVEN GEAR	159382 DRIVEN GEAR Valid from engine Nr. 36010	-	4	Enquire
-	163231	COMPLETE LH EXHAUST CAM SHAFT	163231 COMPLETE LH EXHAUST CAM SHAFT CAM SHAFT / Valid for MOTRONIC 5.2	-	1	Enquire
-	171450	COUPLING ON THE CAM SHAFT SHAFT	171450 COUPLING ON THE CAM SHAFT SHAFT SHAFT / Valid for MOTRONIC 5.2 / Valid from engine Nr. 42241	-	1	Enquire
-	10158501	PLUG	10158501 PLUG Valid for MOTRONIC 5.2 / Valid till engine Nr. 42240	-	2	Enquire
-	171451	COMPLETE RH EXHAUST CAM SHAFT CAM SHAFT	171451 COMPLETE RH EXHAUST CAM SHAFT CAM SHAFT CAM SHAFT / Valid for MOTRONIC 5.2 / Valid till engine Nr. 42240	-	1	Enquire
-	171451	COMPLETE RH EXHAUST CAM SHAFT CAM SHAFT	171451 COMPLETE RH EXHAUST CAM SHAFT CAM SHAFT CAM SHAFT / Valid for MOTRONIC 5.2 / Valid from engine Nr. 42241	-	1	Enquire
-	165790	COUPLING ON THE CAM SHAFT SHAFT	165790 COUPLING ON THE CAM SHAFT SHAFT SHAFT / Valid for MOTRONIC 5.2 / Valid till engine Nr. 42240	-	1	Enquire
1	151516	COMPLETE RH EXHAUST CAM SHAFT	151516 COMPLETE RH EXHAUST CAM SHAFT CAM SHAFT / Valid for MOTRONIC 2.7	-	1	Enquire
2	151194	COUPLING ON THE CAM SHAFT	151194 COUPLING ON THE CAM SHAFT SHAFT / Valid for MOTRONIC 2.7	-	2	Enquire
3	149859	DOWEL BOLT	149859 DOWEL BOLT	-	4	Enquire
4	10158501	PLUG	10158501 PLUG Valid for MOTRONIC 2.7	-	2	Enquire
5	155147	COMPLETE RH INDUCTION DISTRIBUTION SHAFT	155147 COMPLETE RH INDUCTION DISTRIBUTION SHAFT DISTRIBUTION SHAFT	-	1	Enquire
6	10269550	THREADED PLUG	10269550 THREADED PLUG	-	2	Enquire
7	155149	COMPLETE LH INDUCTION DISTRIBUTION SHAFT	155149 COMPLETE LH INDUCTION DISTRIBUTION SHAFT DISTRIBUTION SHAFT	-	1	Enquire
8	151514	COMPLETE LH EXHAUST CAM SHAFT	151514 COMPLETE LH EXHAUST CAM SHAFT CAM SHAFT / Valid for MOTRONIC 2.7	-	1	Enquire
9	70000876	PINION KIT GEAR	70000876 PINION KIT GEAR Valid till engine Nr. 42087 / Not as spare part replaced by 70000876	-	1	Enquire
10	187744	Timing Belt	187744 Timing Belt	-	2	Enquire
11	70000876	PINION KIT GEAR	70000876 PINION KIT GEAR Valid till engine Nr. 42087 / Not as spare part replaced by 70000876	-	2	Enquire
12	149928	TIMING GEAR	149928 TIMING GEAR	-	2	Enquire
13	10206320	DISC TAB	10206320 DISC TAB	-	2	Enquire
14	104919	RING LOCK NUT	104919 RING LOCK NUT	-	2	Enquire
15	159382	DRIVEN GEAR	159382 DRIVEN GEAR Valid till engine Nr. 36009	-	4	Enquire
16	146540	SCREW	146540 SCREW	-	4	Enquire
17	114802	WASHER	114802 WASHER	-	4	Enquire
18	114808	O-Ring	114808 O-Ring	-	4	Enquire
19	114803	DOWEL	114803 DOWEL	-	4	Enquire
20	149346	BELT TENSIONER BODY	149346 BELT TENSIONER BODY	-	2	Enquire
21	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	2	Enquire
22	121558	WASHER	121558 WASHER	-	2	Enquire
23	121249	SPRING FOR BELT TENSIONER	121249 SPRING FOR BELT TENSIONER	-	2	Enquire
24	121047	PIN	121047 PIN	-	2	Enquire
25	13933570	PIN	13933570 PIN	-	2	Enquire
26	70000933	Cam Bearing Kit	70000933 Cam Bearing Kit Valid till Ass. Nr. 28613	-	2	Enquire
27	111460	SHIM	111460 SHIM	-	2	Enquire
28	102824	WASHER	102824 WASHER	-	2	Enquire
29	149461	SCREW	149461 SCREW	-	2	Enquire
30	125717	CENTRING DOWEL	125717 CENTRING DOWEL	-	2	Enquire
31	121045	Belt stretcher support plate	121045 Belt stretcher support plate Valid till Ass. Nr. 28613	-	2	Enquire
32	14306424	SCREW	14306424 SCREW	-	4	Enquire
33	11193874	WASHER	11193874 WASHER	-	4	Enquire
34	70000876	PINION KIT GEAR	70000876 PINION KIT GEAR Substitutes 154297 and 154298	-	1	Enquire
