Rear Suspension - Shock Absorber and Brake Disc - Valid Till Car Ass. Nr. 8798 of Ferrari Ferrari 348 TS (1993)

View All

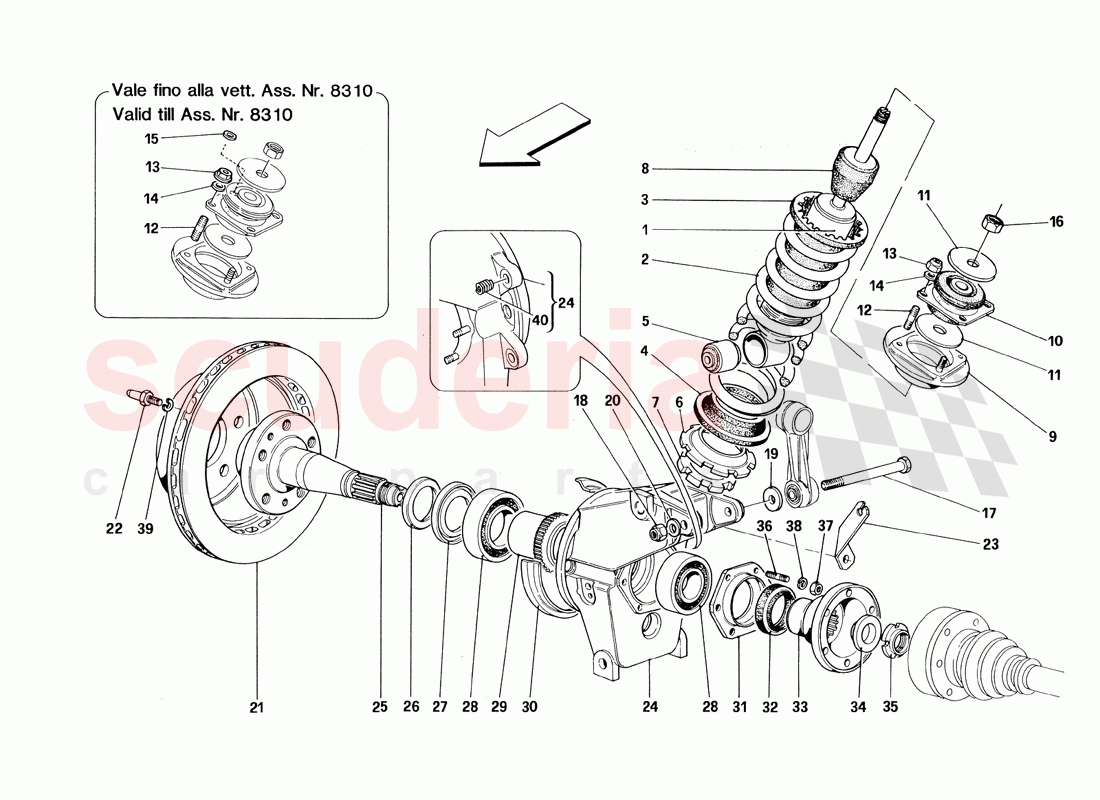

Ferrari 348 TS (1993) - Rear Suspension - Shock Absorber and Brake Disc - Valid Till Car Ass. Nr. 8798

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	163340	REAR SHCOK ABSORBER	Enquire	To Order
	146291	REAR SHOCK ABSORBER	Enquire	To Order
	146291	REAR SHOCK ABSORBER	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	143390	SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	113582	UPPER SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	113581	LOWER SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	130516	SHOCK ABSORBER MOUNTING BUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	155086	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	141860	RING NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	139448	PAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	151547	SPRING RETAINING CUP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	386600109	Hyperblock with 4 -	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	114815	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13543524	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14054511	NUT	Enquire	To Order
	104030	NYLOC NUT M8 X 1.25 X 9.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12628904	WASHER	Enquire	To Order
	12638524	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

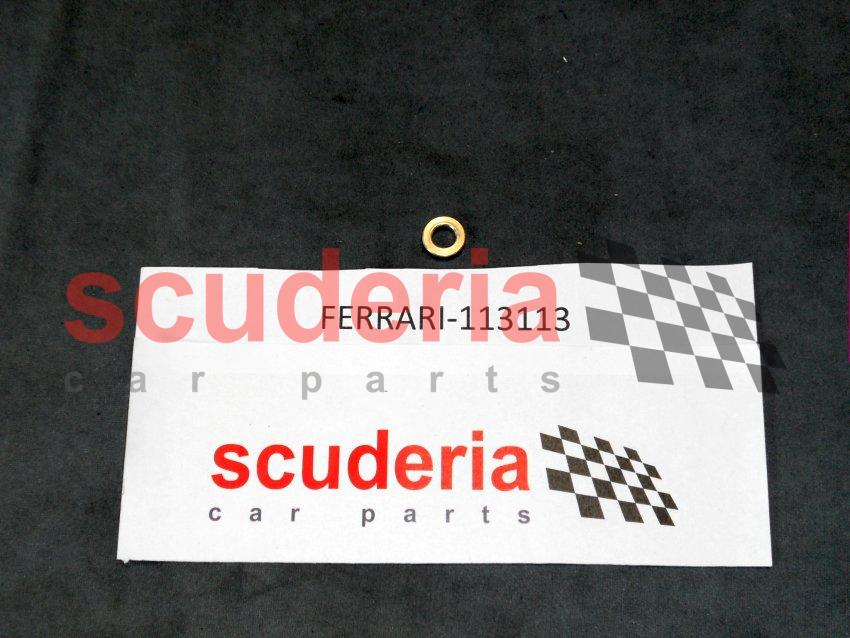

	113113	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	137826	NUT	Enquire	To Order
	148020	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	105901	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	148020	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	132199	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10520024	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	160052	REAR BRAKE DISC	Enquire	To Order
	160052	REAR BRAKE DISC	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	104370	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	140675	L.H. BRACKET	Enquire	To Order
	140674	R.H. BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	151237	LH HUB HOLDER	Enquire	To Order
	138518	LH. HUB HOLDER	Enquire	To Order
	138517	RH HUB HOLDER	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	145559	SHAFT WITH HUB	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	118190	SPACER	Enquire	To Order
	144907	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	110579	CENTRIFUGALRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	144807	BEARING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	145429	SPACER WITH TOOTHED WHEEL	Enquire	To Order
	145573	TOOTHED WHEEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	103117	MUDGUARDS COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	131770	BEARING RETAINIG FLANGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	131768	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	145362	FLANGE FOR AXLE COUPLING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	145353	BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	102289	RING NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13543324	Stud -Valid for gearbox	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14040711	NUT M8 FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127496	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127496	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	133771	THREADED INSERT	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	163340	REAR SHCOK ABSORBER	163340 REAR SHCOK ABSORBER (Racing replace in pair)	-	2	Enquire
1	146291	REAR SHOCK ABSORBER	146291 REAR SHOCK ABSORBER Sold in pair Valid for nut 102825	-	2	Enquire
1	146291	REAR SHOCK ABSORBER	146291 REAR SHOCK ABSORBER Sold in pair Valid for nut 137826 Not for USA SPYDER; for TB/TS I and D only valid till car Ass. Nr. 13559; for all other versions valid till car Ass. Nr. 13920	-	2	Enquire
1	146291	REAR SHOCK ABSORBER	146291 REAR SHOCK ABSORBER Sold in pair Valid for nut 137826	-	2	Enquire
2	143390	SPRING	143390 SPRING Sold in pair	-	2	Enquire
3	113582	UPPER SPACER	113582 UPPER SPACER	-	2	Enquire
4	113581	LOWER SPACER	113581 LOWER SPACER	-	2	Enquire
5	130516	SHOCK ABSORBER MOUNTING BUSH	130516 SHOCK ABSORBER MOUNTING BUSH	-	2	Enquire
6	155086	SPACER	155086 SPACER	-	2	Enquire
7	141860	RING NUT	141860 RING NUT	-	2	Enquire
8	139448	PAD	139448 PAD	-	2	Enquire
9	151547	SPRING RETAINING CUP	151547 SPRING RETAINING CUP	-	2	Enquire
10	386600109	Hyperblock with 4 -	386600109 Hyperblock with 4 -	-	2	Enquire
11	114815	WASHER	114815 WASHER	-	4	Enquire
12	13543524	STUD BOLT	13543524 STUD BOLT	-	8	Enquire
13	14054511	NUT	14054511 NUT Valid till car Ass. Nr. 8310	-	8	Enquire
13	104030	NYLOC NUT M8 X 1.25 X 9.5	104030 NYLOC NUT M8 X 1.25 X 9.5 Valid from car Ass. Nr. 8311	-	8	Enquire
14	12628904	WASHER	12628904 WASHER Valid till car Ass. Nr. 8310	-	6	Enquire
14	12638524	WASHER	12638524 WASHER Valid from car Ass. Nr. 8311	-	8	Enquire
15	113113	WASHER	113113 WASHER Valid till car Ass. Nr. 8310	-	2	Enquire
16	137826	NUT	137826 NUT Valid for shock absorber 146291	-	2	Enquire
16	148020	NUT	148020 NUT Valid for shock absorber 141858	-	2	Enquire
17	105901	SCREW	105901 SCREW	-	2	Enquire
18	148020	NUT	148020 NUT	-	2	Enquire
19	132199	WASHER	132199 WASHER	-	2	Enquire
20	10520024	WASHER	10520024 WASHER	-	2	Enquire
21	160052	REAR BRAKE DISC	160052 REAR BRAKE DISC use on exhaustion of 131868	-	2	Enquire
21	160052	REAR BRAKE DISC	160052 REAR BRAKE DISC use 160052	-	2	Enquire
22	104370	SCREW	104370 SCREW	-	4	Enquire
23	140675	L.H. BRACKET	140675 L.H. BRACKET	-	1	Enquire
23	140674	R.H. BRACKET	140674 R.H. BRACKET	-	1	Enquire
24	151237	LH HUB HOLDER	151237 LH HUB HOLDER Valid from car Ass. Nr. 6501-	-	1	Enquire
24	138518	LH. HUB HOLDER	138518 LH. HUB HOLDER Valid till car Ass. Nr.6500-	-	1	Enquire
24	138517	RH HUB HOLDER	138517 RH HUB HOLDER Valid till car Ass. Nr. 6500-	-	1	Enquire
24	151236	RH HUB HOLDER	151236 RH HUB HOLDER Valid from car Ass. Nr. 6501-	-	1	Enquire
25	145559	SHAFT WITH HUB	145559 SHAFT WITH HUB Valid from car Ass. Nr. 1524	-	2	Enquire
26	118190	SPACER	118190 SPACER Valid from car Ass. Nr. 1524	-	2	Enquire
26	144907	SPACER	144907 SPACER Valid till car Ass. Nr. 1523 Not as spare part Replaced by 118190+145559+110579+145429	-	2	Enquire
27	110579	CENTRIFUGALRING	110579 CENTRIFUGALRING Valid from car Ass. Nr. 1524	-	2	Enquire
28	144807	BEARING	144807 BEARING	-	4	Enquire
29	145429	SPACER WITH TOOTHED WHEEL	145429 SPACER WITH TOOTHED WHEEL Valid from car Ass. Nr. 1524	-	2	Enquire
29	145573	TOOTHED WHEEL	145573 TOOTHED WHEEL Valid till car Ass. Nr. 1523 Not as spare part Replaced by 145429+145559+118190+110579	-	2	Enquire
30	103117	MUDGUARDS COVER	103117 MUDGUARDS COVER	-	2	Enquire
31	131770	BEARING RETAINIG FLANGE	131770 BEARING RETAINIG FLANGE	-	2	Enquire
32	131768	GASKET	131768 GASKET	-	2	Enquire
33	145362	FLANGE FOR AXLE COUPLING	145362 FLANGE FOR AXLE COUPLING	-	2	Enquire
34	145353	BUSHING	145353 BUSHING	-	2	Enquire
35	102289	RING NUT	102289 RING NUT	-	2	Enquire
36	13543324	Stud -Valid for gearbox	13543324 Stud -Valid for gearbox	-	12	Enquire
37	14040711	NUT M8 FLANGED	14040711 NUT M8 FLANGED	-	12	Enquire
38	127496	WASHER	127496 WASHER	-	12	Enquire
39	127496	WASHER	127496 WASHER	-	4	Enquire
40	133771	THREADED INSERT	133771 THREADED INSERT	-	4	Enquire
