Name: Air Injection Device - Motronic 2.7
Rating: 4.6 (1 reviews)

Air Injection Device - Motronic 2.7 of Ferrari Ferrari 348 TS (1993)

View All

Ferrari 348 TS (1993) - Air Injection Device - Motronic 2.7

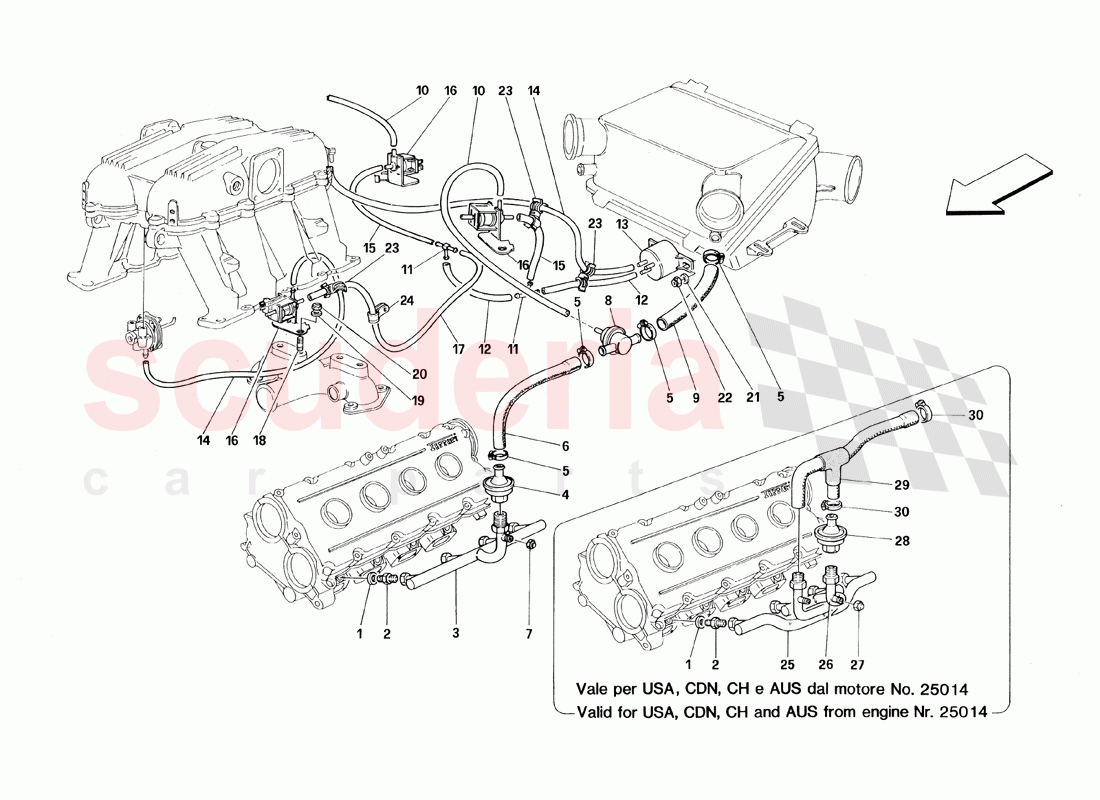

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	10261460	COPPER WASHER 16 X 24 X 1.5	$0.36	To Order

Photo	Part No	Description	Price (each)	Stock
	121718	UNION	$88.56	To Order

Photo	Part No	Description	Price (each)	Stock
	141195	PIPE FOR AIR INLET	$273.62	To Order

Photo	Part No	Description	Price (each)	Stock
	148494	SECONDARY AIR VALVE	$663.96	To Order

Photo	Part No	Description	Price (each)	Stock
	13000490	Screw Collar	$0.83	To Order

Photo	Part No	Description	Price (each)	Stock
	133962	AIR INLET SLEEVE	$347.36	To Order

Photo	Part No	Description	Price (each)	Stock
	150595	CAP NUT	$0.89	To Order

Photo	Part No	Description	Price (each)	Stock
	147390	CUT-OFF VALVE	$244.30	To Order

Photo	Part No	Description	Price (each)	Stock
	116785	PIPE FROM CUT-OFF TO AIR INLET	$5.80	To Order

Photo	Part No	Description	Price (each)	Stock
	115676	PIPE FROM CUT-OFF TO SOLENOID VALVE	$15.54	To Order

Photo	Part No	Description	Price (each)	Stock
	121793	3-WAY UNION	$0.63	To Order

Photo	Part No	Description	Price (each)	Stock
	115147	RUBBER PIPE	$5.28	To Order

Photo	Part No	Description	Price (each)	Stock
	140175	DEPRESSION TANK	$41.31	To Order

Photo	Part No	Description	Price (each)	Stock
	115676	PIPE FROM CUT-OFF TO SOLENOID VALVE	$15.54	To Order

Photo	Part No	Description	Price (each)	Stock
	141235	RUBBER PIPE	$10.73	To Order

Photo	Part No	Description	Price (each)	Stock
	111704	SOLENOID VALVE	$193.09	To Order

Photo	Part No	Description	Price (each)	Stock
	289103	RUBBER PIPE	$13.31	To Order

Photo	Part No	Description	Price (each)	Stock
	11500024	Stud for cover of flywheel	$0.78	To Order

Photo	Part No	Description	Price (each)	Stock
	10519424	WASHER	$0.02	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	14499370	Washer	$0.28	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	145702	CLIP	$0.31	To Order

Photo	Part No	Description	Price (each)	Stock
	10418301	BRACKET	$0.49	To Order

Photo	Part No	Description	Price (each)	Stock
	147180	LH FRONT-REAR AIR INLET PIPE	Enquire	To Order
	147178	RH FRONT-REAR AIR INLET PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	147181	L.H. CENTRAL AIR INLET PIPE	Enquire	To Order
	147179	R.H. CENTRAL AIR INLET PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	150595	CAP NUT	$0.89	To Order

Photo	Part No	Description	Price (each)	Stock
	148494	SECONDARY AIR VALVE	$663.96	To Order

Photo	Part No	Description	Price (each)	Stock
	147360	AIR INLET SLEEVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13000490	Screw Collar	$0.83	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	10261460	COPPER WASHER 16 X 24 X 1.5	10261460 COPPER WASHER 16 X 24 X 1.5	$0.36 MSRP: ~~1.00~~ (64% off)	8
2	121718	UNION	121718 UNION	$88.56 MSRP: ~~117.00~~ (24.3% off)	8
3	141195	PIPE FOR AIR INLET	141195 PIPE FOR AIR INLET	$273.62	2
4	148494	SECONDARY AIR VALVE	148494 SECONDARY AIR VALVE	$663.96 MSRP: ~~1,014.20~~ (34.5% off)	2
5	13000490	Screw Collar	13000490 Screw Collar	$0.83 MSRP: ~~1.90~~ (56.3% off)	8
6	133962	AIR INLET SLEEVE	133962 AIR INLET SLEEVE	$347.36	2
7	150595	CAP NUT	150595 CAP NUT	$0.89 MSRP: ~~1.50~~ (40.7% off)	2
8	147390	CUT-OFF VALVE	147390 CUT-OFF VALVE	$244.30 MSRP: ~~418.79~~ (41.7% off)	2
9	116785	PIPE FROM CUT-OFF TO AIR INLET	116785 PIPE FROM CUT-OFF TO AIR INLET	$5.80	2
10	115676	PIPE FROM CUT-OFF TO SOLENOID VALVE	115676 PIPE FROM CUT-OFF TO SOLENOID VALVE	$15.54	2
11	121793	3-WAY UNION	121793 3-WAY UNION	$0.63 MSRP: ~~2.45~~ (74.3% off)	2
12	115147	RUBBER PIPE	115147 RUBBER PIPE	$5.28 MSRP: ~~5.77~~ (8.5% off)	2
13	140175	DEPRESSION TANK	140175 DEPRESSION TANK	$41.31	1
14	115676	PIPE FROM CUT-OFF TO SOLENOID VALVE	115676 PIPE FROM CUT-OFF TO SOLENOID VALVE	$15.54	2
15	141235	RUBBER PIPE	141235 RUBBER PIPE	$10.73	2
16	111704	SOLENOID VALVE	111704 SOLENOID VALVE	$193.09 MSRP: ~~347.50~~ (44.4% off)	3
17	289103	RUBBER PIPE	289103 RUBBER PIPE	$13.31	1
18	11500024	Stud for cover of flywheel	11500024 Stud for cover of flywheel	$0.78	1
19	10519424	WASHER	10519424 WASHER	$0.02 MSRP: ~~0.25~~ (92% off)	1
20	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	$1.51	1
21	14499370	Washer	14499370 Washer	$0.28	2
22	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	$1.51	2
23	145702	CLIP	145702 CLIP	$0.31	3
24	10418301	BRACKET	10418301 BRACKET	$0.49	4
25	147180	LH FRONT-REAR AIR INLET PIPE	147180 LH FRONT-REAR AIR INLET PIPE	-	1	Enquire
25	147178	RH FRONT-REAR AIR INLET PIPE	147178 RH FRONT-REAR AIR INLET PIPE	-	1	Enquire
26	147181	L.H. CENTRAL AIR INLET PIPE	147181 L.H. CENTRAL AIR INLET PIPE	-	1	Enquire
26	147179	R.H. CENTRAL AIR INLET PIPE	147179 R.H. CENTRAL AIR INLET PIPE	-	1	Enquire
27	150595	CAP NUT	150595 CAP NUT	$0.89 MSRP: ~~1.50~~ (40.7% off)	4
28	148494	SECONDARY AIR VALVE	148494 SECONDARY AIR VALVE	$663.96 MSRP: ~~1,014.20~~ (34.5% off)	4
29	147360	AIR INLET SLEEVE	147360 AIR INLET SLEEVE	-	2	Enquire
30	13000490	Screw Collar	13000490 Screw Collar	$0.83 MSRP: ~~1.90~~ (56.3% off)	6
