Air Intake - Motronic 2.7

Ferrari 348 TS (1993)

Find Your Part

Ferrari 348 TS (1993) - Air Intake - Motronic 2.7

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
142054 COMPLETE AIR INTAKE Enquire To Order
144090 COMPLETE AIR INTAKE Enquire To Order
Photo Part No Description Price (each) Stock
10376577 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
155871 AIR FILTER Enquire To Order
Photo Part No Description Price (each) Stock
142402 AIR INLET CONNECTION PIPE Enquire To Order
Photo Part No Description Price (each) Stock
143882 AIR INLET CONNECTION PIPE Enquire To Order
Photo Part No Description Price (each) Stock
10519424 WASHER Enquire IN STOCK
Photo Part No Description Price (each) Stock
102947 VIBRATION DAMPER Enquire IN STOCK
Photo Part No Description Price (each) Stock
12177290 SCREW COLLAR Enquire To Order
Photo Part No Description Price (each) Stock
143257 R.H. SLEEVE Enquire To Order
Photo Part No Description Price (each) Stock
143236 L.H. SLEEVE Enquire To Order
Photo Part No Description Price (each) Stock
13000490 Screw Collar Enquire IN STOCK
Photo Part No Description Price (each) Stock
143201 L.H. PIPE TO REGULATUR Enquire To Order
143202 R.H. PIPE TO REGULATOR Enquire To Order
Photo Part No Description Price (each) Stock
142432 REGULATOR FOR IDLE ADJUSTMENT Enquire To Order
Photo Part No Description Price (each) Stock
143294 L.H. BRACKET Enquire To Order
143301 R.H. BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
143291 SLEEVE Enquire To Order
Photo Part No Description Price (each) Stock
10519424 WASHER Enquire IN STOCK
Photo Part No Description Price (each) Stock
127494 WASHER Enquire IN STOCK
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 Enquire IN STOCK
Photo Part No Description Price (each) Stock
143270 PIPE FROM REGULATOR TO AIR PLENUM CHAMBER Enquire To Order
Photo Part No Description Price (each) Stock
143286 UNION Enquire To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 Enquire IN STOCK
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 Enquire IN STOCK
Photo Part No Description Price (each) Stock
10519424 WASHER Enquire IN STOCK
View All

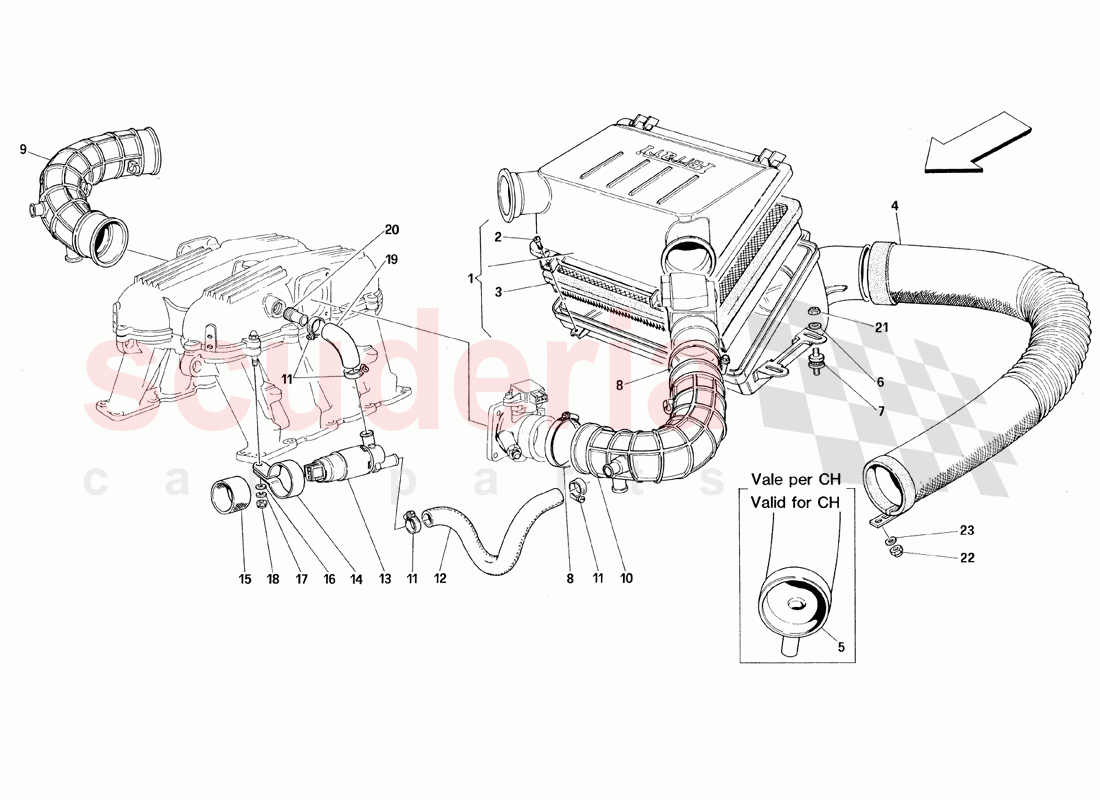

Air Intake - Motronic 2.7 of Ferrari Ferrari 348 TS (1993) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 142054
COMPLETE AIR INTAKE
Not for CH 		- 1 Enquire
1 144090
COMPLETE AIR INTAKE
Valid for CH 		- 1 Enquire
2 10376577
SCREW 		- 4 Enquire
3 155871
AIR FILTER 		- 1 Enquire
4 142402
AIR INLET CONNECTION PIPE
Not for CH 		- 2 Enquire
5 143882
AIR INLET CONNECTION PIPE
Valid for CH 		- 2 Enquire
6 10519424
WASHER
IN STOCK 		- 8 Enquire
7 102947
VIBRATION DAMPER
IN STOCK 		- 4 Enquire
8 12177290
SCREW COLLAR 		- 4 Enquire
9 143257
R.H. SLEEVE 		- 1 Enquire
10 143236
L.H. SLEEVE 		- 1 Enquire
11 13000490
Screw Collar
IN STOCK 		- 8 Enquire
12 143201
L.H. PIPE TO REGULATUR 		- 1 Enquire
12 143202
R.H. PIPE TO REGULATOR 		- 1 Enquire
13 142432
REGULATOR FOR IDLE ADJUSTMENT 		- 2 Enquire
14 143294
L.H. BRACKET 		- 1 Enquire
14 143301
R.H. BRACKET 		- 1 Enquire
15 143291
SLEEVE 		- 2 Enquire
16 10519424
WASHER
IN STOCK 		- 2 Enquire
17 127494
WASHER
(minimum order quantity = 20)
IN STOCK 		- 2 Enquire
18 14059290
FLANGED NUT M6
IN STOCK 		- 2 Enquire
19 143270
PIPE FROM REGULATOR TO AIR PLENUM CHAMBER 		- 2 Enquire
20 143286
UNION 		- 2 Enquire
21 14059290
FLANGED NUT M6
IN STOCK 		- 8 Enquire
22 14059290
FLANGED NUT M6
IN STOCK 		- 1 Enquire
23 10519424
WASHER
IN STOCK 		- 1 Enquire
