Hand-Brake Control of Ferrari Ferrari 348 TS (1993)

View All

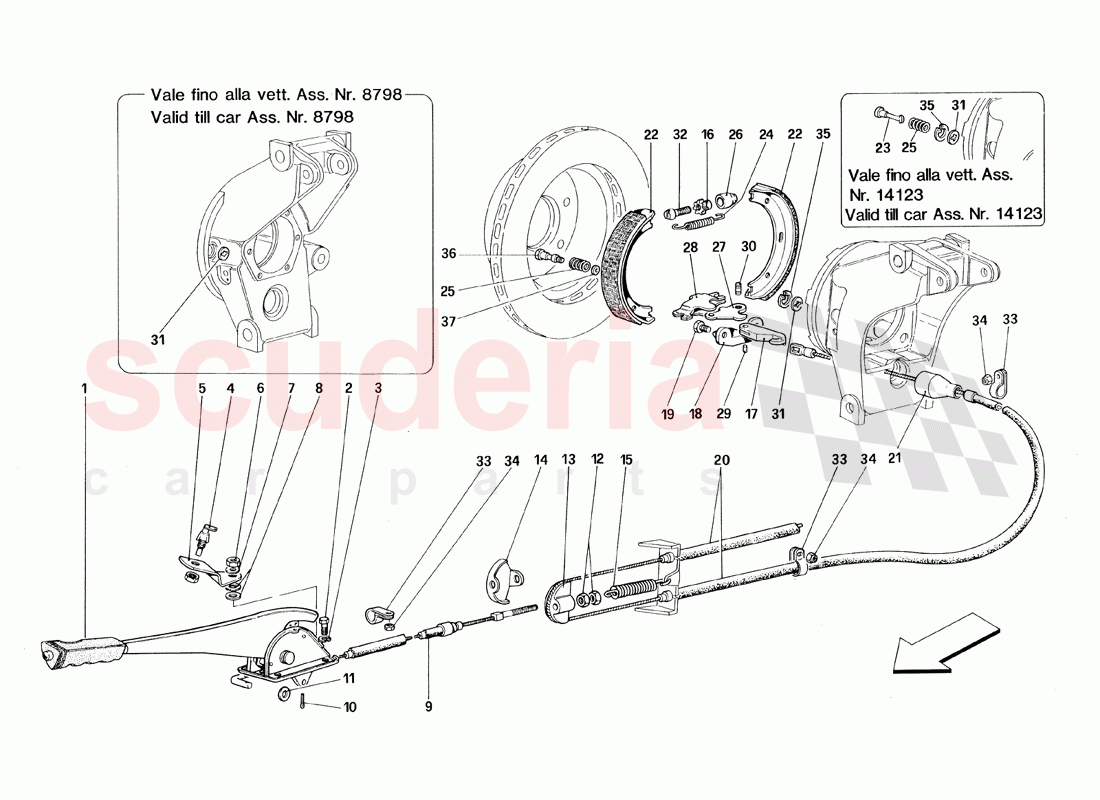

Ferrari 348 TS (1993) - Hand-Brake Control

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	154095	HAND BRAKE LEVER	Enquire	To Order
	629965	LINING -See relevant table for	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81591700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127494	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	114318	SWITCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	114320	SUPPORT BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15896470	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12604178	Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62769800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	141219	FRONT HANDBRAKE CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	264555	SPLIT PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84653800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059311	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	118552	ANCHORAGE FOR REAR CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	118553	HAND BRAKE CABLE RETAINIG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	104895	SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	101286	Nut for adjusting screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	105270	Inner lever control fork	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	142861	HUB HOLDER SMALL BLOCK	Enquire	To Order
	106243	HUB HOLDER SMALL BLOCK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	106242	SCREW	Enquire	To Order
	142856	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	141220	REAR HANDBRAKE CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	132129	STOP LIMIT FOR HAND BRAKE SHEATH	Enquire	To Order
	143938	STOP LIMIT FOR HAND BRAKE SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	170701	Complete Brake Shoe	Enquire	To Order
	170701	Complete Brake Shoe	Enquire	To Order
	134847	Hand brake shoes	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	101275	Spring securing pin	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	101276	RETURN SPRING FOR BRAKE SHOES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	101277	SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	101279	SEAT FOR ADJUSTMENT SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	101280	Inner Control Lever	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	101281	Outer Control Lever	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	101282	FIXING FORK TO INNER LEVER PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	101283	Pin for joint	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	101284	PLATE FOR SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	101285	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10418501	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11057276	Seeger Ring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	156915	BRAKE SHOES FIXING SCREW	Enquire	To Order
	156916	BRAKE SHOES FIXING SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12625224	WASHER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	154095	HAND BRAKE LEVER	154095 HAND BRAKE LEVER Without lining Valid till stock exhaustion	-	1	Enquire
1	629965	LINING -See relevant table for	629965 LINING -See relevant table for For leather colours see table	-	1	Enquire
2	81591700	SCREW	81591700 SCREW	-	4	Enquire
3	127494	WASHER	127494 WASHER (minimum order quantity = 20)	-	4	Enquire
4	114318	SWITCH	114318 SWITCH	-	1	Enquire
5	114320	SUPPORT BRACKET	114320 SUPPORT BRACKET	-	1	Enquire
6	15896470	NUT	15896470 NUT (minimum order quantity = 20)	-	1	Enquire
7	12604178	Washer	12604178 Washer	-	1	Enquire
8	62769800	WASHER	62769800 WASHER Possible fitting	-	2	Enquire

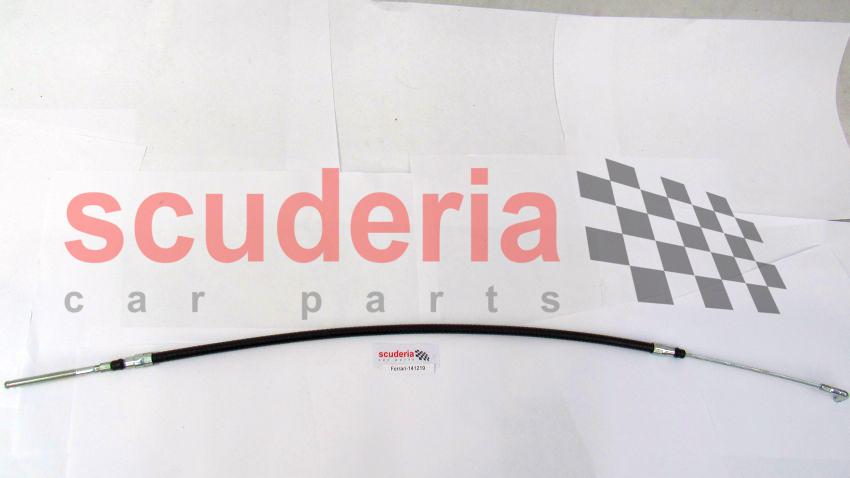

9	141219	FRONT HANDBRAKE CABLE	141219 FRONT HANDBRAKE CABLE	-	1	Enquire
10	264555	SPLIT PIN	264555 SPLIT PIN	-	1	Enquire
11	84653800	WASHER	84653800 WASHER	-	1	Enquire
12	14059311	NUT	14059311 NUT	-	2	Enquire
13	118552	ANCHORAGE FOR REAR CABLE	118552 ANCHORAGE FOR REAR CABLE	-	1	Enquire
14	118553	HAND BRAKE CABLE RETAINIG	118553 HAND BRAKE CABLE RETAINIG	-	1	Enquire
15	104895	SPRING	104895 SPRING	-	1	Enquire
16	101286	Nut for adjusting screw	101286 Nut for adjusting screw	-	2	Enquire
17	105270	Inner lever control fork	105270 Inner lever control fork	-	2	Enquire
18	142861	HUB HOLDER SMALL BLOCK	142861 HUB HOLDER SMALL BLOCK Valid from car Ass. Nr. 6501	-	2	Enquire
18	106243	HUB HOLDER SMALL BLOCK	106243 HUB HOLDER SMALL BLOCK Valid till car Ass. Nr. 6500	-	2	Enquire
19	106242	SCREW	106242 SCREW Valid till car Ass. Nr. 6500	-	4	Enquire
19	142856	SCREW	142856 SCREW Valid from car Ass. Nr. 6501	-	4	Enquire
20	141220	REAR HANDBRAKE CABLE	141220 REAR HANDBRAKE CABLE	-	1	Enquire
21	132129	STOP LIMIT FOR HAND BRAKE SHEATH	132129 STOP LIMIT FOR HAND BRAKE SHEATH Valid till car Ass. Nr. 8798	-	2	Enquire
21	143938	STOP LIMIT FOR HAND BRAKE SHEATH	143938 STOP LIMIT FOR HAND BRAKE SHEATH Valid from car Ass. Nr. 8799	-	2	Enquire
22	170701	Complete Brake Shoe	170701 Complete Brake Shoe As an alternative of 159894	-	4	Enquire
22	170701	Complete Brake Shoe	170701 Complete Brake Shoe	-	4	Enquire
22	134847	Hand brake shoes	134847 Hand brake shoes Set of 4 (25 mm)	-	4	Enquire
23	101275	Spring securing pin	101275 Spring securing pin Valid till car Ass. Nr. 14123	-	4	Enquire
24	101276	RETURN SPRING FOR BRAKE SHOES	101276 RETURN SPRING FOR BRAKE SHOES	-	4	Enquire
25	101277	SPRING	101277 SPRING	-	4	Enquire
26	101279	SEAT FOR ADJUSTMENT SCREW	101279 SEAT FOR ADJUSTMENT SCREW	-	2	Enquire
27	101280	Inner Control Lever	101280 Inner Control Lever	-	2	Enquire
28	101281	Outer Control Lever	101281 Outer Control Lever	-	2	Enquire
29	101282	FIXING FORK TO INNER LEVER PIN	101282 FIXING FORK TO INNER LEVER PIN	-	2	Enquire
30	101283	Pin for joint	101283 Pin for joint	-	2	Enquire
31	101284	PLATE FOR SPRING	101284 PLATE FOR SPRING Valid till car Ass. Nr. 14123	-	4	Enquire
32	101285	SCREW	101285 SCREW	-	2	Enquire
33	10418501	BRACKET	10418501 BRACKET	-	5	Enquire
34	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	5	Enquire
35	11057276	Seeger Ring	11057276 Seeger Ring Valid from car Ass. Nr. 8799 and valid till car Ass. Nr. 14123 L mm. 36--Valid from car Ass. Nr. 14124	-	2	Enquire
36	156915	BRAKE SHOES FIXING SCREW	156915 BRAKE SHOES FIXING SCREW Valid for hub holder 155426 and 155427	-	2	Enquire
36	156916	BRAKE SHOES FIXING SCREW	156916 BRAKE SHOES FIXING SCREW L. mm. 29 Valid from car Ass. Nr. 14124 Valid for hub holder 155426 and 155427	-	2	Enquire
37	12625224	WASHER	12625224 WASHER	-	4	Enquire
