Gearbox Covers of Ferrari Ferrari 348 TS (1993)

View All

Ferrari 348 TS (1993) - Gearbox Covers

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	135741	R.H. SIDE COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13543624	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13543724	STUD BOLT	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14040711	NUT M8 FLANGED	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	100041	CENTERING DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	238108	WASHER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	131757	BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	155073	CABLE FOR ENGINE-FRAME EARTH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	143448	DIFFERENTIAL LATERAL COVER	Enquire	To Order
	143448	DIFFERENTIAL LATERAL COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	145457	SPACER mm. 1,45	Enquire	To Order
	145458	SPACER mm. 1,55	Enquire	To Order
	145459	SPACER mm. 1,65	Enquire	To Order

...and 7 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	139453	O.R. GASKET	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	13543324	Stud -Valid for gearbox	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14040711	NUT M8 FLANGED	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	141509	L.H. seal ring on	Enquire	To Order

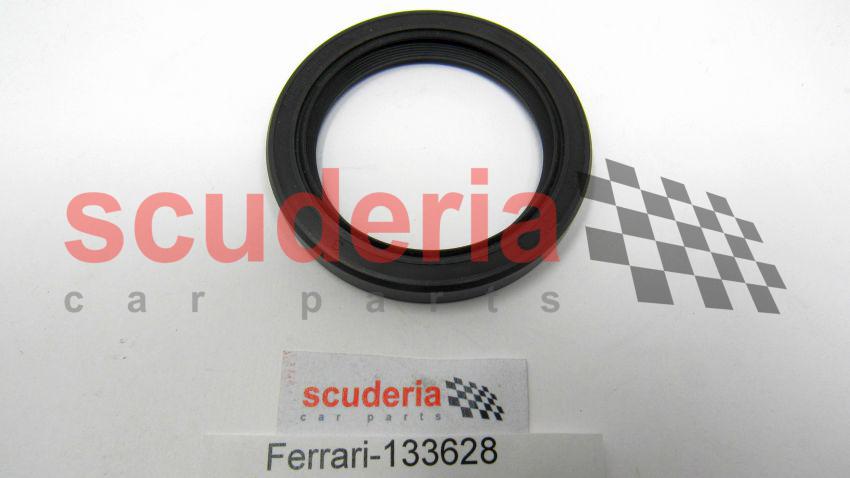

	133628	RH Oil Sealing Ring	Enquire	IN STOCK
	125076	Oil Sealing Ring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	135736	LOWER COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	177720	GASKET	Enquire	IN STOCK
	177720	GASKET	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	13540824	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	139699	OIL SEAL COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	131747	O-RING	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	13543224	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14040711	NUT M8 FLANGED	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	135739	COVER	Enquire	To Order
	153149	L.H. SIDE COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

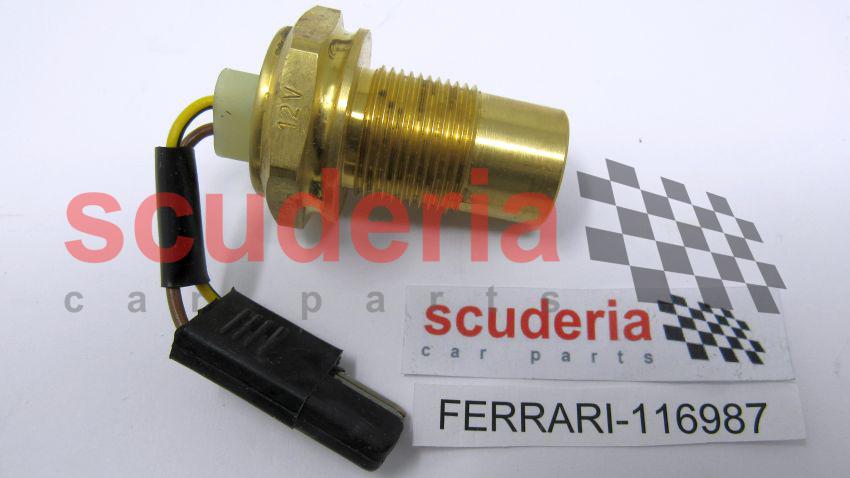

	116987	Pulse Sensor	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10263460	COPPER GASKET D.28-22.3 X 1.5	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	139819	INTERMEDIATE BODY	Enquire	To Order
	150055	INTERMEDIATE BODY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	115538	FILTER FOR GEAR BOX OIL PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	101034	O.R. GASKET	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	10275550	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

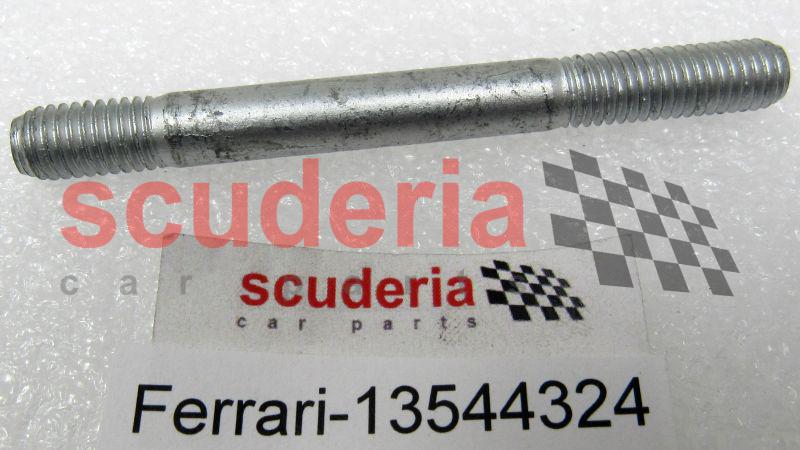

	13544324	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14040711	NUT M8 FLANGED	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14326050	CAP	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	145272	BEARING RETAINING FLANGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

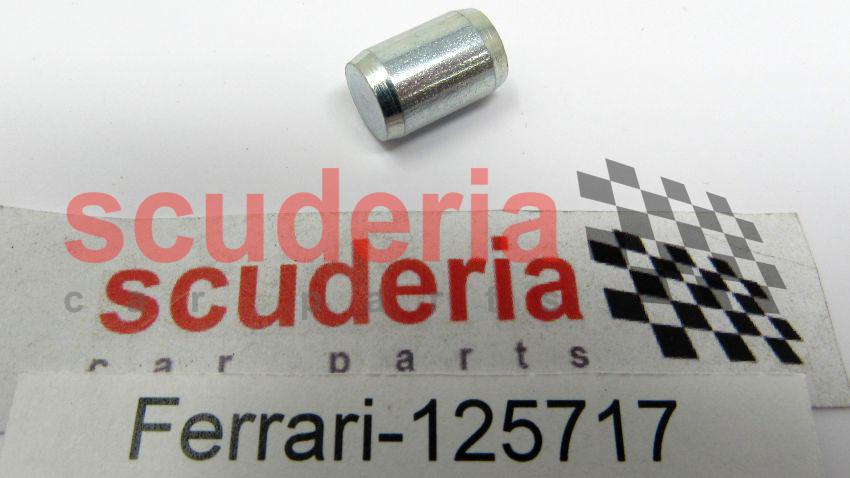

	125717	CENTRING DOWEL	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	109723	GEARBOX OIL PUMP DRIVEN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	109722	GEARBOX OIL PUMP DRIVING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	121962	Oil pump cover	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11500024	Stud for cover of flywheel	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	113088	SEAL RING SEAT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

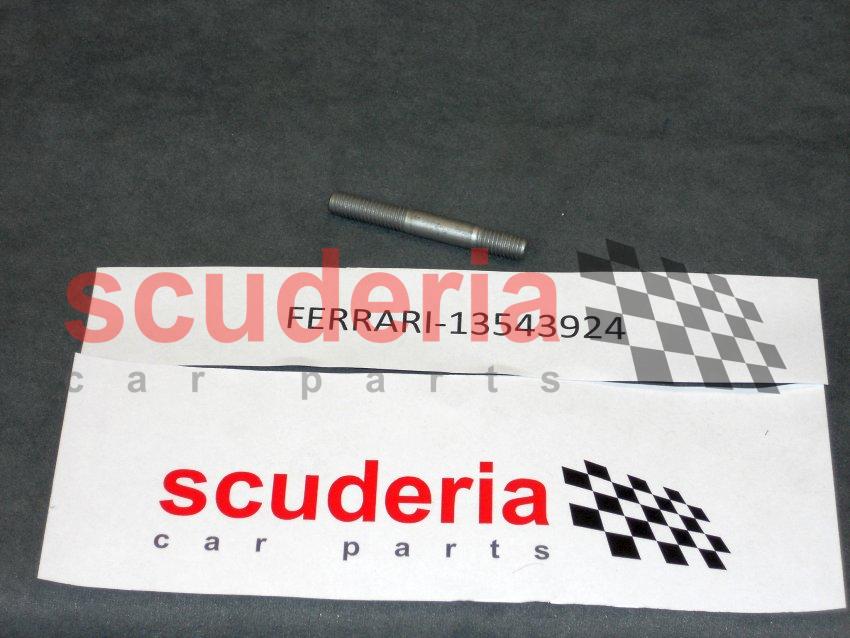

	13543924	Stud Bolt	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	13543524	STUD BOLT	Enquire	To Order
	13543224	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13544024	STUD	Enquire	To Order
	13544324	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

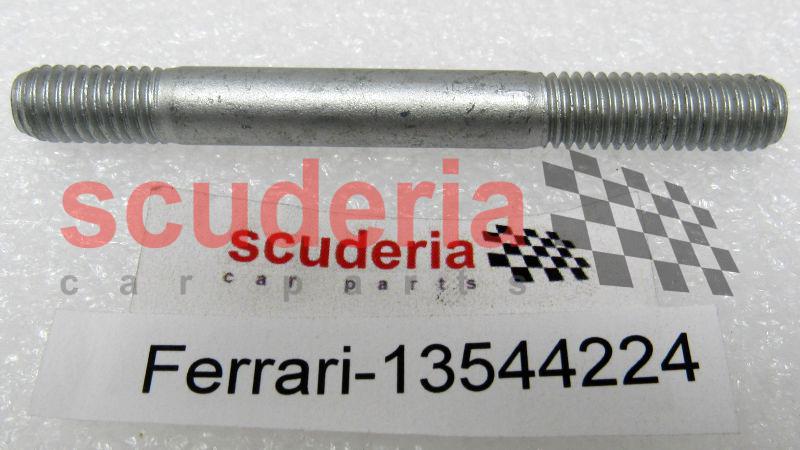

	13544224	Stud on dowel	Enquire	IN STOCK
	13543724	STUD BOLT	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	127496	WASHER	Enquire	To Order
	12601374	WASHER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14040711	NUT M8 FLANGED	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	100041	CENTERING DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	131746	DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14326150	CAP	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	13544024	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

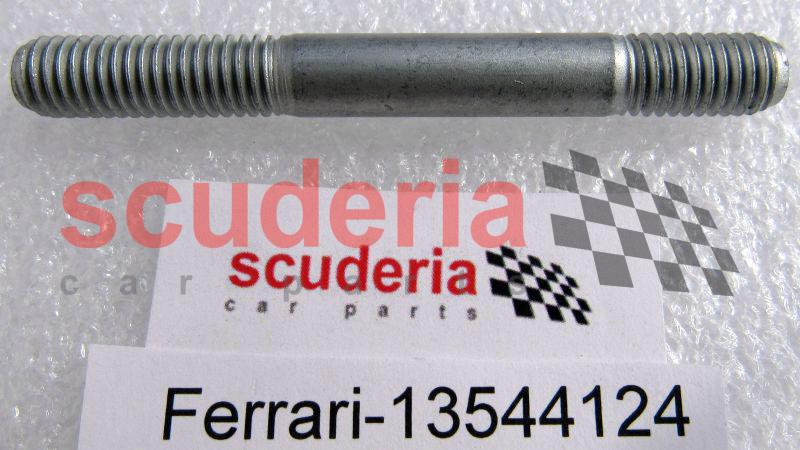

	13544124	STUD	Enquire	IN STOCK

View All

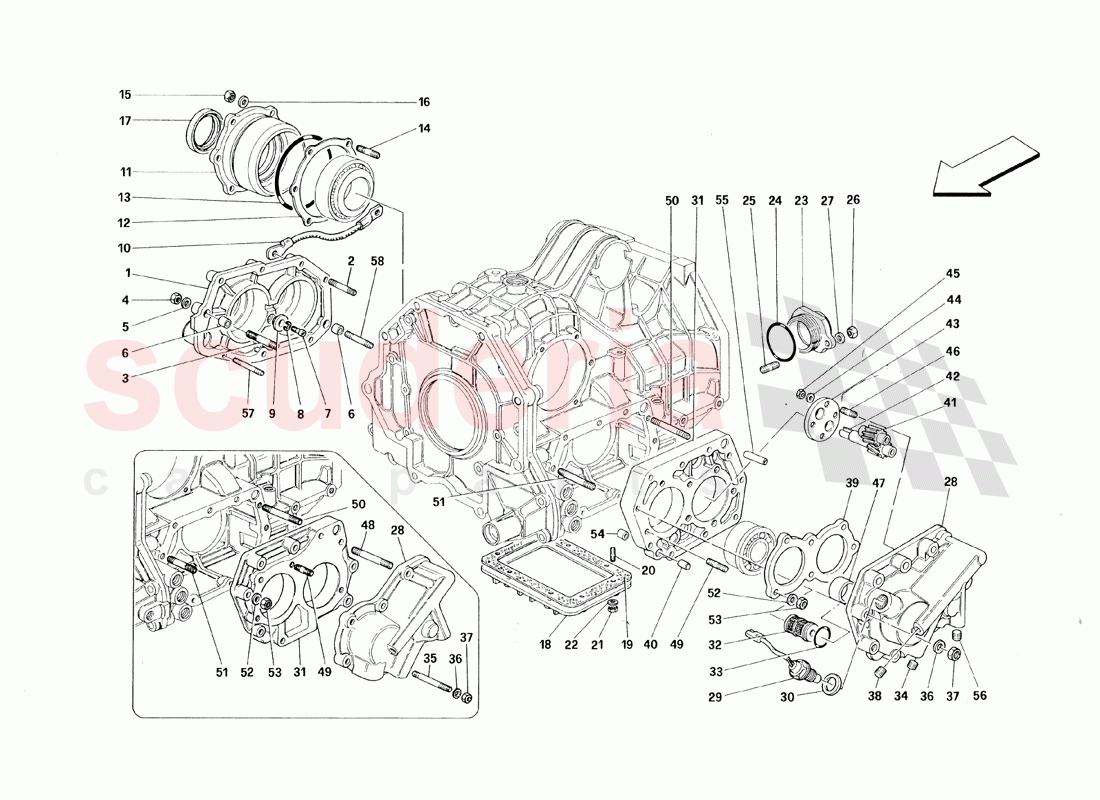

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	135741	R.H. SIDE COVER	135741 R.H. SIDE COVER	-	1	Enquire
2	13543624	STUD BOLT	13543624 STUD BOLT	-	6	Enquire
3	13543724	STUD BOLT IN STOCK	13543724 STUD BOLT IN STOCK	-	1	Enquire
4	14040711	NUT M8 FLANGED IN STOCK	14040711 NUT M8 FLANGED IN STOCK	-	9	Enquire
5	12601374	WASHER IN STOCK	12601374 WASHER IN STOCK	-	9	Enquire
6	100041	CENTERING DOWEL	100041 CENTERING DOWEL	-	2	Enquire
7	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER IN STOCK	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER IN STOCK	-	1	Enquire
8	238108	WASHER IN STOCK	238108 WASHER IN STOCK	-	1	Enquire
9	131757	BUSHING	131757 BUSHING	-	1	Enquire
10	155073	CABLE FOR ENGINE-FRAME EARTH	155073 CABLE FOR ENGINE-FRAME EARTH	-	1	Enquire
11	143448	DIFFERENTIAL LATERAL COVER	143448 DIFFERENTIAL LATERAL COVER Valid for gearbox 139499 and 141685 till Nr. 542	-	2	Enquire
11	143448	DIFFERENTIAL LATERAL COVER	143448 DIFFERENTIAL LATERAL COVER Valid for gearbox 141685 from Nr. 543	-	2	Enquire
12	145457	SPACER mm. 1,45	145457 SPACER mm. 1,45 mm. 1,45	-	2	Enquire
12	145458	SPACER mm. 1,55	145458 SPACER mm. 1,55 mm. 1,55	-	2	Enquire
12	145459	SPACER mm. 1,65	145459 SPACER mm. 1,65 mm. 1,65	-	2	Enquire
12	132140	SPACER mm. 1,80	132140 SPACER mm. 1,80 mm. 1,80	-	2	Enquire
12	132141	SPACER mm. 1,90	132141 SPACER mm. 1,90 mm. 1,90	-	2	Enquire
12	132139	SPACER mm. 1,70	132139 SPACER mm. 1,70 mm. 1,70	-	2	Enquire
12	132138	SPACER mm. 1,60	132138 SPACER mm. 1,60 mm. 1,60	-	2	Enquire
12	132137	SPACER mm. 1,50	132137 SPACER mm. 1,50 mm. 1,50	-	2	Enquire
12	132136	SPACER mm. 1,40	132136 SPACER mm. 1,40 mm. 1,40	-	2	Enquire
12	132135	SPACER FOR LID mm. 1,30	132135 SPACER FOR LID mm. 1,30 mm. 1,30	-	2	Enquire
13	139453	O.R. GASKET IN STOCK	139453 O.R. GASKET IN STOCK	-	2	Enquire
14	13543324	Stud -Valid for gearbox IN STOCK	13543324 Stud -Valid for gearbox IN STOCK	-	12	Enquire
15	14040711	NUT M8 FLANGED IN STOCK	14040711 NUT M8 FLANGED IN STOCK	-	12	Enquire
16	12601374	WASHER IN STOCK	12601374 WASHER IN STOCK	-	12	Enquire
17	141509	L.H. seal ring on	141509 L.H. seal ring on Valid for side cover 143448	-	1	Enquire
17	133628	RH Oil Sealing Ring IN STOCK	133628 RH Oil Sealing Ring Valid for side cover 143448 IN STOCK	-	1	Enquire
17	125076	Oil Sealing Ring	125076 Oil Sealing Ring Valid for side cover 131497	-	2	Enquire
18	135736	LOWER COVER	135736 LOWER COVER	-	1	Enquire
19	177720	GASKET IN STOCK	177720 GASKET Valid for gearbox 139499 IN STOCK	-	1	Enquire
19	177720	GASKET IN STOCK	177720 GASKET IN STOCK	-	1	Enquire
20	13540824	STUD BOLT	13540824 STUD BOLT	-	1	Enquire
21	14059290	FLANGED NUT M6 IN STOCK	14059290 FLANGED NUT M6 IN STOCK	-	8	Enquire
22	11197774	WAVY WASHER D.6.4 X 12 X 1.2 IN STOCK	11197774 WAVY WASHER D.6.4 X 12 X 1.2 IN STOCK	-	8	Enquire
23	139699	OIL SEAL COVER	139699 OIL SEAL COVER	-	1	Enquire
24	131747	O-RING IN STOCK	131747 O-RING IN STOCK	-	1	Enquire
25	13543224	STUD	13543224 STUD	-	2	Enquire
26	14040711	NUT M8 FLANGED IN STOCK	14040711 NUT M8 FLANGED IN STOCK	-	2	Enquire
27	12601374	WASHER IN STOCK	12601374 WASHER IN STOCK	-	2	Enquire
28	135739	COVER	135739 COVER Not for flange 145272 -Not as spare part now See NOTE	-	1	Enquire
28	153149	L.H. SIDE COVER	153149 L.H. SIDE COVER Valid for flange 145272	-	1	Enquire
29	116987	Pulse Sensor	116987 Pulse Sensor	-	1	Enquire
30	10263460	COPPER GASKET D.28-22.3 X 1.5 IN STOCK	10263460 COPPER GASKET D.28-22.3 X 1.5 IN STOCK	-	1	Enquire
31	139819	INTERMEDIATE BODY	139819 INTERMEDIATE BODY Valid for flangeless cover 145272 Not as spare part now See NOTE	-	1	Enquire
31	150055	INTERMEDIATE BODY	150055 INTERMEDIATE BODY Valid for cover with flange 145272	-	1	Enquire
32	115538	FILTER FOR GEAR BOX OIL PUMP	115538 FILTER FOR GEAR BOX OIL PUMP	-	1	Enquire
33	101034	O.R. GASKET IN STOCK	101034 O.R. GASKET IN STOCK	-	1	Enquire
34	10275550	THREADED PLUG	10275550 THREADED PLUG	-	1	Enquire
35	13544324	STUD	13544324 STUD Valid for flangeless cover 145272	-	1	Enquire
36	12601374	WASHER IN STOCK	12601374 WASHER For cover 153149 Qty 10 IN STOCK	-	8	Enquire
37	14040711	NUT M8 FLANGED IN STOCK	14040711 NUT M8 FLANGED For cover 153149 Qty 10 IN STOCK	-	8	Enquire
38	14326050	CAP IN STOCK	14326050 CAP IN STOCK	-	1	Enquire
39	145272	BEARING RETAINING FLANGE	145272 BEARING RETAINING FLANGE	-	1	Enquire
40	125717	CENTRING DOWEL IN STOCK	125717 CENTRING DOWEL IN STOCK	-	1	Enquire
41	109723	GEARBOX OIL PUMP DRIVEN	109723 GEARBOX OIL PUMP DRIVEN	-	1	Enquire
42	109722	GEARBOX OIL PUMP DRIVING	109722 GEARBOX OIL PUMP DRIVING	-	1	Enquire
43	121962	Oil pump cover	121962 Oil pump cover	-	1	Enquire
44	11197774	WAVY WASHER D.6.4 X 12 X 1.2 IN STOCK	11197774 WAVY WASHER D.6.4 X 12 X 1.2 IN STOCK	-	4	Enquire
45	14059290	FLANGED NUT M6 IN STOCK	14059290 FLANGED NUT M6 IN STOCK	-	4	Enquire
46	11500024	Stud for cover of flywheel	11500024 Stud for cover of flywheel	-	4	Enquire
47	113088	SEAL RING SEAT	113088 SEAL RING SEAT	-	1	Enquire
48	13543924	Stud Bolt IN STOCK	13543924 Stud Bolt Valid for flangeless cover 145272 IN STOCK	-	1	Enquire
49	13543524	STUD BOLT	13543524 STUD BOLT Valid for flangeless cover 145272	-	4	Enquire
49	13543224	STUD	13543224 STUD Valid for flange 145272	-	7	Enquire
50	13544024	STUD	13544024 STUD Valid for flangeless cover 145272	-	2	Enquire
50	13544324	STUD	13544324 STUD Valid for cover with flange 145272	-	8	Enquire
51	13544224	Stud on dowel IN STOCK	13544224 Stud on dowel Valid for cover with flange 145272 IN STOCK	-	8	Enquire
51	13543724	STUD BOLT IN STOCK	13543724 STUD BOLT Valid for flangeless cover 145272 IN STOCK	-	6	Enquire
52	127496	WASHER	127496 WASHER Valid for cover with flange 145272	-	7	Enquire
52	12601374	WASHER IN STOCK	12601374 WASHER Valid for flangeless cover 145272 IN STOCK	-	6	Enquire
53	14040711	NUT M8 FLANGED IN STOCK	14040711 NUT M8 FLANGED For cover 153149 Qty 7 IN STOCK	-	6	Enquire
54	100041	CENTERING DOWEL	100041 CENTERING DOWEL	-	1	Enquire
55	131746	DOWEL	131746 DOWEL	-	1	Enquire
56	14326150	CAP IN STOCK	14326150 CAP IN STOCK	-	1	Enquire
57	13544024	STUD	13544024 STUD	-	1	Enquire
58	13544124	STUD IN STOCK	13544124 STUD IN STOCK	-	1	Enquire
