Find Your Part

rear seat of Bentley Bentley Continental Flying Spur (2006-2012)

View All

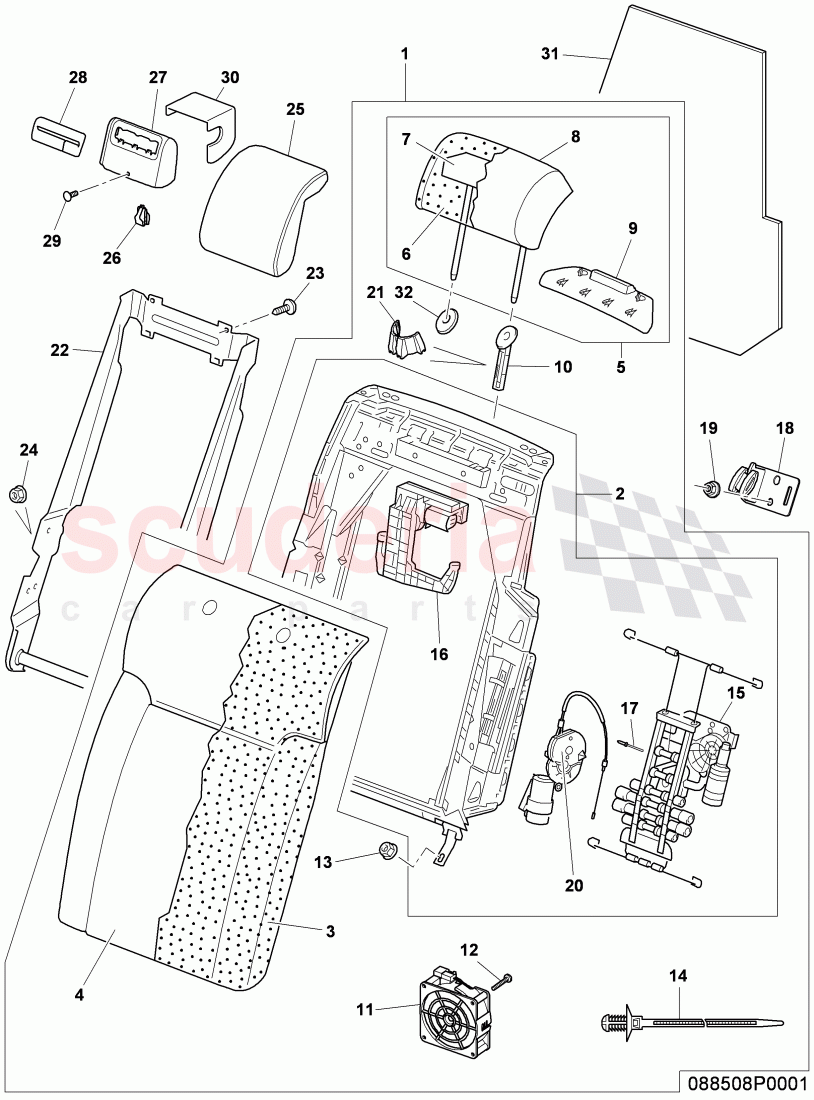

Bentley Continental Flying Spur (2006-2012) - rear seat

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	3W4885041B	backrest	Enquire
	3W4885042A	backrest	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W5885063C	backrest, frame	Enquire
	3W5885064C	backrest, frame	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W5886211E	for backrest: foam D - 11.05.2009>>	Enquire
	3W5886211E	for backrest: foam D - 11.05.2009>>	Enquire
	3W5886212E	for backrest: foam D - 11.05.2009>>	Enquire

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	3W5885805R	cover, padding for seat, backrest panel, D >> - 26.10.2009	Enquire
	3W5885805R	cover, padding for seat, backrest panel, D >> - 26.10.2009	Enquire
	3W5885805S	cover, padding for seat, backrest panel, D >> - 26.10.2009	Enquire

...and 9 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	3W5885901A	head restraint	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W5885719A	trim cover, headrest, (manufactured to order,, refer to the colour table, on Bentley Hub)	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W5886920D	trim head restraint guide tube	Enquire
	3W5886920E	trim head restraint guide tube	Enquire

Photo	Part No	Description	Price (each)	Stock
	3D0963345A	blower for seat, D - 23.04.2012>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91120301	round hd. screw	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90348402	hex. nut with washer	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90666101	tie wrap, f. hole/sheet metal thickness:	Enquire
	N90937702	Cable ties toothed quadrant for starter	Enquire

Photo	Part No	Description	Price (each)	Stock
	3D0959755E	motor for headrest adjustment	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90634901	pop rivet	Enquire

Photo	Part No	Description	Price (each)	Stock
	3D5885153F	bracket for backrest	Enquire
	3D5885153G	bracket for backrest	Enquire
	3D5885154E	bracket for backrest	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90348402	hex. nut with washer	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W5885625	guide for headrest	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W5885213B	backrest, frame	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10556201	round hd. screw	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90887703	Hexagon flange nut, self-locking	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W5885903A	head restraint	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0864215	Clip	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W5880692	cover, center, center	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W5883101A	Seat belt guide trim, (top tether)	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0881635C	Clip	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W5857557A	cover D - 29.06.2009>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W5864871A	insulation component for seat seat pad	Enquire
	3W5864872A	insulation component for seat seat pad	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W5885987C	trim head restraint D - 16.11.2009>>	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	3W4885041B	backrest	3W4885041B backrest left rear,	-	1	Enquire
1	3W4885042A	backrest	3W4885042A backrest right rear,	-	1	Enquire
2	3W5885063C	backrest, frame	3W5885063C backrest, frame left rear,	-	1	Enquire
2	3W5885064C	backrest, frame	3W5885064C backrest, frame right rear,	-	1	Enquire
3	3W5886211E	for backrest: foam D - 11.05.2009>>	3W5886211E for backrest: foam D - 11.05.2009>> left rear, vent, PR-4D2	-	1	Enquire
3	3W5886211E	for backrest: foam D - 11.05.2009>>	3W5886211E for backrest: foam D - 11.05.2009>> left rear, non vent, PR-4D4	-	1	Enquire
3	3W5886212E	for backrest: foam D - 11.05.2009>>	3W5886212E for backrest: foam D - 11.05.2009>> right rear, vent, PR-4D2	-	1	Enquire
3	3W5886212E	for backrest: foam D - 11.05.2009>>	3W5886212E for backrest: foam D - 11.05.2009>> right rear, non vent, PR-4D4	-	1	Enquire
4	3W5885805R	cover, padding for seat, backrest panel, D >> - 26.10.2009	3W5885805R cover, padding for seat, backrest panel, D >> - 26.10.2009 left rear, Fluted, non vent, PR-N1B,N2B+, 4D4	-	1	Enquire
4	3W5885805R	cover, padding for seat, backrest panel, D >> - 26.10.2009	3W5885805R cover, padding for seat, backrest panel, D >> - 26.10.2009 left rear, Fluted, non vent, PR-N5M+4D4	-	1	Enquire
4	3W5885805S	cover, padding for seat, backrest panel, D >> - 26.10.2009	3W5885805S cover, padding for seat, backrest panel, D >> - 26.10.2009 left rear, Fluted, vent, PR-N1B,N2B+, 4D2	-	1	Enquire
4	3W5885805S	cover, padding for seat, backrest panel, D >> - 26.10.2009	3W5885805S cover, padding for seat, backrest panel, D >> - 26.10.2009 left rear, Fluted, vent, PR-N5M+4D2	-	1	Enquire
4	3W5885805T	cover, padding for seat, backrest panel, D >> - 26.10.2009	3W5885805T cover, padding for seat, backrest panel, D >> - 26.10.2009 left rear, Diamond, Pattern, non vent, PR-N1R,N2R+, 4D4	-	1	Enquire
4	3W5885805T	cover, padding for seat, backrest panel, D >> - 26.10.2009	3W5885805T cover, padding for seat, backrest panel, D >> - 26.10.2009 left rear, Diamond, Pattern, non vent, PR-N1Y+4D4	-	1	Enquire
4	3W5885806R	cover, padding for seat, backrest panel, D >> - 26.10.2009	3W5885806R cover, padding for seat, backrest panel, D >> - 26.10.2009 right rear, Fluted, non vent, PR-N1B,N2B+, 4D4	-	1	Enquire
4	3W5885806R	cover, padding for seat, backrest panel, D >> - 26.10.2009	3W5885806R cover, padding for seat, backrest panel, D >> - 26.10.2009 right rear, Fluted, non vent, PR-N5M+4D4	-	1	Enquire
4	3W5885806S	cover, padding for seat, backrest panel, D >> - 26.10.2009	3W5885806S cover, padding for seat, backrest panel, D >> - 26.10.2009 right rear, Fluted, vent, PR-N1B,N2B+, 4D2	-	1	Enquire
4	3W5885806S	cover, padding for seat, backrest panel, D >> - 26.10.2009	3W5885806S cover, padding for seat, backrest panel, D >> - 26.10.2009 right rear, Fluted, vent, PR-N5M+4D2	-	1	Enquire
4	3W5885806T	cover, padding for seat, backrest panel, D >> - 26.10.2009	3W5885806T cover, padding for seat, backrest panel, D >> - 26.10.2009 right rear, Diamond, Pattern, non vent, PR-N1R,N2R+, 4D4	-	1	Enquire
4	3W5885806T	cover, padding for seat, backrest panel, D >> - 26.10.2009	3W5885806T cover, padding for seat, backrest panel, D >> - 26.10.2009 right rear, Diamond, Pattern, non vent, PR-N1Y+4D4	-	1	Enquire
5	3W5885901A	head restraint	3W5885901A head restraint rear,	-	2	Enquire
9	3W5885719A	trim cover, headrest, (manufactured to order,, refer to the colour table, on Bentley Hub)	3W5885719A trim cover, headrest, (manufactured to order,, refer to the colour table, on Bentley Hub) rear,	-	1	Enquire
10	3W5886920D	trim head restraint guide tube	3W5886920D trim head restraint guide tube left rear,	-	1	Enquire
10	3W5886920E	trim head restraint guide tube	3W5886920E trim head restraint guide tube right rear,	-	1	Enquire
11	3D0963345A	blower for seat, D - 23.04.2012>>	3D0963345A blower for seat, D - 23.04.2012>> PR-4D2	-	1	Enquire
12	N91120301	round hd. screw	N91120301 round hd. screw M3X40,	-	4	Enquire
13	N90348402	hex. nut with washer	N90348402 hex. nut with washer M8,	-	2	Enquire
14	N90666101	tie wrap, f. hole/sheet metal thickness:	N90666101 tie wrap, f. hole/sheet metal thickness: 4,6X200, 6,5/0,3-3,	-	2	Enquire
14	N90937702	Cable ties toothed quadrant for starter	N90937702 Cable ties toothed quadrant for starter 4,6X193, outer,	-	2	Enquire
16	3D0959755E	motor for headrest adjustment	3D0959755E motor for headrest adjustment rear,	-	2	Enquire
17	N90634901	pop rivet	N90634901 pop rivet A4X14,	-	3	Enquire
18	3D5885153F	bracket for backrest	3D5885153F bracket for backrest left outer,	-	1	Enquire
18	3D5885153G	bracket for backrest	3D5885153G bracket for backrest right inner,	-	1	Enquire
18	3D5885154E	bracket for backrest	3D5885154E bracket for backrest right outer,	-	2	Enquire
19	N90348402	hex. nut with washer	N90348402 hex. nut with washer M8,	-	8	Enquire
21	3W5885625	guide for headrest	3W5885625 guide for headrest rear,	-	4	Enquire
22	3W5885213B	backrest, frame	3W5885213B backrest, frame center,	-	1	Enquire
23	N10556201	round hd. screw	N10556201 round hd. screw M6X12,	-	2	Enquire
24	N90887703	Hexagon flange nut, self-locking	N90887703 Hexagon flange nut, self-locking M6,	-	2	Enquire
25	3W5885903A	head restraint	3W5885903A head restraint center,	-	1	Enquire
26	3W0864215	Clip	3W0864215 Clip	-	2	Enquire
27	3W5880692	cover, center, center	3W5880692 cover, center, center	-	1	Enquire
28	3W5883101A	Seat belt guide trim, (top tether)	3W5883101A Seat belt guide trim, (top tether) chrome,	-	1	Enquire
29	3W0881635C	Clip	3W0881635C Clip	-	1	Enquire
30	3W5857557A	cover D - 29.06.2009>>	3W5857557A cover D - 29.06.2009>> center,	-	1	Enquire
31	3W5864871A	insulation component for seat seat pad	3W5864871A insulation component for seat seat pad left rear,	-	1	Enquire
31	3W5864872A	insulation component for seat seat pad	3W5864872A insulation component for seat seat pad right rear,	-	1	Enquire
32	3W5885987C	trim head restraint D - 16.11.2009>>	3W5885987C trim head restraint D - 16.11.2009>> chrome,	-	4	Enquire
