Find Your Part

center console, F 3W-9-062 047>> 3W-A-064 812, F ZA-A-062 464>> ZA-A-064 810 of Bentley Bentley Continental Flying Spur (2006-2012)

View All

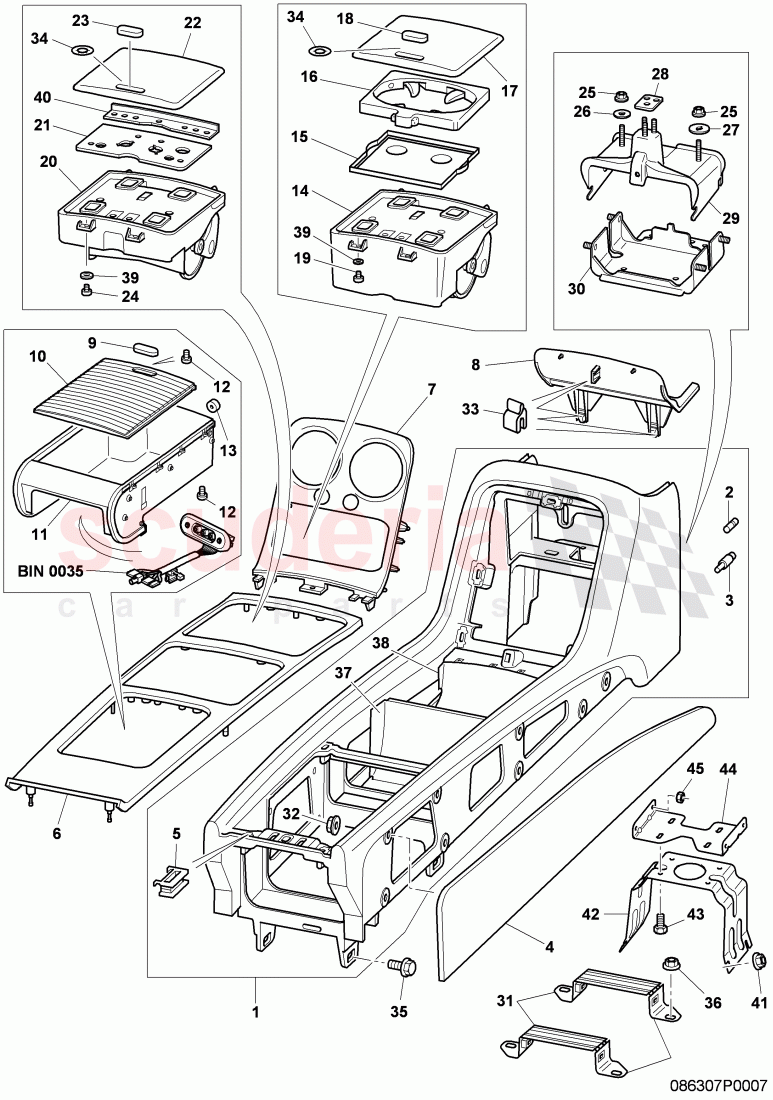

Bentley Continental Flying Spur (2006-2012) - center console, F 3W-9-062 047>> 3W-A-064 812, F ZA-A-062 464>> ZA-A-064 810

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	3W5863315	carrier (leather cover)	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0864447	guide pin	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0864455	retaining pin	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W5863303	side panel trim (leather cover)	Enquire
	3W5863304	side panel trim (leather cover)	Enquire

Photo	Part No	Description	Price (each)	Stock
	7M3858153	spring clip, D >> - 30.08.2011	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W5863338C	real wood inlay	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W5863337B	real wood inlay	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W5863535B	filler piece (leather cover)	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0857618B	handle, bracket	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W5857717B	cover for stowage compartment centre console	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W5858337K	stowage box	Enquire
	3W5858337J	stowage box, For vehicles with, rear seat entertainment 'RSE', F 3W-8-059 514>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91052001	round hd. screw	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0857932	magnet, for sliding door	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W5863091H	stowage box	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W5863301A	cupholder tray	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0858601B	cupholder console	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W5863289B	cover for ashtray, veneered	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0858333B	cap, cover for ashtray	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10587402	round hd. screw	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W5863267G	stowage box	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W1863911A	mounting plate	Enquire
	3W2863911B	mounting plate	Enquire
	3W5863911A	mounting plate	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W5863289B	cover for ashtray, veneered	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0858333B	cap, cover for ashtray	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10587402	round hd. screw	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90215805	shouldered hex. nut, Discont./New add.+FULU calc.	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0863393	adjuster, (height adjustment), F >> 3W-A-064 811, F >> ZA-A-064 811	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0863394	adjuster, (height adjustment), bracket	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0864647D	distance plate	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0864329E	bracket, armrest	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0864339E	bracket, tunnel	Enquire

Photo	Part No	Description	Price (each)	Stock
	3D0813929B	bracket	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10017304	Hexagon collar nut	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0864215	Clip	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0863203	Clamping washer	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10434904	bolt, F 3Y-C-016 978>>, F ZH-C-016 978>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N01508315	shouldered hex. nut, D >> - 10.02.2014	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W5857534	insert piece	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W5857532	insert piece	Enquire

Photo	Part No	Description	Price (each)	Stock
	N01152220	Plastic washer	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W5863127A	chrome trim, switch	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90215805	shouldered hex. nut, Discont./New add.+FULU calc.	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W5863256	bracket	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10703001	round hd. screw	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W5863255	bracket	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT003601	nut	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	3W5863315	carrier (leather cover)	3W5863315 carrier (leather cover)	-	1	Enquire
2	3W0864447	guide pin	3W0864447 guide pin	-	2	Enquire
3	3W0864455	retaining pin	3W0864455 retaining pin	-	2	Enquire
4	3W5863303	side panel trim (leather cover)	3W5863303 side panel trim (leather cover) left,	-	1	Enquire
4	3W5863304	side panel trim (leather cover)	3W5863304 side panel trim (leather cover) right,	-	1	Enquire
5	7M3858153	spring clip, D >> - 30.08.2011	7M3858153 spring clip, D >> - 30.08.2011	-	6	Enquire
6	3W5863338C	real wood inlay	3W5863338C real wood inlay	-	1	Enquire
7	3W5863337B	real wood inlay	3W5863337B real wood inlay	-	1	Enquire
8	3W5863535B	filler piece (leather cover)	3W5863535B filler piece (leather cover)	-	1	Enquire
9	3W0857618B	handle, bracket	3W0857618B handle, bracket	-	1	Enquire
10	3W5857717B	cover for stowage compartment centre console	3W5857717B cover for stowage compartment centre console	-	1	Enquire
11	3W5858337K	stowage box	3W5858337K stowage box	-	1	Enquire
11	3W5858337J	stowage box, For vehicles with, rear seat entertainment 'RSE', F 3W-8-059 514>>	3W5858337J stowage box, For vehicles with, rear seat entertainment 'RSE', F 3W-8-059 514>> PR-9WK	-	1	Enquire
12	N91052001	round hd. screw	N91052001 round hd. screw M3X8MM,	-	16	Enquire
13	3W0857932	magnet, for sliding door	3W0857932 magnet, for sliding door	-	1	Enquire
14	3W5863091H	stowage box	3W5863091H stowage box	-	1	Enquire
15	3W5863301A	cupholder tray	3W5863301A cupholder tray	-	1	Enquire
16	3W0858601B	cupholder console	3W0858601B cupholder console	-	1	Enquire
17	3W5863289B	cover for ashtray, veneered	3W5863289B cover for ashtray, veneered	-	1	Enquire
18	3W0858333B	cap, cover for ashtray	3W0858333B cap, cover for ashtray	-	1	Enquire
19	N10587402	round hd. screw	N10587402 round hd. screw	-	5	Enquire
20	3W5863267G	stowage box	3W5863267G stowage box	-	1	Enquire
21	3W1863911A	mounting plate	3W1863911A mounting plate lhd,	-	1	Enquire
21	3W2863911B	mounting plate	3W2863911B mounting plate rhd,	-	1	Enquire
21	3W5863911A	mounting plate	3W5863911A mounting plate	-	1	Enquire
22	3W5863289B	cover for ashtray, veneered	3W5863289B cover for ashtray, veneered	-	1	Enquire
23	3W0858333B	cap, cover for ashtray	3W0858333B cap, cover for ashtray	-	1	Enquire
24	N10587402	round hd. screw	N10587402 round hd. screw	-	4	Enquire
25	N90215805	shouldered hex. nut, Discont./New add.+FULU calc.	N90215805 shouldered hex. nut, Discont./New add.+FULU calc. M6,	-	2	Enquire
26	3W0863393	adjuster, (height adjustment), F >> 3W-A-064 811, F >> ZA-A-064 811	3W0863393 adjuster, (height adjustment), F >> 3W-A-064 811, F >> ZA-A-064 811 rear, upper,	-	1	Enquire
27	3W0863394	adjuster, (height adjustment), bracket	3W0863394 adjuster, (height adjustment), bracket rear, lower,	-	1	Enquire
28	3W0864647D	distance plate	3W0864647D distance plate	-	1	Enquire
29	3W0864329E	bracket, armrest	3W0864329E bracket, armrest	-	1	Enquire
30	3W0864339E	bracket, tunnel	3W0864339E bracket, tunnel	-	1	Enquire
31	3D0813929B	bracket	3D0813929B bracket rear,	-	2	Enquire
32	N10017304	Hexagon collar nut	N10017304 Hexagon collar nut	-	8	Enquire
33	3W0864215	Clip	3W0864215 Clip	-	3	Enquire
34	3W0863203	Clamping washer	3W0863203 Clamping washer	-	4	Enquire
35	N10434904	bolt, F 3Y-C-016 978>>, F ZH-C-016 978>>	N10434904 bolt, F 3Y-C-016 978>>, F ZH-C-016 978>> M6X20,	-	4	Enquire
36	N01508315	shouldered hex. nut, D >> - 10.02.2014	N01508315 shouldered hex. nut, D >> - 10.02.2014	-	4	Enquire
37	3W5857534	insert piece	3W5857534 insert piece rear,	-	1	Enquire
38	3W5857532	insert piece	3W5857532 insert piece front,	-	1	Enquire
39	N01152220	Plastic washer	N01152220 Plastic washer 4,3X9X0,8MM,	-	9	Enquire
40	3W5863127A	chrome trim, switch	3W5863127A chrome trim, switch	-	1	Enquire
41	N90215805	shouldered hex. nut, Discont./New add.+FULU calc.	N90215805 shouldered hex. nut, Discont./New add.+FULU calc. M6,	-	4	Enquire
42	3W5863256	bracket	3W5863256 bracket rear, lower,	-	1	Enquire
43	N10703001	round hd. screw	N10703001 round hd. screw M6X10,	-	4	Enquire
44	3W5863255	bracket	3W5863255 bracket rear, upper,	-	1	Enquire
45	WHT003601	nut	WHT003601 nut	-	4	Enquire
