door, door hinge, door seal of Bentley Bentley Continental Flying Spur (2006-2012)

View All

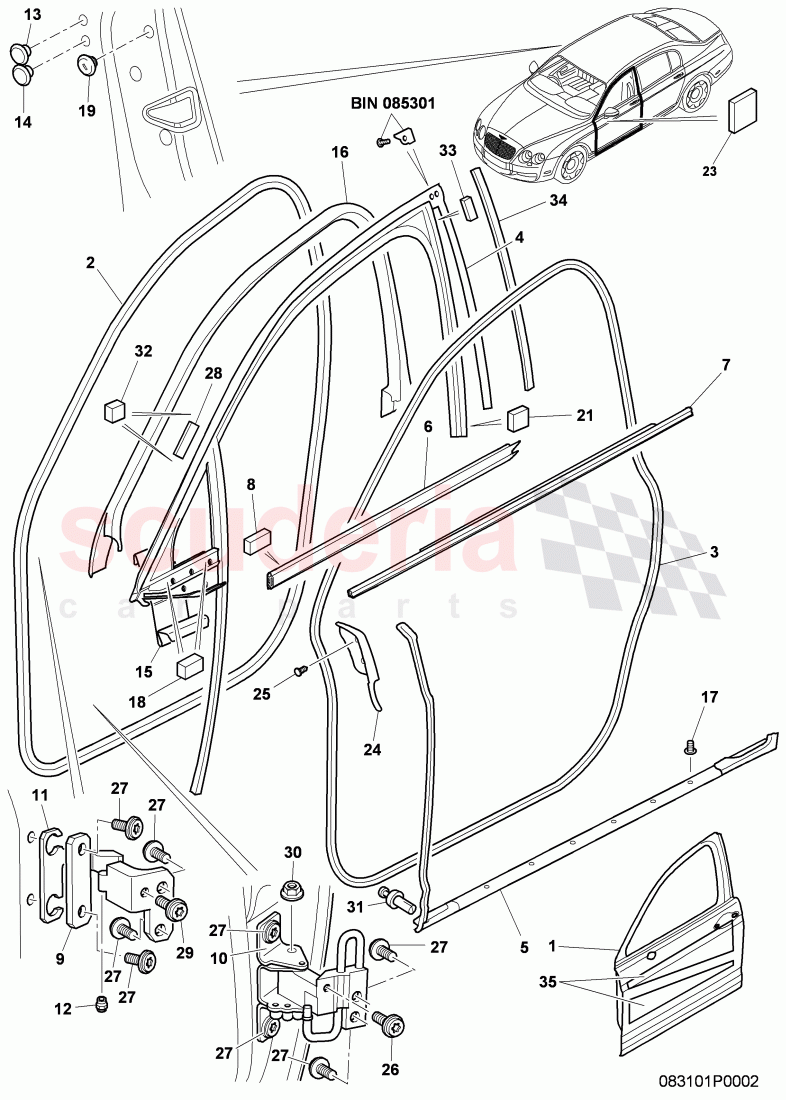

Bentley Continental Flying Spur (2006-2012) - door, door hinge, door seal

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	3W5831055	door D - >> 11.05.2009	Enquire
	3W5831056	door D - >> 11.05.2009	Enquire
	3W5831055B	door D - 11.05.2009>>	Enquire

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	3W5867365D	door seal	Enquire
	3W5867366D	door seal	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W5837701C	door seal	Enquire
	3W5837702C	door seal	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W5837431P	gasket, glass channel	Enquire
	3W5837432P	gasket, glass channel	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W5837433F	gasket	Enquire
	3W5837434F	gasket	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W5837471B	door seal	Enquire
	3W5837472B	door seal	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W5837477E	door seal	Enquire
	3W5837478E	door seal	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W5864722	plastic foam, gasket	Enquire

Photo	Part No	Description	Price (each)	Stock
	3D4831401C	door hinge, D - 25.07.2011>>	Enquire
	3D4831402C	door hinge, D - 25.07.2011>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3D4831411C	door hinge	Enquire
	3D4831412C	door hinge	Enquire

Photo	Part No	Description	Price (each)	Stock
	3D0831369	1 set: spacer plates	Enquire
	3D0831379C	spacer washer	Enquire
	3D0831379E	spacer washer	Enquire

...and 4 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	6Q0831700	hexagon nut, shouldered	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W8837722	grommet, D >> - 24.11.2014	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W8837707	grommet	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W5837666A	bracket, support	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W5867587F	frame	Enquire
	3W5867588F	frame, D - 09.10.2006>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	8E0837485	clip	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W5864721	plastic foam, gasket, D >> - 11.11.2013	Enquire

Photo	Part No	Description	Price (each)	Stock
	8Z0837111	bungs	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W5864704	plastic foam, gasket	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W5864706	plastic foam, mirror	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W5837615B	bracket	Enquire
	3W5837616B	bracket	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0881279	Securing clip	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90823203	socket head bolt with inner multipoint head	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90930503	multi-point socket head bolt with collar	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W5864500	plastic foam, gasket	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90823403	socket head bolt with inner multipoint head	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0868307	rivet	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W5864705A	plastic foam, gasket	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W5864707	plastic foam, door	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W5837743	plastic foam, gasket	Enquire

Photo	Part No	Description	Price (each)	Stock
	D378500A2	sound absorber, laminated alu., (self-adhesive)'order unit 6'	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	3W5837702C	door seal	3W5837702C door seal right outer,	-	1	Enquire
1	3W5831055	door D - >> 11.05.2009	3W5831055 door D - >> 11.05.2009 left front,	-	1	Enquire
1	3W5831056	door D - >> 11.05.2009	3W5831056 door D - >> 11.05.2009 right front,	-	1	Enquire
1	3W5831055B	door D - 11.05.2009>>	3W5831055B door D - 11.05.2009>> left front,	-	1	Enquire
1	3W5831056B	door D - 11.05.2009>>	3W5831056B door D - 11.05.2009>> right front,	-	1	Enquire
2	3W5867365D	door seal	3W5867365D door seal left inner,	-	1	Enquire
2	3W5867366D	door seal	3W5867366D door seal right inner,	-	1	Enquire
3	3W5837701C	door seal	3W5837701C door seal left outer,	-	1	Enquire
3	3W5837702C	door seal	3W5837702C door seal right outer,	-	1	Enquire
4	3W5837431P	gasket, glass channel	3W5837431P gasket, glass channel left front,	-	1	Enquire
4	3W5837432P	gasket, glass channel	3W5837432P gasket, glass channel right front,	-	1	Enquire
5	3W5837433F	gasket	3W5837433F gasket left front,	-	1	Enquire
5	3W5837434F	gasket	3W5837434F gasket right front,	-	1	Enquire
6	3W5837471B	door seal	3W5837471B door seal left front, inner,	-	1	Enquire
6	3W5837472B	door seal	3W5837472B door seal right front, inner,	-	1	Enquire
7	3W5837477E	door seal	3W5837477E door seal left front, outer,	-	1	Enquire
7	3W5837478E	door seal	3W5837478E door seal right front, outer,	-	1	Enquire
8	3W5864722	plastic foam, gasket	3W5864722 plastic foam, gasket inner,	-	2	Enquire
9	3D4831401C	door hinge, D - 25.07.2011>>	3D4831401C door hinge, D - 25.07.2011>> left upper,	-	1	Enquire
9	3D4831402C	door hinge, D - 25.07.2011>>	3D4831402C door hinge, D - 25.07.2011>> right upper,	-	1	Enquire
10	3D4831411C	door hinge	3D4831411C door hinge left lower,	-	1	Enquire
10	3D4831412C	door hinge	3D4831412C door hinge right lower,	-	1	Enquire
11	3D0831369	1 set: spacer plates	3D0831369 1 set: spacer plates left upper,	-	1	Enquire
11	3D0831379C	spacer washer	3D0831379C spacer washer 1.0MM, left,	-	1	Enquire
11	3D0831379E	spacer washer	3D0831379E spacer washer 1.5MM, left,	-	1	Enquire
11	3D0831379E	spacer washer	3D0831379E spacer washer 2.0MM, left,	-	1	Enquire
11	3D0831380E	spacer washer	3D0831380E spacer washer 1.0MM, right,	-	1	Enquire
11	3D0831380E	spacer washer	3D0831380E spacer washer 1.5MM, right,	-	1	Enquire
11	3D0831380E	spacer washer	3D0831380E spacer washer 2.0MM, right,	-	1	Enquire
12	6Q0831700	hexagon nut, shouldered	6Q0831700 hexagon nut, shouldered M8X1/SW13,	-	2	Enquire
13	3W8837722	grommet, D >> - 24.11.2014	3W8837722 grommet, D >> - 24.11.2014 14MM,	-	2	Enquire

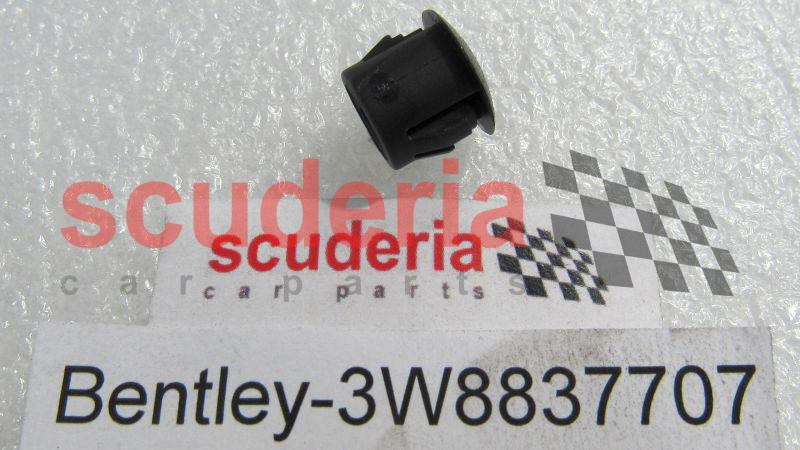

14	3W8837707	grommet	3W8837707 grommet	-	2	Enquire
15	3W5837666A	bracket, support	3W5837666A bracket, support	-	2	Enquire
16	3W5867587F	frame	3W5867587F frame left inner,	-	1	Enquire
16	3W5867588F	frame, D - 09.10.2006>>	3W5867588F frame, D - 09.10.2006>> right inner,	-	1	Enquire
17	8E0837485	clip	8E0837485 clip	-	16	Enquire
18	3W5864721	plastic foam, gasket, D >> - 11.11.2013	3W5864721 plastic foam, gasket, D >> - 11.11.2013 front,	-	4	Enquire
19	8Z0837111	bungs	8Z0837111 bungs	-	2	Enquire
21	3W5864704	plastic foam, gasket	3W5864704 plastic foam, gasket rear, lower,	-	2	Enquire
23	3W5864706	plastic foam, mirror	3W5864706 plastic foam, mirror	-	2	Enquire
24	3W5837615B	bracket	3W5837615B bracket left,	-	1	Enquire
24	3W5837616B	bracket	3W5837616B bracket right,	-	1	Enquire
25	3W0881279	Securing clip	3W0881279 Securing clip	-	4	Enquire
26	N90823203	socket head bolt with inner multipoint head	N90823203 socket head bolt with inner multipoint head M8X28,	-	2	Enquire
27	N90930503	multi-point socket head bolt with collar	N90930503 multi-point socket head bolt with collar M8X24,	-	16	Enquire
28	3W5864500	plastic foam, gasket	3W5864500 plastic foam, gasket front,	-	2	Enquire
29	N90823403	socket head bolt with inner multipoint head	N90823403 socket head bolt with inner multipoint head M8X24,	-	2	Enquire
31	3W0868307	rivet	3W0868307 rivet black,	-	2	Enquire
32	3W5864705A	plastic foam, gasket	3W5864705A plastic foam, gasket	-	4	Enquire
33	3W5864707	plastic foam, door	3W5864707 plastic foam, door front,	-	2	Enquire
34	3W5837743	plastic foam, gasket	3W5837743 plastic foam, gasket	-	2	Enquire
35	D378500A2	sound absorber, laminated alu., (self-adhesive)'order unit 6'	D378500A2 sound absorber, laminated alu., (self-adhesive)'order unit 6'	-	1	Enquire
