Bentley Continental Flying Spur (2006-2012) - seat support, D >> - MJ 2006

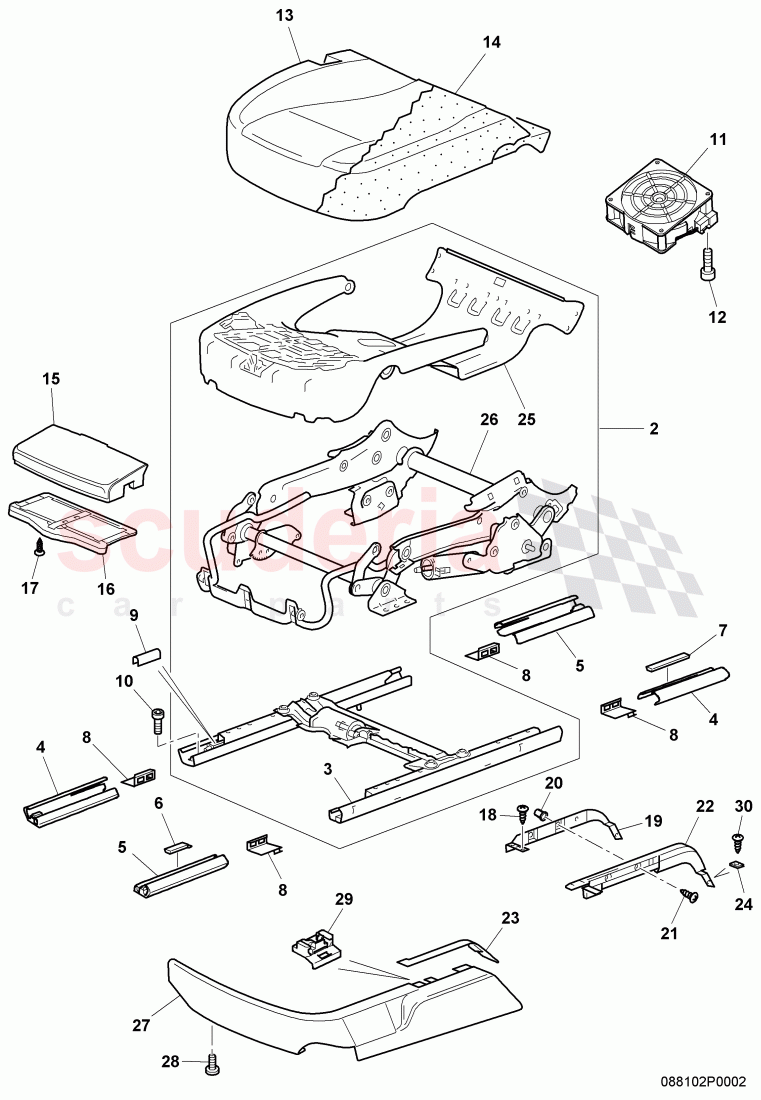

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	3D0881105CT	seat frame, with seat adjustment motors	Enquire
	3D0881105CT	seat frame, with seat adjustment motors	Enquire
	3D0881106DA	seat frame, with seat adjustment motors	Enquire

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	3D0881183F	channel for seat with motor, for longitudinal adjustment, D - 12.05.2008>>	Enquire
	3D0881184F	channel for seat with motor, for longitudinal adjustment, D - 12.05.2008>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W5881087D	cover, (manufactured to order,, refer to the colour table, on Bentley Hub)	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W5881088D	cover, (manufactured to order,, refer to the colour table, on Bentley Hub)	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W5881348	cap	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W5881348	cap	Enquire

Photo	Part No	Description	Price (each)	Stock
	3D0881449	retaining clip	Enquire

Photo	Part No	Description	Price (each)	Stock
	3D0881250	limit stop sleeve for seat:	Enquire
	8E0881063A	limit stop sleeve for seat:	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90965002	socket head collared bolt with inner multipoint head	Enquire

Photo	Part No	Description	Price (each)	Stock
	3D0963345A	blower for seat, D - 23.04.2012>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10415903	Oval hexagon socket head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W5881405E	cover, cushion (leather)	Enquire
	3W5881405E	cover, cushion (leather)	Enquire
	3W5881405E	cover, cushion (leather)	Enquire

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	3W5881553D	plastic foam, seat support	Enquire
	3W5881554F	plastic foam, seat support	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W5881373B	plastic foam, seat support	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W5858393B	bracket, seat	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10642801	Hexagon socket head panel bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90935902	oval hd. csk. self-tapp. screw	Enquire

Photo	Part No	Description	Price (each)	Stock
	3D0881505A	reinforcement, trim panel for seat frame	Enquire
	3D0881506A	reinforcement, trim panel for seat frame	Enquire

Photo	Part No	Description	Price (each)	Stock
	3D0881282	expanding nut	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10656501	tapping screw, fill. hd.	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W5881793	retainer for cover	Enquire
	3W5881794	retainer for cover	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W5881457	Cover section	Enquire
	3W5881458	Cover section	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90834301	Clip nut	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W5881317E	trim panel for seat frame	Enquire
	3W5881318E	trim panel for seat frame	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90944603	Oval hexagon socket head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W5881363	mounting	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10415903	Oval hexagon socket head bolt	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
2	3D0881105CT	seat frame, with seat adjustment motors	3D0881105CT seat frame, with seat adjustment motors left, drivers side,	-	1	Enquire
2	3D0881105CT	seat frame, with seat adjustment motors	3D0881105CT seat frame, with seat adjustment motors left, passenger side,	-	1	Enquire
2	3D0881106DA	seat frame, with seat adjustment motors	3D0881106DA seat frame, with seat adjustment motors right, drivers side,	-	1	Enquire
2	3D0881106DA	seat frame, with seat adjustment motors	3D0881106DA seat frame, with seat adjustment motors right, passenger side,	-	1	Enquire
3	3D0881183F	channel for seat with motor, for longitudinal adjustment, D - 12.05.2008>>	3D0881183F channel for seat with motor, for longitudinal adjustment, D - 12.05.2008>> left,	-	1	Enquire
3	3D0881184F	channel for seat with motor, for longitudinal adjustment, D - 12.05.2008>>	3D0881184F channel for seat with motor, for longitudinal adjustment, D - 12.05.2008>> right,	-	1	Enquire
4	3W5881087D	cover, (manufactured to order,, refer to the colour table, on Bentley Hub)	3W5881087D cover, (manufactured to order,, refer to the colour table, on Bentley Hub)	-	2	Enquire
5	3W5881088D	cover, (manufactured to order,, refer to the colour table, on Bentley Hub)	3W5881088D cover, (manufactured to order,, refer to the colour table, on Bentley Hub)	-	2	Enquire
6	3W5881348	cap	3W5881348 cap	-	2	Enquire
7	3W5881348	cap	3W5881348 cap	-	1	Enquire
8	3D0881449	retaining clip	3D0881449 retaining clip	-	4	Enquire
9	3D0881250	limit stop sleeve for seat:	3D0881250 limit stop sleeve for seat: 40MM, rear,	-	1	Enquire
9	8E0881063A	limit stop sleeve for seat:	8E0881063A limit stop sleeve for seat: 60MM, front,	-	1	Enquire
10	N90965002	socket head collared bolt with inner multipoint head	N90965002 socket head collared bolt with inner multipoint head M10X30,0,	-	4	Enquire
11	3D0963345A	blower for seat, D - 23.04.2012>>	3D0963345A blower for seat, D - 23.04.2012>>	-	1	Enquire
12	N10415903	Oval hexagon socket head bolt	N10415903 Oval hexagon socket head bolt	-	4	Enquire
13	3W5881405E	cover, cushion (leather)	3W5881405E cover, cushion (leather) left front, Fluted, vent, PR-N1B+4D2	-	1	Enquire
13	3W5881405E	cover, cushion (leather)	3W5881405E cover, cushion (leather) left front, Fluted, non vent, PR-N1B+4D4	-	1	Enquire
13	3W5881405E	cover, cushion (leather)	3W5881405E cover, cushion (leather) left front, Diamond, Pattern, PR-N1R,N1Y	-	1	Enquire
13	3W5881406J	cover, cushion (leather)	3W5881406J cover, cushion (leather) right front, Fluted, vent, PR-N1B+4D2	-	1	Enquire
13	3W5881406J	cover, cushion (leather)	3W5881406J cover, cushion (leather) right front, Fluted, non vent, PR-N1B+4D4	-	1	Enquire
13	3W5881406J	cover, cushion (leather)	3W5881406J cover, cushion (leather) right front, Diamond, Pattern, PR-N1Y,N1R+	-	1	Enquire
14	3W5881553D	plastic foam, seat support	3W5881553D plastic foam, seat support left front,	-	1	Enquire
14	3W5881554F	plastic foam, seat support	3W5881554F plastic foam, seat support right front,	-	1	Enquire
15	3W5881373B	plastic foam, seat support	3W5881373B plastic foam, seat support front,	-	1	Enquire
16	3W5858393B	bracket, seat	3W5858393B bracket, seat front,	-	1	Enquire
17	N10642801	Hexagon socket head panel bolt	N10642801 Hexagon socket head panel bolt	-	3	Enquire
18	N90935902	oval hd. csk. self-tapp. screw	N90935902 oval hd. csk. self-tapp. screw ST4,2X9,5,	-	1	Enquire
19	3D0881505A	reinforcement, trim panel for seat frame	3D0881505A reinforcement, trim panel for seat frame left,	-	1	Enquire
19	3D0881506A	reinforcement, trim panel for seat frame	3D0881506A reinforcement, trim panel for seat frame right,	-	1	Enquire
20	3D0881282	expanding nut	3D0881282 expanding nut	-	2	Enquire
21	N10656501	tapping screw, fill. hd.	N10656501 tapping screw, fill. hd. ST3,5X22,0,	-	2	Enquire
22	3W5881793	retainer for cover	3W5881793 retainer for cover left inner,	-	1	Enquire
22	3W5881794	retainer for cover	3W5881794 retainer for cover right inner,	-	1	Enquire
23	3W5881457	Cover section	3W5881457 Cover section left outer,	-	1	Enquire
23	3W5881458	Cover section	3W5881458 Cover section right outer,	-	1	Enquire
24	N90834301	Clip nut	N90834301 Clip nut	-	1	Enquire
27	3W5881317E	trim panel for seat frame	3W5881317E trim panel for seat frame left front,	-	1	Enquire
27	3W5881318E	trim panel for seat frame	3W5881318E trim panel for seat frame right front,	-	1	Enquire
28	N90944603	Oval hexagon socket head bolt	N90944603 Oval hexagon socket head bolt M5X12,	-	3	Enquire
29	3W5881363	mounting	3W5881363 mounting	-	1	Enquire
30	N10415903	Oval hexagon socket head bolt	N10415903 Oval hexagon socket head bolt	-	1	Enquire
