wheelhouse protector, fuel filler door of Bentley Bentley Continental Flying Spur (2006-2012)

View All

Bentley Continental Flying Spur (2006-2012) - wheelhouse protector, fuel filler door

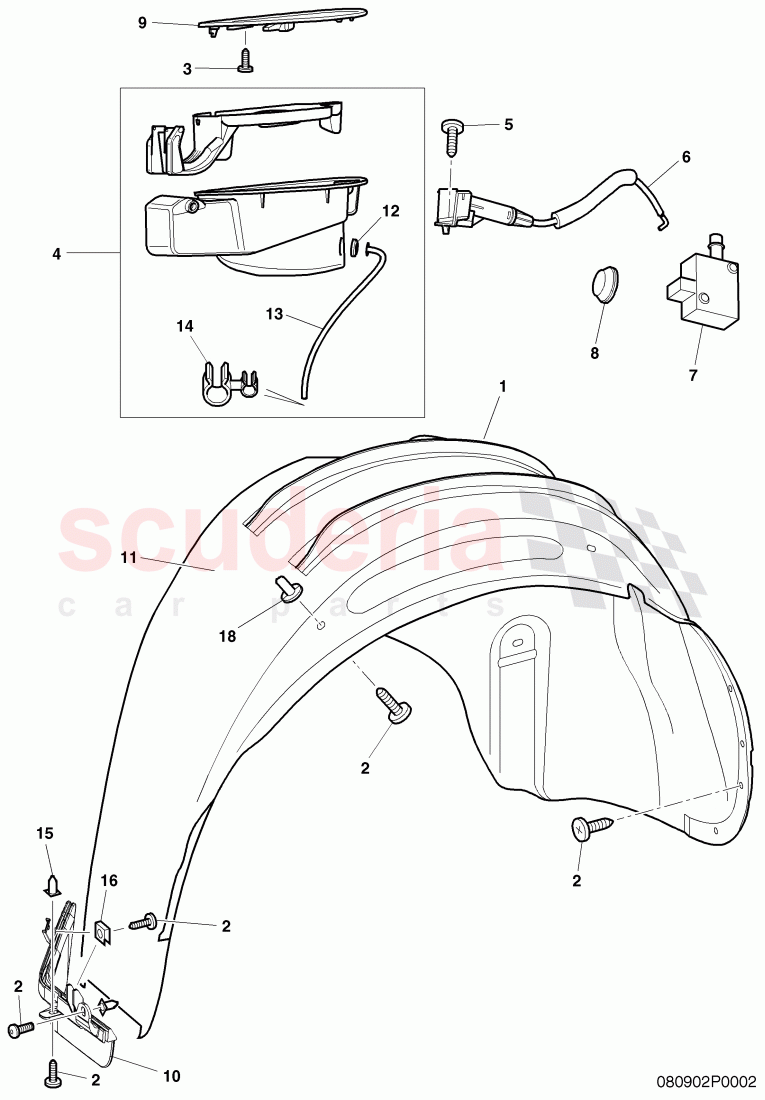

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	3W5810969C	wheelhouse protector, F >> 3W-8-059 514	Enquire
	3W0809083	wheelhouse protector, D - MJ 2009>>	Enquire
	3W5810970C	wheelhouse protector, F >> 3W-8-059 514	Enquire

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	N90974701	Hexagon socket head panel bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91019301	round hd. screw	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W5809857D	fuel filler flap	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90732101	hexagon socket head panel bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W8810899C	cable, D - 14.07.2014>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	1C0810773	Servo element for central, locking in tank flap	Enquire

Photo	Part No	Description	Price (each)	Stock
	3B0810911A	seal ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W5809909	fuel filler door, (manufactured to order,, refer to the colour table, on Bentley Hub)	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W5854855A	sill panel trim	Enquire
	3W5854856A	sill panel trim	Enquire

Photo	Part No	Description	Price (each)	Stock
	6N0809966A	expanding nut	Enquire

Photo	Part No	Description	Price (each)	Stock
	N0200921	grommet	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0809937	drain tube grommet	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10574901	Double clip, to be used for item:	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90821401	expanding nut	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90959101	Speed nut	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10541201	expanding nut	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	3W5810969C	wheelhouse protector, F >> 3W-8-059 514	3W5810969C wheelhouse protector, F >> 3W-8-059 514 left rear,	-	1	Enquire
1	3W0809083	wheelhouse protector, D - MJ 2009>>	3W0809083 wheelhouse protector, D - MJ 2009>> left rear,	-	1	Enquire
1	3W5810970C	wheelhouse protector, F >> 3W-8-059 514	3W5810970C wheelhouse protector, F >> 3W-8-059 514 right rear,	-	1	Enquire
1	3W0809084A	wheelhouse protector, D - MJ 2009>>	3W0809084A wheelhouse protector, D - MJ 2009>> right rear,	-	1	Enquire
2	N90974701	Hexagon socket head panel bolt	N90974701 Hexagon socket head panel bolt	-	26	Enquire
3	N91019301	round hd. screw	N91019301 round hd. screw M4X5,0,	-	3	Enquire
4	3W5809857D	fuel filler flap	3W5809857D fuel filler flap	-	1	Enquire
5	N90732101	hexagon socket head panel bolt	N90732101 hexagon socket head panel bolt ST4X16 LG,	-	1	Enquire
6	3W8810899C	cable, D - 14.07.2014>>	3W8810899C cable, D - 14.07.2014>>	-	1	Enquire
7	1C0810773	Servo element for central, locking in tank flap	1C0810773 Servo element for central, locking in tank flap	-	1	Enquire
8	3B0810911A	seal ring	3B0810911A seal ring	-	1	Enquire
9	3W5809909	fuel filler door, (manufactured to order,, refer to the colour table, on Bentley Hub)	3W5809909 fuel filler door, (manufactured to order,, refer to the colour table, on Bentley Hub)	-	1	Enquire
10	3W5854855A	sill panel trim	3W5854855A sill panel trim left,	-	1	Enquire
10	3W5854856A	sill panel trim	3W5854856A sill panel trim right,	-	1	Enquire
11	6N0809966A	expanding nut	6N0809966A expanding nut	-	18	Enquire
12	N0200921	grommet	N0200921 grommet 12X8,5,	-	1	Enquire
13	3W0809937	drain tube grommet	3W0809937 drain tube grommet 850MM,	-	1	Enquire
14	N10574901	Double clip, to be used for item:	N10574901 Double clip, to be used for item:	-	4	Enquire
15	N90821401	expanding nut	N90821401 expanding nut	-	2	Enquire
16	N90959101	Speed nut	N90959101 Speed nut	-	4	Enquire
18	N10541201	expanding nut	N10541201 expanding nut	-	4	Enquire
