door, door hinge, door seal of Bentley Bentley Continental Flying Spur (2006-2012)

View All

Bentley Continental Flying Spur (2006-2012) - door, door hinge, door seal

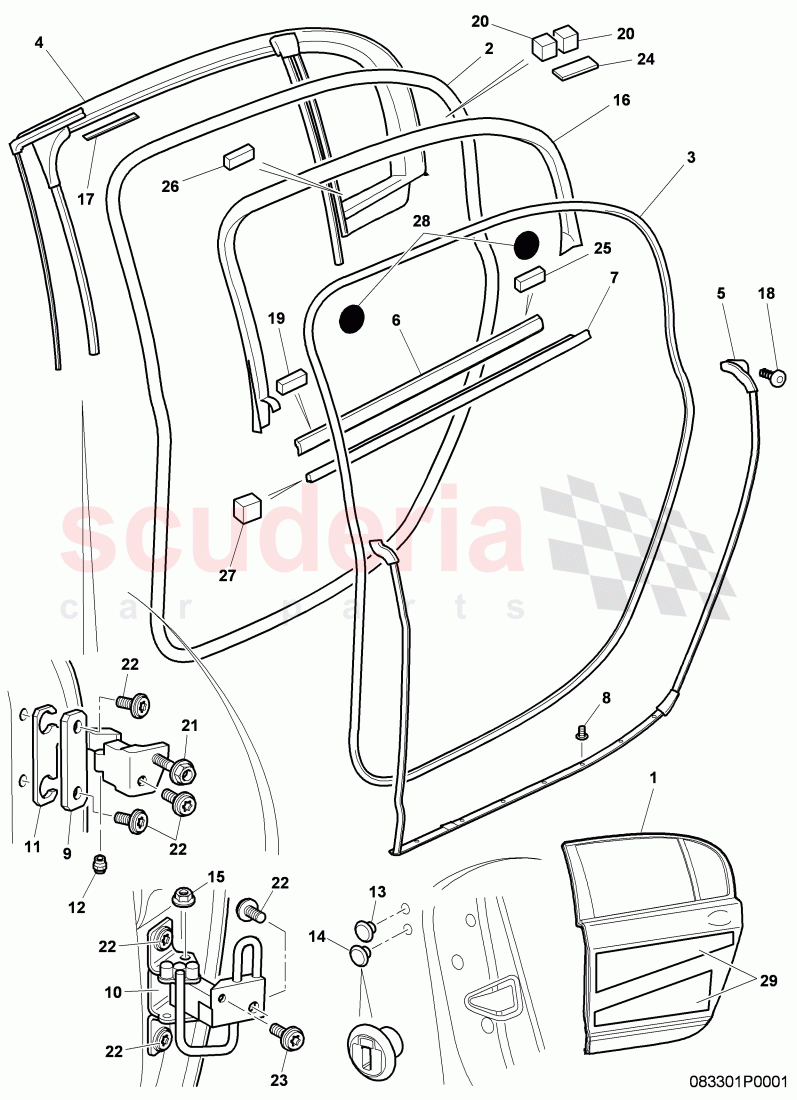

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	3W5833055B	door	Enquire
	3W5833056B	door	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W5867367D	door seal	Enquire
	3W5867368D	door seal	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W5839701C	door seal	Enquire
	3W5839702C	door seal	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W5839431R	gasket, glass channel	Enquire
	3W5839432R	gasket, glass channel	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W5839433G	gasket	Enquire
	3W5839434G	gasket	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W5839471B	door seal	Enquire
	3W5839472B	door seal	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W5839477D	door seal	Enquire
	3W5839478D	door seal	Enquire

Photo	Part No	Description	Price (each)	Stock
	8E0837485	clip	Enquire

Photo	Part No	Description	Price (each)	Stock
	3D4833401B	door hinge	Enquire
	3D4833402B	door hinge	Enquire

Photo	Part No	Description	Price (each)	Stock
	3D7833411A	door hinge	Enquire
	3D7833412A	door hinge	Enquire

Photo	Part No	Description	Price (each)	Stock
	3D0831369	1 set: spacer plates	Enquire
	3D0831370	1 set: spacer plates	Enquire
	3D0831379C	spacer washer	Enquire

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	6Q0831700	hexagon nut, shouldered	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W8837722	grommet, D >> - 24.11.2014	Enquire

Photo	Part No	Description	Price (each)	Stock
	8Z0837111	bungs	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W5867603H	frame, D - 09.10.2006>>	Enquire
	3W5867604H	frame, D - 09.10.2006>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0839153	adhesive, strip, D - 03.07.2006>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W5839070	clamp	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W5864704	plastic foam, gasket	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W5864705A	plastic foam, gasket	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90511507	hex. nut with washer	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90930503	multi-point socket head bolt with collar	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90823203	socket head bolt with inner multipoint head	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W5864499	plastic foam, gasket	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W5864722	plastic foam, gasket	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W5864721	plastic foam, gasket, D >> - 11.11.2013	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W5864703	plastic foam, gasket	Enquire

Photo	Part No	Description	Price (each)	Stock
	7D0827471	protective film (self-adhesive)	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	3W5833055B	door	3W5833055B door left rear,	-	1	Enquire
1	3W5833056B	door	3W5833056B door right rear,	-	1	Enquire
2	3W5867367D	door seal	3W5867367D door seal left rear,	-	1	Enquire
2	3W5867368D	door seal	3W5867368D door seal right rear,	-	1	Enquire
3	3W5839701C	door seal	3W5839701C door seal left rear, outer,	-	1	Enquire
3	3W5839702C	door seal	3W5839702C door seal right rear, outer,	-	1	Enquire
4	3W5839431R	gasket, glass channel	3W5839431R gasket, glass channel left rear,	-	1	Enquire
4	3W5839432R	gasket, glass channel	3W5839432R gasket, glass channel right rear,	-	1	Enquire
5	3W5839433G	gasket	3W5839433G gasket left rear,	-	1	Enquire
5	3W5839434G	gasket	3W5839434G gasket right rear,	-	1	Enquire
6	3W5839471B	door seal	3W5839471B door seal left rear, inner,	-	1	Enquire
6	3W5839472B	door seal	3W5839472B door seal right rear, inner,	-	1	Enquire
7	3W5839477D	door seal	3W5839477D door seal left rear, outer,	-	1	Enquire
7	3W5839478D	door seal	3W5839478D door seal right rear, outer,	-	1	Enquire
8	8E0837485	clip	8E0837485 clip	-	12	Enquire
9	3D4833401B	door hinge	3D4833401B door hinge left upper,	-	1	Enquire
9	3D4833402B	door hinge	3D4833402B door hinge right upper,	-	1	Enquire
10	3D7833411A	door hinge	3D7833411A door hinge left lower,	-	1	Enquire
10	3D7833412A	door hinge	3D7833412A door hinge right lower,	-	1	Enquire
11	3D0831369	1 set: spacer plates	3D0831369 1 set: spacer plates left upper,	-	-	Enquire
11	3D0831370	1 set: spacer plates	3D0831370 1 set: spacer plates right upper,	-	-	Enquire
11	3D0831379C	spacer washer	3D0831379C spacer washer 1.0MM, left,	-	1	Enquire
11	3D0831379E	spacer washer	3D0831379E spacer washer 1.5MM, left,	-	1	Enquire
11	3D0831379E	spacer washer	3D0831379E spacer washer 2.0MM, left,	-	1	Enquire
11	3D0831380E	spacer washer	3D0831380E spacer washer 1.0MM, right,	-	1	Enquire
11	3D0831380E	spacer washer	3D0831380E spacer washer 1.5MM, right,	-	1	Enquire
11	3D0831380E	spacer washer	3D0831380E spacer washer 2.0MM, right,	-	1	Enquire
12	6Q0831700	hexagon nut, shouldered	6Q0831700 hexagon nut, shouldered M8X1/SW13,	-	2	Enquire
13	3W8837722	grommet, D >> - 24.11.2014	3W8837722 grommet, D >> - 24.11.2014 14MM,	-	2	Enquire
14	8Z0837111	bungs	8Z0837111 bungs	-	2	Enquire
16	3W5867603H	frame, D - 09.10.2006>>	3W5867603H frame, D - 09.10.2006>> left inner,	-	1	Enquire
16	3W5867604H	frame, D - 09.10.2006>>	3W5867604H frame, D - 09.10.2006>> right inner,	-	1	Enquire
17	3W0839153	adhesive, strip, D - 03.07.2006>>	3W0839153 adhesive, strip, D - 03.07.2006>> stainl. steel,	-	2	Enquire
18	3W5839070	clamp	3W5839070 clamp	-	2	Enquire
19	3W5864704	plastic foam, gasket	3W5864704 plastic foam, gasket rear, lower,	-	2	Enquire
20	3W5864705A	plastic foam, gasket	3W5864705A plastic foam, gasket	-	4	Enquire
21	N90511507	hex. nut with washer	N90511507 hex. nut with washer M8,	-	2	Enquire
22	N90930503	multi-point socket head bolt with collar	N90930503 multi-point socket head bolt with collar M8X24,	-	12	Enquire
23	N90823203	socket head bolt with inner multipoint head	N90823203 socket head bolt with inner multipoint head M8X28,	-	2	Enquire
24	3W5864499	plastic foam, gasket	3W5864499 plastic foam, gasket rear,	-	2	Enquire
25	3W5864722	plastic foam, gasket	3W5864722 plastic foam, gasket inner,	-	2	Enquire
26	3W5864721	plastic foam, gasket, D >> - 11.11.2013	3W5864721 plastic foam, gasket, D >> - 11.11.2013 front,	-	2	Enquire
27	3W5864703	plastic foam, gasket	3W5864703 plastic foam, gasket outer,	-	2	Enquire
28	7D0827471	protective film (self-adhesive)	7D0827471 protective film (self-adhesive)	-	4	Enquire
