Find Your Part

rear seat of Bentley Bentley Continental Flying Spur (2006-2012)

View All

Bentley Continental Flying Spur (2006-2012) - rear seat

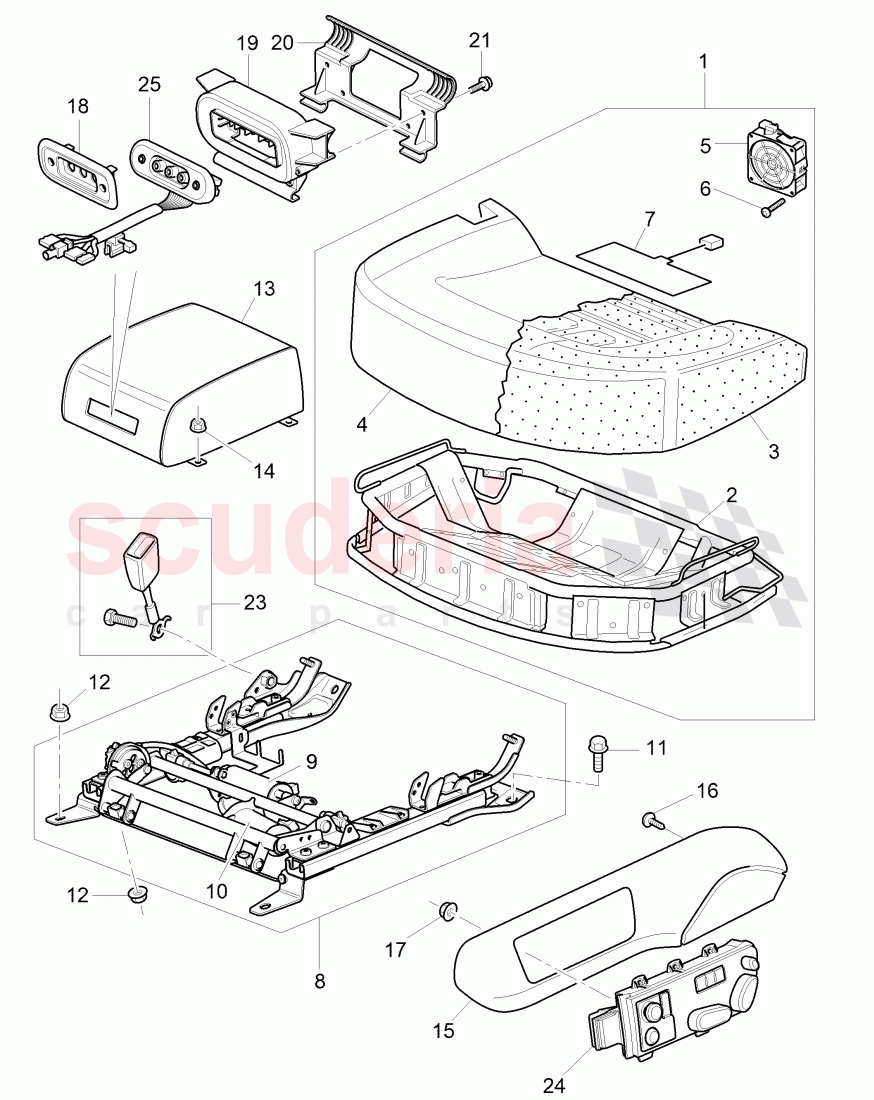

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	3W4885031D	seat support	Enquire
	3W4885032B	seat support	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W5885141E	frame seat pad D - 22.09.2008>>	Enquire
	3W5885142E	frame seat pad D - 22.09.2008>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W5885301AE	plastic foam, seat support	Enquire
	3W5885302G	plastic foam, seat support	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W5885405	cover, cushion (leather), D >> - 26.10.2009	Enquire
	3W5885405	cover, cushion (leather), D >> - 26.10.2009	Enquire
	3W5885405A	cover, cushion (leather), D >> - 26.10.2009	Enquire

...and 11 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	3D0963345A	blower for seat, D - 23.04.2012>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10415903	Oval hexagon socket head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	3D0980948	inlay for seat occupied sensor	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W5885111B	seat frame (electrically adjustable) D - 04.11.2010>>	Enquire
	3W5885112B	seat frame (electrically adjustable) D - 04.11.2010>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3D0959755H	motor for seat adjustment	Enquire

Photo	Part No	Description	Price (each)	Stock
	3D0959755J	motor for seat adjustment, seat support	Enquire

Photo	Part No	Description	Price (each)	Stock
	N98924901	screw, hex. hd.	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90348402	hex. nut with washer	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W5883027	seat support, center	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90348402	hex. nut with washer	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W5885317A	trim panel for seat frame	Enquire
	3W5885318A	trim panel for seat frame	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10415903	Oval hexagon socket head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90834301	Clip nut	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W5886747	operating unit, Multimedia system, (Rear Seat Entertainment'RSE'), (manufactured to order,, refer to the colour table, on Bentley Hub)	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W5886293	bracket, mounting	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W5886289	bracket, mounting	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10415903	Oval hexagon socket head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W5959561	seat adjustment regulating, switch, see illustration:	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W5972486	operating unit, for audio/video connection, see illustration:	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	3W5864783	insulating piece	3W5864783 insulating piece left,	-	1	Enquire
-	3W5864784	insulating piece	3W5864784 insulating piece right,	-	1	Enquire
1	3W4885031D	seat support	3W4885031D seat support left rear,	-	1	Enquire
1	3W4885032B	seat support	3W4885032B seat support right rear,	-	1	Enquire
2	3W5885141E	frame seat pad D - 22.09.2008>>	3W5885141E frame seat pad D - 22.09.2008>> left rear,	-	1	Enquire
2	3W5885142E	frame seat pad D - 22.09.2008>>	3W5885142E frame seat pad D - 22.09.2008>> right rear,	-	1	Enquire
3	3W5885301AE	plastic foam, seat support	3W5885301AE plastic foam, seat support left rear,	-	1	Enquire
3	3W5885302G	plastic foam, seat support	3W5885302G plastic foam, seat support right rear,	-	1	Enquire
4	3W5885405	cover, cushion (leather), D >> - 26.10.2009	3W5885405 cover, cushion (leather), D >> - 26.10.2009 left rear, Fluted, non vent, PR-N1B,N2B+, 4D4	-	1	Enquire
4	3W5885405	cover, cushion (leather), D >> - 26.10.2009	3W5885405 cover, cushion (leather), D >> - 26.10.2009 left rear, Fluted, non vent, PR-N5M+4D4	-	1	Enquire
4	3W5885405A	cover, cushion (leather), D >> - 26.10.2009	3W5885405A cover, cushion (leather), D >> - 26.10.2009 left rear, Fluted, vent, PR-N1B,N2B+, 4D2	-	1	Enquire
4	3W5885405A	cover, cushion (leather), D >> - 26.10.2009	3W5885405A cover, cushion (leather), D >> - 26.10.2009 left rear, Fluted, vent, PR-N5M+4D2	-	1	Enquire
4	3W5885405B	cover, cushion (leather), D >> - 26.10.2009	3W5885405B cover, cushion (leather), D >> - 26.10.2009 left rear, Diamond, Pattern, non vent, PR-N1R,N2R+, 4D4	-	1	Enquire
4	3W5885405B	cover, cushion (leather), D >> - 26.10.2009	3W5885405B cover, cushion (leather), D >> - 26.10.2009 left rear, Diamond, Pattern, non vent, PR-N1Y+4D4	-	1	Enquire
4	3W5885405AC	cover, cushion (leather)	3W5885405AC cover, cushion (leather) left rear, quilted, design series, non vent, PR-N1T+4D4	-	1	Enquire
4	3W5885406	cover, cushion (leather), D >> - 26.10.2009	3W5885406 cover, cushion (leather), D >> - 26.10.2009 right rear, Fluted, non vent, PR-N1B,N2B+, 4D4	-	1	Enquire
4	3W5885406	cover, cushion (leather), D >> - 26.10.2009	3W5885406 cover, cushion (leather), D >> - 26.10.2009 right rear, Fluted, non vent, PR-N5M+4D4	-	1	Enquire
4	3W5885406A	cover, cushion (leather), D >> - 26.10.2009	3W5885406A cover, cushion (leather), D >> - 26.10.2009 right rear, Fluted, vent, PR-N1B,N2B+, 4D2	-	1	Enquire
4	3W5885406A	cover, cushion (leather), D >> - 26.10.2009	3W5885406A cover, cushion (leather), D >> - 26.10.2009 right rear, Fluted, vent, PR-N5M+4D2	-	1	Enquire
4	3W5885406B	cover, cushion (leather), D >> - 26.10.2009	3W5885406B cover, cushion (leather), D >> - 26.10.2009 right rear, Diamond, Pattern, non vent, PR-N1R,N2R+, 4D4	-	1	Enquire
4	3W5885406B	cover, cushion (leather), D >> - 26.10.2009	3W5885406B cover, cushion (leather), D >> - 26.10.2009 right rear, Diamond, Pattern, non vent, PR-N1Y+4D4	-	1	Enquire
4	3W5885406Q	cover, cushion (leather)	3W5885406Q cover, cushion (leather) right rear, quilted, design series, non vent, PR-N1T+4D4	-	1	Enquire
5	3D0963345A	blower for seat, D - 23.04.2012>>	3D0963345A blower for seat, D - 23.04.2012>> PR-4D2	-	1	Enquire
6	N10415903	Oval hexagon socket head bolt	N10415903 Oval hexagon socket head bolt	-	4	Enquire
7	3D0980948	inlay for seat occupied sensor	3D0980948 inlay for seat occupied sensor	-	1	Enquire
8	3W5885111B	seat frame (electrically adjustable) D - 04.11.2010>>	3W5885111B seat frame (electrically adjustable) D - 04.11.2010>> left rear,	-	1	Enquire
8	3W5885112B	seat frame (electrically adjustable) D - 04.11.2010>>	3W5885112B seat frame (electrically adjustable) D - 04.11.2010>> right rear,	-	1	Enquire
9	3D0959755H	motor for seat adjustment	3D0959755H motor for seat adjustment	-	1	Enquire
10	3D0959755J	motor for seat adjustment, seat support	3D0959755J motor for seat adjustment, seat support rear,	-	1	Enquire
11	N98924901	screw, hex. hd.	N98924901 screw, hex. hd.	-	2	Enquire
12	N90348402	hex. nut with washer	N90348402 hex. nut with washer M8,	-	4	Enquire
13	3W5883027	seat support, center	3W5883027 seat support, center	-	1	Enquire
14	N90348402	hex. nut with washer	N90348402 hex. nut with washer M8,	-	4	Enquire
15	3W5885317A	trim panel for seat frame	3W5885317A trim panel for seat frame left,	-	1	Enquire
15	3W5885318A	trim panel for seat frame	3W5885318A trim panel for seat frame right,	-	1	Enquire
16	N10415903	Oval hexagon socket head bolt	N10415903 Oval hexagon socket head bolt	-	3	Enquire
17	N90834301	Clip nut	N90834301 Clip nut	-	1	Enquire
18	3W5886747	operating unit, Multimedia system, (Rear Seat Entertainment'RSE'), (manufactured to order,, refer to the colour table, on Bentley Hub)	3W5886747 operating unit, Multimedia system, (Rear Seat Entertainment'RSE'), (manufactured to order,, refer to the colour table, on Bentley Hub) PR-9WK	-	1	Enquire
19	3W5886293	bracket, mounting	3W5886293 bracket, mounting PR-9WK	-	1	Enquire
20	3W5886289	bracket, mounting	3W5886289 bracket, mounting rear, PR-9WK	-	1	Enquire
21	N10415903	Oval hexagon socket head bolt	N10415903 Oval hexagon socket head bolt	-	6	Enquire
24	3W5959561	seat adjustment regulating, switch, see illustration:	3W5959561 seat adjustment regulating, switch, see illustration: left, 959-070,	-	1	Enquire
25	3W5972486	operating unit, for audio/video connection, see illustration:	3W5972486 operating unit, for audio/video connection, see illustration: 035-098,	-	1	Enquire
