Find Your Part

sound baffle, D >> - MJ 2008 of Bentley Bentley Continental Flying Spur (2006-2012)

View All

Bentley Continental Flying Spur (2006-2012) - sound baffle, D >> - MJ 2008

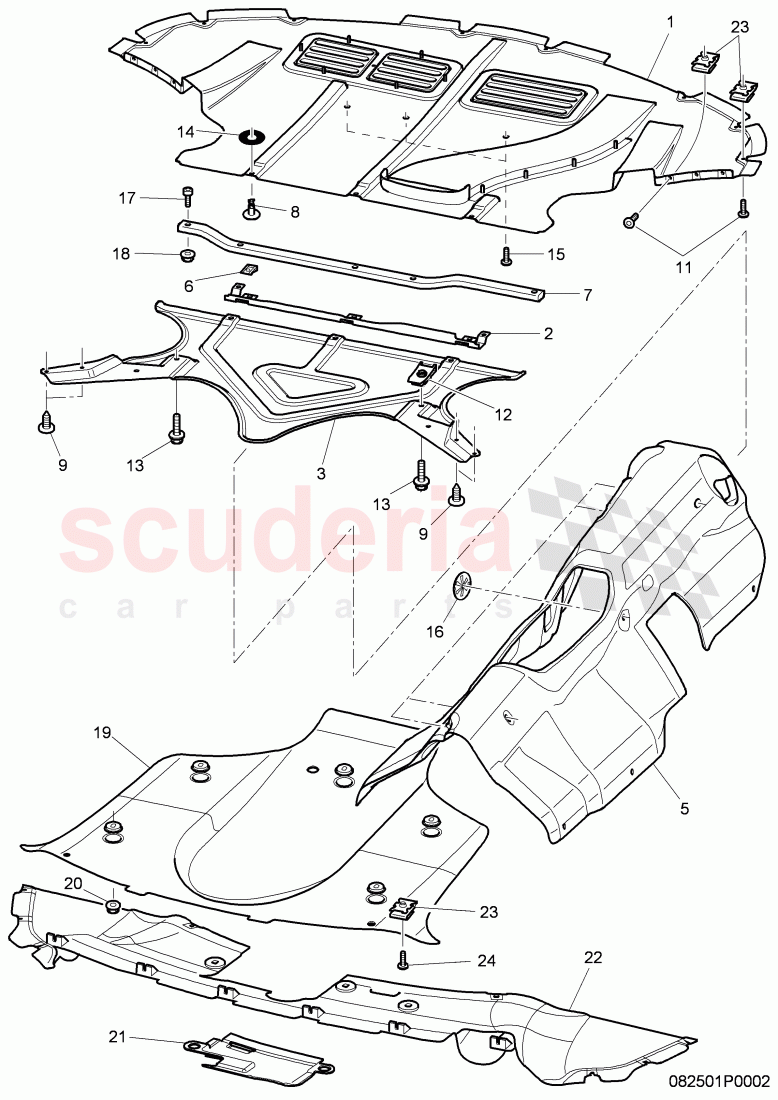

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	3W0825235S	underbody lining, D - 17.08.2009>>	Enquire
	3W0825235T	underbody lining	Enquire

Photo	Part No	Description	Price (each)	Stock
	4E0825241B	bracket, contains:, F 3W-4-020 001>> 3W-5-030 416	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0825249	underbody lining	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0825635C	sound absorber, tunnel, D - 28.11.2011>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	8D0805960	speed nut, D >> - 30.05.2005	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0825199B	support bracket underbody trim	Enquire

Photo	Part No	Description	Price (each)	Stock
	8D0805121	dowel pin	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90974701	Hexagon socket head panel bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90974701	Hexagon socket head panel bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90327503	speed nut, D - 01.06.2005>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N0901484	hexagon head bolt (combi)	Enquire

Photo	Part No	Description	Price (each)	Stock
	4A0805137	rubber washer	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90983501	round hd. screw	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90335006	Clamping washer	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90320206	socket head bolt with hexagon socket head (combination) D - 29.05.2006>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10286110	Hexagon collar nut self-locking	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W5825495	underbody lining	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91052401	shouldered hex. nut plastic	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W5825459	filler piece	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W5825508B	underbody lining, D - 30.05.2005>>	Enquire
	3W5825508B	underbody lining, D - 30.05.2005>>	Enquire
	3W5825511A	underbody lining, D - 30.05.2005>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90959101	Speed nut	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90974701	Hexagon socket head panel bolt	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	3W0825235S	underbody lining, D - 17.08.2009>>	3W0825235S underbody lining, D - 17.08.2009>> front, lower, PR-9M0	-	1	Enquire
1	3W0825235T	underbody lining	3W0825235T underbody lining front, lower, PR-9M1,9M9	-	1	Enquire
2	4E0825241B	bracket, contains:, F 3W-4-020 001>> 3W-5-030 416	4E0825241B bracket, contains:, F 3W-4-020 001>> 3W-5-030 416 CLIP N90327503,	-	1	Enquire
3	3W0825249	underbody lining	3W0825249 underbody lining rear,	-	1	Enquire
5	3W0825635C	sound absorber, tunnel, D - 28.11.2011>>	3W0825635C sound absorber, tunnel, D - 28.11.2011>>	-	1	Enquire
6	8D0805960	speed nut, D >> - 30.05.2005	8D0805960 speed nut, D >> - 30.05.2005 6,0MM,	-	8	Enquire
7	3W0825199B	support bracket underbody trim	3W0825199B support bracket underbody trim front,	-	1	Enquire
8	8D0805121	dowel pin	8D0805121 dowel pin 6X18MM, silver,	-	8	Enquire
9	N90974701	Hexagon socket head panel bolt	N90974701 Hexagon socket head panel bolt	-	4	Enquire
11	N90974701	Hexagon socket head panel bolt	N90974701 Hexagon socket head panel bolt	-	20	Enquire
12	N90327503	speed nut, D - 01.06.2005>>	N90327503 speed nut, D - 01.06.2005>>	-	2	Enquire
13	N0901484	hexagon head bolt (combi)	N0901484 hexagon head bolt (combi) M6X15,	-	2	Enquire
14	4A0805137	rubber washer	4A0805137 rubber washer 5X25X1,5,	-	8	Enquire
15	N90983501	round hd. screw	N90983501 round hd. screw M6X16,	-	3	Enquire
16	N90335006	Clamping washer	N90335006 Clamping washer	-	5	Enquire
17	N90320206	socket head bolt with hexagon socket head (combination) D - 29.05.2006>>	N90320206 socket head bolt with hexagon socket head (combination) D - 29.05.2006>> M10X35,	-	2	Enquire
18	N10286110	Hexagon collar nut self-locking	N10286110 Hexagon collar nut self-locking M10,	-	2	Enquire
19	3W5825495	underbody lining	3W5825495 underbody lining underfloor, rear,	-	1	Enquire
20	N91052401	shouldered hex. nut plastic	N91052401 shouldered hex. nut plastic	-	5	Enquire
21	3W5825459	filler piece	3W5825459 filler piece	-	1	Enquire
22	3W5825508B	underbody lining, D - 30.05.2005>>	3W5825508B underbody lining, D - 30.05.2005>> rear,	-	1	Enquire
22	3W5825508B	underbody lining, D - 30.05.2005>>	3W5825508B underbody lining, D - 30.05.2005>> rear, PR-1D0	-	1	Enquire
22	3W5825511A	underbody lining, D - 30.05.2005>>	3W5825511A underbody lining, D - 30.05.2005>> rear, PR-1D2	-	1	Enquire
23	N90959101	Speed nut	N90959101 Speed nut	-	20	Enquire
24	N90974701	Hexagon socket head panel bolt	N90974701 Hexagon socket head panel bolt	-	20	Enquire
