Exhaust Manifolds, Heatshields and Electronic Engine Control of Aston Martin Aston Martin V8 Vantage (upto 2016)

View All

Aston Martin V8 Vantage (upto 2016) - Exhaust Manifolds, Heatshields and Electronic Engine Control

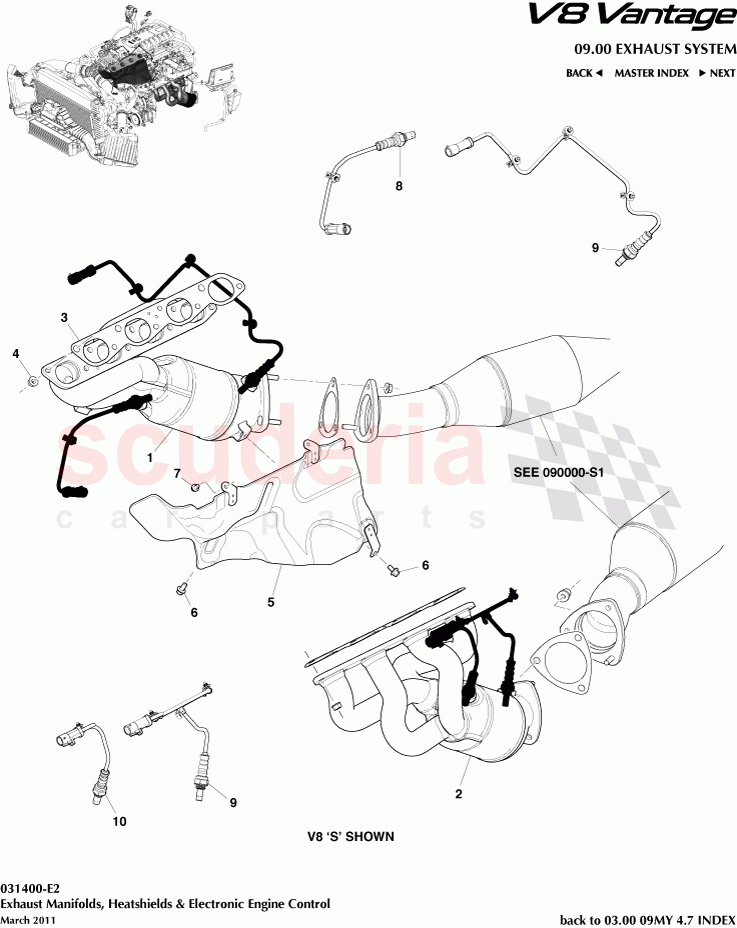

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	BG335G236GD	EU5 V8 MANIFOLD CAT	Enquire	To Order
	6G335G236BD	EXHAUST MANIFOLD RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BG335G232GD	EU5 V8 MANIFOLD CAT	Enquire	To Order
	6G335G232BC	EXHAUST MANIFOLD LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

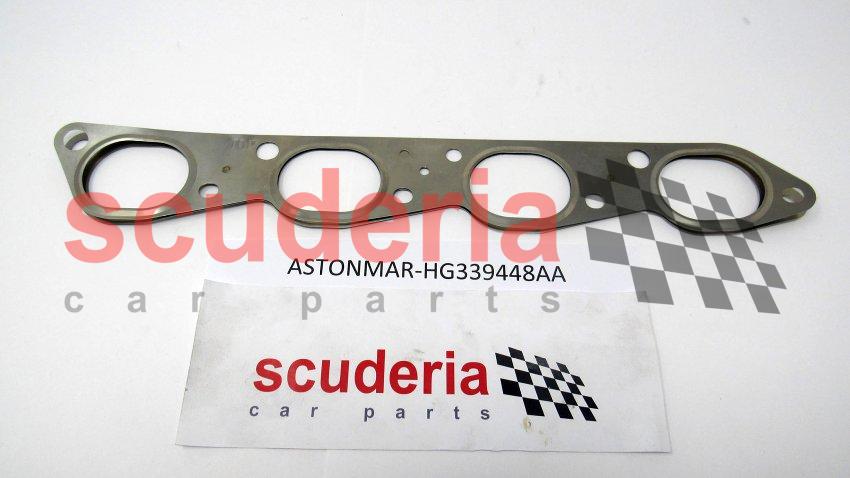

	HG339448AA	GASKET EXHAUST MANIFOLD	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	697775PK	Nut M8 Hex Flange Head (Pack of 10)	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	BG336C038AC	Shield assy, Engine Heat, RH	Enquire	To Order
	6G336C038AD	HEATSHIELD EXHAUST MANIFOLD RHS	Enquire	To Order
	6G336C038BB	Heat Shield, Engine Mount, LH Side	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	HY53E804349AA	M6 X 14 SCREW HEX HD	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	703206	SCREW-M5 x 8 HEX FLG CHROME FREE	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	BG339F472AB	SENSOR HEATED EXHAUST GAS OXYGEN	Enquire	IN STOCK
	6G339F472AA	Sensor RH Front Heated Exhaust Gas Oxygen	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock

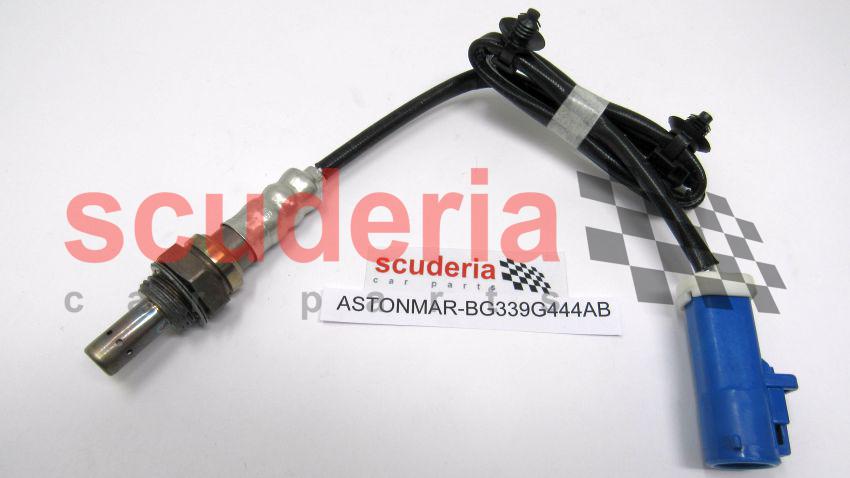

	BG339G444AB	CAT MONITOR SENSOR	Enquire	To Order
	6G339G444AA	Sensor, HEGO- RH Front Post-Cat	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	BG339F472AB	SENSOR HEATED EXHAUST GAS OXYGEN	Enquire	IN STOCK
	699209	Tie-wrap, heat proof	Enquire	IN STOCK

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	BG335G236GD	EU5 V8 MANIFOLD CAT	BG335G236GD EU5 V8 MANIFOLD CAT V8 S	-	1	Enquire
1	6G335G236BD	EXHAUST MANIFOLD RH	6G335G236BD EXHAUST MANIFOLD RH	-	1	Enquire
2	BG335G232GD	EU5 V8 MANIFOLD CAT	BG335G232GD EU5 V8 MANIFOLD CAT V8 S	-	1	Enquire
2	6G335G232BC	EXHAUST MANIFOLD LH	6G335G232BC EXHAUST MANIFOLD LH	-	1	Enquire
3	HG339448AA	GASKET EXHAUST MANIFOLD IN STOCK	HG339448AA GASKET EXHAUST MANIFOLD IN STOCK	-	2	Enquire
4	697775PK	Nut M8 Hex Flange Head (Pack of 10) IN STOCK	697775PK Nut M8 Hex Flange Head (Pack of 10) IN STOCK	-	16	Enquire
5	BG336C038AC	Shield assy, Engine Heat, RH	BG336C038AC Shield assy, Engine Heat, RH V8 S	-	1	Enquire
5	6G336C038AD	HEATSHIELD EXHAUST MANIFOLD RHS	6G336C038AD HEATSHIELD EXHAUST MANIFOLD RHS	-	1	Enquire
5	6G336C038BB	Heat Shield, Engine Mount, LH Side	6G336C038BB Heat Shield, Engine Mount, LH Side	-	1	Enquire
5	702527	STUD - EXHAUST MANIFOLD M8X16 + M8X20 PIL 10 IN STOCK	702527 STUD - EXHAUST MANIFOLD M8X16 + M8X20 PIL 10 IN STOCK	-	16	Enquire
5	703752	Screw and Washer, M6 x 16	703752 Screw and Washer, M6 x 16	-	2	Enquire
5	699736	Clip, Exhaust Heatshields IN STOCK	699736 Clip, Exhaust Heatshields IN STOCK	-	2	Enquire
6	HY53E804349AA	M6 X 14 SCREW HEX HD IN STOCK	HY53E804349AA M6 X 14 SCREW HEX HD IN STOCK	-	2	Enquire
7	703206	SCREW-M5 x 8 HEX FLG CHROME FREE IN STOCK	703206 SCREW-M5 x 8 HEX FLG CHROME FREE IN STOCK	-	2	Enquire
8	BG339F472AB	SENSOR HEATED EXHAUST GAS OXYGEN IN STOCK	BG339F472AB SENSOR HEATED EXHAUST GAS OXYGEN V8 S IN STOCK	-	2	Enquire
8	6G339F472AA	Sensor RH Front Heated Exhaust Gas Oxygen IN STOCK	6G339F472AA Sensor RH Front Heated Exhaust Gas Oxygen IN STOCK	-	2	Enquire
9	BG339G444AB	CAT MONITOR SENSOR	BG339G444AB CAT MONITOR SENSOR V8 S	-	2	Enquire
9	6G339G444AA	Sensor, HEGO- RH Front Post-Cat IN STOCK	6G339G444AA Sensor, HEGO- RH Front Post-Cat IN STOCK	-	2	Enquire
10	BG339F472AB	SENSOR HEATED EXHAUST GAS OXYGEN IN STOCK	BG339F472AB SENSOR HEATED EXHAUST GAS OXYGEN V8 S IN STOCK	-	1	Enquire
10	699209	Tie-wrap, heat proof IN STOCK	699209 Tie-wrap, heat proof IN STOCK	-	2	Enquire
