Aston Martin V8 Vantage (upto 2016) - Valve Train

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
9G336306AA SPROCKET CRANKSHAFT $223.07 To Order
Photo Part No Description Price (each) Stock
9G336268AA CHAIN PRIMARY TIMING $361.12 To Order
Photo Part No Description Price (each) Stock
9G336268AA CHAIN PRIMARY TIMING $361.12 To Order
Photo Part No Description Price (each) Stock
9G336K297AA GUIDE PRIMARY TIMING CHAIN 11 PLATE $190.36 To Order
Photo Part No Description Price (each) Stock
9G336L266AA TENSIONER BLADE $265.01 To Order
Photo Part No Description Price (each) Stock
6G430310096 PIVOT BOLT $1.68 To Order
Photo Part No Description Price (each) Stock
6G430310095 TENSIONER BLADE BUSH $3.14 To Order
Photo Part No Description Price (each) Stock
9G336K297AA GUIDE PRIMARY TIMING CHAIN 11 PLATE $190.36 To Order
Photo Part No Description Price (each) Stock
702946 Bolt, M6 x 35, Hex Head $0.80 To Order
Photo Part No Description Price (each) Stock
6G430310092 PIN-TIMING CHAIN SUPPORT ARM $5.46 To Order
Photo Part No Description Price (each) Stock
9G336L266AA TENSIONER BLADE $265.01 To Order
Photo Part No Description Price (each) Stock
702573 BOLT M8 X 35 $0.37 To Order
Photo Part No Description Price (each) Stock
6G430310093 TENSIONER ASSY TIMING BELT $605.75 To Order
Photo Part No Description Price (each) Stock
702946 Bolt, M6 x 35, Hex Head $0.80 To Order
Photo Part No Description Price (each) Stock
6G336C261BA HSG ASY ENG VAR TM L $1,355.90 To Order
Photo Part No Description Price (each) Stock
6G336C260BA HSG ASSY ENG VAR TM $1,355.90 To Order
Photo Part No Description Price (each) Stock
6G430310094 HSG/VALVE CAM TIMING $230.46 To Order
Photo Part No Description Price (each) Stock
702572 Screw, flg, M6 x 16 Enquire To Order
Photo Part No Description Price (each) Stock
702680 NUT M6 VVT BUSH CARRIER - B BANK $1.91 To Order
Photo Part No Description Price (each) Stock
702532 BOLT M8 x 50 HEX FLNG PIL.8 $0.52 To Order
Photo Part No Description Price (each) Stock
702688 BOLT M8 X 65 HF PIL.8 $0.62 To Order
Photo Part No Description Price (each) Stock
702573 BOLT M8 X 35 $0.37 To Order
Photo Part No Description Price (each) Stock
9G336M288AA VCT UNIT $786.27 To Order
Photo Part No Description Price (each) Stock
6G430710102 BOLT CAMSHAFT SPROCKET $1.27 To Order
Photo Part No Description Price (each) Stock
9G336268BA CHAIN SECONDARY TIMING $115.66 To Order
Photo Part No Description Price (each) Stock
6G430310099 TENS ASY SECNDRY LH $914.35 To Order
Photo Part No Description Price (each) Stock
6G430310098 TENS ASY SECNDRY RH $440.39 To Order
Photo Part No Description Price (each) Stock
702946 Bolt, M6 x 35, Hex Head $0.80 To Order
Photo Part No Description Price (each) Stock
6G430310101 SPACER $3.53 To Order
Photo Part No Description Price (each) Stock
6G430310100 SPROCKET C/SHT EXHAUST $9.16 To Order
Photo Part No Description Price (each) Stock
9G336A273BA CAMSHAFT-EXH LH $3,413.12 To Order
Photo Part No Description Price (each) Stock
9G336A272BA CAMSHAFT-EXH RH $3,413.12 To Order
Photo Part No Description Price (each) Stock
9G336A271BA CAMSHAFT-INTAKE LH $3,327.65 To Order
Photo Part No Description Price (each) Stock
9G336A270BA CAMSHAFT-INTAKE RH $3,327.65 To Order
Photo Part No Description Price (each) Stock
6G336B291AA WHEEL CAM SHAFT SPEED SENSOR $72.87 To Order
Photo Part No Description Price (each) Stock
6G336505CB VALVE - EXHAUST $18.90 To Order
9G336507AA VALVE - INTAKE $29.03 To Order
Photo Part No Description Price (each) Stock
6G430610103 RETAINER - VALVE SPRING $1.77 To Order
Photo Part No Description Price (each) Stock
6G336513BB VALVE SPRING $29.51 To Order
Photo Part No Description Price (each) Stock
6G430610104 VALVE SPRING COLLAR $0.62 To Order
Photo Part No Description Price (each) Stock
6G430610105 KEY VALVE SPRING $2.46 To Order
Photo Part No Description Price (each) Stock
9G336500AAA TAP ASY VALVE- GRADE 2.950 $18.49 To Order
9G336500ABA TAP ASY VALVE- GRADE 2.965 $18.49 To Order
9G336500ACA TAP ASY VALVE- GRADE 2.980 $18.49 To Order
...and 47 more part variants. See table on right for more details.
View All

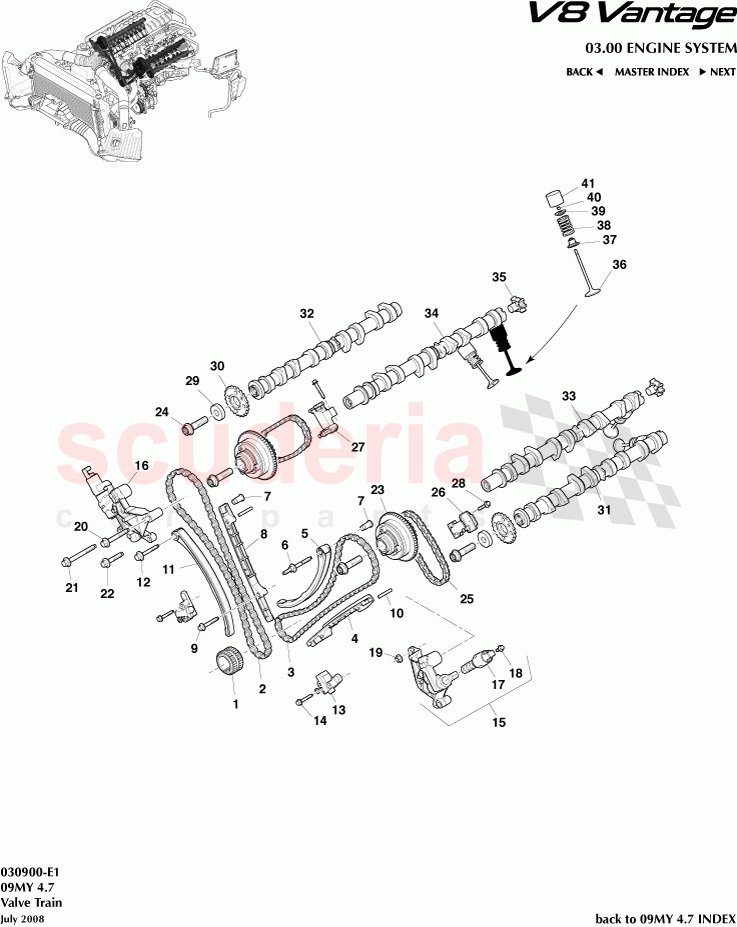

Valve Train of Aston Martin Aston Martin V8 Vantage (upto 2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 9G336306AA
SPROCKET CRANKSHAFT 		$223.07 1
2 9G336268AA
CHAIN PRIMARY TIMING 		$361.12 1
3 9G336268AA
CHAIN PRIMARY TIMING 		$361.12 1
4 9G336K297AA
GUIDE PRIMARY TIMING CHAIN 11 PLATE 		$190.36 1
5 9G336L266AA
TENSIONER BLADE 		$265.01 1
6 6G430310096
PIVOT BOLT 		$1.68 1
7 6G430310095
TENSIONER BLADE BUSH 		$3.14 2
8 9G336K297AA
GUIDE PRIMARY TIMING CHAIN 11 PLATE 		$190.36 1
9 702946
Bolt, M6 x 35, Hex Head 		$0.80 2
10 6G430310092
PIN-TIMING CHAIN SUPPORT ARM 		$5.46 2
11 9G336L266AA
TENSIONER BLADE 		$265.01 1
12 702573
BOLT M8 X 35 		$0.37 2
13 6G430310093
TENSIONER ASSY TIMING BELT 		$605.75 2
14 702946
Bolt, M6 x 35, Hex Head 		$0.80 4
15 6G336C261BA
HSG ASY ENG VAR TM L 		$1,355.90 1
16 6G336C260BA
HSG ASSY ENG VAR TM 		$1,355.90 1
17 6G430310094
HSG/VALVE CAM TIMING 		$230.46 1
18 702572
Screw, flg, M6 x 16 		- 2 Enquire
19 702680
NUT M6 VVT BUSH CARRIER - B BANK 		$1.91 2
20 702532
BOLT M8 x 50 HEX FLNG PIL.8 		$0.52 2
21 702688
BOLT M8 X 65 HF PIL.8 		$0.62 2
22 702573
BOLT M8 X 35 		$0.37 2
23 9G336M288AA
VCT UNIT 		$786.27 2
24 6G430710102
BOLT CAMSHAFT SPROCKET 		$1.27 4
25 9G336268BA
CHAIN SECONDARY TIMING 		$115.66 2
26 6G430310099
TENS ASY SECNDRY LH 		$914.35 1
27 6G430310098
TENS ASY SECNDRY RH 		$440.39 1
28 702946
Bolt, M6 x 35, Hex Head 		$0.80 4
29 6G430310101
SPACER 		$3.53 2
30 6G430310100
SPROCKET C/SHT EXHAUST 		$9.16 1
31 9G336A273BA
CAMSHAFT-EXH LH 		$3,413.12 1
32 9G336A272BA
CAMSHAFT-EXH RH 		$3,413.12 1
33 9G336A271BA
CAMSHAFT-INTAKE LH 		$3,327.65 1
34 9G336A270BA
CAMSHAFT-INTAKE RH 		$3,327.65 1
35 6G336B291AA
WHEEL CAM SHAFT SPEED SENSOR 		$72.87 2
36 6G336505CB
VALVE - EXHAUST 		$18.90 16
36 9G336507AA
VALVE - INTAKE 		$29.03 16
37 6G430610103
RETAINER - VALVE SPRING 		$1.77 32
38 6G336513BB
VALVE SPRING 		$29.51 32
39 6G430610104
VALVE SPRING COLLAR 		$0.62 64
40 6G430610105
KEY VALVE SPRING 		$2.46 64
41 9G336500AAA
TAP ASY VALVE- GRADE 2.950 		$18.49 -
41 9G336500ABA
TAP ASY VALVE- GRADE 2.965 		$18.49 -
41 9G336500ACA
TAP ASY VALVE- GRADE 2.980 		$18.49 -
41 9G336500ADA
TAP ASY VALVE- GRADE 2.995 		$18.49 -
41 9G336500AEA
TAP ASY VALVE- GRADE 3.010 		$18.49 -
41 9G336500AFA
TAP ASY VALVE- GRADE 3.025 		$18.49 -
41 9G336500AGA
TAP ASY VALVE- GRADE 3.040 		$18.49 -
41 9G336500AHA
TAP ASY VALVE- GRADE 3.055 		$18.49 -
41 9G336500AJA
TAP ASY VALVE- GRADE 3.070 		$18.49 -
41 9G336500AKA
TAP ASY VALVE- GRADE 3.085 		$18.49 -
41 9G336500ALA
TAP ASY VALVE- GRADE 3.100 		$18.49 -
41 9G336500AMA
TAP ASY VALVE- GRADE 3.115 		$18.49 -
41 9G336500ANA
TAP ASY VALVE- GRADE 3.130 		$18.49 -
41 9G336500ARA
TAP ASY VALVE- GRADE 3.145 		$18.49 -
41 9G336500ASA
TAP ASY VALVE- GRADE 3.160 		$18.49 -
41 9G336500ATA
TAP ASY VALVE- GRADE 3.175 		$18.49 -
41 9G336500BAA
TAP ASY VALVE- GRADE 3.190 		$18.49 -
41 9G336500BBA
TAP ASY VALVE- GRADE 3.205 		$19.01 -
41 9G336500BCA
TAP ASY VALVE- GRADE 3.220 		$18.49 -
41 9G336500BDA
TAP ASY VALVE- GRADE 3.235 		$18.49 -
41 9G336500BEA
TAP ASY VALVE- GRADE 3.250 		$18.49 -
41 9G336500BFA
TAP ASY VALVE- GRADE 3.265 		$18.49 -
41 9G336500BGA
TAP ASY VALVE- GRADE 3.280 		$18.49 -
41 9G336500BHA
TAP ASY VALVE- GRADE 3.295 		$18.49 -
41 9G336500BJA
TAP ASY VALVE- GRADE 3.310 		$18.49 -
41 9G336500BKA
TAP ASY VALVE- GRADE 3.325 		$18.49 -
41 9G336500BLA
TAP ASY VALVE- GRADE 3.340 		$18.49 -
41 9G336500BMA
TAP ASY VALVE- GRADE 3.355 		$19.01 -
41 9G336500BNA
TAP ASY VALVE- GRADE 3.370 		$18.49 -
41 9G336500BRA
TAP ASY VALVE-3.385 		$18.49 -
41 9G336500BSA
TAP ASY VALVE- GRADE 3.400 		$18.49 -
41 9G336500BTA
TAP ASY VALVE- GRADE 3.415 		$18.49 -
41 9G336500CAA
TAP ASY VALVE- GRADE 3.430 		$18.49 -
41 9G336500CBA
TAP ASY VALVE- GRADE 3.445 		$18.49 -
41 9G336500CCA
TAP ASY VALVE- GRADE 3.460 		$18.49 -
41 9G336500CDA
TAP ASY VALVE- GRADE 3.475 		$18.49 -
41 9G336500CEA
TAP ASY VALVE- GRADE 3.490 		$18.49 -
41 9G336500CFA
TAP ASY VALVE- GRADE 3.505 		$18.49 -
41 9G336500CGA
TAP ASY VALVE- GRADE 3.520 		$18.49 -
41 9G336500CHA
TAP ASY VALVE- GRADE 3.535 		$18.49 -
41 9G336500CJA
TAP ASY VALVE- GRADE 3.550 		$18.49 -
41 9G336500CKA
TAP ASY VALVE- GRADE 3.565 		$18.49 -
41 9G336500CLA
TAP ASY VALVE- GRADE 3.580 		$18.49 -
41 9G336500CMA
TAP ASY VALVE- GRADE 3.595 		$16.38 -
41 9G336500CNA
TAP ASY VALVE- GRADE 3.610 		$18.49 -
41 9G336500CRA
TAP ASY VALVE- GRADE 3.625 		$15.73 -
41 9G336500CSA
TAP ASY VALVE- GRADE 3.640 		$15.73 -
41 9G336500CTA
TAP ASY VALVE- GRADE 3.655 		$15.73 -
41 9G336500DAA
Tappet, valve. 3.670 		$21.63 -
41 9G336500DBA
Tappet, valve. 3.685 		- - Enquire
