Name: Engine Air Charging
Rating: 4.1 (1 reviews)

Engine Air Charging of Aston Martin Aston Martin V8 Vantage (upto 2016)

View All

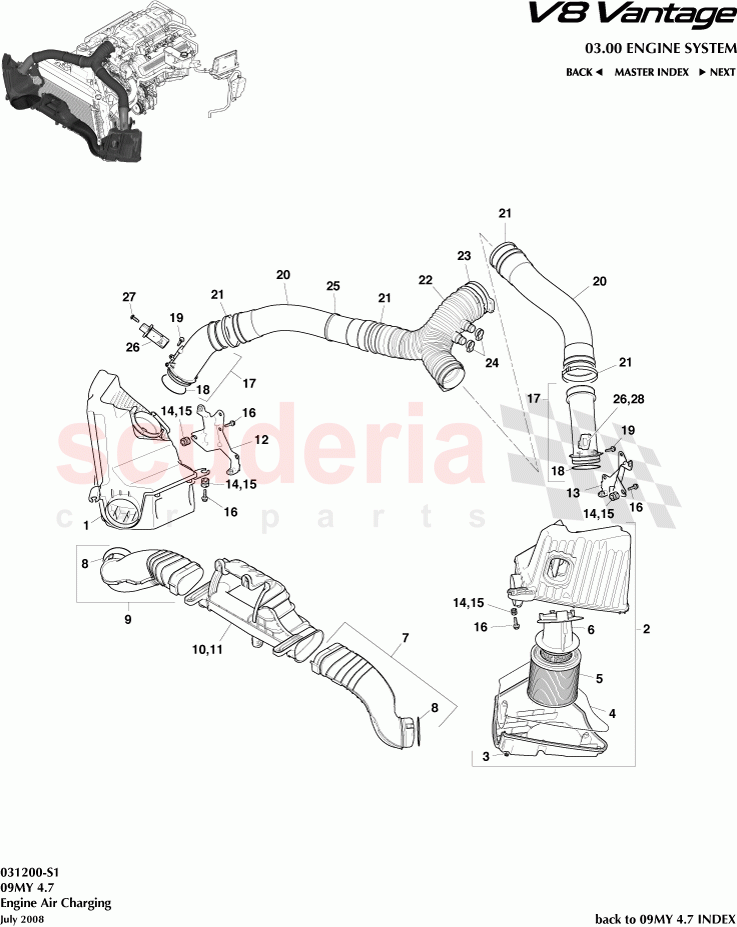

Aston Martin V8 Vantage (upto 2016) - Engine Air Charging

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4G439600BD	Airbox RH	$393.66	To Order

Photo	Part No	Description	Price (each)	Stock
	4G439600CD	Air Filter Box LH	$393.66	To Order

Photo	Part No	Description	Price (each)	Stock
	4G430410AA	Screw - 5.2x32 Self Tap	$2.42	To Order

Photo	Part No	Description	Price (each)	Stock
	4G439C664AB	Gasket - Air Cleaner Housing	$20.02	To Order

Photo	Part No	Description	Price (each)	Stock
	4G439601ABPK	Air Filter (Pack of 2)	$181.52	To Order

Photo	Part No	Description	Price (each)	Stock
	6G339A675HA	DUCT ASSEMBLY, AIR INTAKE LH	$48.92	To Order

Photo	Part No	Description	Price (each)	Stock
	4G436C704AA	O Ring - Engine Duct	$23.16	To Order

Photo	Part No	Description	Price (each)	Stock
	6G339A675GA	AIR CLEANER INTAKE RH	$48.92	To Order

Photo	Part No	Description	Price (each)	Stock
	6G339P866CB	AIR INTAKE DUCT	$255.68	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432705AA	Rivet Plastic	$0.71	To Order

Photo	Part No	Description	Price (each)	Stock
	6G339B609BC	BRACKET - AIR CLEANER RH	$334.52	To Order

Photo	Part No	Description	Price (each)	Stock
	6G339B609CC	Bracket - Air Cleaner LH	$334.52	To Order

Photo	Part No	Description	Price (each)	Stock
	4G439697CA	Grommet, Engine Airbox	$13.87	To Order

Photo	Part No	Description	Price (each)	Stock
	4G435144AA	Spacer, Engine Airbox Isolator	$14.99	To Order

Photo	Part No	Description	Price (each)	Stock
	703025	Screw, M6 x 25, Hex Flange Head	$0.21	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3312B612AD	BODY-ENG ELECT MS AI	$24.91	To Order

Photo	Part No	Description	Price (each)	Stock
	4G436C704BA	O-Ring Engine Duct Interior	$25.74	To Order

Photo	Part No	Description	Price (each)	Stock
	4G430410AA	Screw - 5.2x32 Self Tap	$2.42	To Order

Photo	Part No	Description	Price (each)	Stock
	6G339C623EA	DUCT ASSY AIR OUTLET	$194.19	To Order

Photo	Part No	Description	Price (each)	Stock
	6G336N811CA	Herbie Clamp - Clean Air Duct	$13.18	To Order

Photo	Part No	Description	Price (each)	Stock
	6G339D609BD	ASSY THROTTLE BODY Y PIECE	$785.65	To Order

Photo	Part No	Description	Price (each)	Stock
	6G336N811DA	Clamp - Herbie 96mm DIA	$6.86	To Order

Photo	Part No	Description	Price (each)	Stock
	6G336N811BA	Clamp, Herbie 26mm	$5.24	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3314A169AB	Cable Tie	$5.31	To Order

Photo	Part No	Description	Price (each)	Stock
	4G430810933	Mass Air Flow Meter	$149.26	To Order

Photo	Part No	Description	Price (each)	Stock
	4G430410BB	Screw, M35 x 12 Self Tap	$7.01	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	4G439600BD	Airbox RH	4G439600BD Airbox RH	$393.66	1
2	4G439600CD	Air Filter Box LH	4G439600CD Air Filter Box LH	$393.66	1
3	4G430410AA	Screw - 5.2x32 Self Tap	4G430410AA Screw - 5.2x32 Self Tap	$2.42	7
4	4G439C664AB	Gasket - Air Cleaner Housing	4G439C664AB Gasket - Air Cleaner Housing	$20.02	1
5	4G439601ABPK	Air Filter (Pack of 2)	4G439601ABPK Air Filter (Pack of 2)	$181.52	1
7	6G339A675HA	DUCT ASSEMBLY, AIR INTAKE LH	6G339A675HA DUCT ASSEMBLY, AIR INTAKE LH	$48.92	1
8	4G436C704AA	O Ring - Engine Duct	4G436C704AA O Ring - Engine Duct	$23.16	1
9	6G339A675GA	AIR CLEANER INTAKE RH	6G339A675GA AIR CLEANER INTAKE RH	$48.92	1
10	6G339P866CB	AIR INTAKE DUCT	6G339P866CB AIR INTAKE DUCT	$255.68	1
11	4G432705AA	Rivet Plastic	4G432705AA Rivet Plastic	$0.71	4
12	6G339B609BC	BRACKET - AIR CLEANER RH	6G339B609BC BRACKET - AIR CLEANER RH	$334.52	1
13	6G339B609CC	Bracket - Air Cleaner LH	6G339B609CC Bracket - Air Cleaner LH	$334.52	1
14	4G439697CA	Grommet, Engine Airbox	4G439697CA Grommet, Engine Airbox	$13.87	6
15	4G435144AA	Spacer, Engine Airbox Isolator	4G435144AA Spacer, Engine Airbox Isolator	$14.99	6
16	703025	Screw, M6 x 25, Hex Flange Head	703025 Screw, M6 x 25, Hex Flange Head	$0.21	6
17	6G3312B612AD	BODY-ENG ELECT MS AI	6G3312B612AD BODY-ENG ELECT MS AI	$24.91	2
18	4G436C704BA	O-Ring Engine Duct Interior	4G436C704BA O-Ring Engine Duct Interior	$25.74	1
19	4G430410AA	Screw - 5.2x32 Self Tap	4G430410AA Screw - 5.2x32 Self Tap	$2.42	2
20	6G339C623EA	DUCT ASSY AIR OUTLET	6G339C623EA DUCT ASSY AIR OUTLET	$194.19	2
21	6G336N811CA	Herbie Clamp - Clean Air Duct	6G336N811CA Herbie Clamp - Clean Air Duct	$13.18	4
22	6G339D609BD	ASSY THROTTLE BODY Y PIECE	6G339D609BD ASSY THROTTLE BODY Y PIECE	$785.65	1
23	6G336N811DA	Clamp - Herbie 96mm DIA	6G336N811DA Clamp - Herbie 96mm DIA	$6.86	2
24	6G336N811BA	Clamp, Herbie 26mm	6G336N811BA Clamp, Herbie 26mm	$5.24	2
25	6G3314A169AB	Cable Tie	6G3314A169AB Cable Tie	$5.31	1
26	4G430810933	Mass Air Flow Meter	4G430810933 Mass Air Flow Meter	$149.26	2
27	4G430410BB	Screw, M35 x 12 Self Tap	4G430410BB Screw, M35 x 12 Self Tap	$7.01	4
