Engine Lubrication (Line Fit) of Aston Martin Aston Martin V8 Vantage (upto 2016)

View All

Aston Martin V8 Vantage (upto 2016) - Engine Lubrication (Line Fit)

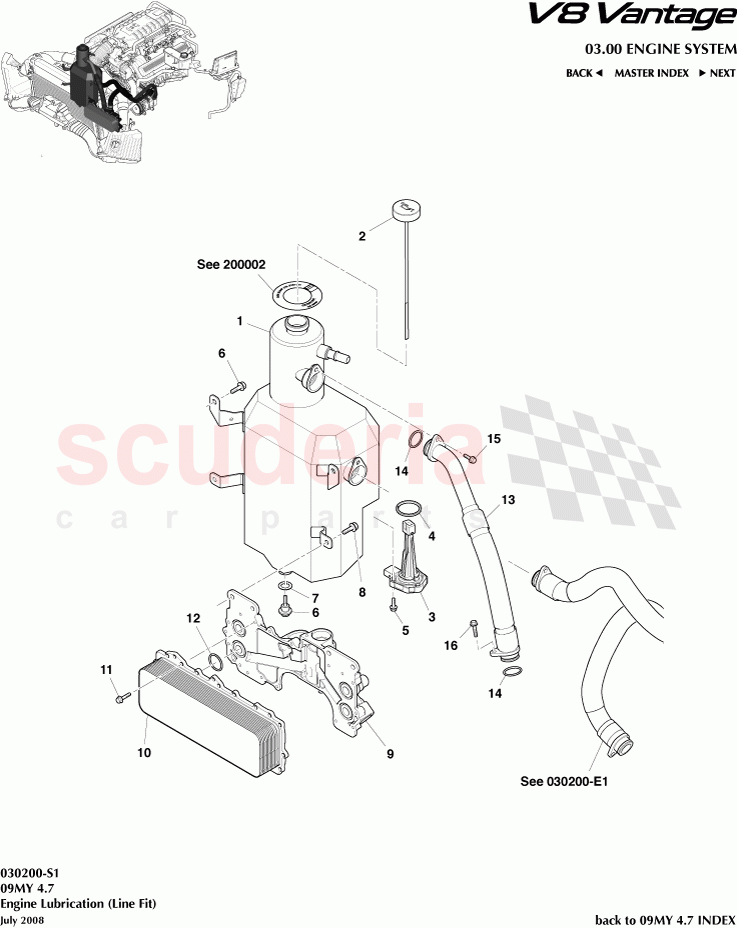

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	9G336L688BB	Tank body, oil cooler	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9G336766BC	OIL FILLER CAP ASSY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G430410972	Sensor Engine Low Oil Level	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	ptof8W936C624BB	Gasket, eng low oil sensor	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700607	Screw Hex Flange Head M6 x 16mm	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G336730AB	DRAIN PLUG-OIL TANK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G339N228AAPK	Washer Oil Tank Drain (Pack of 10)	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	703120	Screw M8-1.25-90 Hex Socket Head Shoulder	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	9G338C656CC	OIL COOL ADPT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

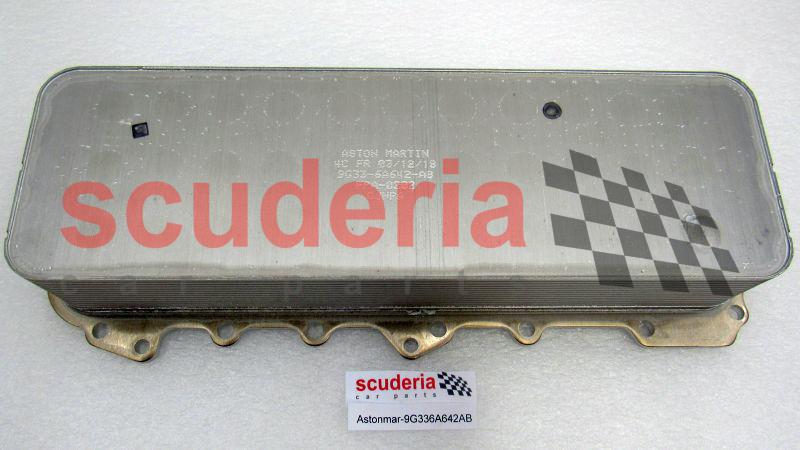

	9G336A642AB	COOLER ASSEMBLY OIL	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	704075	Screw M6 x 25 Hex Flange	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	9G3361J05AA	Seal Cooler Unit	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	9G336B748AC	OIL PIPE - COOLER OUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9G3361J05AA	Seal Cooler Unit	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	704075	Screw M6 x 25 Hex Flange	Enquire	IN STOCK

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	9G336C702BE	TNK ASSY OIL	9G336C702BE TNK ASSY OIL	-	1	Enquire
1	9G336L688BB	Tank body, oil cooler	9G336L688BB Tank body, oil cooler	-	1	Enquire
2	9G336766BC	OIL FILLER CAP ASSY	9G336766BC OIL FILLER CAP ASSY	-	1	Enquire
3	4G430410972	Sensor Engine Low Oil Level IN STOCK	4G430410972 Sensor Engine Low Oil Level IN STOCK	-	1	Enquire
4	ptof8W936C624BB	Gasket, eng low oil sensor	ptof8W936C624BB Gasket, eng low oil sensor	-	1	Enquire
5	700607	Screw Hex Flange Head M6 x 16mm	700607 Screw Hex Flange Head M6 x 16mm	-	3	Enquire
6	6G336730AB	DRAIN PLUG-OIL TANK	6G336730AB DRAIN PLUG-OIL TANK	-	1	Enquire
7	6G339N228AAPK	Washer Oil Tank Drain (Pack of 10) IN STOCK	6G339N228AAPK Washer Oil Tank Drain (Pack of 10) IN STOCK	-	1	Enquire
8	703120	Screw M8-1.25-90 Hex Socket Head Shoulder IN STOCK	703120 Screw M8-1.25-90 Hex Socket Head Shoulder IN STOCK	-	4	Enquire
9	9G338C656CC	OIL COOL ADPT	9G338C656CC OIL COOL ADPT	-	1	Enquire
10	9G336A642AB	COOLER ASSEMBLY OIL IN STOCK	9G336A642AB COOLER ASSEMBLY OIL IN STOCK	-	1	Enquire
11	704075	Screw M6 x 25 Hex Flange IN STOCK	704075 Screw M6 x 25 Hex Flange Oil Cooler IN STOCK	-	15	Enquire
12	9G3361J05AA	Seal Cooler Unit IN STOCK	9G3361J05AA Seal Cooler Unit Oil Cooler IN STOCK	-	4	Enquire
13	9G336B748AC	OIL PIPE - COOLER OUT	9G336B748AC OIL PIPE - COOLER OUT	-	1	Enquire
14	9G3361J05AA	Seal Cooler Unit IN STOCK	9G3361J05AA Seal Cooler Unit Oil cooler outlet pipe IN STOCK	-	2	Enquire
15	703203	Screw M6 x 20 Heex Flange 8 Chrome Free IN STOCK	703203 Screw M6 x 20 Heex Flange 8 Chrome Free Outlet tube to oil tank IN STOCK	-	1	Enquire
16	704075	Screw M6 x 25 Hex Flange IN STOCK	704075 Screw M6 x 25 Hex Flange Outlet tube to diverter IN STOCK	-	1	Enquire
