Basic Engine Structure

Aston Martin V8 Vantage (upto 2016)

Find Your Part

Aston Martin V8 Vantage (upto 2016) - Basic Engine Structure

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
BG339C663CB MANIFOLD INTAKE Enquire To Order
BG339C663DB MANIFOLD - INTAKE Enquire To Order
9G339C663CA Manifold assy, intake, upper 4.7 Enquire To Order
Photo Part No Description Price (each) Stock
6G431210060 PCV Breather Stub Pipe Enquire To Order
Photo Part No Description Price (each) Stock
702526 Bolt M8 x 30 Hex Flange Head Enquire To Order
Photo Part No Description Price (each) Stock
4G43001B46BB MANIFOLD BADGE Enquire To Order
Photo Part No Description Price (each) Stock
EG330810726 SENSOR-AIR TEMPERATURE Enquire To Order
Photo Part No Description Price (each) Stock
6G339F593AA Fuel Injector Assembly Enquire ARRIVING SOON
Photo Part No Description Price (each) Stock
6G433410062 Clip, Fuel Injector Enquire To Order
Photo Part No Description Price (each) Stock
6G339S441AF MANF ASY FU/INJ SPLY Enquire To Order
Photo Part No Description Price (each) Stock
701553 Screw, M6 x 16, Pan Head Enquire To Order
Photo Part No Description Price (each) Stock
2W939F775AA Dampener assy, injection pulse Enquire To Order
Photo Part No Description Price (each) Stock
6G433410063 Sensor Temperature/Pressure Enquire To Order
Photo Part No Description Price (each) Stock
700107 SCREW M5 X 20 FLG HEX HEAD GRD 8.8 ZINC PLATE Enquire To Order
Photo Part No Description Price (each) Stock
8G438979AA WASHER M5 x 20 x 1.5 THK ST/STEEL BLK Enquire To Order
Photo Part No Description Price (each) Stock
9G336L074AC BLK & BED PLATE Enquire To Order
9G336011AA Short block Enquire To Order
9G336006AA Long block Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
6G430110070 DWL CYL BLK TO FRT CVR Enquire To Order
Photo Part No Description Price (each) Stock
6G430110113 RING DOWEL Enquire To Order
Photo Part No Description Price (each) Stock
6G430110114 BOLT - M8 x 60 Enquire To Order
Photo Part No Description Price (each) Stock
6G430110075 BOLT M8 x 110 Enquire To Order
Photo Part No Description Price (each) Stock
6G430110112 BOLT M10 x 114 Enquire To Order
Photo Part No Description Price (each) Stock
6G430110070 DWL CYL BLK TO FRT CVR Enquire To Order
Photo Part No Description Price (each) Stock
6G430110067 DOWEL CYL HD TO BLK Enquire To Order
Photo Part No Description Price (each) Stock
6G430110118 RING DOWEL Enquire To Order
Photo Part No Description Price (each) Stock
6G430110068 CVR CYL TOP Enquire To Order
Photo Part No Description Price (each) Stock
702529 PLUG - FLANGED M30 Enquire To Order
Photo Part No Description Price (each) Stock
3286515 WASHER-SEALING Enquire To Order
Photo Part No Description Price (each) Stock
702531 PLUG 28/28.052 DIA Enquire To Order
Photo Part No Description Price (each) Stock
702528 PLUG - M30 X 12 Enquire To Order
Photo Part No Description Price (each) Stock
6G430410077 VLV ASY-ENG PST OIL COOL Enquire To Order
Photo Part No Description Price (each) Stock
91996 CYLINDER HEAD M/C - RH Enquire To Order
702536 SCREW M6 x 14 Enquire To Order
Photo Part No Description Price (each) Stock
91995 CYLINDER HEAD M/C - LH Enquire To Order
Photo Part No Description Price (each) Stock
6G430610353 BOLT CYLINDER HEAD Enquire To Order
Photo Part No Description Price (each) Stock
702683 BOLT M8 X 90 Enquire To Order
Photo Part No Description Price (each) Stock
9G336083AC Gasket Cylinder Head LH Enquire ARRIVING SOON
9G336051AC Gasket Cylinder Head RH Enquire To Order
Photo Part No Description Price (each) Stock
6G430610065 CAMSHAFT BEARING CAP Enquire To Order
Photo Part No Description Price (each) Stock
702946 Bolt, M6 x 35, Hex Head Enquire To Order
Photo Part No Description Price (each) Stock
702527 STUD - EXHAUST MANIFOLD M8X16 + M8X20 PIL 10 Enquire To Order
Photo Part No Description Price (each) Stock
6G339P851ABPK Intake Manifold Gasket (Pack of 2) Enquire ARRIVING SOON
Photo Part No Description Price (each) Stock
6G339F809AA Gasket - Throttle to Adaptor Enquire To Order
View All

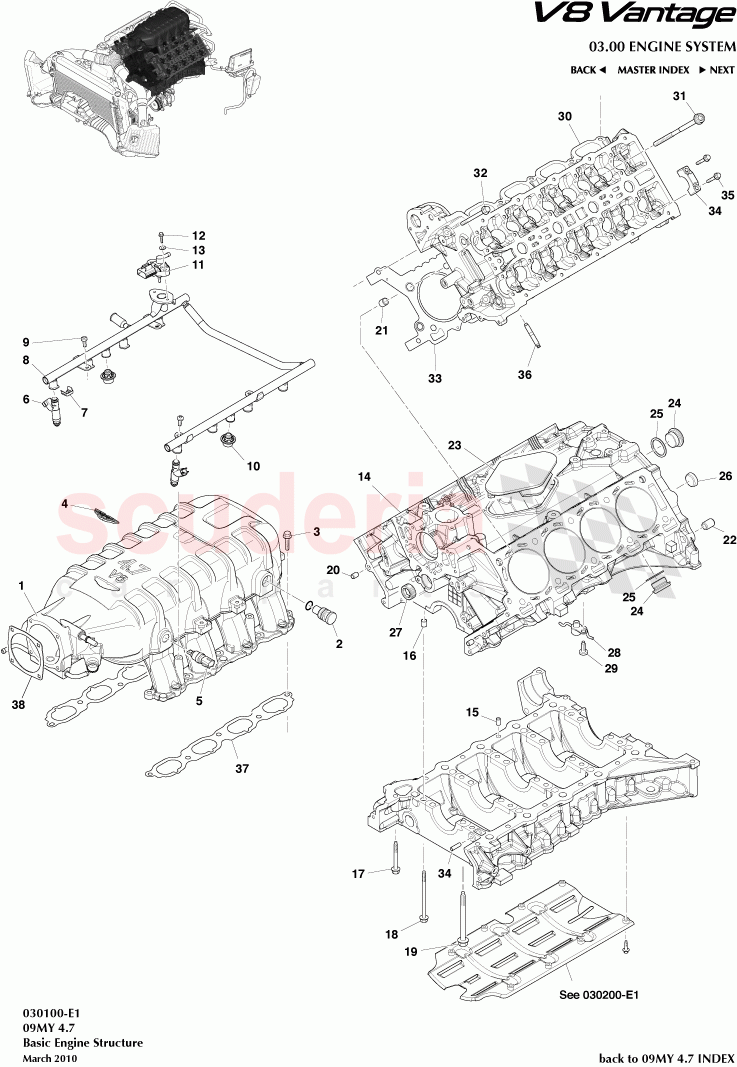

Basic Engine Structure of Aston Martin Aston Martin V8 Vantage (upto 2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 9G330810850
ENG LONG BLOCK-4.7lt
V8 'S' 		- 1 Enquire
- BG339424CB
INTAKE MANIFOLD ASSY
V8 'S' 		- 1 Enquire
- 9G330810850
ENG LONG BLOCK-4.7lt
11 MY 		- 1 Enquire
- BG339424DB
INTAKE MANIFOLD
11MY 		- 1 Enquire
- 9G330810850
ENG LONG BLOCK-4.7lt 		- 1 Enquire
- 9G339424AA
Manifold assy, intake, 4.7 		- 1 Enquire
1 BG339C663CB
MANIFOLD INTAKE
V8 'S' 		- 1 Enquire
1 BG339C663DB
MANIFOLD - INTAKE
11MY 		- 1 Enquire
1 9G339C663CA
Manifold assy, intake, upper 4.7 		- 1 Enquire

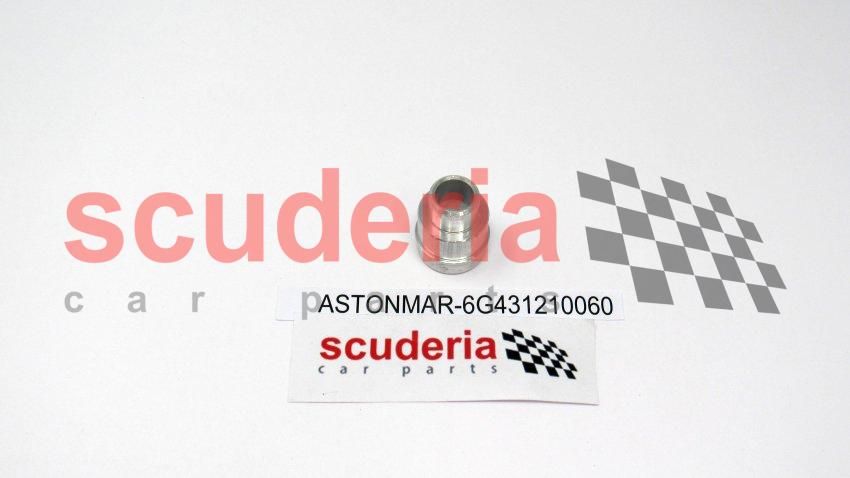

2 6G431210060
PCV Breather Stub Pipe 		- 1 Enquire
3 702526
Bolt M8 x 30 Hex Flange Head 		- 10 Enquire
4 4G43001B46BB
MANIFOLD BADGE 		- 1 Enquire
5 EG330810726
SENSOR-AIR TEMPERATURE 		- 1 Enquire

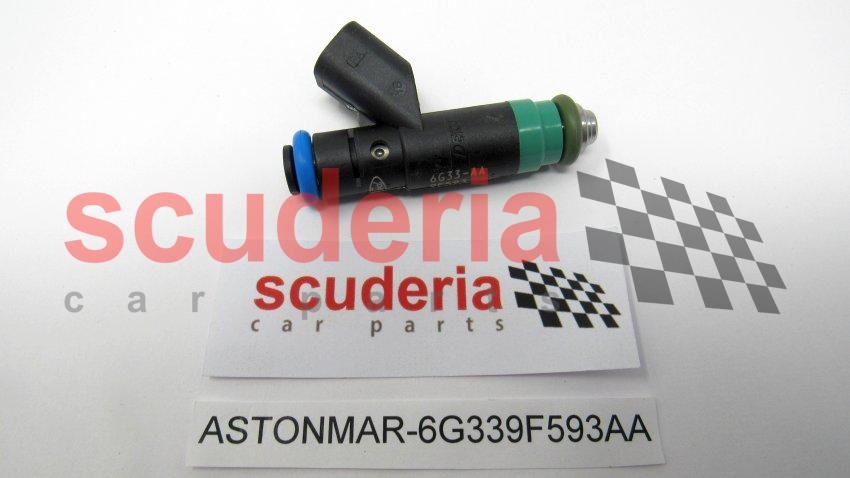

6 6G339F593AA
Fuel Injector Assembly
ARRIVING SOON 		- 8 Enquire
7 6G433410062
Clip, Fuel Injector 		- 8 Enquire
8 6G339S441AF
MANF ASY FU/INJ SPLY 		- 1 Enquire
9 701553
Screw, M6 x 16, Pan Head 		- 4 Enquire
10 2W939F775AA
Dampener assy, injection pulse 		- 2 Enquire
11 6G433410063
Sensor Temperature/Pressure 		- 1 Enquire
12 700107
SCREW M5 X 20 FLG HEX HEAD GRD 8.8 ZINC PLATE 		- 2 Enquire
13 8G438979AA
WASHER M5 x 20 x 1.5 THK ST/STEEL BLK 		- 2 Enquire
14 9G336L074AC
BLK & BED PLATE 		- 1 Enquire
14 9G336011AA
Short block 		- 1 Enquire
14 9G336006AA
Long block 		- 1 Enquire
14 9G336055AB
Sleeve, cylinder bore 		- 8 Enquire
15 6G430110070
DWL CYL BLK TO FRT CVR 		- 1 Enquire
16 6G430110113
RING DOWEL 		- 2 Enquire
17 6G430110114
BOLT - M8 x 60 		- 12 Enquire
18 6G430110075
BOLT M8 x 110 		- 12 Enquire
19 6G430110112
BOLT M10 x 114 		- 10 Enquire
20 6G430110070
DWL CYL BLK TO FRT CVR 		- 2 Enquire
21 6G430110067
DOWEL CYL HD TO BLK 		- 4 Enquire
22 6G430110118
RING DOWEL 		- 1 Enquire
23 6G430110068
CVR CYL TOP 		- 1 Enquire
24 702529
PLUG - FLANGED M30 		- 2 Enquire
25 3286515
WASHER-SEALING 		- 2 Enquire
26 702531
PLUG 28/28.052 DIA 		- 4 Enquire
27 702528
PLUG - M30 X 12 		- 1 Enquire
28 6G430410077
VLV ASY-ENG PST OIL COOL 		- 4 Enquire
29 91996
CYLINDER HEAD M/C - RH 		- 1 Enquire
29 702536
SCREW M6 x 14 		- 4 Enquire
30 91995
CYLINDER HEAD M/C - LH 		- 1 Enquire
31 6G430610353
BOLT CYLINDER HEAD 		- 20 Enquire
32 702683
BOLT M8 X 90 		- 4 Enquire

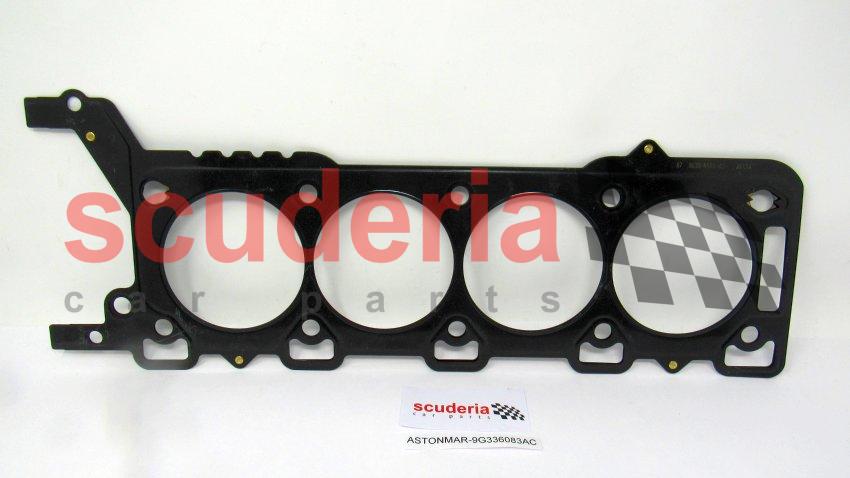

33 9G336083AC
Gasket Cylinder Head LH
ARRIVING SOON 		- 1 Enquire

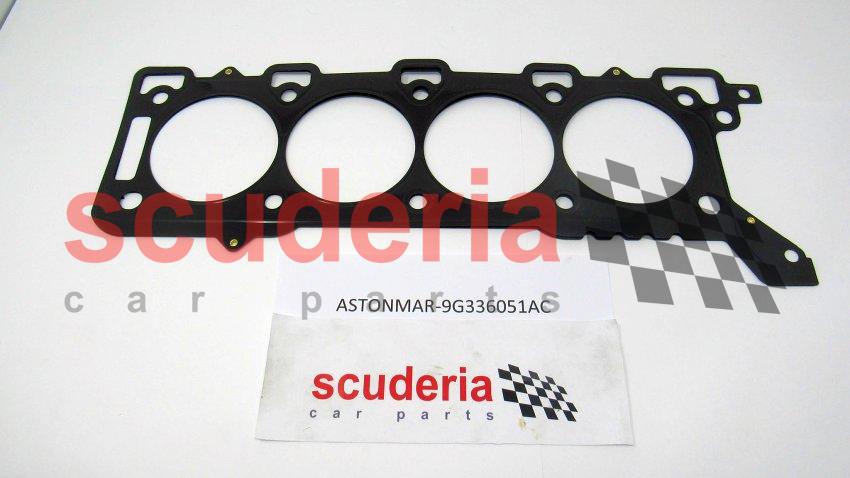

33 9G336051AC
Gasket Cylinder Head RH 		- 1 Enquire
34 6G430610065
CAMSHAFT BEARING CAP 		- 20 Enquire
35 702946
Bolt, M6 x 35, Hex Head 		- 40 Enquire
36 702527
STUD - EXHAUST MANIFOLD M8X16 + M8X20 PIL 10 		- 16 Enquire

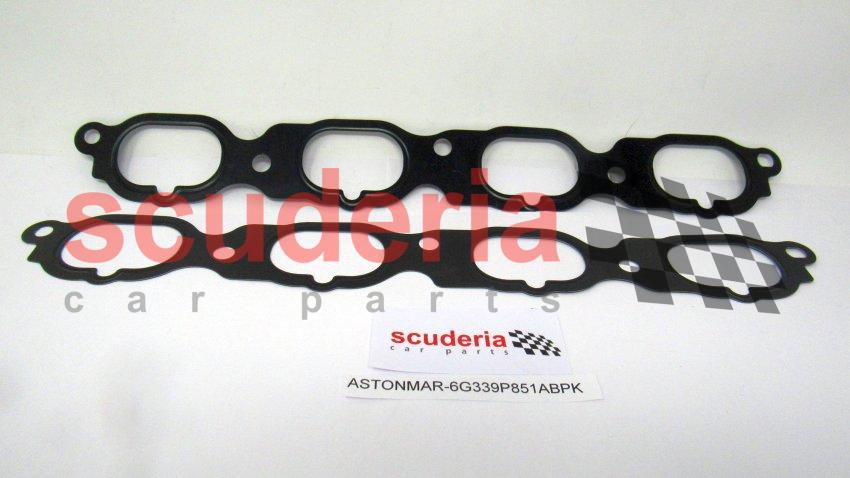

37 6G339P851ABPK
Intake Manifold Gasket (Pack of 2)
pack of 2
ARRIVING SOON 		- 1 Enquire
38 6G339F809AA
Gasket - Throttle to Adaptor 		- 1 Enquire
