Engine Lubrication (Engine Fit)

Aston Martin V8 Vantage (upto 2016)

Find Your Part

Aston Martin V8 Vantage (upto 2016) - Engine Lubrication (Engine Fit)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
AG336M001AA NVH PAD Enquire To Order
9G336706AC Sump body Enquire To Order
Photo Part No Description Price (each) Stock
686441 PLUG-3/8 - 18x 10.8 Enquire To Order
Photo Part No Description Price (each) Stock
6G433910080 Sensor, Engine Coolant Temperature Enquire ARRIVING SOON
Photo Part No Description Price (each) Stock
AD236C739BB OIL FILTER & ADAPTOR ASSEMBLY-WITH DRAIN Enquire To Order
Photo Part No Description Price (each) Stock
6G430110113 RING DOWEL Enquire To Order
Photo Part No Description Price (each) Stock
6G336C720BA GUIDE - OIL PUMP DRIVE Enquire To Order
Photo Part No Description Price (each) Stock
703149 SCREW M6x16 PAN FLG TORX CHROME FRE Enquire To Order
Photo Part No Description Price (each) Stock
6G430410082 Sump Plug Enquire To Order
Photo Part No Description Price (each) Stock
6G433910081 SPEED SENSOR Enquire To Order
Photo Part No Description Price (each) Stock
702540 SCREW M6 x 20 Enquire To Order
Photo Part No Description Price (each) Stock
6G430110070 DWL CYL BLK TO FRT CVR Enquire To Order
Photo Part No Description Price (each) Stock
702538 BOLT M8 x 45 Enquire To Order
702557 BOLT M8 X 100 HF 8 Enquire To Order
Photo Part No Description Price (each) Stock
9G336617AC TUBE ASSY - OIL PUMP INLET Enquire To Order
Photo Part No Description Price (each) Stock
9G3361J05BA O Ring Enquire To Order
Photo Part No Description Price (each) Stock
9G339N778AC TUBE ASY - OIL PUMP OUTLET Enquire To Order
Photo Part No Description Price (each) Stock
9G3361J05AA Seal Cooler Unit Enquire To Order
Photo Part No Description Price (each) Stock
702542 BOLT M6 x 20 HF PIL 8 Enquire To Order
Photo Part No Description Price (each) Stock
702535 Screw M6x12 hex flg hd Enquire To Order
Photo Part No Description Price (each) Stock
6G3319D721BA BRACKET ON BRACKET AC COND OUT Enquire To Order
Photo Part No Description Price (each) Stock
6G336C777AB TENS & BRKT ASY OIL PMP DRV Enquire To Order
Photo Part No Description Price (each) Stock
702681 PIN SPG SLOT HEAVY 5 X 20 Enquire To Order
Photo Part No Description Price (each) Stock
702534 SCREW M6x25 HEX FLG Enquire To Order
Photo Part No Description Price (each) Stock
6G336A893BB Sprocket, oil pump drive (crank) Enquire To Order
Photo Part No Description Price (each) Stock
6G336A895BA OIL PUMP CHAIN Enquire To Order
Photo Part No Description Price (each) Stock
92020 OIL PUMP PRESSURE Enquire To Order
6G336L681BA SPROCKET-OIL PUMP Enquire To Order
Photo Part No Description Price (each) Stock
6G336C721AB Oil Pump Gasket Enquire To Order
Photo Part No Description Price (each) Stock
702532 BOLT M8 x 50 HEX FLNG PIL.8 Enquire To Order
Photo Part No Description Price (each) Stock
92021 OIL PUMP SCAVENGE Enquire To Order
Photo Part No Description Price (each) Stock
6G336C721BB Oil Pump Gasket Enquire To Order
Photo Part No Description Price (each) Stock
702532 BOLT M8 x 50 HEX FLNG PIL.8 Enquire To Order
Photo Part No Description Price (each) Stock
702526 Bolt M8 x 30 Hex Flange Head Enquire To Order
Photo Part No Description Price (each) Stock
9G336714AA Oil Filter Enquire To Order
Photo Part No Description Price (each) Stock
9G336L712AA Tray, windage Enquire To Order
Photo Part No Description Price (each) Stock
1R123910532 Switch, Oil Pressure Enquire To Order
6G430410367 OIL PRESSURE RELIEF VALVE (OIL PUMP) Enquire To Order
702537 SCREW M5x20HF-0- Enquire To Order
View All

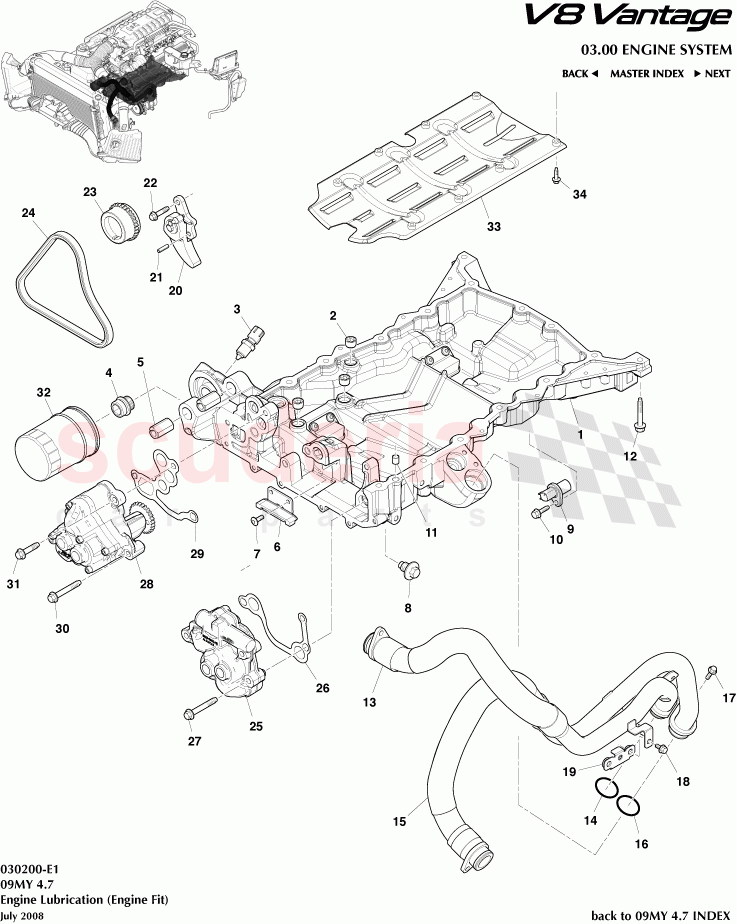

Engine Lubrication (Engine Fit) of Aston Martin Aston Martin V8 Vantage (upto 2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 9G336C674AD
OIL PAN 		- 1 Enquire
1 AG336M001AA
NVH PAD 		- 1 Enquire
1 9G336706AC
Sump body 		- 1 Enquire
2 686441
PLUG-3/8 - 18x 10.8 		- 3 Enquire
3 6G433910080
Sensor, Engine Coolant Temperature
ARRIVING SOON 		- 1 Enquire
4 AD236C739BB
OIL FILTER & ADAPTOR ASSEMBLY-WITH DRAIN 		- 1 Enquire
5 6G430110113
RING DOWEL 		- 3 Enquire
6 6G336C720BA
GUIDE - OIL PUMP DRIVE 		- 1 Enquire
7 703149
SCREW M6x16 PAN FLG TORX CHROME FRE 		- 2 Enquire
8 6G430410082
Sump Plug 		- 3 Enquire
9 6G433910081
SPEED SENSOR 		- 1 Enquire
10 702540
SCREW M6 x 20 		- 1 Enquire
11 6G430110070
DWL CYL BLK TO FRT CVR 		- 1 Enquire
12 702538
BOLT M8 x 45 		- 12 Enquire
12 702557
BOLT M8 X 100 HF 8 		- 2 Enquire
13 9G336617AC
TUBE ASSY - OIL PUMP INLET 		- 1 Enquire
14 9G3361J05BA
O Ring 		- 1 Enquire
15 9G339N778AC
TUBE ASY - OIL PUMP OUTLET 		- 1 Enquire
16 9G3361J05AA
Seal Cooler Unit 		- 1 Enquire
17 702542
BOLT M6 x 20 HF PIL 8 		- 1 Enquire
18 702535
Screw M6x12 hex flg hd 		- 1 Enquire
19 6G3319D721BA
BRACKET ON BRACKET AC COND OUT 		- 1 Enquire
20 6G336C777AB
TENS & BRKT ASY OIL PMP DRV 		- 1 Enquire
21 702681
PIN SPG SLOT HEAVY 5 X 20 		- 1 Enquire
22 702534
SCREW M6x25 HEX FLG 		- 1 Enquire
23 6G336A893BB
Sprocket, oil pump drive (crank) 		- 1 Enquire
24 6G336A895BA
OIL PUMP CHAIN 		- 1 Enquire
25 92020
OIL PUMP PRESSURE 		- 1 Enquire
25 6G336L681BA
SPROCKET-OIL PUMP 		- 2 Enquire
26 6G336C721AB
Oil Pump Gasket 		- 1 Enquire
27 702532
BOLT M8 x 50 HEX FLNG PIL.8
oil pressure pmp to sump 		- 3 Enquire
28 92021
OIL PUMP SCAVENGE 		- 1 Enquire
29 6G336C721BB
Oil Pump Gasket 		- 1 Enquire
30 702532
BOLT M8 x 50 HEX FLNG PIL.8 		- 2 Enquire
31 702526
Bolt M8 x 30 Hex Flange Head 		- 1 Enquire
32 9G336714AA
Oil Filter 		- 1 Enquire
33 9G336L712AA
Tray, windage 		- 1 Enquire
34 1R123910532
Switch, Oil Pressure 		- 1 Enquire
34 6G430410367
OIL PRESSURE RELIEF VALVE (OIL PUMP) 		- 1 Enquire
34 702537
SCREW M5x20HF-0- 		- 8 Enquire
