Engine Cooling (Engine Fit)

Aston Martin V8 Vantage (upto 2016)

Find Your Part

Aston Martin V8 Vantage (upto 2016) - Engine Cooling (Engine Fit)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
6G338A504AC Pipe, Water Outlet Enquire To Order
Photo Part No Description Price (each) Stock
702543 BOLT M6 x 25 PN TI PIL 8 Enquire To Order
Photo Part No Description Price (each) Stock
6G433210450 INTAKE MANFLD INT COOL HOSE Enquire To Order
Photo Part No Description Price (each) Stock
6G433210448 COVER-THERMOSTAT Enquire To Order
Photo Part No Description Price (each) Stock
702545 Stud M6 x 15/M6 x 22 Enquire To Order
Photo Part No Description Price (each) Stock
702542 BOLT M6 x 20 HF PIL 8 Enquire To Order
Photo Part No Description Price (each) Stock
6G433210366 GASKET-WATER OUTLET Enquire To Order
Photo Part No Description Price (each) Stock

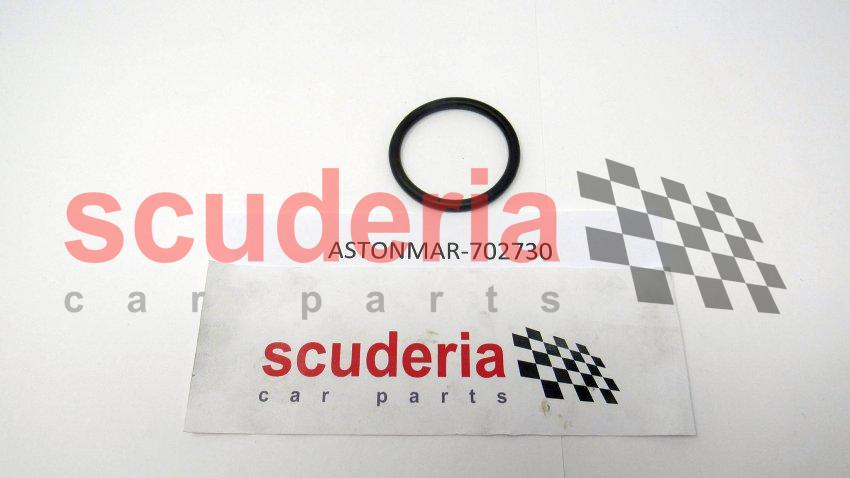

702730 O RING Enquire ARRIVING SOON
Photo Part No Description Price (each) Stock
6G433210451 Gasket Thermostat Housing Front Enquire To Order
Photo Part No Description Price (each) Stock

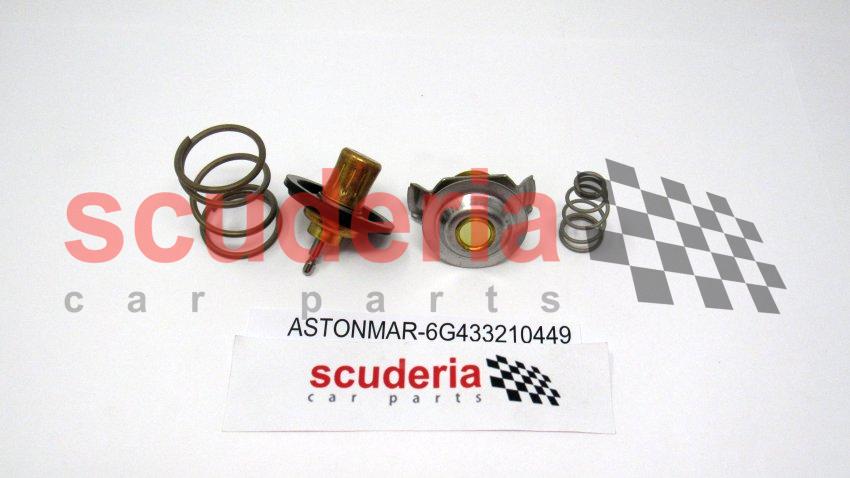

6G433210449 Thermostat Enquire To Order
Photo Part No Description Price (each) Stock

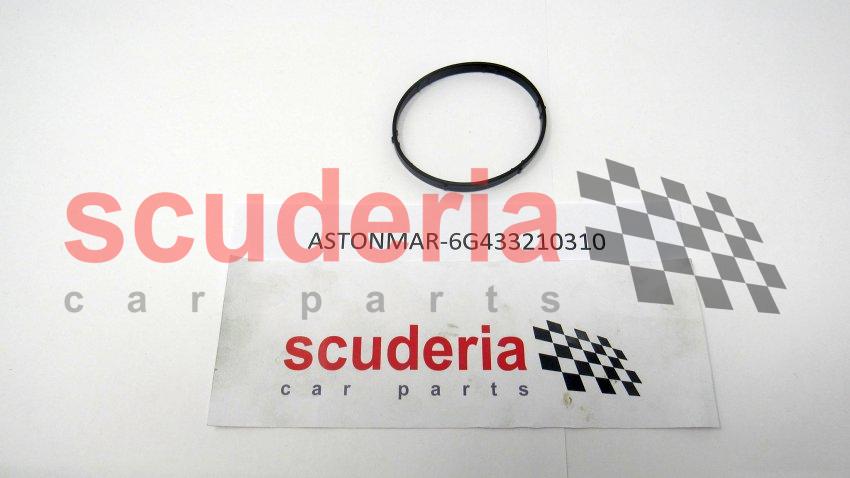

6G433210310 Seal -Thermostat Enquire ARRIVING SOON
Photo Part No Description Price (each) Stock
6R838594AA Valve, vent Enquire To Order
Photo Part No Description Price (each) Stock

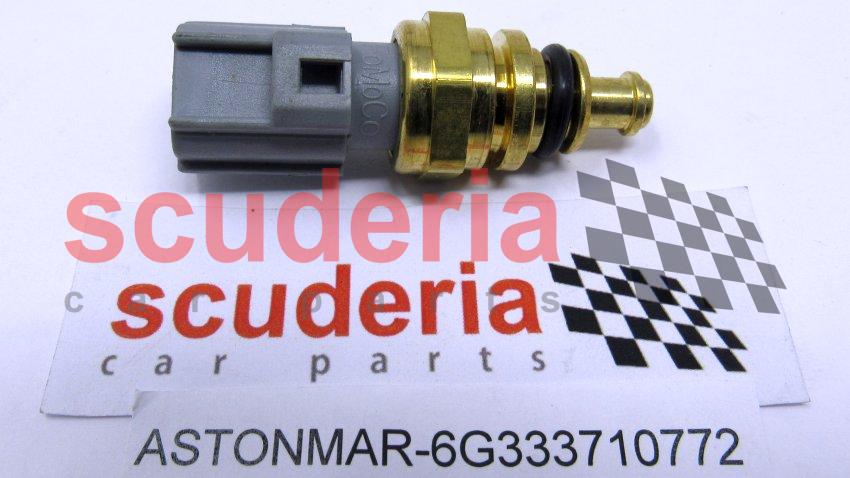

6G333710772 Sensor - Coolant Enquire To Order
Photo Part No Description Price (each) Stock
6G433210454 CLIP-WIRE Enquire To Order
Photo Part No Description Price (each) Stock
9G338501AC WATER PUMP ASSY Enquire To Order
Photo Part No Description Price (each) Stock
6G430510368 GASKET-SANDWICH WATER PUMP Enquire To Order

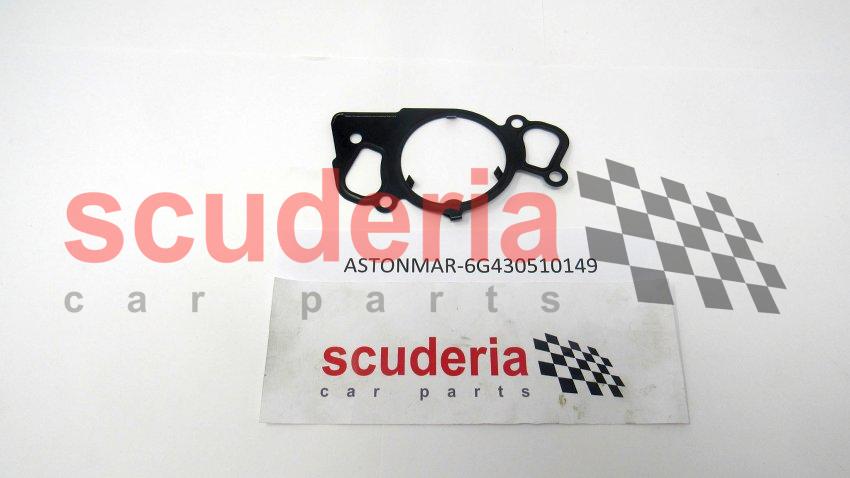

6G430510149 GASKET - WATER PUMP Enquire To Order
Photo Part No Description Price (each) Stock
702544 BOLT M6 x 50 HF PIL 8 Enquire To Order
Photo Part No Description Price (each) Stock
703903 Bolt, M6 x 30, Hex Flange Head Enquire To Order
Photo Part No Description Price (each) Stock
6G3318N348AB BRACKET - HEATER HOSE - LH Enquire To Order
Photo Part No Description Price (each) Stock
6G3318N348BB BRACKET - HEATER HOSE - RH Enquire To Order
Photo Part No Description Price (each) Stock
701181 Clip, 16 x 6.5 x 1.5-6 Enquire To Order
Photo Part No Description Price (each) Stock
702569 C-CLIP Enquire To Order
Photo Part No Description Price (each) Stock
702295 Nut, M5, Hex Flange Head Enquire To Order
Photo Part No Description Price (each) Stock
702542 BOLT M6 x 20 HF PIL 8 Enquire To Order
Photo Part No Description Price (each) Stock
703902 Clamp, 27 x 12 heavy duty Enquire To Order
703901 Clamp, 25 x 12 heavy duty Enquire To Order
6G3318K579AD HEATER HOSE INLET Enquire To Order
Photo Part No Description Price (each) Stock
703902 Clamp, 27 x 12 heavy duty Enquire To Order
703901 Clamp, 25 x 12 heavy duty Enquire To Order
6G3318K580AC HEATER HOSE OUTLET Enquire To Order
Photo Part No Description Price (each) Stock
703900 Clamp, 17 x 12 hvy dty spr bnd Enquire To Order
703899 Clamp, 15 x 12 hvy dty spr bnd Enquire To Order
6G339F813AC ASSY HOSE THROTTLE FEED Enquire To Order
Photo Part No Description Price (each) Stock
702904 Spring Clamp, Hose, 17 x 15 Enquire To Order
703899 Clamp, 15 x 12 hvy dty spr bnd Enquire To Order
6G338C362AA DEGAS VENT HOSE Enquire To Order
View All

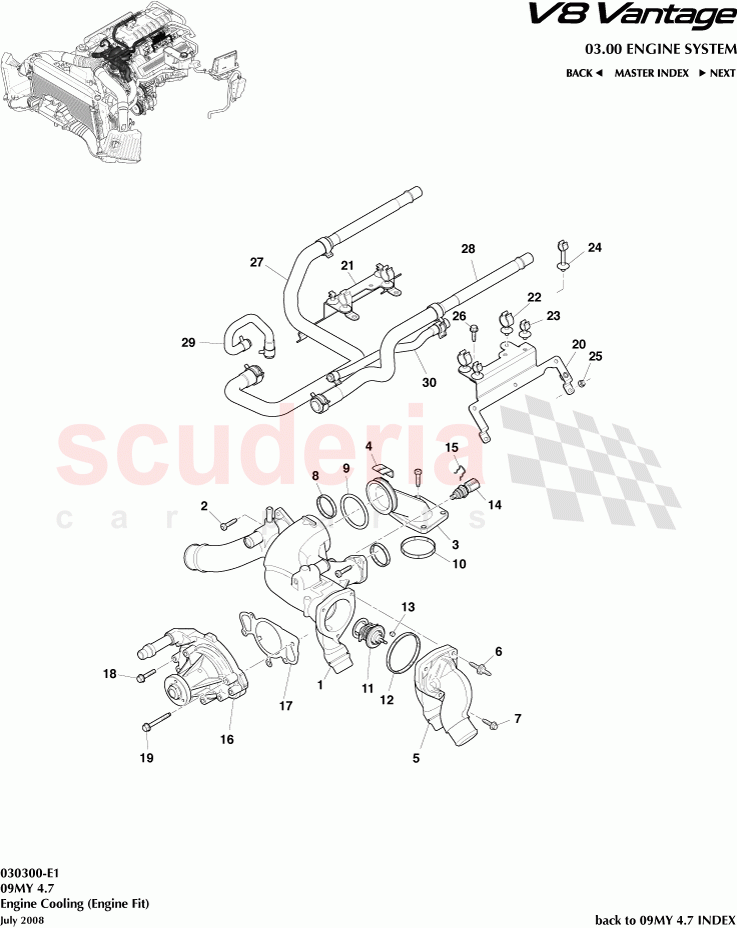

Engine Cooling (Engine Fit) of Aston Martin Aston Martin V8 Vantage (upto 2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 6G338A520AK
TUBE ASSEMBLY-WATER OUTLET 		- 1 Enquire
1 6G338A504AC
Pipe, Water Outlet 		- 1 Enquire
2 702543
BOLT M6 x 25 PN TI PIL 8 		- 4 Enquire
3 6G433210450
INTAKE MANFLD INT COOL HOSE 		- 1 Enquire
5 6G433210448
COVER-THERMOSTAT 		- 1 Enquire
6 702545
Stud M6 x 15/M6 x 22 		- 2 Enquire
7 702542
BOLT M6 x 20 HF PIL 8 		- 2 Enquire
8 6G433210366
GASKET-WATER OUTLET 		- 2 Enquire
9 702730
O RING
ARRIVING SOON 		- 1 Enquire
10 6G433210451
Gasket Thermostat Housing Front 		- 1 Enquire
11 6G433210449
Thermostat 		- 1 Enquire
12 6G433210310
Seal -Thermostat
ARRIVING SOON 		- 1 Enquire
13 6R838594AA
Valve, vent
Thermostat cover 		- 1 Enquire
14 6G333710772
Sensor - Coolant 		- 1 Enquire
15 6G433210454
CLIP-WIRE
Sensor 		- 1 Enquire
16 9G338501AC
WATER PUMP ASSY
09MY 		- 1 Enquire
17 6G430510368
GASKET-SANDWICH WATER PUMP 		- 1 Enquire
17 6G430510149
GASKET - WATER PUMP 		- 1 Enquire
18 702544
BOLT M6 x 50 HF PIL 8
Water pump W500304-S437 		- 5 Enquire
19 703903
Bolt, M6 x 30, Hex Flange Head
Water pump W500100-S437 		- 2 Enquire
20 6G3318N348AB
BRACKET - HEATER HOSE - LH 		- 1 Enquire
21 6G3318N348BB
BRACKET - HEATER HOSE - RH 		- 1 Enquire
22 701181
Clip, 16 x 6.5 x 1.5-6 		- 4 Enquire
23 702569
C-CLIP 		- 4 Enquire
25 702295
Nut, M5, Hex Flange Head 		- 4 Enquire
26 702542
BOLT M6 x 20 HF PIL 8 		- 4 Enquire
27 703902
Clamp, 27 x 12 heavy duty 		- 1 Enquire
27 703901
Clamp, 25 x 12 heavy duty 		- 1 Enquire
27 6G3318K579AD
HEATER HOSE INLET 		- 1 Enquire
28 703902
Clamp, 27 x 12 heavy duty 		- 1 Enquire
28 703901
Clamp, 25 x 12 heavy duty 		- 1 Enquire
28 6G3318K580AC
HEATER HOSE OUTLET 		- 1 Enquire
29 703900
Clamp, 17 x 12 hvy dty spr bnd 		- 1 Enquire
29 703899
Clamp, 15 x 12 hvy dty spr bnd 		- 1 Enquire
29 6G339F813AC
ASSY HOSE THROTTLE FEED 		- 1 Enquire
30 702904
Spring Clamp, Hose, 17 x 15 		- 1 Enquire
30 703899
Clamp, 15 x 12 hvy dty spr bnd 		- 1 Enquire
30 6G338C362AA
DEGAS VENT HOSE 		- 1 Enquire
