Evaporative Emissions of Aston Martin Aston Martin V8 Vantage (upto 2016)

View All

Aston Martin V8 Vantage (upto 2016) - Evaporative Emissions

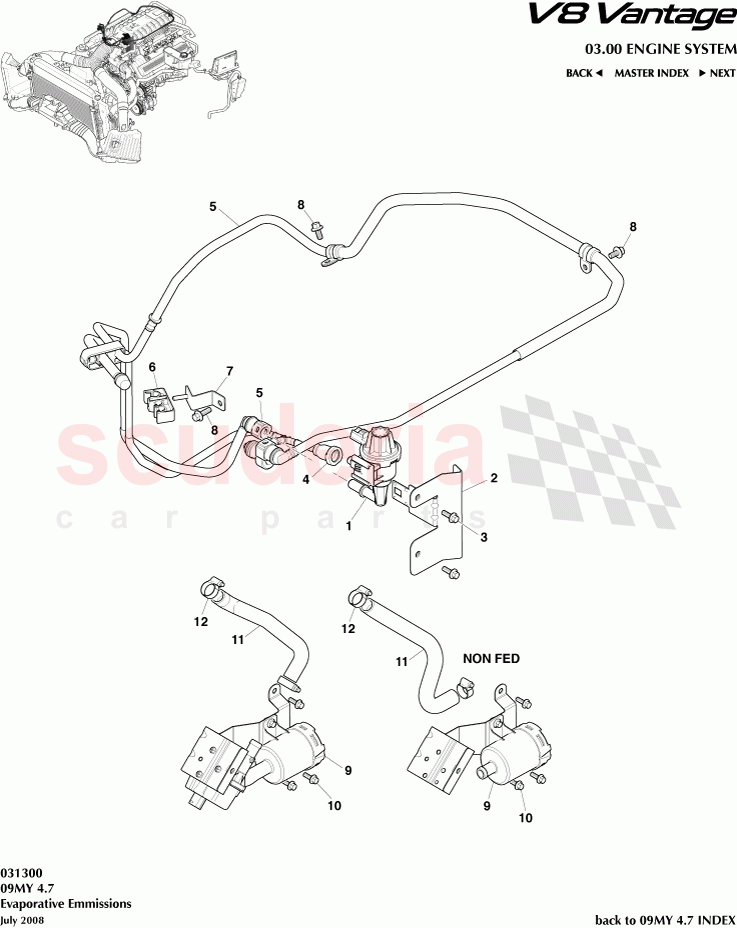

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock

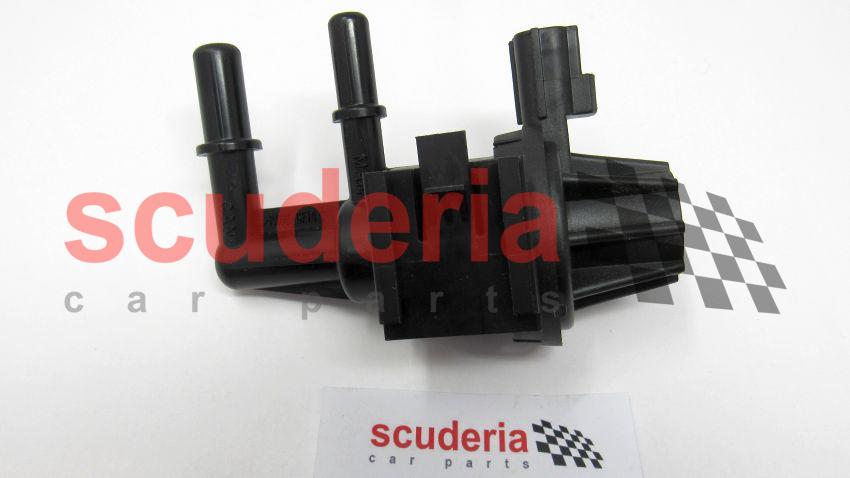

	6G430310032	PURGE VALVE (EVMV)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G339G743BB	BRACKET ELECTRONIC FUEL VAPOUR MANAGEMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700606	Screw, M6 x 12, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G339B051AE	TUB-FUL/VPR VLV	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BG339D289AC	TUB ASY-FU/VPR TO EN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G439294AA	Clip, Fuel Line to Engine	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G339338BB	BRACKET - FUEL TUBE CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700607	Screw Hex Flange Head M6 x 16mm	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BD239D665AA	DMTL & FILTER ASSY	Enquire	To Order
	AD239D665AB	Filter & Bracket Assy	Enquire	To Order
	BG339D665AA	DMTL & FILTER ASSY	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	HY53E804349AA	M6 X 14 SCREW HEX HD	Enquire	To Order
	700607	Screw Hex Flange Head M6 x 16mm	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G339F984AB	HOSE ASSY - FUEL VAPOUR CANISTER VENT INLET	Enquire	To Order
	6G339G271AA	HOSE DMTL TO FILTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699094	Clip, Hose, Spring Loaded, 16-25	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	6G430310032	PURGE VALVE (EVMV)	6G430310032 PURGE VALVE (EVMV)	-	1	Enquire
2	6G339G743BB	BRACKET ELECTRONIC FUEL VAPOUR MANAGEMENT	6G339G743BB BRACKET ELECTRONIC FUEL VAPOUR MANAGEMENT	-	1	Enquire
3	700606	Screw, M6 x 12, Hex Flange Head	700606 Screw, M6 x 12, Hex Flange Head	-	2	Enquire
4	6G339B051AE	TUB-FUL/VPR VLV	6G339B051AE TUB-FUL/VPR VLV	-	1	Enquire
5	BG339D289AC	TUB ASY-FU/VPR TO EN	BG339D289AC TUB ASY-FU/VPR TO EN	-	1	Enquire
6	4G439294AA	Clip, Fuel Line to Engine	4G439294AA Clip, Fuel Line to Engine	-	1	Enquire
7	6G339338BB	BRACKET - FUEL TUBE CLIP	6G339338BB BRACKET - FUEL TUBE CLIP	-	1	Enquire
8	700607	Screw Hex Flange Head M6 x 16mm	700607 Screw Hex Flange Head M6 x 16mm	-	3	Enquire
9	BD239D665AA	DMTL & FILTER ASSY	BD239D665AA DMTL & FILTER ASSY V8S/ 12.25MY	-	1	Enquire
9	AD239D665AB	Filter & Bracket Assy	AD239D665AB Filter & Bracket Assy V8S/ 12.25MY	-	1	Enquire
9	BG339D665AA	DMTL & FILTER ASSY	BG339D665AA DMTL & FILTER ASSY 11MY	-	1	Enquire
9	BG339D665BA	BRACKET ASSEMBLY - FILTER (NON FEDERAL)	BG339D665BA BRACKET ASSEMBLY - FILTER (NON FEDERAL) 11MY	-	1	Enquire

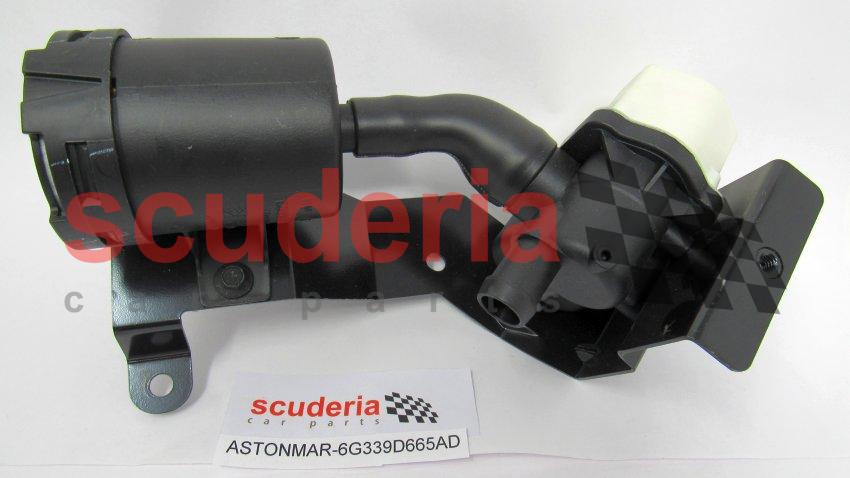

9	6G339D665AD	DMTL & Filter Assembly	6G339D665AD DMTL & Filter Assembly	-	1	Enquire
10	HY53E804349AA	M6 X 14 SCREW HEX HD	HY53E804349AA M6 X 14 SCREW HEX HD Federal	-	3	Enquire
10	700607	Screw Hex Flange Head M6 x 16mm	700607 Screw Hex Flange Head M6 x 16mm	-	3	Enquire
11	6G339F984AB	HOSE ASSY - FUEL VAPOUR CANISTER VENT INLET	6G339F984AB HOSE ASSY - FUEL VAPOUR CANISTER VENT INLET	-	1	Enquire
11	6G339G271AA	HOSE DMTL TO FILTER	6G339G271AA HOSE DMTL TO FILTER	-	1	Enquire
12	699094	Clip, Hose, Spring Loaded, 16-25	699094 Clip, Hose, Spring Loaded, 16-25	-	2	Enquire
