Engine Mountings of Aston Martin Aston Martin Vanquish (2001-2007)

View All

Aston Martin Vanquish (2001-2007) - Engine Mountings

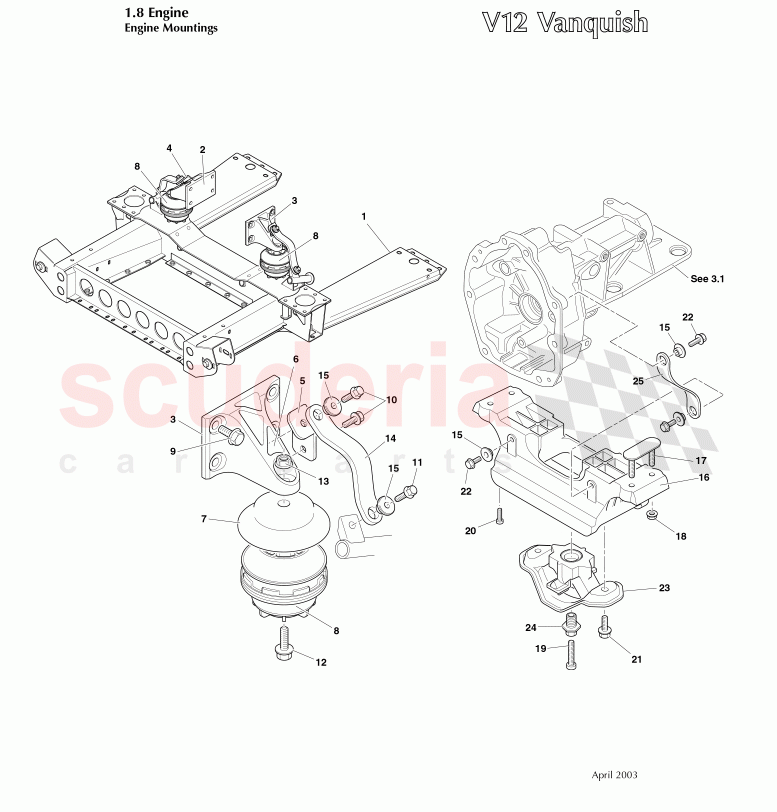

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	1R122110697	ASSY ENGINE CRADLE- PAINTED AND WAXED	$12,505.97	To Order

Photo	Part No	Description	Price (each)	Stock
	4R136030AA	SUPPORT ENGINE FRONT RH	$170.14	To Order

Photo	Part No	Description	Price (each)	Stock
	4R136031AB	SUPPORT ENGINE FRONT LH	$178.11	To Order

Photo	Part No	Description	Price (each)	Stock
	4R136F070AA	Bracket, checkstrap, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4R136F070BA	Bracket, checkstrap, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4R136H018AA	Nutplate, checkstrap	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R128610007	H/SHIELD-ENG MOUNT	$180.13	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12104284AA	HYDRAMOUNT	$1,695.40	To Order

Photo	Part No	Description	Price (each)	Stock
	702210PK	BOLT M10 X 30 HEXAGON HEAD FLANGED (PACK OF 10)	$24.19	IN STOCK
	699841	SCREW M10x30 HEX FLG	$20.50	To Order

Photo	Part No	Description	Price (each)	Stock
	699836	SCREW M8x22 HEX FLG	$20.29	To Order

Photo	Part No	Description	Price (each)	Stock
	703121	Screw, M8 x 25, Hex Flange Head	$0.29	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	701011	SCREW M10x35 HEX FLG BLACK	$0.66	To Order

Photo	Part No	Description	Price (each)	Stock
	703160PK	Nut M10 HEX Flange (Pack of 10)	$19.45	IN STOCK
	701885	LOCTITE 243-10ml BTL	$30.47	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12102316AA	CHECKSTRAP	$39.15	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12102317AB	BUTTON - CHECKSTRAP	$14.39	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12100678AE	GEARBOX CROSSMEMBER	$9,847.05	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12102304AB	STUDPLATE - GEARBOX CROSSMEMBER	$21.20	To Order

Photo	Part No	Description	Price (each)	Stock
	703739	Nut, M8, Hex Flange Head	$1.25	To Order

Photo	Part No	Description	Price (each)	Stock
	699839	SCREW M10x46 TORX PAN HD	$1.53	To Order

Photo	Part No	Description	Price (each)	Stock
	703172PK	Screw M8 x 25 Pan Head (Pack of 10)	$5.90	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	699841	SCREW M10x30 HEX FLG	$20.50	To Order

Photo	Part No	Description	Price (each)	Stock
	703172PK	Screw M8 x 25 Pan Head (Pack of 10)	$5.90	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	10123380AA	REAR ENGINE MOUNTING	$1,395.36	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	1R12103825AA	STUD - REAR MOUNT - GEARBOX	$51.01	To Order

Photo	Part No	Description	Price (each)	Stock
	4184347	WASHER M8 x 25mm OD HARDENED	$15.55	To Order
	1R12104143AA	CHECKSTRAP - CROSSMEMBER	$52.38	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	1R122110697	ASSY ENGINE CRADLE- PAINTED AND WAXED	1R122110697 ASSY ENGINE CRADLE- PAINTED AND WAXED	$12,505.97	1
2	4R136030AA	SUPPORT ENGINE FRONT RH	4R136030AA SUPPORT ENGINE FRONT RH	$170.14	1
3	4R136031AB	SUPPORT ENGINE FRONT LH	4R136031AB SUPPORT ENGINE FRONT LH	$178.11	1
4	4R136F070AA	Bracket, checkstrap, RH	4R136F070AA Bracket, checkstrap, RH	-	1	Enquire
5	4R136F070BA	Bracket, checkstrap, LH	4R136F070BA Bracket, checkstrap, LH	-	1	Enquire
6	4R136H018AA	Nutplate, checkstrap	4R136H018AA Nutplate, checkstrap	-	1	Enquire
7	1R128610007	H/SHIELD-ENG MOUNT	1R128610007 H/SHIELD-ENG MOUNT	$180.13	2
8	1R12104284AA	HYDRAMOUNT	1R12104284AA HYDRAMOUNT	$1,695.40	2
9	702210PK	BOLT M10 X 30 HEXAGON HEAD FLANGED (PACK OF 10) IN STOCK	702210PK BOLT M10 X 30 HEXAGON HEAD FLANGED (PACK OF 10) Vanquish S From (V) 501506 IN STOCK	$24.19	8
9	699841	SCREW M10x30 HEX FLG	699841 SCREW M10x30 HEX FLG	$20.50	8
10	699836	SCREW M8x22 HEX FLG	699836 SCREW M8x22 HEX FLG	$20.29	2
11	703121	Screw, M8 x 25, Hex Flange Head IN STOCK	703121 Screw, M8 x 25, Hex Flange Head IN STOCK	$0.29	6
12	701011	SCREW M10x35 HEX FLG BLACK	701011 SCREW M10x35 HEX FLG BLACK	$0.66	2
13	703160PK	Nut M10 HEX Flange (Pack of 10) IN STOCK	703160PK Nut M10 HEX Flange (Pack of 10) IN STOCK	$19.45	2
13	701885	LOCTITE 243-10ml BTL	701885 LOCTITE 243-10ml BTL	$30.47	-
14	1R12102316AA	CHECKSTRAP	1R12102316AA CHECKSTRAP	$39.15	4
15	1R12102317AB	BUTTON - CHECKSTRAP	1R12102317AB BUTTON - CHECKSTRAP	$14.39	12
16	1R12100678AE	GEARBOX CROSSMEMBER	1R12100678AE GEARBOX CROSSMEMBER	$9,847.05	1
17	1R12102304AB	STUDPLATE - GEARBOX CROSSMEMBER	1R12102304AB STUDPLATE - GEARBOX CROSSMEMBER	$21.20	2
18	703739	Nut, M8, Hex Flange Head	703739 Nut, M8, Hex Flange Head	$1.25	4
19	699839	SCREW M10x46 TORX PAN HD	699839 SCREW M10x46 TORX PAN HD	$1.53	1
20	703172PK	Screw M8 x 25 Pan Head (Pack of 10) IN STOCK	703172PK Screw M8 x 25 Pan Head (Pack of 10) IN STOCK	$5.90	4
21	699841	SCREW M10x30 HEX FLG	699841 SCREW M10x30 HEX FLG	$20.50	2
22	703172PK	Screw M8 x 25 Pan Head (Pack of 10) IN STOCK	703172PK Screw M8 x 25 Pan Head (Pack of 10) IN STOCK	$5.90	2
23	10123380AA	REAR ENGINE MOUNTING IN STOCK	10123380AA REAR ENGINE MOUNTING IN STOCK	$1,395.36	1
24	1R12103825AA	STUD - REAR MOUNT - GEARBOX	1R12103825AA STUD - REAR MOUNT - GEARBOX	$51.01	1
25	4184347	WASHER M8 x 25mm OD HARDENED	4184347 WASHER M8 x 25mm OD HARDENED	$15.55	2
25	1R12104143AA	CHECKSTRAP - CROSSMEMBER	1R12104143AA CHECKSTRAP - CROSSMEMBER	$52.38	2
