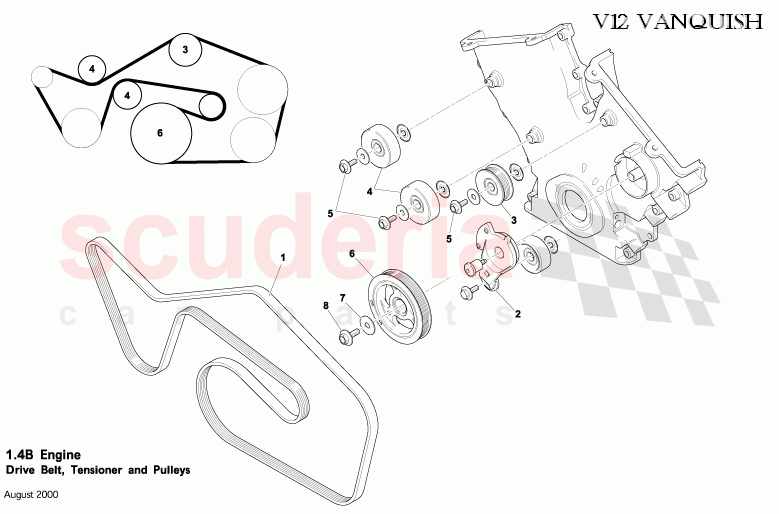

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	585368	Tensioner Drive Belt	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R120510530	Idler Pulley Grooved	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R120510488	Pulley, Engine Idler	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	707627	SCREW M8 X 25MM HEX HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G430210821	WASHER-13.5 x 39.5 x 7.35 FL STL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697739	BOLT-M12 x 52.5	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	ED238620AA	Feed Drive Belt	ED238620AA Feed Drive Belt Vanquish S From (V) 501506	-	1	Enquire
1	ED238620AA	Feed Drive Belt	ED238620AA Feed Drive Belt	-	1	Enquire
2	585368	Tensioner Drive Belt	585368 Tensioner Drive Belt	-	1	Enquire
3	1R120510530	Idler Pulley Grooved	1R120510530 Idler Pulley Grooved	-	1	Enquire
4	1R120510488	Pulley, Engine Idler	1R120510488 Pulley, Engine Idler	-	2	Enquire
5	707627	SCREW M8 X 25MM HEX HEAD	707627 SCREW M8 X 25MM HEX HEAD Idler attach	-	3	Enquire
6	4G430210939	Pulley Assy, Crankshaft	4G430210939 Pulley Assy, Crankshaft Vanquish S From (V) 501506	-	1	Enquire
6	285085	C/SHAFT PULLEY ASSY	285085 C/SHAFT PULLEY ASSY	-	1	Enquire
7	4G430210821	WASHER-13.5 x 39.5 x 7.35 FL STL	4G430210821 WASHER-13.5 x 39.5 x 7.35 FL STL	-	1	Enquire
8	697739	BOLT-M12 x 52.5	697739 BOLT-M12 x 52.5	-	1	Enquire
