Aston Martin Vanquish (2001-2007) - Oil Pump and Sump

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
1R120410703 OIL PUMP KIT $3,168.23 To Order
1R120410703 OIL PUMP KIT $3,168.23 To Order
Photo Part No Description Price (each) Stock
697744 BOLT-M6 x 72.5 $2.42 To Order
Photo Part No Description Price (each) Stock
91924 WINDAGE TRAY-ENGINE $640.02 To Order
Photo Part No Description Price (each) Stock
485369 OIL PICK-UP TUBE ASY $1,112.99 To Order
Photo Part No Description Price (each) Stock
1R120410073 O RING INLET FLANGE OR35x2.5V175 $4.92 IN STOCK
Photo Part No Description Price (each) Stock
W505584S437 Bolt, M6 x 20 pan hd pil 8 Enquire To Order
Photo Part No Description Price (each) Stock
703169 NUT - M6 HEX FLANGE CHROME FREE $0.59 IN STOCK
Photo Part No Description Price (each) Stock
1R120410217 OIL PAN ASSY $3,268.73 To Order
Photo Part No Description Price (each) Stock
485378 BAFFLE-OIL PAN $348.59 To Order
Photo Part No Description Price (each) Stock
702601 BOLT-M6-1.0 X 16 HEX FLG PT $0.29 To Order
Photo Part No Description Price (each) Stock
697748 Plug-Oil Pan Drain $26.96 IN STOCK
Photo Part No Description Price (each) Stock
485092 Engine Sump Gasket $126.21 To Order
Photo Part No Description Price (each) Stock
703194 BOLT M8x45 HEX FLNG CHROME FREE $1.64 To Order
Photo Part No Description Price (each) Stock
1R120410074 DIPSTICK TUBE ASSY $86.18 To Order
Photo Part No Description Price (each) Stock
485566 DIPSTICK-ENGINE $118.22 IN STOCK
Photo Part No Description Price (each) Stock
697747 BOLT-M6 x 20 W/WSH $26.60 To Order
Photo Part No Description Price (each) Stock
697750 BOLT-M8 x 70 $4.40 To Order
97123469AB LABEL-ENGINE OIL DIPSTICK $16.79 To Order
View All

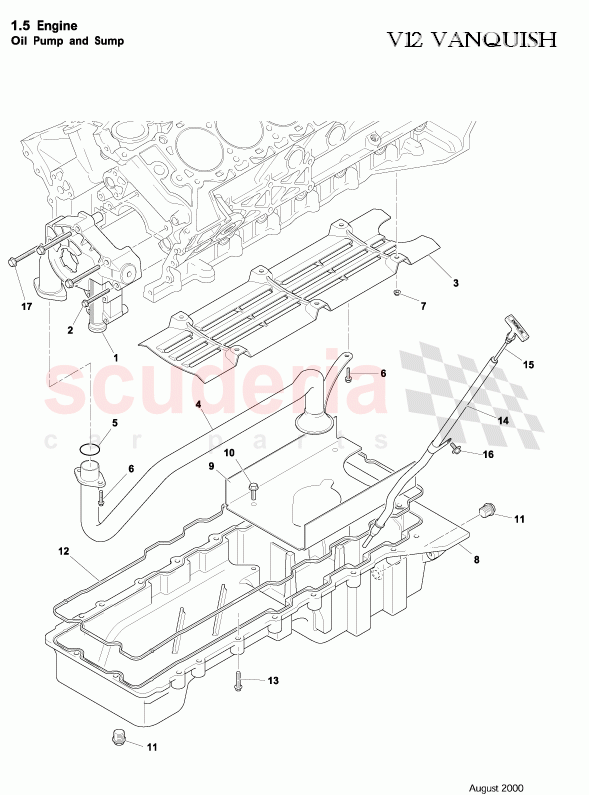

Oil Pump and Sump of Aston Martin Aston Martin Vanquish (2001-2007) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 1R120410703
OIL PUMP KIT
Vanquish S From (V) 501506 		$3,168.23 1
1 1R120410703
OIL PUMP KIT 		$3,168.23 1
2 697744
BOLT-M6 x 72.5
Oil pump to cylinder block 		$2.42 1
3 91924
WINDAGE TRAY-ENGINE 		$640.02 1
4 485369
OIL PICK-UP TUBE ASY 		$1,112.99 1
5 1R120410073
O RING INLET FLANGE OR35x2.5V175
Pickup tube to oil pump
IN STOCK 		$4.92 1
6 W505584S437
Bolt, M6 x 20 pan hd pil 8 		- 3 Enquire
7 703169
NUT - M6 HEX FLANGE CHROME FREE
Windage tray and screen to block
IN STOCK 		$0.59 6
8 1R120410217
OIL PAN ASSY 		$3,268.73 1
9 485378
BAFFLE-OIL PAN 		$348.59 1
10 702601
BOLT-M6-1.0 X 16 HEX FLG PT
Baffle to oil pan 		$0.29 4
11 697748
Plug-Oil Pan Drain
IN STOCK 		$26.96 2
12 485092
Engine Sump Gasket 		$126.21 1
13 703194
BOLT M8x45 HEX FLNG CHROME FREE
Sump to block 		$1.64 20
14 1R120410074
DIPSTICK TUBE ASSY 		$86.18 1
15 485566
DIPSTICK-ENGINE
IN STOCK 		$118.22 1
16 697747
BOLT-M6 x 20 W/WSH 		$26.60 1
17 697750
BOLT-M8 x 70
Oil pump to cylinder block 		$4.40 3
17 97123469AB
LABEL-ENGINE OIL DIPSTICK 		$16.79 1
