Cylinder Head of Aston Martin Aston Martin Vanquish (2001-2007)

View All

Aston Martin Vanquish (2001-2007) - Cylinder Head

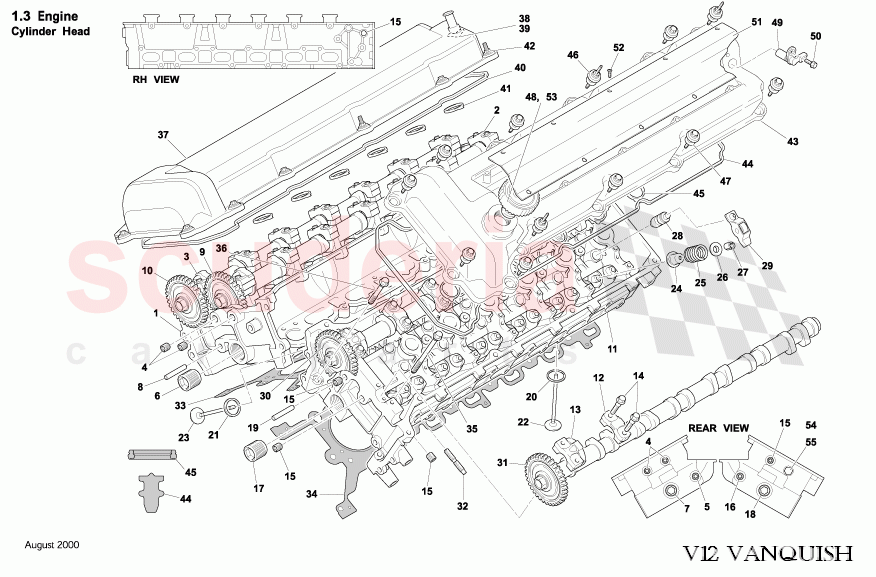

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	5R136049CD	CYLINDER HEAD ASSEMBLY RH	Enquire	To Order
	685027	Cylinder head, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	685028	CAP-CAMSHAFT BRG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	685321	Bolt, M6 x 40, Hex Hd	Enquire	To Order
	8G436B280AA	CAP-C/SHAFT BRG-FRT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	186452	Plug, 1/4-18 x 10.8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	686441	PLUG-3/8 - 18x 10.8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	685032	PLUG-1 x 11.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184998	PLUG-PIPE 3/4x14	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5R136510AC	Bushing, valve guide	Enquire	To Order
	184996	DOWEL-10x49.25	Enquire	To Order
	685034	INSERT-V/SEAT EXH	Enquire	IN STOCK

...and 10 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	4G430710034	CAMSHAFT ASSY-INL RH	Enquire	To Order
	4G430710034	CAMSHAFT ASSY-INL RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G430710035	CAMSHAFT ASSY-EXH RH	Enquire	To Order
	5R136050AD	CYLINDER HEAD ASSEMBLY - LH	Enquire	To Order
	703704	Stud, M8 x 13.6+16, Hex Head	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	5R136C064AD	Cylinder head, LH	Enquire	To Order
	685025	Cylinder head, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	685028	CAP-CAMSHAFT BRG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G436B280AA	CAP-C/SHAFT BRG-FRT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	685321	Bolt, M6 x 40, Hex Hd	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	186452	Plug, 1/4-18 x 10.8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	686441	PLUG-3/8 - 18x 10.8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	685032	PLUG-1 x 11.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184998	PLUG-PIPE 3/4x14	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184996	DOWEL-10x49.25	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	XW436056AC	Insert, valve seat, intake	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5R136510AC	Bushing, valve guide	Enquire	To Order
	685034	INSERT-V/SEAT EXH	Enquire	IN STOCK
	685035	Bushing, Valve Guide	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G430610577	Valve, Inlet	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	685037	Valve, Exhaust	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	685038PK	Seal Valve Stem (Pack of 24)	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	1R120610062	Spring, Valve	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	685040	Retainer Valve Spring	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	685041	Key, Valve Spring	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	685042	Adjuster Valve Lash	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	685914	Arm Assembly Valve Rocker	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	1R1E6A267CC	Camshaft and sprocket assy, intake, LH	Enquire	To Order
	1R120710065	CAMSHAFT ASSY-INL LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G430710208	CAMSHAFT ASSY-EXH LH	Enquire	To Order
	1R120710066	CAMSHAFT ASSY-EXH LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703704	Stud, M8 x 13.6+16, Hex Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CD336051AA	Gasket, Cylinder Head, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CD336083AA	Gasket, Cylinder Head, LH	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	686044	Bolt M10 x 1.5 x 151.5, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703690	Bolt M8 x 63 Hex Flange Head	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	785636	CAM COVER ASSY-RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	785055	BAFFLE-PCV	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	699098	SCREW M4 x 10.29 PAN HD TORX T/R	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	785056	Gasket, Valve Cover, RH	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	785366	GASKET SPARK PLUG HOLE	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4G430710763	Bolt and Grommet	Enquire	IN STOCK
	4G430710788	Stud and Grommet Assembly	Enquire	IN STOCK
	4G433910014	Sensor, Crankshaft, Rear	Enquire	IN STOCK

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	785637	CAM COVER ASSY-LH	Enquire	To Order
	785055	BAFFLE-PCV	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	785057	Gasket, Valve Cover, LH	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	785366	GASKET SPARK PLUG HOLE	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4G430710763	Bolt and Grommet	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4G430710788	Stud and Grommet Assembly	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	786117	CAP ASSY C/W BADGE- OIL FILLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	785755	Sensor, Crankshaft Timing	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	702542	BOLT M6 x 20 HF PIL 8	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	7G436P068AA	COIL COVER SPARK PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699092	SCREW M4 TORX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4R136C614AA	Insert, engine oil filler cap	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R123910532	Switch, Oil Pressure	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4G4317K084	Lifting eye, front right	Enquire	To Order
	4G4317K055	Lifting eye, front left	Enquire	To Order
	4G4317K056	Lifting eye, rear	Enquire	To Order

...and 3 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	5R136049CD	CYLINDER HEAD ASSEMBLY RH	5R136049CD CYLINDER HEAD ASSEMBLY RH Vanquish S From (V) 501506	-	1	Enquire
-	685024	Cylinder head assembly, RH	685024 Cylinder head assembly, RH	-	1	Enquire
1	5R136049CD	CYLINDER HEAD ASSEMBLY RH	5R136049CD CYLINDER HEAD ASSEMBLY RH Vanquish S From (V) 501506	-	1	Enquire
1	685027	Cylinder head, LH	685027 Cylinder head, LH	-	1	Enquire
2	685028	CAP-CAMSHAFT BRG	685028 CAP-CAMSHAFT BRG NSS	-	12	Enquire
3	685321	Bolt, M6 x 40, Hex Hd	685321 Bolt, M6 x 40, Hex Hd Camshaft bearing caps	-	28	Enquire
3	8G436B280AA	CAP-C/SHAFT BRG-FRT	8G436B280AA CAP-C/SHAFT BRG-FRT NSS	-	2	Enquire
4	186452	Plug, 1/4-18 x 10.8	186452 Plug, 1/4-18 x 10.8	-	5	Enquire
5	686441	PLUG-3/8 - 18x 10.8	686441 PLUG-3/8 - 18x 10.8	-	1	Enquire
6	685032	PLUG-1 x 11.5	685032 PLUG-1 x 11.5	-	1	Enquire
7	184998	PLUG-PIPE 3/4x14	184998 PLUG-PIPE 3/4x14	-	1	Enquire
8	5R136510AC	Bushing, valve guide	5R136510AC Bushing, valve guide Vanquish S From (V) 501506	-	24	Enquire
8	184996	DOWEL-10x49.25	184996 DOWEL-10x49.25	-	1	Enquire
8	685034	INSERT-V/SEAT EXH IN STOCK	685034 INSERT-V/SEAT EXH IN STOCK	-	12	Enquire
8	XW436056AC	Insert, valve seat, intake	XW436056AC Insert, valve seat, intake	-	12	Enquire
8	685037	Valve, Exhaust IN STOCK	685037 Valve, Exhaust IN STOCK	-	12	Enquire
8	4G430610577	Valve, Inlet IN STOCK	4G430610577 Valve, Inlet IN STOCK	-	12	Enquire
8	685042	Adjuster Valve Lash IN STOCK	685042 Adjuster Valve Lash IN STOCK	-	24	Enquire
8	685040	Retainer Valve Spring IN STOCK	685040 Retainer Valve Spring IN STOCK	-	24	Enquire
8	685038PK	Seal Valve Stem (Pack of 24) IN STOCK	685038PK Seal Valve Stem (Pack of 24) IN STOCK	-	24	Enquire
8	685035	Bushing, Valve Guide	685035 Bushing, Valve Guide	-	24	Enquire
8	685914	Arm Assembly Valve Rocker IN STOCK	685914 Arm Assembly Valve Rocker IN STOCK	-	24	Enquire
8	1R120610062	Spring, Valve IN STOCK	1R120610062 Spring, Valve IN STOCK	-	24	Enquire
8	685041	Key, Valve Spring IN STOCK	685041 Key, Valve Spring IN STOCK	-	48	Enquire
9	4G430710034	CAMSHAFT ASSY-INL RH	4G430710034 CAMSHAFT ASSY-INL RH Vanquish S From (V) 501506	-	1	Enquire
9	4G430710034	CAMSHAFT ASSY-INL RH	4G430710034 CAMSHAFT ASSY-INL RH	-	1	Enquire
10	4G430710035	CAMSHAFT ASSY-EXH RH	4G430710035 CAMSHAFT ASSY-EXH RH Vanquish S From (V) 501506	-	1	Enquire
10	5R136050AD	CYLINDER HEAD ASSEMBLY - LH	5R136050AD CYLINDER HEAD ASSEMBLY - LH Vanquish S From (V) 501506	-	1	Enquire
10	703704	Stud, M8 x 13.6+16, Hex Head	703704 Stud, M8 x 13.6+16, Hex Head Exhaust manifold	-	12	Enquire
10	1R120710064	CAMSHAFT ASSY-EXH RH	1R120710064 CAMSHAFT ASSY-EXH RH	-	1	Enquire
10	685026	Cylinder head assembly, LH	685026 Cylinder head assembly, LH	-	1	Enquire
11	5R136C064AD	Cylinder head, LH	5R136C064AD Cylinder head, LH Vanquish S From (V) 501506	-	1	Enquire
11	685025	Cylinder head, RH	685025 Cylinder head, RH	-	1	Enquire
12	685028	CAP-CAMSHAFT BRG	685028 CAP-CAMSHAFT BRG NSS	-	12	Enquire
13	8G436B280AA	CAP-C/SHAFT BRG-FRT	8G436B280AA CAP-C/SHAFT BRG-FRT NSS	-	2	Enquire
14	685321	Bolt, M6 x 40, Hex Hd	685321 Bolt, M6 x 40, Hex Hd Camshaft bearing caps	-	28	Enquire
15	186452	Plug, 1/4-18 x 10.8	186452 Plug, 1/4-18 x 10.8	-	4	Enquire
16	686441	PLUG-3/8 - 18x 10.8	686441 PLUG-3/8 - 18x 10.8	-	1	Enquire
17	685032	PLUG-1 x 11.5	685032 PLUG-1 x 11.5	-	1	Enquire
18	184998	PLUG-PIPE 3/4x14	184998 PLUG-PIPE 3/4x14	-	1	Enquire
19	184996	DOWEL-10x49.25	184996 DOWEL-10x49.25	-	1	Enquire
20	XW436056AC	Insert, valve seat, intake	XW436056AC Insert, valve seat, intake	-	12	Enquire
21	5R136510AC	Bushing, valve guide	5R136510AC Bushing, valve guide Vanquish S From (V) 501506	-	24	Enquire
21	685034	INSERT-V/SEAT EXH IN STOCK	685034 INSERT-V/SEAT EXH IN STOCK	-	12	Enquire
21	685035	Bushing, Valve Guide	685035 Bushing, Valve Guide	-	24	Enquire
22	4G430610577	Valve, Inlet IN STOCK	4G430610577 Valve, Inlet IN STOCK	-	12	Enquire
23	685037	Valve, Exhaust IN STOCK	685037 Valve, Exhaust IN STOCK	-	12	Enquire
24	685038PK	Seal Valve Stem (Pack of 24) IN STOCK	685038PK Seal Valve Stem (Pack of 24) IN STOCK	-	24	Enquire
25	1R120610062	Spring, Valve IN STOCK	1R120610062 Spring, Valve IN STOCK	-	24	Enquire
26	685040	Retainer Valve Spring IN STOCK	685040 Retainer Valve Spring IN STOCK	-	24	Enquire
27	685041	Key, Valve Spring IN STOCK	685041 Key, Valve Spring IN STOCK	-	48	Enquire
28	685042	Adjuster Valve Lash IN STOCK	685042 Adjuster Valve Lash IN STOCK	-	24	Enquire
29	685914	Arm Assembly Valve Rocker IN STOCK	685914 Arm Assembly Valve Rocker IN STOCK	-	24	Enquire
30	1R1E6A267CC	Camshaft and sprocket assy, intake, LH	1R1E6A267CC Camshaft and sprocket assy, intake, LH Vanquish S From (V) 501506	-	1	Enquire
30	1R120710065	CAMSHAFT ASSY-INL LH	1R120710065 CAMSHAFT ASSY-INL LH	-	1	Enquire
31	4G430710208	CAMSHAFT ASSY-EXH LH	4G430710208 CAMSHAFT ASSY-EXH LH Vanquish S From (V) 501506	-	1	Enquire
31	1R120710066	CAMSHAFT ASSY-EXH LH	1R120710066 CAMSHAFT ASSY-EXH LH	-	1	Enquire
32	703704	Stud, M8 x 13.6+16, Hex Head	703704 Stud, M8 x 13.6+16, Hex Head Exhaust manifold	-	12	Enquire
33	CD336051AA	Gasket, Cylinder Head, RH	CD336051AA Gasket, Cylinder Head, RH	-	1	Enquire
34	CD336083AA	Gasket, Cylinder Head, LH IN STOCK	CD336083AA Gasket, Cylinder Head, LH IN STOCK	-	1	Enquire
35	686044	Bolt M10 x 1.5 x 151.5, Hex Flange Head	686044 Bolt M10 x 1.5 x 151.5, Hex Flange Head Cylinder head to block	-	28	Enquire
36	703690	Bolt M8 x 63 Hex Flange Head IN STOCK	703690 Bolt M8 x 63 Hex Flange Head Cylinder head to block IN STOCK	-	4	Enquire
37	785636	CAM COVER ASSY-RH	785636 CAM COVER ASSY-RH	-	1	Enquire
38	785055	BAFFLE-PCV IN STOCK	785055 BAFFLE-PCV IN STOCK	-	1	Enquire
39	699098	SCREW M4 x 10.29 PAN HD TORX T/R	699098 SCREW M4 x 10.29 PAN HD TORX T/R	-	2	Enquire
40	785056	Gasket, Valve Cover, RH IN STOCK	785056 Gasket, Valve Cover, RH IN STOCK	-	1	Enquire
41	785366	GASKET SPARK PLUG HOLE IN STOCK	785366 GASKET SPARK PLUG HOLE IN STOCK	-	6	Enquire
42	4G430710763	Bolt and Grommet IN STOCK	4G430710763 Bolt and Grommet Valve cover, RH, attach IN STOCK	-	10	Enquire
42	4G430710788	Stud and Grommet Assembly IN STOCK	4G430710788 Stud and Grommet Assembly Valve cover, RH, attach IN STOCK	-	6	Enquire
42	4G433910014	Sensor, Crankshaft, Rear IN STOCK	4G433910014 Sensor, Crankshaft, Rear IN STOCK	-	1	Enquire
42	702542	BOLT M6 x 20 HF PIL 8 IN STOCK	702542 BOLT M6 x 20 HF PIL 8 IN STOCK	-	1	Enquire
43	785637	CAM COVER ASSY-LH	785637 CAM COVER ASSY-LH	-	1	Enquire
43	785055	BAFFLE-PCV IN STOCK	785055 BAFFLE-PCV IN STOCK	-	1	Enquire
44	785057	Gasket, Valve Cover, LH IN STOCK	785057 Gasket, Valve Cover, LH IN STOCK	-	1	Enquire
45	785366	GASKET SPARK PLUG HOLE IN STOCK	785366 GASKET SPARK PLUG HOLE IN STOCK	-	6	Enquire
46	4G430710763	Bolt and Grommet IN STOCK	4G430710763 Bolt and Grommet Valve cover, LH, attach IN STOCK	-	10	Enquire
47	4G430710788	Stud and Grommet Assembly IN STOCK	4G430710788 Stud and Grommet Assembly Valve cover, LH, attach IN STOCK	-	7	Enquire
48	786117	CAP ASSY C/W BADGE- OIL FILLER	786117 CAP ASSY C/W BADGE- OIL FILLER	-	1	Enquire
49	785755	Sensor, Crankshaft Timing IN STOCK	785755 Sensor, Crankshaft Timing IN STOCK	-	1	Enquire
50	702542	BOLT M6 x 20 HF PIL 8 IN STOCK	702542 BOLT M6 x 20 HF PIL 8 IN STOCK	-	1	Enquire
51	7G436P068AA	COIL COVER SPARK PLUG	7G436P068AA COIL COVER SPARK PLUG	-	2	Enquire
52	699092	SCREW M4 TORX	699092 SCREW M4 TORX Coil cover attach	-	20	Enquire
53	4R136C614AA	Insert, engine oil filler cap	4R136C614AA Insert, engine oil filler cap	-	1	Enquire
54	1R123910532	Switch, Oil Pressure IN STOCK	1R123910532 Switch, Oil Pressure IN STOCK	-	1	Enquire
55	4G4317K084	Lifting eye, front right	4G4317K084 Lifting eye, front right Vanquish S From (V) 501506	-	1	Enquire
55	4G4317K055	Lifting eye, front left	4G4317K055 Lifting eye, front left Vanquish S From (V) 501506	-	1	Enquire
55	4G4317K056	Lifting eye, rear	4G4317K056 Lifting eye, rear Vanquish S From (V) 501506	-	2	Enquire
55	703172PK	Screw M8 x 25 Pan Head (Pack of 10) IN STOCK	703172PK Screw M8 x 25 Pan Head (Pack of 10) Vanquish S From (V) 501506 IN STOCK	-	4	Enquire
55	700115	SCREW M8x25 HEX FLG	700115 SCREW M8x25 HEX FLG Vanquish S From (V) 501506	-	4	Enquire
55	ED230610174	ADAPTOR-O/PRESS SWTC	ED230610174 ADAPTOR-O/PRESS SWTC	-	1	Enquire
