Cylinder Block of Aston Martin Aston Martin Vanquish (2001-2007)

View All

Aston Martin Vanquish (2001-2007) - Cylinder Block

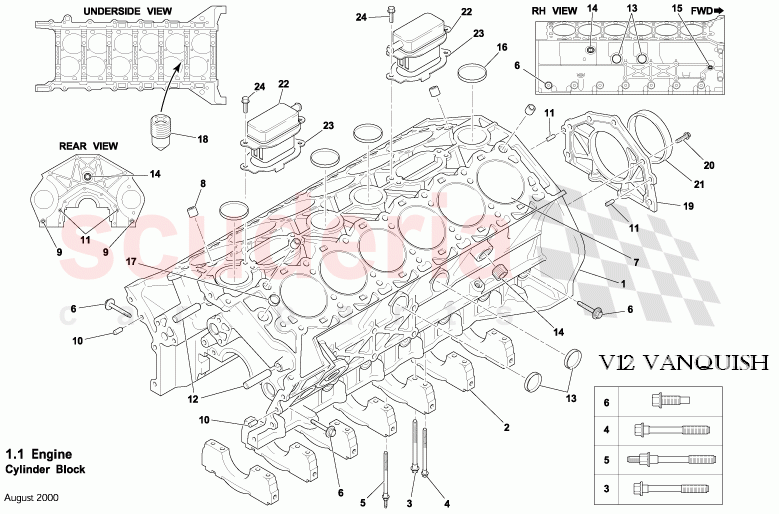

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	1R1E6015AB	Cylinder block, machined	Enquire	To Order
	5R136010AA	Cylinder block assembly	Enquire	To Order
	186133	CYL BLOCK ASSY SERVICE LEVEL	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	184990	CAP-MAIN BEARING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G430110203	Bolt, M10 x 1.5 x 91	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G430110202	Bolt, M8 x 1.25 x 82, Hex Head	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	185133	Stud Bolt, Bearing Caps	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	4G430110819	Bolt Main Bearing Cap	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7G436055AA	Cylinder Liner, V12	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184994	Dowel, 16 x 19	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184994	Dowel, 16 x 19	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184995	Dowel, 8 x 18	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184995	Dowel, 8 x 18	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184996	DOWEL-10x49.25	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184997	Plug 1.26 Cup (32mm)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184998	PLUG-PIPE 3/4x14	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	186452	Plug, 1/4-18 x 10.8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	185000	Plug, 52.6 dia cup	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	185001	Plug, Cup Expansion	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R120210537	PISTON OIL SQUIRTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	185003	Retainer, Crankshaft Oil Seal	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699097	BOLT M6 x 10 x 27.5 HEX HD PILOT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

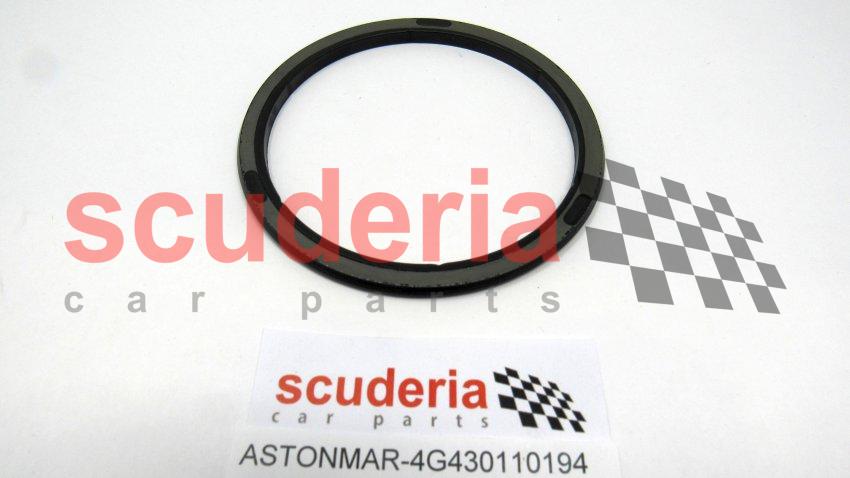

	4G430110194	Slinger, Rear Seal	Enquire	To Order
	1R120110434	Seal Crankshaft Rear	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	XW4E6B673BB	Oil separator assy	Enquire	To Order
	92048	OIL SEPARATOR ASSY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3F1E6B752AA	Gasket, oil separator to cylinder block	Enquire	To Order
	1R120110487	Gasket, Oil Separator to Cylinder Block	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702542	BOLT M6 x 20 HF PIL 8	Enquire	To Order
