Aston Martin Vanquish (2001-2007) - Front Cover - Chains and Sprockets

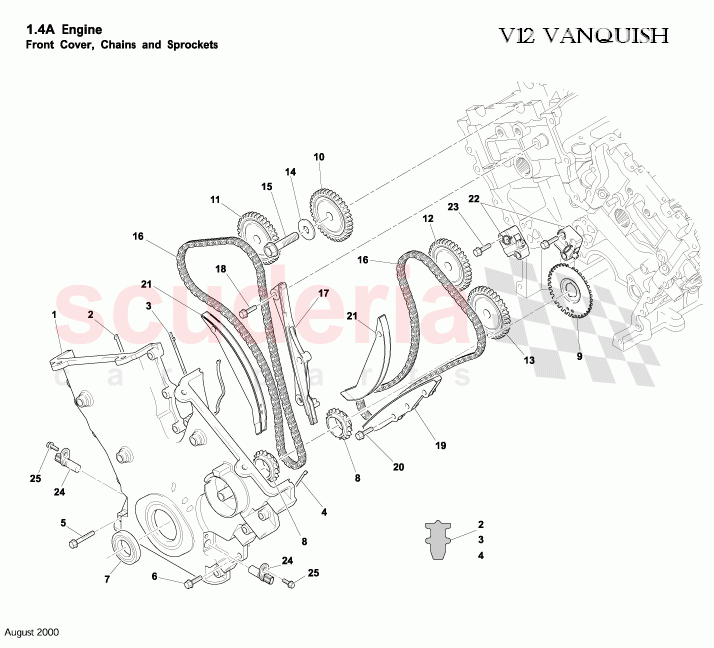

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4G4E6D080AA	Front cover	Enquire	To Order
	385063	FRONT COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	385064	Gasket Engine Front Cover LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	385065	Gasket Front Cover Centre	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	385066	Gasket Engine Front Cover RH	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	W701525S437	Bolt and washer, M8 X 47.5, hex flg	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	W701232S437	Bolt and washer, M8 X 32, hex flg	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	385067	Oil Seal - Crankshaft Front	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G430210012	CRANKSHAFT SPROCKET-DOUBLE - 21T	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R120710720	SENSOR RING-IGNITION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R120710378	SPROCKET-CAMSHAFT INLET RH	Enquire	To Order
	785070	Sprocket, camshaft, intake, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R120710379	SPROCKET-CAMSHAFT EXH RH	Enquire	To Order
	785071	Sprocket, camshaft, exhaust, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R120710376	SPROCKET-CAMSHAFT INLET LH	Enquire	To Order
	785072	Sprocket, camshaft, intake, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R120710377	SPROCKET-CAMSHAFT EXH LH	Enquire	To Order
	785073	Sprocket, camshaft, exhaust, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	785074	CAM SPROCKET WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697739	BOLT-M12 x 52.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R120310483	Chain, Timing	Enquire	To Order
	1R120310483	Chain, Timing	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R120310069	Guide, Timing Chain, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697749	BOLT-M8 x 32 FLG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R120310070	Guide, Timing Chain, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697741	BOLT-M8 x 49.3 FLG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G430310013	Arm Assembly, Timing Chain Tensioner	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R120310071	Tensioner - Timing Chain	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	697741	BOLT-M8 x 49.3 FLG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R123910475	Sensor, Crankshaft, Front	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702542	BOLT M6 x 20 HF PIL 8	Enquire	To Order
	4G433910014	Sensor, Crankshaft, Rear	Enquire	To Order
	785755	Sensor, Crankshaft Timing	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	4G4E6D080AA	Front cover	4G4E6D080AA Front cover Vanquish S From (V) 501506	-	1	Enquire
1	385063	FRONT COVER	385063 FRONT COVER	-	1	Enquire
2	385064	Gasket Engine Front Cover LH	385064 Gasket Engine Front Cover LH	-	1	Enquire
3	385065	Gasket Front Cover Centre ARRIVING SOON	385065 Gasket Front Cover Centre ARRIVING SOON	-	1	Enquire
4	385066	Gasket Engine Front Cover RH ARRIVING SOON	385066 Gasket Engine Front Cover RH ARRIVING SOON	-	1	Enquire
5	W701525S437	Bolt and washer, M8 X 47.5, hex flg	W701525S437 Bolt and washer, M8 X 47.5, hex flg Front cover to cylinder block	-	14	Enquire
6	W701232S437	Bolt and washer, M8 X 32, hex flg	W701232S437 Bolt and washer, M8 X 32, hex flg	-	1	Enquire
7	385067	Oil Seal - Crankshaft Front	385067 Oil Seal - Crankshaft Front	-	1	Enquire
8	4G430210012	CRANKSHAFT SPROCKET-DOUBLE - 21T	4G430210012 CRANKSHAFT SPROCKET-DOUBLE - 21T	-	2	Enquire
9	1R120710720	SENSOR RING-IGNITION	1R120710720 SENSOR RING-IGNITION	-	1	Enquire
10	1R120710378	SPROCKET-CAMSHAFT INLET RH	1R120710378 SPROCKET-CAMSHAFT INLET RH Vanquish S From (V) 501506	-	1	Enquire
10	785070	Sprocket, camshaft, intake, RH	785070 Sprocket, camshaft, intake, RH	-	1	Enquire
11	1R120710379	SPROCKET-CAMSHAFT EXH RH	1R120710379 SPROCKET-CAMSHAFT EXH RH Vanquish S From (V) 501506	-	1	Enquire
11	785071	Sprocket, camshaft, exhaust, RH	785071 Sprocket, camshaft, exhaust, RH	-	1	Enquire
12	1R120710376	SPROCKET-CAMSHAFT INLET LH	1R120710376 SPROCKET-CAMSHAFT INLET LH Vanquish S From (V) 501506	-	1	Enquire
12	785072	Sprocket, camshaft, intake, LH	785072 Sprocket, camshaft, intake, LH	-	1	Enquire
13	1R120710377	SPROCKET-CAMSHAFT EXH LH	1R120710377 SPROCKET-CAMSHAFT EXH LH Vanquish S From (V) 501506	-	1	Enquire
13	785073	Sprocket, camshaft, exhaust, LH	785073 Sprocket, camshaft, exhaust, LH	-	1	Enquire
14	785074	CAM SPROCKET WASHER	785074 CAM SPROCKET WASHER	-	4	Enquire
15	697739	BOLT-M12 x 52.5	697739 BOLT-M12 x 52.5	-	4	Enquire
16	1R120310483	Chain, Timing	1R120310483 Chain, Timing Vanquish S From (V) 501506	-	2	Enquire
16	1R120310483	Chain, Timing	1R120310483 Chain, Timing	-	2	Enquire
17	1R120310069	Guide, Timing Chain, RH	1R120310069 Guide, Timing Chain, RH	-	1	Enquire
18	697749	BOLT-M8 x 32 FLG	697749 BOLT-M8 x 32 FLG Chain guide, RH attach	-	2	Enquire
19	1R120310070	Guide, Timing Chain, LH	1R120310070 Guide, Timing Chain, LH	-	1	Enquire
20	697741	BOLT-M8 x 49.3 FLG	697741 BOLT-M8 x 49.3 FLG Chain guide, LH attach	-	2	Enquire
21	4G430310013	Arm Assembly, Timing Chain Tensioner	4G430310013 Arm Assembly, Timing Chain Tensioner	-	2	Enquire
22	1R120310071	Tensioner - Timing Chain ARRIVING SOON	1R120310071 Tensioner - Timing Chain ARRIVING SOON	-	2	Enquire
23	697741	BOLT-M8 x 49.3 FLG	697741 BOLT-M8 x 49.3 FLG Tensioner assy attach	-	4	Enquire
24	1R123910475	Sensor, Crankshaft, Front	1R123910475 Sensor, Crankshaft, Front	-	2	Enquire
25	702542	BOLT M6 x 20 HF PIL 8	702542 BOLT M6 x 20 HF PIL 8 Sensor to front cover	-	2	Enquire
25	4G433910014	Sensor, Crankshaft, Rear	4G433910014 Sensor, Crankshaft, Rear	-	1	Enquire
25	785755	Sensor, Crankshaft Timing	785755 Sensor, Crankshaft Timing	-	1	Enquire
