Crankshafts, Pistons and Rods of Aston Martin Aston Martin Vanquish (2001-2007)

View All

Aston Martin Vanquish (2001-2007) - Crankshafts, Pistons and Rods

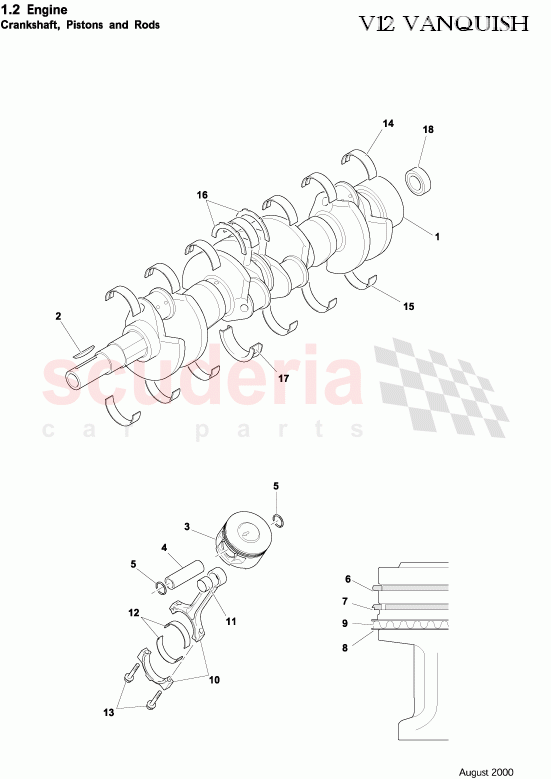

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	1R120210432	CRANKSHAFT-MANUAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5R136100AB	Piston and connecting rod assembly	Enquire	To Order
	285008	Key, Crankshaft, 4.76 x 53.5	Enquire	To Order
	1R120210058	Piston and connecting rod assembly	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D330210019	Piston, Grade Size 2	Enquire	To Order
	1R120210059	PISTON GRADE 2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5R136135AA	PIN / PISTON	Enquire	To Order
	4G430210955	PIN-PISTON (SINGLE)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R120210448	Retainer, Piston Pin	Enquire	To Order
	1R120210448	Retainer, Piston Pin	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R120210060	Piston Ring Compression Upper	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	285013	Piston Ring Compression Lower Orange/Yellow Ring	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	285014	Segment, Piston Oil Control Ring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	285015	Spacer, Piston Oil Control Segment	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5R136200BA	ASSY CONNECTING ROD	Enquire	To Order
	ED236200AB	ROD ASY CONN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5R136207AA	BUSHING - CONNECTING ROD	Enquire	To Order
	4G430210968	BUSH - CONN ROD V12	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6E5E6211AB	Bearing, Connecting Rod	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R120210677	BOLT - CONN ROD VANQ S	Enquire	To Order
	285018	Bolt, Connecting Rod	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	4R3E6333AA	Bearing Crankshaft Main Upper Grade 1	Enquire	To Order
	4R3E6333BA	Bearing Crankshaft Main Upper Grade 2	Enquire	To Order
	4R3E6333CA	Bearing Crankshaft Main Upper Grade 3	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4R3E6A338BA	Bearing, Crankshaft, Main, Lower (.012)	Enquire	To Order
	4R3E6A338CA	Bearing, Crankshaft, Main, Lower (.014)	Enquire	To Order
	285020	BEARING CRANKSHAFT MAIN LOWER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BR3E6A341BA	Washer, Crankshaft Main Thrust Upper	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4R3E6A339AA	Washer CrankShaft MN Thrust Lower	Enquire	To Order
	4R3E6A339BA	Washer Crankshaft Main Thrust Lower	Enquire	To Order
	4R3E6A339CA	BEARING CRANKSHAFT MN THRUST LOWER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R120210061	Bearing Assembly Pilot	Enquire	ARRIVING SOON

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	1R120210432	CRANKSHAFT-MANUAL	1R120210432 CRANKSHAFT-MANUAL	-	1	Enquire
2	5R136100AB	Piston and connecting rod assembly	5R136100AB Piston and connecting rod assembly Vanquish S From (V) 501506	-	12	Enquire
2	285008	Key, Crankshaft, 4.76 x 53.5	285008 Key, Crankshaft, 4.76 x 53.5	-	1	Enquire
2	1R120210058	Piston and connecting rod assembly	1R120210058 Piston and connecting rod assembly	-	12	Enquire
3	8D330210019	Piston, Grade Size 2	8D330210019 Piston, Grade Size 2 Vanquish S From (V) 501506	-	12	Enquire
3	1R120210059	PISTON GRADE 2	1R120210059 PISTON GRADE 2	-	12	Enquire
4	5R136135AA	PIN / PISTON	5R136135AA PIN / PISTON Vanquish S From (V) 501506	-	12	Enquire
4	4G430210955	PIN-PISTON (SINGLE)	4G430210955 PIN-PISTON (SINGLE)	-	12	Enquire
5	1R120210448	Retainer, Piston Pin	1R120210448 Retainer, Piston Pin Vanquish S From (V) 501506	-	24	Enquire
5	1R120210448	Retainer, Piston Pin	1R120210448 Retainer, Piston Pin	-	24	Enquire
6	1R120210060	Piston Ring Compression Upper	1R120210060 Piston Ring Compression Upper	-	12	Enquire
7	285013	Piston Ring Compression Lower Orange/Yellow Ring ARRIVING SOON	285013 Piston Ring Compression Lower Orange/Yellow Ring ARRIVING SOON	-	12	Enquire
8	285014	Segment, Piston Oil Control Ring	285014 Segment, Piston Oil Control Ring	-	24	Enquire
9	285015	Spacer, Piston Oil Control Segment	285015 Spacer, Piston Oil Control Segment	-	12	Enquire
10	5R136200BA	ASSY CONNECTING ROD	5R136200BA ASSY CONNECTING ROD Vanquish S From (V) 501506	-	12	Enquire
10	ED236200AB	ROD ASY CONN	ED236200AB ROD ASY CONN	-	12	Enquire
11	5R136207AA	BUSHING - CONNECTING ROD	5R136207AA BUSHING - CONNECTING ROD Vanquish S From (V) 501506	-	12	Enquire
11	4G430210968	BUSH - CONN ROD V12	4G430210968 BUSH - CONN ROD V12	-	12	Enquire
12	6E5E6211AB	Bearing, Connecting Rod	6E5E6211AB Bearing, Connecting Rod	-	24	Enquire
13	1R120210677	BOLT - CONN ROD VANQ S	1R120210677 BOLT - CONN ROD VANQ S Vanquish S From (V) 501506	-	24	Enquire
13	285018	Bolt, Connecting Rod ARRIVING SOON	285018 Bolt, Connecting Rod ARRIVING SOON	-	24	Enquire
14	4R3E6333AA	Bearing Crankshaft Main Upper Grade 1	4R3E6333AA Bearing Crankshaft Main Upper Grade 1	-	7	Enquire
14	4R3E6333BA	Bearing Crankshaft Main Upper Grade 2	4R3E6333BA Bearing Crankshaft Main Upper Grade 2	-	7	Enquire
14	4R3E6333CA	Bearing Crankshaft Main Upper Grade 3	4R3E6333CA Bearing Crankshaft Main Upper Grade 3	-	7	Enquire
15	4R3E6A338BA	Bearing, Crankshaft, Main, Lower (.012)	4R3E6A338BA Bearing, Crankshaft, Main, Lower (.012)	-	7	Enquire
15	4R3E6A338CA	Bearing, Crankshaft, Main, Lower (.014)	4R3E6A338CA Bearing, Crankshaft, Main, Lower (.014)	-	7	Enquire
15	285020	BEARING CRANKSHAFT MAIN LOWER	285020 BEARING CRANKSHAFT MAIN LOWER	-	7	Enquire
16	BR3E6A341BA	Washer, Crankshaft Main Thrust Upper	BR3E6A341BA Washer, Crankshaft Main Thrust Upper	-	2	Enquire
17	4R3E6A339AA	Washer CrankShaft MN Thrust Lower	4R3E6A339AA Washer CrankShaft MN Thrust Lower	-	1	Enquire
17	4R3E6A339BA	Washer Crankshaft Main Thrust Lower	4R3E6A339BA Washer Crankshaft Main Thrust Lower	-	1	Enquire
17	4R3E6A339CA	BEARING CRANKSHAFT MN THRUST LOWER	4R3E6A339CA BEARING CRANKSHAFT MN THRUST LOWER	-	1	Enquire
18	1R120210061	Bearing Assembly Pilot ARRIVING SOON	1R120210061 Bearing Assembly Pilot Not supplied with a new crankshaft or engine. ARRIVING SOON	-	1	Enquire
