Aston Martin Vanquish (2001-2007) - Engine Electrical Components

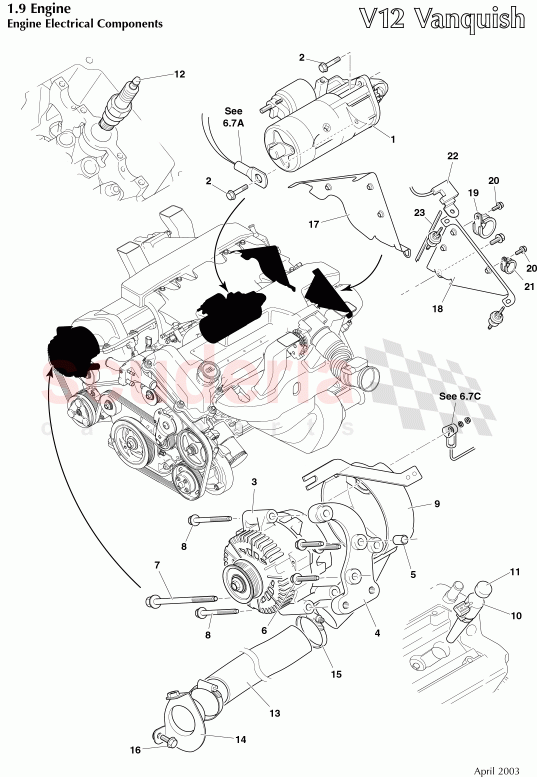

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	8G4311000AB	STARTER MOTOR DRIVE RELAY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703183	BOLT M10 x 45 HEX FLANGE HEX HEAD CHROME FREE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9122291AC	ALTERNATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R1E10039AC	Bracket, generator	Enquire	To Order
	4G430910010	ALT. MOUNTING BRKT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697759	Dowel, hollow, 14.0 X 17.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700981	BOLT-M10 x 1.5 x 45 FLG HD GRD 8.8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700139	BOLT M10x1.5x140	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700140	Bolt and Washer, M10 x 97.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12371081AA	HEATSHIELD - ALTERNATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	91701	HARNESS ASSY-ENGINE	Enquire	To Order
	3785129	Jumper harness	Enquire	To Order
	785127	Ignition Coil and Boot Assembly - 3 Pin	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	5R1312405BAPK	Spark Plugs - Vanquish S (Pack of 4)	Enquire	To Order
	785126PK	Spark Plug (Pack of 4)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12370806AA	DUCT - ALTERNATOR HEATSHIELD - SIZE 40 I/D x 740mm LONG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12372293AB	BRACKET-ALTERNATOR COOLING DUCT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697659	CLIP HOSE-SPR/LOADED	Enquire	To Order
	699233PK	TIE-STRAP HT RES-100	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703265	Screw, M6 x 16, Hex Flange Head	Enquire	To Order
	697164	WASHER M8 LOCK SINGLE COIL	Enquire	To Order
	699779	'P' CLIP 45MM	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	4R1314A004CA	Bracket assy, wiring harness mounting	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4R1314A004BA	Bracket assy, wiring harness mounting	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	695394	P-CLIP	Enquire	To Order
	699750	'P'CLIP DIA 28x15xM6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700126	SCREW M6x20 HEX FLG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CD330710073	CAPACITOR ASY-RADIO	Enquire	To Order
	3786186	EDGE PROTECTION STRIP (200mm)	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	8G4311000AB	STARTER MOTOR DRIVE RELAY	8G4311000AB STARTER MOTOR DRIVE RELAY	-	1	Enquire
2	703183	BOLT M10 x 45 HEX FLANGE HEX HEAD CHROME FREE	703183 BOLT M10 x 45 HEX FLANGE HEX HEAD CHROME FREE	-	2	Enquire
3	9122291AC	ALTERNATOR	9122291AC ALTERNATOR	-	1	Enquire
4	1R1E10039AC	Bracket, generator	1R1E10039AC Bracket, generator Vanquish S From (V) 501506	-	1	Enquire
4	4G430910010	ALT. MOUNTING BRKT	4G430910010 ALT. MOUNTING BRKT	-	1	Enquire
5	697759	Dowel, hollow, 14.0 X 17.5	697759 Dowel, hollow, 14.0 X 17.5 Generator bracket to cylinder head	-	2	Enquire
6	700981	BOLT-M10 x 1.5 x 45 FLG HD GRD 8.8	700981 BOLT-M10 x 1.5 x 45 FLG HD GRD 8.8 Generator bracket to cylinder head	-	3	Enquire
7	700139	BOLT M10x1.5x140	700139 BOLT M10x1.5x140 Generator to bracket	-	1	Enquire
8	700140	Bolt and Washer, M10 x 97.5	700140 Bolt and Washer, M10 x 97.5 Generator to bracket	-	2	Enquire
9	1R12371081AA	HEATSHIELD - ALTERNATOR	1R12371081AA HEATSHIELD - ALTERNATOR	-	1	Enquire
10	91701	HARNESS ASSY-ENGINE	91701 HARNESS ASSY-ENGINE	-	1	Enquire
10	3785129	Jumper harness	3785129 Jumper harness	-	1	Enquire
10	785127	Ignition Coil and Boot Assembly - 3 Pin	785127 Ignition Coil and Boot Assembly - 3 Pin	-	12	Enquire
10	699533	SADDLE CLIP (HELLERMAN LKC)	699533 SADDLE CLIP (HELLERMAN LKC)	-	2	Enquire
12	5R1312405BAPK	Spark Plugs - Vanquish S (Pack of 4)	5R1312405BAPK Spark Plugs - Vanquish S (Pack of 4) Vanquish S From (V) 501506	-	12	Enquire
12	785126PK	Spark Plug (Pack of 4)	785126PK Spark Plug (Pack of 4)	-	12	Enquire
13	1R12370806AA	DUCT - ALTERNATOR HEATSHIELD - SIZE 40 I/D x 740mm LONG	1R12370806AA DUCT - ALTERNATOR HEATSHIELD - SIZE 40 I/D x 740mm LONG	-	1	Enquire
14	1R12372293AB	BRACKET-ALTERNATOR COOLING DUCT	1R12372293AB BRACKET-ALTERNATOR COOLING DUCT	-	1	Enquire
15	697659	CLIP HOSE-SPR/LOADED	697659 CLIP HOSE-SPR/LOADED	-	1	Enquire
15	699233PK	TIE-STRAP HT RES-100	699233PK TIE-STRAP HT RES-100	-	3	Enquire
16	703265	Screw, M6 x 16, Hex Flange Head	703265 Screw, M6 x 16, Hex Flange Head	-	1	Enquire
16	697164	WASHER M8 LOCK SINGLE COIL	697164 WASHER M8 LOCK SINGLE COIL	-	1	Enquire
16	699779	'P' CLIP 45MM	699779 'P' CLIP 45MM	-	1	Enquire
16	697418	NUT M8 HEX	697418 NUT M8 HEX	-	1	Enquire
16	694567	WASHER M6 x 18 OD 0.9 THICK ZINC PLT	694567 WASHER M6 x 18 OD 0.9 THICK ZINC PLT	-	2	Enquire
16	703025	Screw, M6 x 25, Hex Flange Head	703025 Screw, M6 x 25, Hex Flange Head	-	2	Enquire
17	4R1314A004CA	Bracket assy, wiring harness mounting	4R1314A004CA Bracket assy, wiring harness mounting	-	1	Enquire
18	4R1314A004BA	Bracket assy, wiring harness mounting	4R1314A004BA Bracket assy, wiring harness mounting	-	1	Enquire
19	695394	P-CLIP	695394 P-CLIP RHD	-	1	Enquire
19	699750	'P'CLIP DIA 28x15xM6	699750 'P'CLIP DIA 28x15xM6 LHD	-	1	Enquire
20	700126	SCREW M6x20 HEX FLG	700126 SCREW M6x20 HEX FLG	-	2	Enquire
21	699634	P-Clip,13 x 15 x M6	699634 P-Clip,13 x 15 x M6	-	1	Enquire
22	CD330710073	CAPACITOR ASY-RADIO	CD330710073 CAPACITOR ASY-RADIO	-	2	Enquire
22	3786186	EDGE PROTECTION STRIP (200mm)	3786186 EDGE PROTECTION STRIP (200mm)	-	2	Enquire
