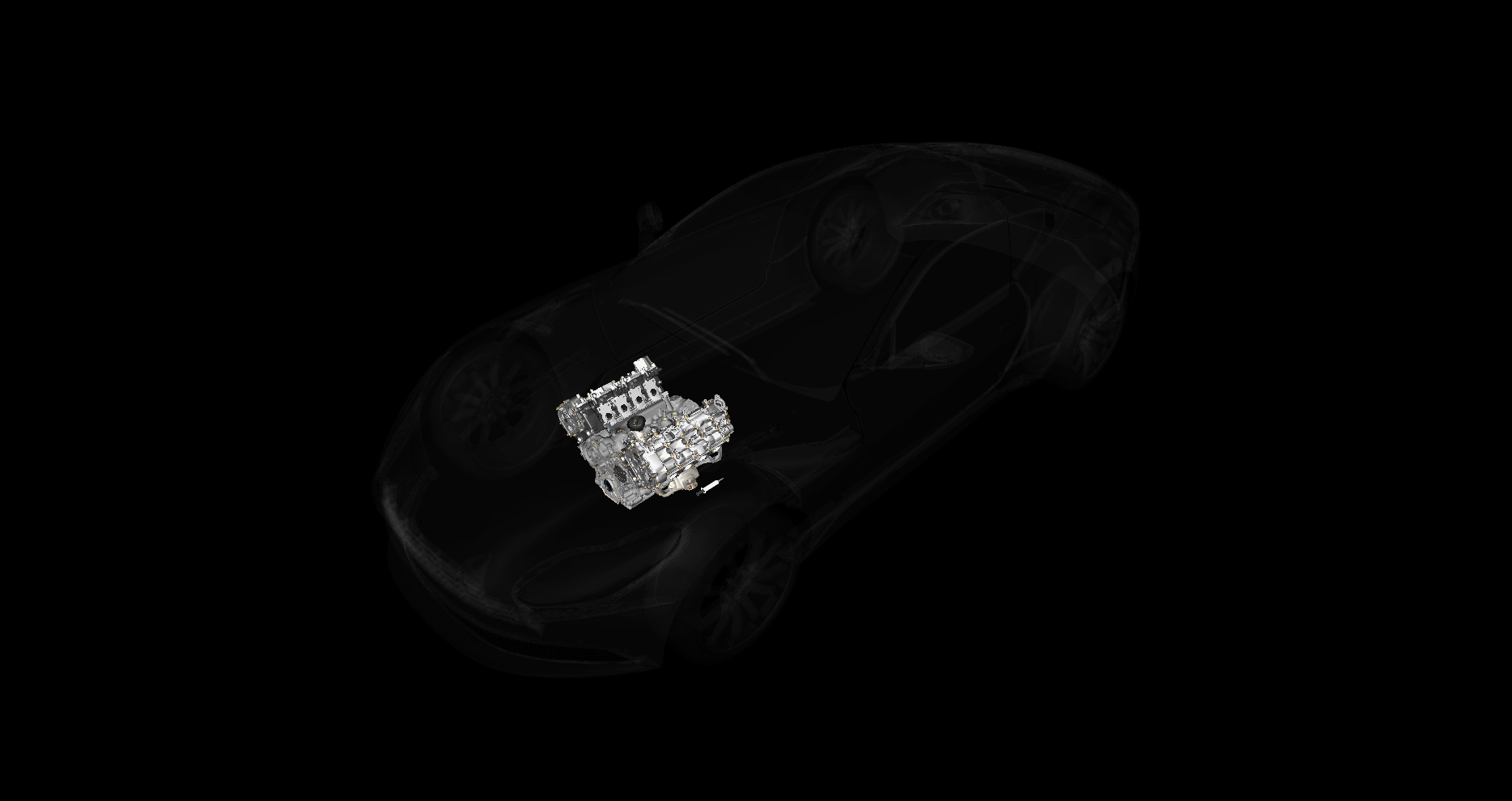

Engine Structure of Aston Martin Aston Martin GT DB11 (2017-2023)

View All

Aston Martin GT DB11 (2017-2023) - Engine Structure

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	22AA403GP	GAS STRUT BONNET	22AA403GP GAS STRUT BONNET When replacing a newEngine, please update theECM on AMDS.	-	-	Enquire
10	JY53SE6007AA	V8 TURBO ENGINE ASSY	JY53SE6007AA V8 TURBO ENGINE ASSY -> VIN L07111, Less FEADBelts, & Aircon Pump	-	1	Enquire
11	JY53SE6007AB	V8 TURBO ENGINE ASSY	JY53SE6007AB V8 TURBO ENGINE ASSY VIN L07112-> M09540, LessFEAD Belts, & Aircon Pump	-	1	Enquire
12	JY53SE6007AC	V8 TURBO ENGINE ASSY	JY53SE6007AC V8 TURBO ENGINE ASSY VIN L07112-> M10266, LessFEAD Belts, & Aircon Pump	-	1	Enquire
13	MY63SE6007BA	V8 TURBO ENGINE ASSY	MY63SE6007BA V8 TURBO ENGINE ASSY VIN M10267->, Less FEADBelts, & Aircon Pump. Forvehicles up to VINL10495, Purge Hose Sensornot used. Leaveunconnected.	-	1	Enquire
20	11AA108CP	BOLLHOFF RIVNUT M6 1.50 - 3.00 2330-706	11AA108CP BOLLHOFF RIVNUT M6 1.50 - 3.00 2330-706	$2.92	1
30	JY53SE6700AA	CRANK SEAL-FRONT	JY53SE6700AA CRANK SEAL-FRONT	-	1	Enquire
40	JY53SEHS000001AA	SCREW M6X10 PAN HEAD	JY53SEHS000001AA SCREW M6X10 PAN HEAD	-	9	Enquire
50	JY53SE6D080AA	LID - CHAIN CASE	JY53SE6D080AA LID - CHAIN CASE Includes item 60	-	1	Enquire
60	JY53SE61J05AA	O RING SEAL	JY53SE61J05AA O RING SEAL	-	1	Enquire
70	JY53SEHS000030AA	SCREW-M6x16 TORX PAN	JY53SEHS000030AA SCREW-M6x16 TORX PAN	-	2	Enquire
81	MY83SE6K318BA	CRANK SEAL-REAR	MY83SE6K318BA CRANK SEAL-REAR	-	1	Enquire
90	JY53SEHS000029AA	SCREW M6X10 PAN HEAD	JY53SEHS000029AA SCREW M6X10 PAN HEAD	-	13	Enquire
100	JY53SEHS000031AA	SCREW-M8X35-HEX	JY53SEHS000031AA SCREW-M8X35-HEX ALWAYS REPLACE. DO NOTREUSE	-	9	Enquire
110	MY63SEHS000001AA	SCREW-M8X50-HEX	MY63SEHS000001AA SCREW-M8X50-HEX ALWAYS REPLACE. DO NOTREUSE	-	1	Enquire
120	JY53SEHS000024AA	BOLT M10X90 TORX MAL	JY53SEHS000024AA BOLT M10X90 TORX MAL ALWAYS REPLACE. DO NOTREUSE	-	10	Enquire
130	JY53SEHS000023AA	BOLT-M8x93 TORX MALE	JY53SEHS000023AA BOLT-M8x93 TORX MALE ALWAYS REPLACE. DO NOTREUSE	-	10	Enquire
140	JY53SE6026BA	THREADED PLUG-M14	JY53SE6026BA THREADED PLUG-M14	-	2	Enquire
150	JY53SE6B026BA	SEALING RING-M14	JY53SE6B026BA SEALING RING-M14 ALWAYS REPLACE. DO NOTREUSE	-	2	Enquire
160	JY53SE18N348AA	BRACKET -HEADER TANK	JY53SE18N348AA BRACKET -HEADER TANK	-	1	Enquire
170	JY53SEHS000002AA	SCREW M6X12 PAN HEAD	JY53SEHS000002AA SCREW M6X12 PAN HEAD	-	2	Enquire
180	JY53SE6616AA	ACCESS PLATE-ENGINE	JY53SE6616AA ACCESS PLATE-ENGINE	-	1	Enquire
190	JY53SE87066AA	SEAL-ACCESS PLATE	JY53SE87066AA SEAL-ACCESS PLATE	-	1	Enquire
200	JY53SE6026AA	THREADED PLUG-M12	JY53SE6026AA THREADED PLUG-M12	-	1	Enquire
210	JY53SE6B026AA	SEALING RING-M12	JY53SE6B026AA SEALING RING-M12	-	1	Enquire
220	JY53SEHS000004AA	SCREW M6X20 PAN HEAD	JY53SEHS000004AA SCREW M6X20 PAN HEAD	-	2	Enquire
230	JY53SE6N078AA	OIL NOZZLE-PISTON	JY53SE6N078AA OIL NOZZLE-PISTON	-	4	Enquire
240	JY53SEHS000047AA	BOLT-M8X20-MTORX	JY53SEHS000047AA BOLT-M8X20-MTORX	-	4	Enquire
300	JY53SE6049AA	CYLINDER HEAD-LH	JY53SE6049AA CYLINDER HEAD-LH Bare Head	-	1	Enquire
310	JY53SE6050AA	CYLINDER HEAD-RH	JY53SE6050AA CYLINDER HEAD-RH Bare Head	-	1	Enquire
320	JY53SE6083AA	GASKET-CYL.HEAD-LH	JY53SE6083AA GASKET-CYL.HEAD-LH -> Engine 60036394	-	1	Enquire
321	JY53SE6083AB	GASKET-CYL.HEAD-LH	JY53SE6083AB GASKET-CYL.HEAD-LH Engine 60036394->	-	-	Enquire
330	JY53SE6051AA	GASKET-CYL.HEAD-RH	JY53SE6051AA GASKET-CYL.HEAD-RH -> Engine 60036394	-	1	Enquire
331	JY53SE6051AB	GASKET-CYL.HEAD-RH	JY53SE6051AB GASKET-CYL.HEAD-RH Engine 60036394->	-	1	Enquire
340	JY53SE6D080BA	COVER - CHAIN CASE	JY53SE6D080BA COVER - CHAIN CASE	-	2	Enquire
350	JY53SE6766AB	CAP-OIL FILLER-AML	JY53SE6766AB CAP-OIL FILLER-AML	-	1	Enquire
351	JY53SE9E936AA	SEAL-OIL FILLER CAP	JY53SE9E936AA SEAL-OIL FILLER CAP	-	1	Enquire
360	JY53SE6763AA	NECK-OIL FILLER	JY53SE6763AA NECK-OIL FILLER	-	1	Enquire
370	JY53SE6721AA	SEAL-FILLER NECK	JY53SE6721AA SEAL-FILLER NECK	-	1	Enquire
380	JY53SE9072AA	GROMMET-OIL FILLER	JY53SE9072AA GROMMET-OIL FILLER	-	1	Enquire
390	JY53SEHS000030AA	SCREW-M6x16 TORX PAN	JY53SEHS000030AA SCREW-M6x16 TORX PAN	-	2	Enquire
400	JY53SE6M299AA	END CAP-CAMSHAFT	JY53SE6M299AA END CAP-CAMSHAFT	-	3	Enquire
410	JY53SE6026BA	THREADED PLUG-M14	JY53SE6026BA THREADED PLUG-M14	-	1	Enquire
420	JY53SE6B026BA	SEALING RING-M14	JY53SE6B026BA SEALING RING-M14	-	1	Enquire
430	JY53SEHS000014AA	SCREW M6X16 TORX HD	JY53SEHS000014AA SCREW M6X16 TORX HD Chain Case Front Cover	-	18	Enquire
440	JY53SEHS000026AA	BOLT-M7x40 TORX MALE	JY53SEHS000026AA BOLT-M7x40 TORX MALE ALWAYS REPLACE. DO NOTREUSE	-	43	Enquire
450	JY53SEHS000027AA	BOLT-M7x80 TORX MALE	JY53SEHS000027AA BOLT-M7x80 TORX MALE ALWAYS REPLACE. DO NOTREUSE	-	10	Enquire
460	JY53SE6065AA	BOLT-CYLINDER HEAD	JY53SE6065AA BOLT-CYLINDER HEAD ALWAYS REPLACE. DO NOTREUSE	-	20	Enquire
470	JY53SEHS000005AA	SCREW M6X25 PAN HEAD	JY53SEHS000005AA SCREW M6X25 PAN HEAD	-	1	Enquire
480	JY53SEHS000017AA	BOLT M6X16 TORX MALE	JY53SEHS000017AA BOLT M6X16 TORX MALE	-	2	Enquire
490	JY53SE9400AA	ROLLER TAPPET	JY53SE9400AA ROLLER TAPPET	-	2	Enquire
500	JY53SE6065BA	BOLT-CYLINDER HEAD	JY53SE6065BA BOLT-CYLINDER HEAD ALWAYS REPLACE. DO NOTREUSE	-	2	Enquire
510	705358	Sealant Loctite 5970, Plenum Cover	705358 Sealant Loctite 5970, Plenum Cover	-	A/R	Enquire
600	JY53SE6031AA	ENGINE MOUNT-LH	JY53SE6031AA ENGINE MOUNT-LH Complete Assembly	-	1	Enquire
610	JY53SE6030AA	ENGINE MOUNT-RH	JY53SE6030AA ENGINE MOUNT-RH Complete Assembly	-	1	Enquire
620	JY53SEHS000022AA	BOLT M8X40 TORX MALE	JY53SEHS000022AA BOLT M8X40 TORX MALE	-	4	Enquire
630	JY53SEHS000031AA	SCREW-M8X35-HEX	JY53SEHS000031AA SCREW-M8X35-HEX	-	8	Enquire
