Aston Martin GT DB11 (2017-2023) - Cooling System

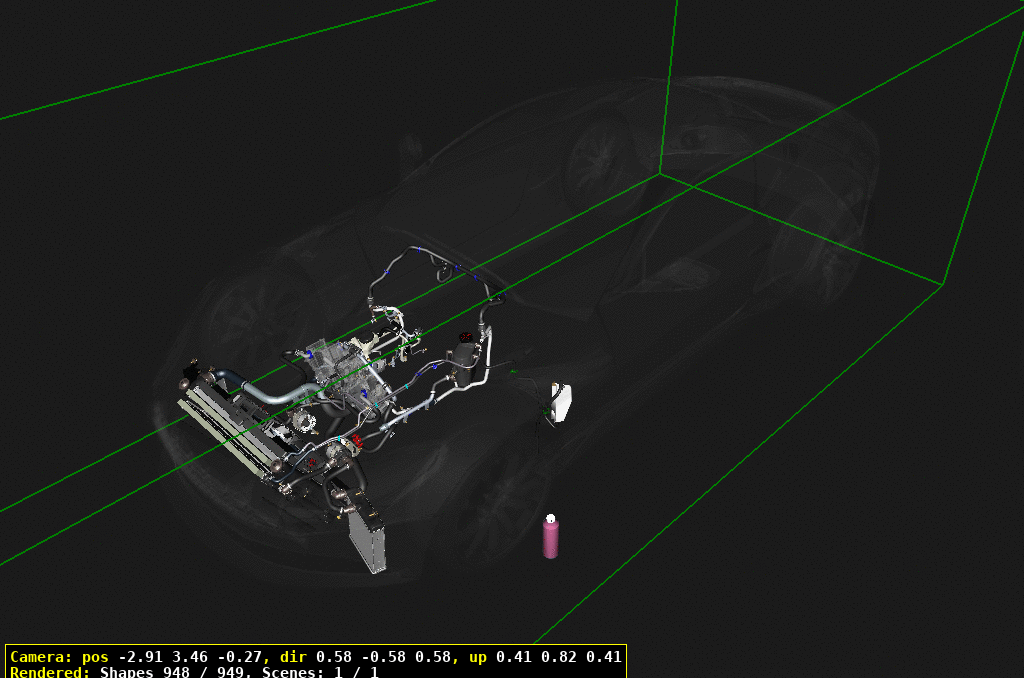

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
20	JY538333AB	TOP HOSE ASSY	JY538333AB TOP HOSE ASSY	-	1	Enquire
30	JY5361J31AB	BOTTOM HS ASY	JY5361J31AB BOTTOM HS ASY	-	1	Enquire
40	JY538B566AA	PIP INLT RUN ON PMP	JY538B566AA PIP INLT RUN ON PMP	-	1	Enquire
50	JY538C419AB	RUN ON WTR PMP ASSY	JY538C419AB RUN ON WTR PMP ASSY Includes item 60	-	1	Enquire
60	4G430410BB	Screw, M35 x 12 Self Tap	4G430410BB Screw, M35 x 12 Self Tap	-	3	Enquire
70	JY538C350AB	DEGAS M/UP HOS ASY	JY538C350AB DEGAS M/UP HOS ASY To Header Tank	-	1	Enquire
80	JY538C363AA	CNTR HX DGS HOS ASY	JY538C363AA CNTR HX DGS HOS ASY	-	1	Enquire
90	JY538063AB	BS ENG DGS HOS ASY	JY538063AB BS ENG DGS HOS ASY	-	1	Enquire
100	HY5319B518AE	RADIATOR EXPANSION TANK	HY5319B518AE RADIATOR EXPANSION TANK	-	1	Enquire
110	RY538101AA	PRSR CAP ASY 180KPA	RY538101AA PRSR CAP ASY 180KPA	-	1	Enquire
120	HY538B081AA	HOSE SUPPLY TANK	HY538B081AA HOSE SUPPLY TANK	-	1	Enquire
130	6G33TBD2BA	Reservoir, Coolant Expansion	6G33TBD2BA Reservoir, Coolant Expansion	-	1	Enquire
140	HY538N029AA	OVERFLOW HOSE	HY538N029AA OVERFLOW HOSE	-	1	Enquire
150	703152PK	Screw & Washer M6 x 20 Hex Head (Pack of 10)	703152PK Screw & Washer M6 x 20 Hex Head (Pack of 10) Pack of 10	-	2	Enquire
170	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	703203 Screw M6 x 20 Heex Flange 8 Chrome Free	-	2	Enquire
180	55075028	WRENCH	55075028 WRENCH	-	1	Enquire
190	JY53E804707AA	M10 X 20 FIXING	JY53E804707AA M10 X 20 FIXING	-	2	Enquire
200	HY53482907AA	C-CLIP D8MM	HY53482907AA C-CLIP D8MM	-	2	Enquire
260	JY53SE8063AA	HOSE-DEGAS	JY53SE8063AA HOSE-DEGAS	-	1	Enquire
270	JY53322666AAPK	COOLANT-(1.5 LTR)-10	JY53322666AAPK COOLANT-(1.5 LTR)-10 1 Litre, Pack of 10	-	1	Enquire
300	JY539H299AB	WACAC INLT HS ASY RH	JY539H299AB WACAC INLT HS ASY RH	-	1	Enquire
310	JY5318K582AA	CNT HX OTLET HOS ASY	JY5318K582AA CNT HX OTLET HOS ASY	-	1	Enquire
320	HY5315167AA	CNTRL HX INLET HOSE	HY5315167AA CNTRL HX INLET HOSE	-	1	Enquire
330	JY539H298AB	WACAC OTLT HS ASY LH	JY539H298AB WACAC OTLT HS ASY LH	-	1	Enquire
340	JY538K101AA	AUX HX OLET H ASY LH	JY538K101AA AUX HX OLET H ASY LH	-	1	Enquire
350	HY538B591AB	ELEC WATER PUMP	HY538B591AB ELEC WATER PUMP Auxiliary	-	1	Enquire
360	HY538B590AB	ELEC WATER PUMP	HY538B590AB ELEC WATER PUMP Auxiliary	-	1	Enquire
370	HY538N503AC	BASE BRKT EPUMP COMM	HY538N503AC BASE BRKT EPUMP COMM Auxiliary	-	2	Enquire
380	HY538N502AA	STRAP BRKT EPUMP	HY538N502AA STRAP BRKT EPUMP Auxiliary	-	2	Enquire
390	JY536A960AA	BRKT HOSE SPRT	JY536A960AA BRKT HOSE SPRT	-	1	Enquire
400	JY538K276AA	DGS HOSE ASY LTS	JY538K276AA DGS HOSE ASY LTS	-	1	Enquire
500	JY53SE98659AA	RETURN PIPE- COOLANT	JY53SE98659AA RETURN PIPE- COOLANT	-	1	Enquire
510	JY53SE8063BA	DEGAS HOSE- LH	JY53SE8063BA DEGAS HOSE- LH LH	-	1	Enquire
520	JY53SE8063CB	DEGAS HOSE- RH	JY53SE8063CB DEGAS HOSE- RH RH	-	1	Enquire
530	JY53SE9U469AA	RETURN PIPE- COOLANT	JY53SE9U469AA RETURN PIPE- COOLANT LH	-	1	Enquire
540	JY53SE9U469BA	RETURN PIPE- COOLANT	JY53SE9U469BA RETURN PIPE- COOLANT RH	-	1	Enquire
550	JY53SE9U468AA	COOLANT FEED PIPE-LH	JY53SE9U468AA COOLANT FEED PIPE-LH LH	-	1	Enquire
560	JY53SE9U468CA	COOLANT FEED PIPE	JY53SE9U468CA COOLANT FEED PIPE	-	1	Enquire
570	JY53SE9U468BA	COOLANT FEED PIPE-RH	JY53SE9U468BA COOLANT FEED PIPE-RH RH	-	1	Enquire
580	JY53SE8590BA	O RING SEAL	JY53SE8590BA O RING SEAL 11x2mm	-	10	Enquire
590	JY53SE8590CA	O RING SEAL	JY53SE8590CA O RING SEAL 14x2mm	-	2	Enquire
600	JY53SE8777AA	OETIKER CLAMP	JY53SE8777AA OETIKER CLAMP	-	4	Enquire
601	JY53SE8777BA	OETIKER CLAMP	JY53SE8777BA OETIKER CLAMP	-	1	Enquire
610	JY53SEHS000002AA	SCREW M6X12 PAN HEAD	JY53SEHS000002AA SCREW M6X12 PAN HEAD	-	16	Enquire
620	JY53SEHS000007AA	SCREW M6X30 PAN HEAD	JY53SEHS000007AA SCREW M6X30 PAN HEAD	-	1	Enquire
630	JY53SE2L202AA	SUPPORT BRACKET-PIPE	JY53SE2L202AA SUPPORT BRACKET-PIPE	-	1	Enquire
700	JY53SE9H299AA	COOLANT FEED PIPE-LH	JY53SE9H299AA COOLANT FEED PIPE-LH LH	-	1	Enquire
710	JY53SE9H299BA	COOLANT FEED PIPE-RH	JY53SE9H299BA COOLANT FEED PIPE-RH RH	-	1	Enquire
720	JY53SE8287BA	CLAMP-PIPE TO WCAC	JY53SE8287BA CLAMP-PIPE TO WCAC	-	4	Enquire
730	JY53SE8590AA	O RING-WCAC	JY53SE8590AA O RING-WCAC	-	4	Enquire
740	JY53SE9N491AA	COOLANT RETURN-WCAC	JY53SE9N491AA COOLANT RETURN-WCAC LH	-	1	Enquire
750	JY53SE9N491BA	COOLANT RETURN-WCAC	JY53SE9N491BA COOLANT RETURN-WCAC RH	-	1	Enquire
760	JY53SE9N491CA	HOSE AND CLIPS ASSY	JY53SE9N491CA HOSE AND CLIPS ASSY	-	1	Enquire
770	JY53SE8K276AA	DEGAS HOSE-WCAC	JY53SE8K276AA DEGAS HOSE-WCAC To Header Tank	-	1	Enquire
780	JY53SE9H299CA	COOLANT FEED PIPE	JY53SE9H299CA COOLANT FEED PIPE -> VIN L07111, To HeaderTank	-	1	Enquire
781	JY53SE9H299CB	COOLANT FEED PIPE	JY53SE9H299CB COOLANT FEED PIPE VIN L07112->, To HeaderTank	-	1	Enquire
790	JY53SE19B518BA	LOWER COOLANT TANK	JY53SE19B518BA LOWER COOLANT TANK -> VIN L07111	-	1	Enquire
800	JY53SE19B518BB	LOWER COOLANT TANK	JY53SE19B518BB LOWER COOLANT TANK VIN L07112->	-	1	Enquire
810	JY53SE19B518AA	HEADER TANK WITH CAP	JY53SE19B518AA HEADER TANK WITH CAP Includes Cap, Item 820	-	1	Enquire
820	JY53SE8101AA	CAP-COOLANT TANK	JY53SE8101AA CAP-COOLANT TANK Pressure Relief Cap	-	1	Enquire
830	JY53SEHS000016AA	BOLT M6X16 TORX MALE	JY53SEHS000016AA BOLT M6X16 TORX MALE -> VIN L07111, CoolantTank	-	2	Enquire
840	JY53SEHS000012AA	SCREW M6X20 PAN HEAD	JY53SEHS000012AA SCREW M6X20 PAN HEAD	-	5	Enquire
850	JY53SE2L202BA	BRACKET-CLAMP-ASSY	JY53SE2L202BA BRACKET-CLAMP-ASSY Pipe Support	-	1	Enquire
860	JY53SE6790BA	MOUNTING RUBBER	JY53SE6790BA MOUNTING RUBBER Header Tank	-	1	Enquire
870	JY53SEHS000045AA	SCREW-M6X50-TORX	JY53SEHS000045AA SCREW-M6X50-TORX VIN L07112->	-	3	Enquire
880	JY53SE6K767EA	BRACKET-INTERCOOLER	JY53SE6K767EA BRACKET-INTERCOOLER VIN L07112->	-	1	Enquire
890	JY53SEHS000048AA	SCREW M6x16 PAN HEAD	JY53SEHS000048AA SCREW M6x16 PAN HEAD VIN L07112->	-	2	Enquire
900	JY53SE8K168AA	WATER PUMP ASSEMBLY	JY53SE8K168AA WATER PUMP ASSEMBLY Includes O Ring Seals	-	1	Enquire
910	JY53SE8507AA	SEAL-WATER PUMP	JY53SE8507AA SEAL-WATER PUMP Large	-	1	Enquire
920	JY53SE8507BA	SEAL-WATER PUMP	JY53SE8507BA SEAL-WATER PUMP Small	-	1	Enquire
930	JY53SEHS000048AA	SCREW M6x16 PAN HEAD	JY53SEHS000048AA SCREW M6x16 PAN HEAD Water Pump	-	2	Enquire
940	JY53SE8A586AC	THERMOSTAT ASSEMBLY	JY53SE8A586AC THERMOSTAT ASSEMBLY	-	1	Enquire
950	JY53SE8A592AA	SEAL-T-STAT HOUSING	JY53SE8A592AA SEAL-T-STAT HOUSING	-	1	Enquire
960	JY53SE8575AB	THERMOSTAT ACTUATOR	JY53SE8575AB THERMOSTAT ACTUATOR	-	1	Enquire
970	JY53SEHS000048AA	SCREW M6x16 PAN HEAD	JY53SEHS000048AA SCREW M6x16 PAN HEAD Clutch to Housing	-	2	Enquire
980	JY53SE8274AB	INLET PIPE-WATERPUMP	JY53SE8274AB INLET PIPE-WATERPUMP Includes Spring Clips	-	1	Enquire
990	JY53SE8A592BA	O RING SEAL-INLET	JY53SE8A592BA O RING SEAL-INLET	-	1	Enquire
1000	JY53SE116632AA	SPRING CLIP-PIPE FIX	JY53SE116632AA SPRING CLIP-PIPE FIX 46.4mm	-	2	Enquire
1010	JY53SE116632BA	SPRING CLIP-PIPE FIX	JY53SE116632BA SPRING CLIP-PIPE FIX 27mm	-	1	Enquire
1020	JY53SEHS000048AA	SCREW M6x16 PAN HEAD	JY53SEHS000048AA SCREW M6x16 PAN HEAD	-	7	Enquire
1030	JY53SE8A504AB	OUTLET PIPE-COOLANT	JY53SE8A504AB OUTLET PIPE-COOLANT Includes Spring Clip	-	1	Enquire
1040	JY53SE8A571AB	SEAL-OUTLET PIPE	JY53SE8A571AB SEAL-OUTLET PIPE	-	1	Enquire
1050	JY53SEHS000036AA	SCREW-M6X25-TORX	JY53SEHS000036AA SCREW-M6X25-TORX	-	13	Enquire
1100	JY53SE18495AA	HEATER CONTROL VALVE	JY53SE18495AA HEATER CONTROL VALVE	-	1	Enquire
1110	JY53SE8590EA	O RING SEAL	JY53SE8590EA O RING SEAL	-	2	Enquire
1120	JY53SEHS000048AA	SCREW M6x16 PAN HEAD	JY53SEHS000048AA SCREW M6x16 PAN HEAD	-	3	Enquire
1130	JY53SE18674BA	PIPE-HEATER-LH	JY53SE18674BA PIPE-HEATER-LH	-	1	Enquire
1140	JY53SEHS000002AA	SCREW M6X12 PAN HEAD	JY53SEHS000002AA SCREW M6X12 PAN HEAD	-	1	Enquire
1150	JY53SEHS000017AA	BOLT M6X16 TORX MALE	JY53SEHS000017AA BOLT M6X16 TORX MALE	-	2	Enquire
1160	JY53SE8590EA	O RING SEAL	JY53SE8590EA O RING SEAL	-	2	Enquire
1170	JY53SE109090BA	FIXING CLIP-WIRING	JY53SE109090BA FIXING CLIP-WIRING	-	1	Enquire
1180	JY5318D359AB	HT OTLT HOS ASY LHD	JY5318D359AB HT OTLT HOS ASY LHD LHD	-	1	Enquire
1190	JY5318D334AB	HT INLT HOS ASY LH	JY5318D334AB HT INLT HOS ASY LH LHD	-	1	Enquire
1200	JY5318D334BC	HT INLT HOS ASY RH	JY5318D334BC HT INLT HOS ASY RH RHD	-	1	Enquire
1210	JY5318D359BB	HT OTLT HOS ASY RH	JY5318D359BB HT OTLT HOS ASY RH RHD	-	1	Enquire
1220	HY53359568AA	C CLIP D23MM	HY53359568AA C CLIP D23MM	-	5	Enquire
1300	HY538005AA	CNTRL HX ASSY HTS	HY538005AA CNTRL HX ASSY HTS High Temperature System	-	1	Enquire
1310	HY534190AA	CONTROL HEAT EXCHANGE LH	HY534190AA CONTROL HEAT EXCHANGE LH Low Temperature System	-	1	Enquire
1320	HY537A095AA	HT EXCH ASSY TOC	HY537A095AA HT EXCH ASSY TOC	-	1	Enquire
1330	HY5318D603AA	AUXILIARY HEAT EXCHANGER LH	HY5318D603AA AUXILIARY HEAT EXCHANGER LH Low Temperature System	-	1	Enquire
1340	JY536A642AB	ENGINE OIL COOLER	JY536A642AB ENGINE OIL COOLER	-	1	Enquire
1350	HY538C607AB	CNTRL FAN MOD ASSY	HY538C607AB CNTRL FAN MOD ASSY	-	1	Enquire
1360	JY5341888AA	BLANKING PLATE	JY5341888AA BLANKING PLATE RH	-	1	Enquire
1370	HY536C681AA	ISOLATOR CONTROL COOLER MODULE	HY536C681AA ISOLATOR CONTROL COOLER MODULE Radiator	-	4	Enquire
1380	KY53W704533AA	HOSE RETENTION CLIP	KY53W704533AA HOSE RETENTION CLIP	-	4	Enquire
1390	AG4328460AA	ISO BUSH B	AG4328460AA ISO BUSH B	-	6	Enquire
1400	AG43384993AA	COMP LIMITER	AG43384993AA COMP LIMITER	-	6	Enquire
1410	703585	Screw, M8 x 25, Torx Drive	703585 Screw, M8 x 25, Torx Drive	-	6	Enquire
1420	HY538N301AA	GOP RUB SL	HY538N301AA GOP RUB SL 400mm	-	2	Enquire
1430	HY53F8B170AA	SL CNTRL RUB CL MOD	HY53F8B170AA SL CNTRL RUB CL MOD	-	2	Enquire
1440	HY5361J05AA	CL MOD FOAM SL	HY5361J05AA CL MOD FOAM SL 650mm	-	3	Enquire
1450	702946	Bolt, M6 x 35, Hex Head	702946 Bolt, M6 x 35, Hex Head	-	2	Enquire
1460	HY5390781AA	PATCH BOLT&WSHR	HY5390781AA PATCH BOLT&WSHR Patch Locked	-	2	Enquire
1470	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	703203 Screw M6 x 20 Heex Flange 8 Chrome Free	-	2	Enquire
