Sump and Lubrication of Aston Martin Aston Martin GT DB11 (2017-2023)

View All

Aston Martin GT DB11 (2017-2023) - Sump and Lubrication

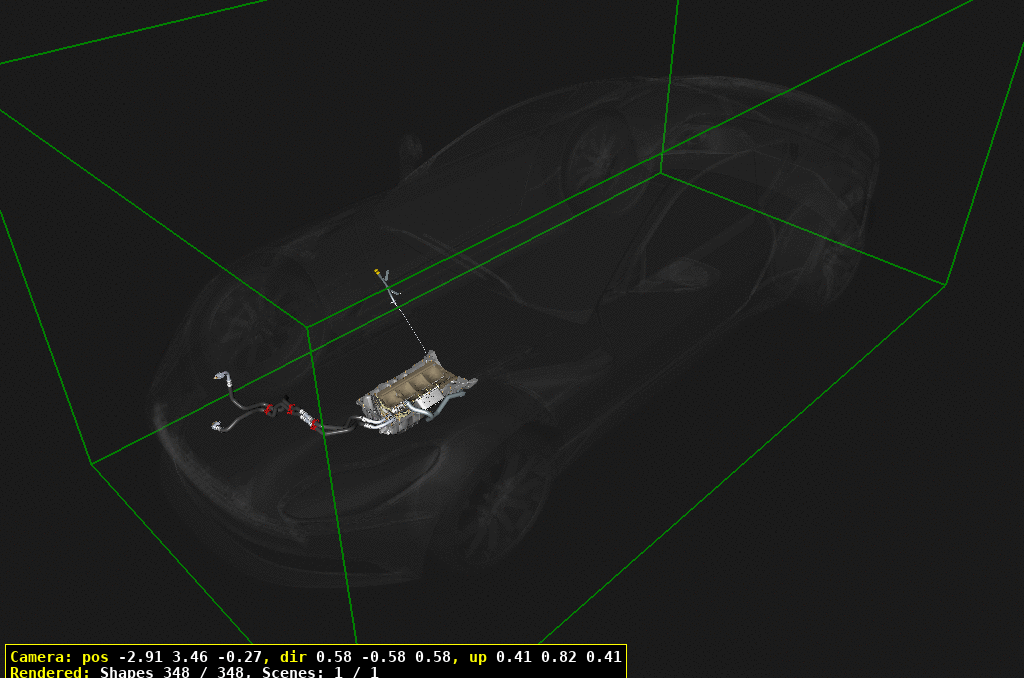

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
10	JY53SE6675AC	SUMP-ENGINE-ALLOY	JY53SE6675AC SUMP-ENGINE-ALLOY	-	1	Enquire
20	JY53SE6730AA	PLUG OIL DRAIN	JY53SE6730AA PLUG OIL DRAIN	-	1	Enquire
30	JY53SE6734AA	SEALING RING	JY53SE6734AA SEALING RING ALWAYS REPLACE. DO NOTREUSE	-	1	Enquire
40	JY53SE6A832AA	KIT-OIL FILTER	JY53SE6A832AA KIT-OIL FILTER Includes item 50	-	1	Enquire
50	JY53SE6744AA	OIL FILTER ARRIVING SOON	JY53SE6744AA OIL FILTER Cartridge Insert ARRIVING SOON	-	1	Enquire
70	HY53SE9T515AB	OIL LINE TO SUMP	HY53SE9T515AB OIL LINE TO SUMP Includes items 80 & 90	-	1	Enquire
80	MY83SE00815AA	MOULDED SEAL	MY83SE00815AA MOULDED SEAL	-	1	Enquire
90	JY53SE00815EA	O RING SEAL	JY53SE00815EA O RING SEAL	-	1	Enquire
100	JY53SEHS000017AA	BOLT M6X16 TORX MALE	JY53SEHS000017AA BOLT M6X16 TORX MALE	-	4	Enquire
110	JY53SE17443AA	SEAL-SUMP TO BLOCK	JY53SE17443AA SEAL-SUMP TO BLOCK Main Oil Feed	-	1	Enquire
120	JY53SEHS000041AA	SCREW-M6X25-MTORX	JY53SEHS000041AA SCREW-M6X25-MTORX	-	19	Enquire
130	JY53SE6750AA	DIPSTICK-ENGINE	JY53SE6750AA DIPSTICK-ENGINE	-	1	Enquire
140	JY53SE6754AA	TUBE-DIPSTICK	JY53SE6754AA TUBE-DIPSTICK	-	1	Enquire
150	JY53SE00815FA	O RING SEAL	JY53SE00815FA O RING SEAL Dipstick Tube to Engine	-	1	Enquire
160	JY53SE00815GA	O RING DIPSTICK	JY53SE00815GA O RING DIPSTICK Dipstick to Tube	-	1	Enquire
200	JY53SE6621AA	OIL PUMP-ENGINE	JY53SE6621AA OIL PUMP-ENGINE Includes item 210 & 220	-	1	Enquire
210	HY53SE6C880AA	SOLENOID VALVE-OIL	HY53SE6C880AA SOLENOID VALVE-OIL	-	1	Enquire
220	JY53SEHS000011AA	SCREW M4 PAN HEAD	JY53SEHS000011AA SCREW M4 PAN HEAD	-	2	Enquire
230	JY53SE6L266CA	TENSIONER-CHAIN	JY53SE6L266CA TENSIONER-CHAIN	-	1	Enquire
240	JY53SE6B660AA	WINDAGE TRAY	JY53SE6B660AA WINDAGE TRAY -> VIN L10807 / M10800	-	1	Enquire
241	55058436	OWNER'S MANUAL	55058436 OWNER'S MANUAL VIN L10808 / M10801->	-	1	Enquire
250	JY53SE61J18AA	O RING SEAL	JY53SE61J18AA O RING SEAL	-	1	Enquire
260	JY53SE6686AB	SPACER PLATE-PUMP	JY53SE6686AB SPACER PLATE-PUMP	-	1	Enquire
270	JY53SE108231BA	SPECIAL BOLT-PUMP	JY53SE108231BA SPECIAL BOLT-PUMP	-	2	Enquire
280	JY53SEHS000035AA	SCREW-M8X80-TORX	JY53SEHS000035AA SCREW-M8X80-TORX	-	1	Enquire
290	JY53SEHS000017AA	BOLT M6X16 TORX MALE	JY53SEHS000017AA BOLT M6X16 TORX MALE	-	5	Enquire
300	JY53SE6A895AA	CHAIN-OIL PUMP	JY53SE6A895AA CHAIN-OIL PUMP	-	1	Enquire
310	JY53SE108231AA	PIVOT BOLT	JY53SE108231AA PIVOT BOLT	-	1	Enquire
320	JY53SE17443BA	SHAPED SEAL-OIL PUMP	JY53SE17443BA SHAPED SEAL-OIL PUMP	-	2	Enquire
400	JY53SE6A642AA	OIL COOLER-ENGINE	JY53SE6A642AA OIL COOLER-ENGINE Engine Mounted	-	1	Enquire
410	JY53SEHS000004AA	SCREW M6X20 PAN HEAD	JY53SEHS000004AA SCREW M6X20 PAN HEAD	-	6	Enquire
420	JY53SE61J17AB	SEALING PLATE-COOLER	JY53SE61J17AB SEALING PLATE-COOLER	-	1	Enquire
430	JY53SE6L635AA	THERMOSTAT- OIL	JY53SE6L635AA THERMOSTAT- OIL	-	1	Enquire
440	JY53SE6670AA	SPRING-OIL VALVE	JY53SE6670AA SPRING-OIL VALVE	-	1	Enquire
450	RY53SE6L635AB	HOUSING-THERMOSTAT	RY53SE6L635AB HOUSING-THERMOSTAT Includes item 460	-	1	Enquire
460	JY53SE61J17BA	O RING- THERMOSTAT	JY53SE61J17BA O RING- THERMOSTAT	-	1	Enquire
470	JY53SEHS000004AA	SCREW M6X20 PAN HEAD	JY53SEHS000004AA SCREW M6X20 PAN HEAD	-	2	Enquire
480	JY536B747AA	ENG OIL COOL HS ASY	JY536B747AA ENG OIL COOL HS ASY	-	1	Enquire
490	JY536B748AA	ENG OIL COOL HS ASY	JY536B748AA ENG OIL COOL HS ASY	-	1	Enquire
500	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	703203 Screw M6 x 20 Heex Flange 8 Chrome Free	-	4	Enquire
510	JY53109090AB	CLIP PIPE DOUBLE	JY53109090AB CLIP PIPE DOUBLE	-	3	Enquire
