Air Cleaner and Emissions of Aston Martin Aston Martin GT DB11 (2017-2023)

View All

Aston Martin GT DB11 (2017-2023) - Air Cleaner and Emissions

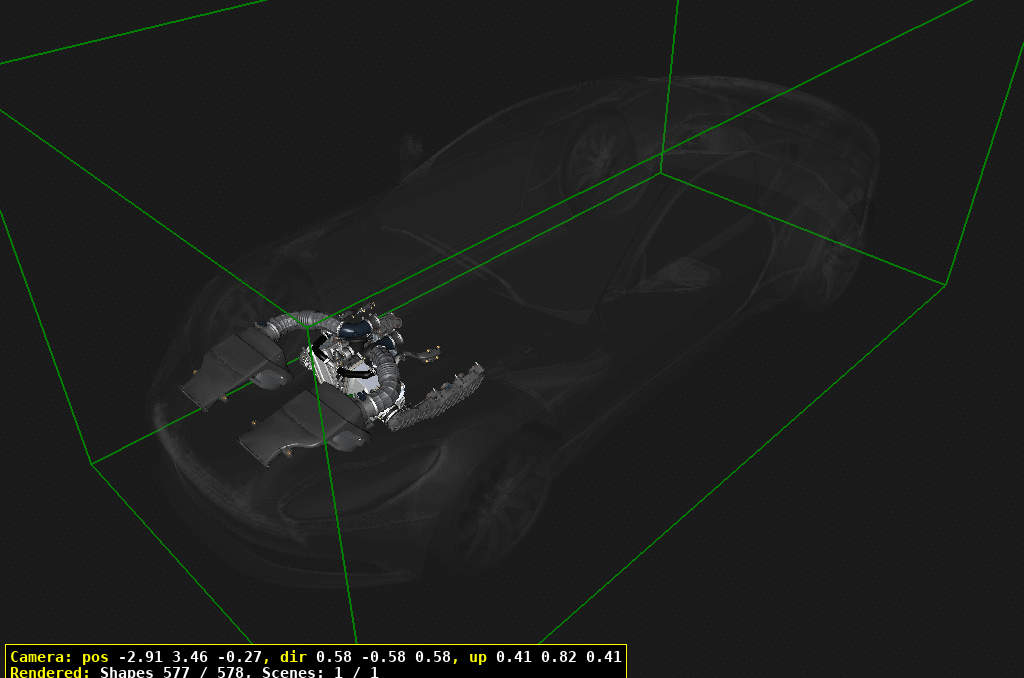

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
10	JY5352081AC	LH AIRBOX ASSY	JY5352081AC LH AIRBOX ASSY Includes item 30, 60	-	1	Enquire
20	JY5352080AB	RH AIR BOX ASSY	JY5352080AB RH AIR BOX ASSY Includes item 30, 60	-	1	Enquire
30	HY539601AA	AIR FILTER	HY539601AA AIR FILTER	-	2	Enquire
40	HY539G823AA	GROMMET - AIRBOX MTG	HY539G823AA GROMMET - AIRBOX MTG	-	4	Enquire
50	JY539V436AA	HSG PRESS SNS ASY	JY539V436AA HSG PRESS SNS ASY Includes Item 150	-	2	Enquire
60	HY5319214AA	O-RING 5MMX86MM ID	HY5319214AA O-RING 5MMX86MM ID	-	2	Enquire
70	JY539C623AB	LH CLEAN AIR DUCT	JY539C623AB LH CLEAN AIR DUCT	-	1	Enquire
80	JY539C622AB	RH CLEAN AIR DUCT	JY539C622AB RH CLEAN AIR DUCT	-	1	Enquire
90	JY539E770AA	TURBO DUCT	JY539E770AA TURBO DUCT	-	2	Enquire
100	JY539C678AB	CLN ARDCT SPT BRKT L	JY539C678AB CLN ARDCT SPT BRKT L	-	1	Enquire
110	JY539C677AB	CLN ARDCT SPT BRKT R	JY539C677AB CLN ARDCT SPT BRKT R	-	1	Enquire
120	JY53806705AA	M7X20 PN HD FXG	JY53806705AA M7X20 PN HD FXG	-	2	Enquire
130	702944	Nut, M6, Hex Flanged Head	702944 Nut, M6, Hex Flanged Head	-	4	Enquire
150	JY53SE12A644AA	SENSOR-IAPS	JY53SE12A644AA SENSOR-IAPS MAP	-	2	Enquire
199	SY9Y042A75KCW	CNSL PNL CENTRE ASSY	SY9Y042A75KCW CNSL PNL CENTRE ASSY The joint between the OilSeparator (250/260) andthe Adaptor Collar(310/320) is a Fit-Oncetype. It can only beremoved by breaking thejoint. Always supply andfit both parts to make upthe whole assembly.	-	-	Enquire
200	JY53SE6A665AB	BREATHER-HEAD-LH	JY53SE6A665AB BREATHER-HEAD-LH Supplied with seal	-	1	Enquire
210	JY53SE6A665DA	BREATHER-HEAD-RH	JY53SE6A665DA BREATHER-HEAD-RH Supplied without seal(item 230)	-	1	Enquire
220	JY53SE6769AA	SEAL-BREATHER-LH	JY53SE6769AA SEAL-BREATHER-LH	-	1	Enquire
230	JY53SE6769BA	SEAL-BREATHER-RH	JY53SE6769BA SEAL-BREATHER-RH	-	1	Enquire
250	JY53SE6B673AA	OIL SEPARATOR-HEAD	JY53SE6B673AA OIL SEPARATOR-HEAD -> VIN M10266	-	1	Enquire
251	JY53SE6B673AB	OIL SEPARATOR-HEAD	JY53SE6B673AB OIL SEPARATOR-HEAD VIN M10267->	-	1	Enquire
260	JY53SE6B673BA	OIL SEPARATOR-HEAD	JY53SE6B673BA OIL SEPARATOR-HEAD -> VIN M10266	-	1	Enquire
261	JY53SE6B673BB	OIL SEPARATOR-HEAD	JY53SE6B673BB OIL SEPARATOR-HEAD VIN M10267->	-	1	Enquire
270	JY53SE00815DA	O RING-OIL SEPARATOR	JY53SE00815DA O RING-OIL SEPARATOR	-	4	Enquire
280	70005957	CARBON MATS KIT	70005957 CARBON MATS KIT	-	1	Enquire
290	JY53SEHS000048AA	SCREW M6x16 PAN HEAD	JY53SEHS000048AA SCREW M6x16 PAN HEAD	-	10	Enquire
300	MY83SE3B9623AA	SEALING RING	MY83SE3B9623AA SEALING RING	-	6	Enquire
310	JY53SE6C342AA	ADAPTOR COLLAR-EMISS	JY53SE6C342AA ADAPTOR COLLAR-EMISS -> VIN M10266	-	1	Enquire
311	MY63SE6C342AA	ADAPTOR COLLAR - LH	MY63SE6C342AA ADAPTOR COLLAR - LH VIN M10267->	-	1	Enquire
320	JY53SE6C342BA	ADAPTOR COLLAR-EMISS	JY53SE6C342BA ADAPTOR COLLAR-EMISS -> VIN M10266	-	1	Enquire
321	MY63SE6C342BB	ADAPTOR COLLAR - RH	MY63SE6C342BB ADAPTOR COLLAR - RH VIN M10267->	-	1	Enquire
400	JY53SE6K775AA	CHARGE AIR COOLER-LH	JY53SE6K775AA CHARGE AIR COOLER-LH	-	1	Enquire
410	JY53SE6K775BA	CHARGE AIR COOLER-RH	JY53SE6K775BA CHARGE AIR COOLER-RH	-	1	Enquire
420	JY53SE9E926AA	THROTTLE BODY	JY53SE9E926AA THROTTLE BODY	-	2	Enquire
430	JY53SEF9793AA	SEAL-THROTTLE BODY	JY53SEF9793AA SEAL-THROTTLE BODY	-	2	Enquire
440	JY53SEHS000020AA	BOLT M6X35 TORX MALE	JY53SEHS000020AA BOLT M6X35 TORX MALE	-	8	Enquire
450	JY53SE12B676AA	PRESSURE SENSOR-WCAC	JY53SE12B676AA PRESSURE SENSOR-WCAC	-	2	Enquire
460	MY83SE9F491AA	SOLENOID VALVE	MY83SE9F491AA SOLENOID VALVE	-	2	Enquire
470	JY53SEHS000012AA	SCREW M6X20 PAN HEAD	JY53SEHS000012AA SCREW M6X20 PAN HEAD	-	4	Enquire
480	JY53SEHS000016AA	BOLT M6X16 TORX MALE	JY53SEHS000016AA BOLT M6X16 TORX MALE	-	6	Enquire
490	JY53SE2976AA	HOSE-WCAC INLET-LH	JY53SE2976AA HOSE-WCAC INLET-LH	-	1	Enquire
500	JY53SE2976BA	HOSE-WCAC INLET-RH	JY53SE2976BA HOSE-WCAC INLET-RH	-	1	Enquire
510	JY53SE9N832AA	HOSE BAND CLAMP	JY53SE9N832AA HOSE BAND CLAMP	-	2	Enquire
520	JY53SE6N650AA	HOSE-INTERCOOLER BAL	JY53SE6N650AA HOSE-INTERCOOLER BAL	-	1	Enquire
530	JY53SE6790AA	MOUNTING RUBBER-WCAC	JY53SE6790AA MOUNTING RUBBER-WCAC	-	6	Enquire
540	70005958	CARBON MATS KIT	70005958 CARBON MATS KIT	-	6	Enquire
550	JY53SEHN000003AA	M6 SPRING NUT	JY53SEHN000003AA M6 SPRING NUT	-	1	Enquire
560	JY53SE6K767AA	BRACKET-INTERCOOLER	JY53SE6K767AA BRACKET-INTERCOOLER -> VIN L07111	-	1	Enquire
570	JY53SE6K767BA	BRACKET-INTERCOOLER	JY53SE6K767BA BRACKET-INTERCOOLER -> VIN L07111	-	1	Enquire
571	70005959	CARBON MATS KIT	70005959 CARBON MATS KIT VIN L07112->, See CoolantTank, Section 030304-40	-	-	Enquire
580	JY53SE6K767CA	BRACKET-INTERCOOLER	JY53SE6K767CA BRACKET-INTERCOOLER	-	1	Enquire
590	JY53SE6K767DA	BRACKET-INTERCOOLER	JY53SE6K767DA BRACKET-INTERCOOLER	-	1	Enquire
610	JY53SEHS000048AA	SCREW M6x16 PAN HEAD	JY53SEHS000048AA SCREW M6x16 PAN HEAD	-	6	Enquire
620	JY53SEHS000007AA	SCREW M6X30 PAN HEAD	JY53SEHS000007AA SCREW M6X30 PAN HEAD	-	3	Enquire
630	JY53SE9K308AA	HOSE-RECIRCULATION	JY53SE9K308AA HOSE-RECIRCULATION	-	1	Enquire
640	JY53SE9K308BA	HOSE-RECIRCULATION	JY53SE9K308BA HOSE-RECIRCULATION	-	1	Enquire
650	70005960	CARBON MATS KIT	70005960 CARBON MATS KIT	-	1	Enquire
700	JY53SE9425AA	MANIFOLD-INLET-ASSY	JY53SE9425AA MANIFOLD-INLET-ASSY -> VIN L07111	-	1	Enquire
701	JY53SE9425AB	MANIFOLD-INLET-LH	JY53SE9425AB MANIFOLD-INLET-LH VIN L07112->	-	1	Enquire
710	JY53SE9425BA	MANIFOLD-INLET-ASSY	JY53SE9425BA MANIFOLD-INLET-ASSY -> VIN L07111	-	1	Enquire
711	JY53SE9425BC	MANIFOLD-INLET-RH	JY53SE9425BC MANIFOLD-INLET-RH VIN L07112->	-	1	Enquire
720	JY53SE9P851AA	GASKET-SEAL-MANIFOLD	JY53SE9P851AA GASKET-SEAL-MANIFOLD Manifold to Cylinder Head	-	8	Enquire
730	JY53SE12B676AA	PRESSURE SENSOR-WCAC	JY53SE12B676AA PRESSURE SENSOR-WCAC MAP Sensor	-	2	Enquire
740	MY83SEHS000054AA	SCREW M6X16	MY83SEHS000054AA SCREW M6X16	-	4	Enquire
750	JY53SE12B676BA	SENSOR-TEMPERATURE	JY53SE12B676BA SENSOR-TEMPERATURE	-	2	Enquire
760	JY53SE9C789AA	VENT STUB-MANIFOLD	JY53SE9C789AA VENT STUB-MANIFOLD	-	2	Enquire
770	JY53SE9S331AA	THROTTLE CUFF	JY53SE9S331AA THROTTLE CUFF	-	2	Enquire
