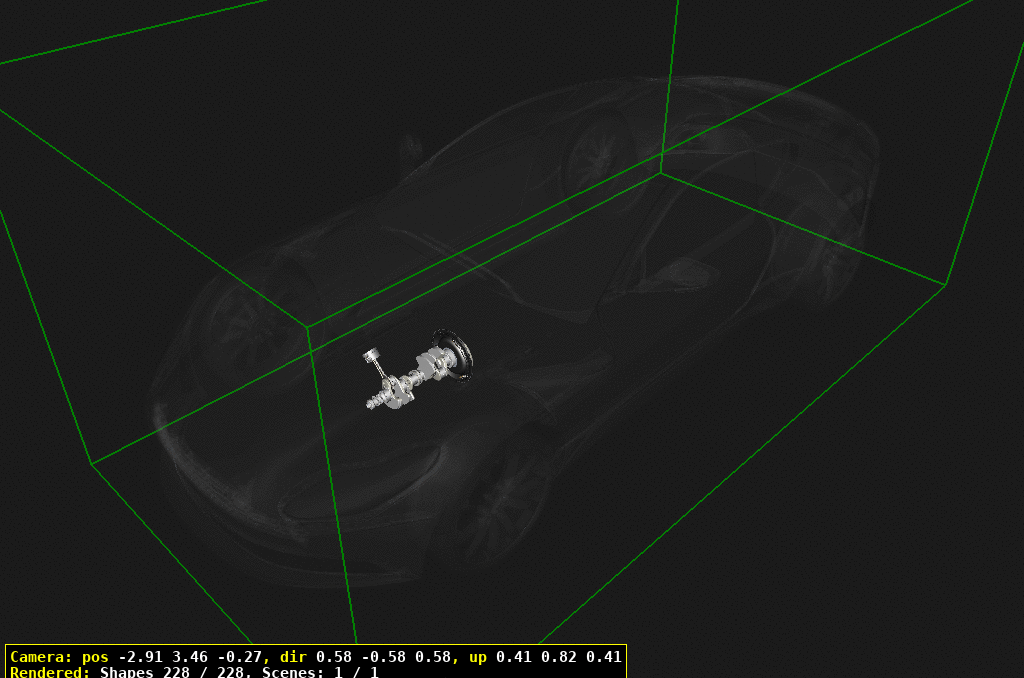

Crankshaft and Pistons of Aston Martin Aston Martin GT DB11 (2017-2023)

View All

Aston Martin GT DB11 (2017-2023) - Crankshaft and Pistons

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	22AB201GP	ASSY PNL RR FENDER SUPPORT UPR LH	22AB201GP ASSY PNL RR FENDER SUPPORT UPR LH	-	-	Enquire
10	JY53SE6375AA	FLYWHEEL & RING GEAR	JY53SE6375AA FLYWHEEL & RING GEAR	-	1	Enquire
20	JY53SE6A366AA	SPACER WASHER	JY53SE6A366AA SPACER WASHER Crankshaft Side	-	1	Enquire
30	1R120210061	Bearing Assembly Pilot ARRIVING SOON	1R120210061 Bearing Assembly Pilot ARRIVING SOON	-	1	Enquire
40	LY6310089BA	RC BRG OTR BRNG	LY6310089BA RC BRG OTR BRNG	-	1	Enquire
50	JY536375BB	FLY WHEEL ASSEMBLEY	JY536375BB FLY WHEEL ASSEMBLEY -> VIN M09170	-	1	Enquire
51	JY536375BC	FLY WHEEL ASSEMBLY	JY536375BC FLY WHEEL ASSEMBLY VIN M09171->	-	1	Enquire
60	697786PK	Bolt-M10 x 1 x 30 HEX HD Locking Pack of 5	697786PK Bolt-M10 x 1 x 30 HEX HD Locking Pack of 5 -> VIN M09170. DO NOTRE-USE. Pack of 5	-	8	Enquire
61	LY63611B74AC	BOLT-M10x1.00x28.5	LY63611B74AC BOLT-M10x1.00x28.5 VIN M09171->. DO NOTRE-USE	-	8	Enquire
70	705355	Bolt, M10 x 25	705355 Bolt, M10 x 25 DO NOT RE-USE	-	6	Enquire
80	HY536W366AD	DRIVELINE COUPLING	HY536W366AD DRIVELINE COUPLING Remove Transit Bolt(s) onInstallation	-	1	Enquire
90	700036S447	Bolt, M8 x 1.25 x 25, Hex Flg Hd	700036S447 Bolt, M8 x 1.25 x 25, Hex Flg Hd DO NOT RE-USE	-	6	Enquire
100	JY53SE6300AA	CRANKSHAFT ASSEMBLY	JY53SE6300AA CRANKSHAFT ASSEMBLY Includes items 110 & 120	-	1	Enquire
110	JY53SE7K578AA	DOWEL PIN	JY53SE7K578AA DOWEL PIN Front	-	1	Enquire
120	JY53SE7K578BA	DOWEL PIN	JY53SE7K578BA DOWEL PIN Rear	-	1	Enquire
130	55060661	LH BACKREST UPHOLSTERY	55060661 LH BACKREST UPHOLSTERY Outer Locations	-	2	Enquire
140	JY53SE6333BA	MAIN BEARING-UPPER	JY53SE6333BA MAIN BEARING-UPPER Inner Locations	-	3	Enquire
150	55062037	RH CUSHION UPHOLSTERY	55062037 RH CUSHION UPHOLSTERY Outer Locations	-	2	Enquire
160	55073836	RH THIRD BRAKE LIGHT TRIM	55073836 RH THIRD BRAKE LIGHT TRIM Inner Locations	-	3	Enquire
170	HY53SE6A341AA	WASHER-THRUST-CRANK	HY53SE6A341AA WASHER-THRUST-CRANK	-	2	Enquire
180	HY53SE6A341BA	WASHER-THRUST-CRANK	HY53SE6A341BA WASHER-THRUST-CRANK	-	2	Enquire
200	JY53SE6K109AA	PISTON ASSEMBLY	JY53SE6K109AA PISTON ASSEMBLY Includes Rings, Pin, andClips	-	8	Enquire
210	55073837	LH THIRD BRAKE LIGHT TRIM	55073837 LH THIRD BRAKE LIGHT TRIM	-	16	Enquire
220	JY53SE6200AA	CONNECTING ROD ASSY	JY53SE6200AA CONNECTING ROD ASSY Includes Small EndBearing	-	8	Enquire
230	JY53SE6211AA	BEARING SET-BIG END	JY53SE6211AA BEARING SET-BIG END Conrod	-	8	Enquire
240	HY53SE6214AA	BOLT-CONNECTING ROD	HY53SE6214AA BOLT-CONNECTING ROD ALWAYS REPLACE. DO NOTRE-USE	-	16	Enquire
