Engine Ancillaries of Aston Martin Aston Martin GT DB11 (2017-2023)

View All

Aston Martin GT DB11 (2017-2023) - Engine Ancillaries

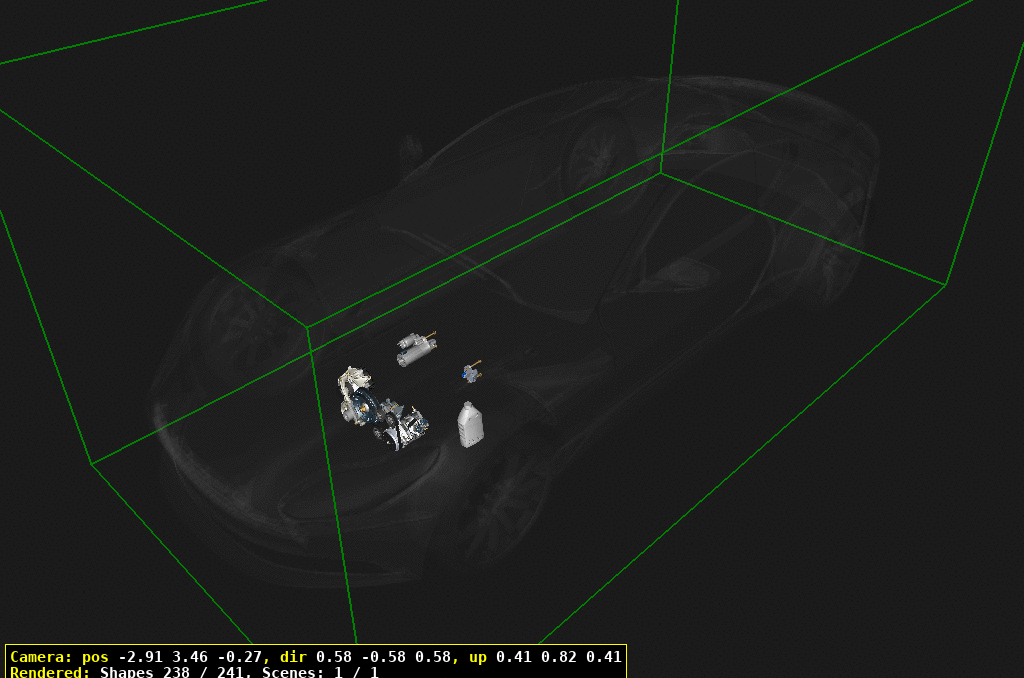

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
20	JY53SE8620AA	FEAD DRIVE BELT	JY53SE8620AA FEAD DRIVE BELT Aircon Compressor	-	1	Enquire
30	JY53SE19A216AA	PULLEY-GROOVED	JY53SE19A216AA PULLEY-GROOVED Grooved	-	1	Enquire
40	JY53SE6B209AA	TENSIONER-FEAD BELT	JY53SE6B209AA TENSIONER-FEAD BELT Aircon Belt	-	1	Enquire
50	JY53SE8B616AA	BRACKET-TENSIONER	JY53SE8B616AA BRACKET-TENSIONER Tensioner Mounting	-	1	Enquire
60	JY53SEHS000037AA	SCREW-M8X30-TORX	JY53SEHS000037AA SCREW-M8X30-TORX Tensioner Fixing	-	2	Enquire
70	JY53SEHS000008AA	SCREW M8X20 PAN HEAD	JY53SEHS000008AA SCREW M8X20 PAN HEAD	-	2	Enquire
80	JY53SE19A216BA	PULLEY-SMOOTH	JY53SE19A216BA PULLEY-SMOOTH Plain	-	2	Enquire
90	JY53SE8620BA	FEAD DRIVE BELT	JY53SE8620BA FEAD DRIVE BELT Alternator	-	1	Enquire
100	JY53SE6B209BA	TENSIONER-FEAD BELT	JY53SE6B209BA TENSIONER-FEAD BELT Alternator Belt	-	1	Enquire
110	JY53SE8B616BA	BRACKET-TENSIONER	JY53SE8B616BA BRACKET-TENSIONER Tensioner Mounting	-	1	Enquire
130	JY53SEHS000009AA	SCREW M8X25 PAN HEAD	JY53SEHS000009AA SCREW M8X25 PAN HEAD	-	1	Enquire
140	JY53SEHS000038AA	SCREW-M8X50-TORX	JY53SEHS000038AA SCREW-M8X50-TORX	-	1	Enquire
200	JY5319D629AD	AIR CONDITIONING COMPRESSOR	JY5319D629AD AIR CONDITIONING COMPRESSOR	-	1	Enquire
210	707443	BOLT-M8 x 90	707443 BOLT-M8 x 90	-	3	Enquire
220	HY5319A501AA	PAG OIL SP-A2	HY5319A501AA PAG OIL SP-A2 250ml can	-	A/R	Enquire
250	JY53SE6316AA	DRIVE PULLEY-GROOVED	JY53SE6316AA DRIVE PULLEY-GROOVED	-	1	Enquire
260	JY53SE218104AA	SPACER WASHER	JY53SE218104AA SPACER WASHER	-	1	Enquire
270	JY53SE6K340AA	BOLT-FLANGED HEAD	JY53SE6K340AA BOLT-FLANGED HEAD	-	1	Enquire
300	JY53SE10300AA	ALTERNATOR-200AMP	JY53SE10300AA ALTERNATOR-200AMP	-	1	Enquire
310	JY53SE10239AA	BRACKET-ALTERNATOR	JY53SE10239AA BRACKET-ALTERNATOR	-	1	Enquire
320	JY53SEHS000039AA	BOLT-M8X30-HEX	JY53SEHS000039AA BOLT-M8X30-HEX	-	3	Enquire
330	JY53SEHS000040AA	SCREW-M8x90-TORX	JY53SEHS000040AA SCREW-M8x90-TORX	-	2	Enquire
400	JY53SE11000AA	STARTER MOTOR ASSY	JY53SE11000AA STARTER MOTOR ASSY	-	1	Enquire
410	JY53SE6366AA	COVER-STARTER MOTOR	JY53SE6366AA COVER-STARTER MOTOR	-	1	Enquire
420	JY5311K195AA	CVR-STR MTR GR	JY5311K195AA CVR-STR MTR GR Less GPF	-	1	Enquire
421	JY5311K195BA	CVR-STR MTR GR	JY5311K195BA CVR-STR MTR GR With GPF	-	1	Enquire
430	MY8314A163AA	ANTI-ROTATION CLIP	MY8314A163AA ANTI-ROTATION CLIP With GPF	-	1	Enquire
440	703265	Screw, M6 x 16, Hex Flange Head	703265 Screw, M6 x 16, Hex Flange Head	-	2	Enquire
450	707128	BOLT-M10 x 85 HEX	707128 BOLT-M10 x 85 HEX	-	4	Enquire
