Fuel Injection System of Aston Martin Aston Martin GT DB11 (2017-2023)

View All

Aston Martin GT DB11 (2017-2023) - Fuel Injection System

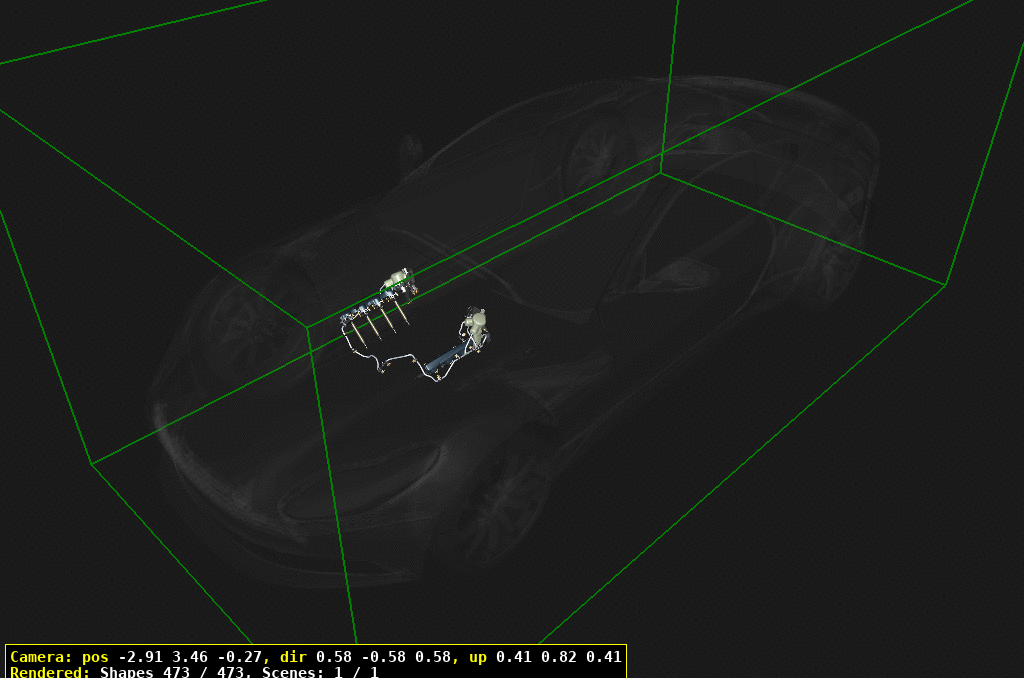

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
20	JY53SE9D376AA	HP FUEL PUMP	JY53SE9D376AA HP FUEL PUMP -> VIN L07111	-	2	Enquire
21	JY53SE9D376AB	HP FUEL PUMP	JY53SE9D376AB HP FUEL PUMP VIN L07112->	-	2	Enquire
30	JY53SE9400AA	ROLLER TAPPET	JY53SE9400AA ROLLER TAPPET Fuel Pump	-	2	Enquire
40	JY53SE9276AA	O RING SEAL	JY53SE9276AA O RING SEAL	-	2	Enquire
50	JY53SEHS000028AA	SCREW M7X20 PAN HEAD	JY53SEHS000028AA SCREW M7X20 PAN HEAD	-	4	Enquire
60	JY53SE9A397AA	HEATSHIELD-FUEL PUMP	JY53SE9A397AA HEATSHIELD-FUEL PUMP	-	1	Enquire
70	JY53SE9A397BA	HEATSHIELD-FUEL PUMP	JY53SE9A397BA HEATSHIELD-FUEL PUMP	-	1	Enquire
80	JY53SEHS000002AA	SCREW M6X12 PAN HEAD	JY53SEHS000002AA SCREW M6X12 PAN HEAD	-	2	Enquire
90	JY53SEHS000017AA	BOLT M6X16 TORX MALE	JY53SEHS000017AA BOLT M6X16 TORX MALE	-	8	Enquire
100	JY53SE9F911AA	LOW PRESSURE PIPE-LH	JY53SE9F911AA LOW PRESSURE PIPE-LH Includes items 110,120	-	1	Enquire
110	JY53SE19D702AA	CAP-SCHRADER VALVE	JY53SE19D702AA CAP-SCHRADER VALVE Schrader	-	1	Enquire
120	JY53SE9H321AA	FUEL PRESSURE VALVE	JY53SE9H321AA FUEL PRESSURE VALVE Schrader	-	1	Enquire
130	JY53SE9F911BA	LOW PRESSURE PIPE-FT	JY53SE9F911BA LOW PRESSURE PIPE-FT -> 22MY	-	1	Enquire
131	RY53SE9F911BA	LOW PRESSURE PIPE	RY53SE9F911BA LOW PRESSURE PIPE 23MY->	-	1	Enquire
140	JY53SE9F911CA	LOW PRESSURE PIPE-RH	JY53SE9F911CA LOW PRESSURE PIPE-RH -> 22MY	-	1	Enquire
141	RY53SE9F911CA	LOW PRESSURE PIPE-RH	RY53SE9F911CA LOW PRESSURE PIPE-RH 23MY->	-	1	Enquire
150	JY53SE9G886AA	FUEL PIPE-LH-HP	JY53SE9G886AA FUEL PIPE-LH-HP	-	1	Enquire
160	JY53SE9G886BA	FUEL PIPE-RH-HP	JY53SE9G886BA FUEL PIPE-RH-HP	-	1	Enquire
170	JY53SE9S441AA	FUEL RAIL - LH	JY53SE9S441AA FUEL RAIL - LH	-	1	Enquire
180	JY53SE9S441BA	FUEL RAIL - RH	JY53SE9S441BA FUEL RAIL - RH	-	1	Enquire
190	JY53SE9G756AA	FUEL TEMP AND PRESS	JY53SE9G756AA FUEL TEMP AND PRESS	-	2	Enquire
200	JY53SE9F593AB	FUEL INJECTOR ASSY	JY53SE9F593AB FUEL INJECTOR ASSY -> 21MY	-	8	Enquire
201	JY53SE9F593AC	FUEL INJECTOR ASSY	JY53SE9F593AC FUEL INJECTOR ASSY 21MY->	-	8	Enquire
205	JY53SE37H770AA	KIT-INJECTOR SEALS	JY53SE37H770AA KIT-INJECTOR SEALS Always Replace, NeverRe-Use	-	8	Enquire
210	JY53SEHS000017AA	BOLT M6X16 TORX MALE	JY53SEHS000017AA BOLT M6X16 TORX MALE	-	16	Enquire
220	JY53SE2L202CA	CLAMP-FUEL LINE	JY53SE2L202CA CLAMP-FUEL LINE	-	8	Enquire
221	JY53SE8287AA	P CLIP-DOUBLE	JY53SE8287AA P CLIP-DOUBLE	-	2	Enquire
230	JY53SEHS000048AA	SCREW M6x16 PAN HEAD	JY53SEHS000048AA SCREW M6x16 PAN HEAD	-	15	Enquire
240	JY53SE9D440AA	COVER-FUEL RAIL-LH	JY53SE9D440AA COVER-FUEL RAIL-LH -> VIN L10495	-	1	Enquire
241	MY63SE9D440AA	COVER-FUEL RAIL-LH	MY63SE9D440AA COVER-FUEL RAIL-LH VIN L10496->	-	1	Enquire
250	JY53SE9D440BA	COVER-FUEL RAIL-RH	JY53SE9D440BA COVER-FUEL RAIL-RH -> VIN L10495	-	1	Enquire
251	MY63SE9D440BA	COVER-FUEL RAIL-RH	MY63SE9D440BA COVER-FUEL RAIL-RH VIN L10496->	-	1	Enquire
260	JY53SE9D440CA	COVER-FUEL PUMP-LH	JY53SE9D440CA COVER-FUEL PUMP-LH -> VIN L10495	-	1	Enquire
261	MY63SE9D440CA	COVER-FUEL PUMP-LH	MY63SE9D440CA COVER-FUEL PUMP-LH VIN L10496->	-	1	Enquire
270	JY53SE9D440DA	COVER-FUEL PUMP-RH	JY53SE9D440DA COVER-FUEL PUMP-RH -> VIN L10495	-	1	Enquire
271	MY63SE9D440DA	COVER-FUEL PUMP-RH	MY63SE9D440DA COVER-FUEL PUMP-RH VIN L10496->	-	1	Enquire
