Camshaft and Timing of Aston Martin Aston Martin GT DB11 (2017-2023)

View All

Aston Martin GT DB11 (2017-2023) - Camshaft and Timing

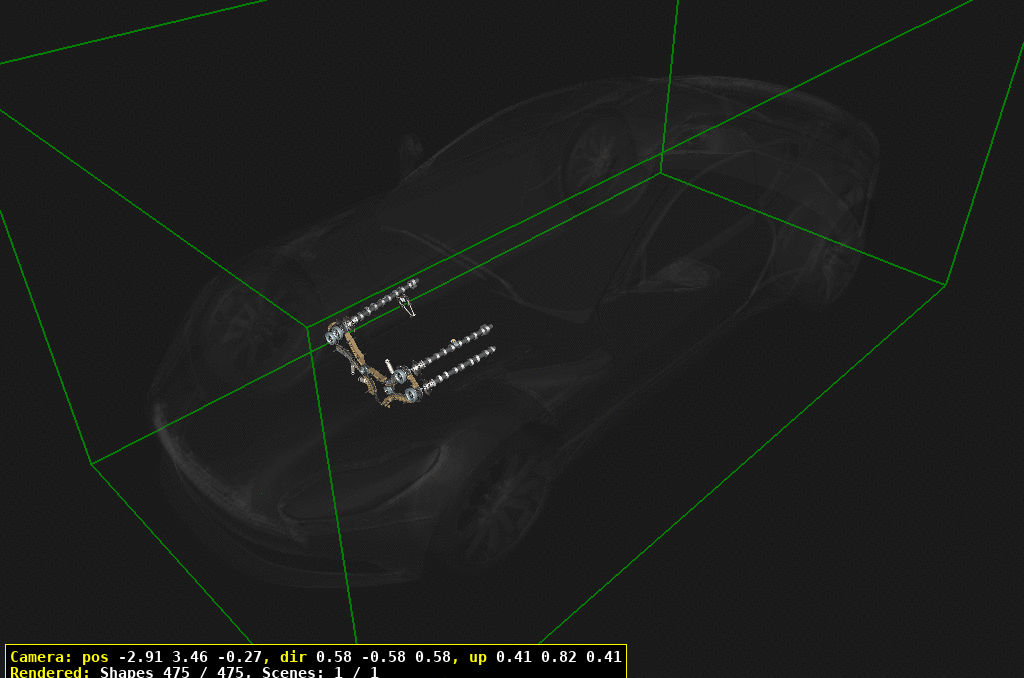

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
10	JY53SE6M264BA	IDLER GEAR-LH	JY53SE6M264BA IDLER GEAR-LH	-	1	Enquire
20	JY53SE6M264AA	IDLER GEAR-RH	JY53SE6M264AA IDLER GEAR-RH	-	1	Enquire
30	JY53SE6268AA	CHAIN-TIMING-CENTRE	JY53SE6268AA CHAIN-TIMING-CENTRE -> 22MY, Primary	-	1	Enquire
31	PY83SE6268AA	CHAIN-TIMING-CENTRE	PY83SE6268AA CHAIN-TIMING-CENTRE 22MY->, Primary	-	1	Enquire
40	JY53SE6268BA	CHAIN-TIMING-CENTRE	JY53SE6268BA CHAIN-TIMING-CENTRE Secondary	-	2	Enquire
50	JY53SE6C524AA	VCT UNIT-INLET	JY53SE6C524AA VCT UNIT-INLET Inlet	-	2	Enquire
60	JY53SE6C525AB	VCT UNIT-EXHAUST	JY53SE6C525AB VCT UNIT-EXHAUST Exhaust	-	2	Enquire
70	JY53SE6M280AA	VCT VALVE	JY53SE6M280AA VCT VALVE	-	4	Enquire
80	JY53SE6L266AA	TENSIONER-CHAIN	JY53SE6L266AA TENSIONER-CHAIN Primary	-	1	Enquire
81	JY53SE61J05BA	O RING SEAL	JY53SE61J05BA O RING SEAL Tensioner	-	1	Enquire
90	JY53SE6L266BA	TENSIONER-CHAIN	JY53SE6L266BA TENSIONER-CHAIN Secondary	-	2	Enquire
91	JY53SE61J05CA	O RING SEAL	JY53SE61J05CA O RING SEAL Tensioner	-	2	Enquire
100	JY53SE6K255AA	BLADE-TENSIONER	JY53SE6K255AA BLADE-TENSIONER Primary	-	1	Enquire
110	JY53SE6K255BB	TENSIONER BLADE-LH	JY53SE6K255BB TENSIONER BLADE-LH Secondary, LH	-	1	Enquire
120	JY53SE6K255CB	TENSIONER BLADE-RH	JY53SE6K255CB TENSIONER BLADE-RH Secondary, RH	-	1	Enquire
130	JY53SE6B274AA	GUIDE-TIMING CHAIN	JY53SE6B274AA GUIDE-TIMING CHAIN Primary, LH	-	1	Enquire
140	JY53SE6B274BA	GUIDE-TIMING CHAIN	JY53SE6B274BA GUIDE-TIMING CHAIN Primary, Upper	-	1	Enquire
150	JY53SE6B274CA	GUIDE-TIMING CHAIN	JY53SE6B274CA GUIDE-TIMING CHAIN Secondary, LH	-	1	Enquire
160	JY53SE6B274DA	GUIDE-TIMING CHAIN	JY53SE6B274DA GUIDE-TIMING CHAIN Secondary, RH	-	1	Enquire
170	JY53SE6B274EA	GUIDE-TIMING CHAIN	JY53SE6B274EA GUIDE-TIMING CHAIN Secondary, Upper	-	2	Enquire
180	JY53SE6K253AA	PIN-BLADE PIVOT	JY53SE6K253AA PIN-BLADE PIVOT	-	11	Enquire
190	JY53SEHS000033AA	BOLT-M7X47-TORX	JY53SEHS000033AA BOLT-M7X47-TORX	-	1	Enquire
200	JY53SEHS000034AA	BOLT-M8X40-HEX	JY53SEHS000034AA BOLT-M8X40-HEX	-	1	Enquire
210	JY53SE6A267AA	INTAKE CAMSHAFT-LH	JY53SE6A267AA INTAKE CAMSHAFT-LH	-	1	Enquire
220	JY53SE6A266AA	INTAKE CAMSHAFT-RH	JY53SE6A266AA INTAKE CAMSHAFT-RH	-	1	Enquire
230	JY53SE6A269AA	EXHAUST CAMSHAFT-LH	JY53SE6A269AA EXHAUST CAMSHAFT-LH	-	1	Enquire
240	JY53SE6A268AA	EXHAUST CAMSHAFT-RH	JY53SE6A268AA EXHAUST CAMSHAFT-RH	-	1	Enquire
250	JY53SE6B501AA	CAM BEARING COVER	JY53SE6B501AA CAM BEARING COVER	-	2	Enquire
260	JY53SEHS000046AA	BOLT-M8X20-TORX	JY53SEHS000046AA BOLT-M8X20-TORX	-	2	Enquire
300	JY53SE6507AA	VALVE-INLET	JY53SE6507AA VALVE-INLET	-	8	Enquire
310	JY53SE6505AA	VALVE-EXHAUST	JY53SE6505AA VALVE-EXHAUST	-	8	Enquire
320	JY53SE6514BA	CAP-VALVE SPRING	JY53SE6514BA CAP-VALVE SPRING Bottom	-	32	Enquire
330	JY53SE6A517AA	SEAL-VALVE STEM	JY53SE6A517AA SEAL-VALVE STEM Inlet/Exhaust, -> 22MY	-	32	Enquire
331	PY83SE6A517BA	SEAL - EXH VALVE	PY83SE6A517BA SEAL - EXH VALVE 22MY->	-	16	Enquire
332	RY53SE6A517AA	SEAL-VALVE STEM	RY53SE6A517AA SEAL-VALVE STEM 22MY->	-	16	Enquire
340	JY53SE6513AA	SPRING-VALVE-INLET	JY53SE6513AA SPRING-VALVE-INLET	-	16	Enquire
350	JY53SE6513BA	SPRING-VALVE-EXHAUST	JY53SE6513BA SPRING-VALVE-EXHAUST	-	32	Enquire
360	JY53SE6514AA	CAP-VALVE SPRING	JY53SE6514AA CAP-VALVE SPRING Top	-	32	Enquire
370	JY53SE6A518AA	COLLET-VALVE	JY53SE6A518AA COLLET-VALVE	-	64	Enquire
380	JY53SE6529AA	ROCKER ARM-VALVE	JY53SE6529AA ROCKER ARM-VALVE	-	32	Enquire
390	JY53SE6C501AA	ROCKER POST	JY53SE6C501AA ROCKER POST	-	32	Enquire
