Fuel Charging & Control

Aston Martin GT DB9 (2004-2017)

Find Your Part

Aston Martin GT DB9 (2004-2017) - Fuel Charging & Control

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

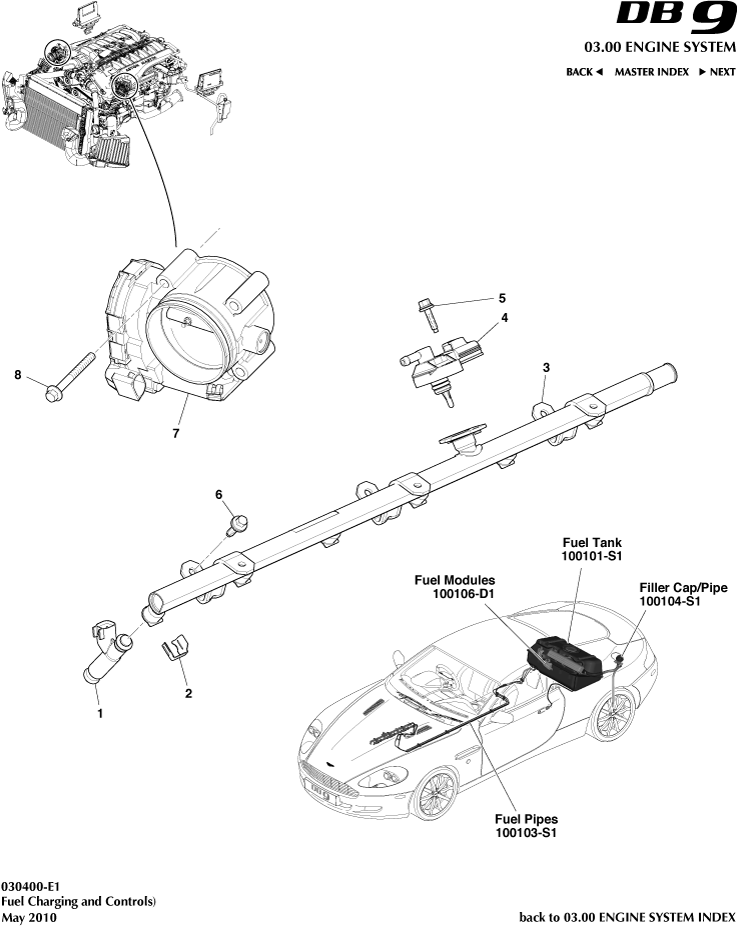

Fuel Charging & Control of Aston Martin Aston Martin GT DB9 (2004-2017) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 5R139F593AB
FUEL INJECTOR 22LBS/ HR
09MY 		- 12 Enquire
- 6G430810474PK
Seal - Fuel Injector to Manifold - Blue - Upper (Pack of 8)
Pack of 8 		- A/R Enquire
- 6G430811260PK
O-Ring Injector to Manifold Green Lower (Pack of 8)
Pack of 8
ARRIVING SOON 		- A/R Enquire
- 4G4E9S441CA
FUEL RAIL ASSY RH
06MY on 		- 1 Enquire
- 673014062
INNER TRIM SET GREIGE+FIXATI
- 		- 1 Enquire
- 4G4E9S441DA
FUEL RAIL ASSY LH
06MY on 		- 1 Enquire
- 4G430810011
SENSOR-FUEL TEMP
Up to 06MY 		- 1 Enquire
- 6G433410063
Sensor Temperature/Pressure
- 		- 2 Enquire
- 697769
SCREW M6 x 23 W/WASR
From 06MY 		- 6 Enquire
- 1R120810317PK
O Ring (Pack of 10)
- 		- 2 Enquire
1 4G4E9F593A6A
Fuel Injector 0.3CC Spec
Up to 09MY 		- 12 Enquire
2 6G433410062
Clip, Fuel Injector
- 		- 12 Enquire
3 4G430810200
FUEL RAIL ASSY-RH
- 		- 1 Enquire
4 1R120810541
SENSOR-FUEL PRESSURE
Up to 06MY 		- 2 Enquire
5 699110
SCREW &WASHER HEX HD M5x0.8x12 ZPLT OLIVE PIL 9
Up To 06MYr 		- 4 Enquire
6 703693
BOLT & WASHER M6x18 HF PIL CON 8
3 per Fuel Rail 		- 6 Enquire
7 1R120810079
Throttle Body 68mm
- 		- 2 Enquire
8 702845
BOLT-M6x55 HEX FLG 8
- 		- 8 Enquire
