Engine Sealing of Aston Martin Aston Martin GT DB9 (2004-2017)

View All

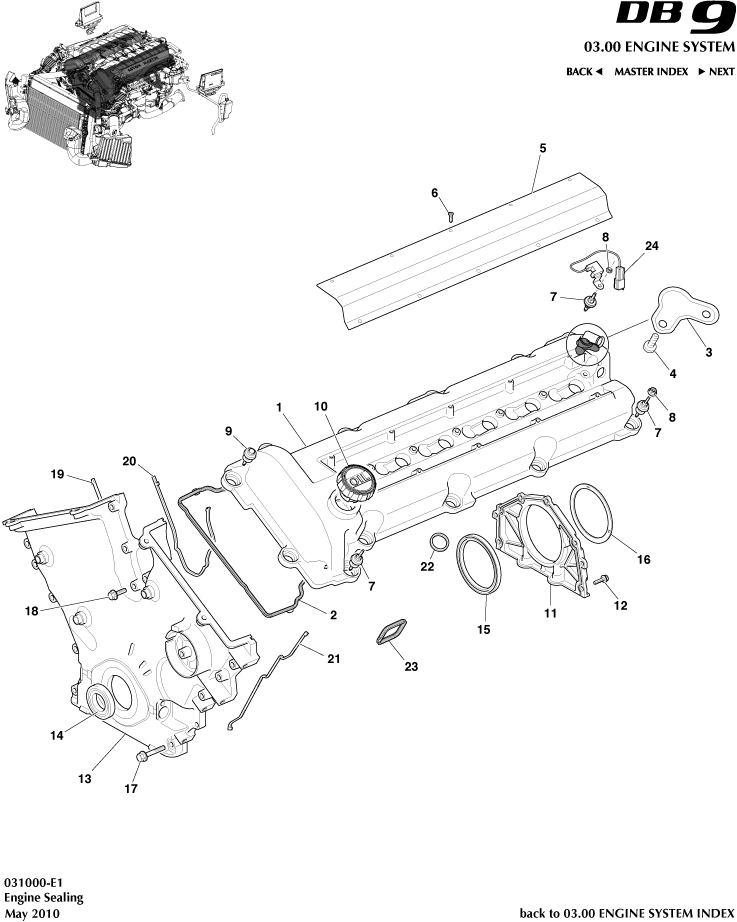

Aston Martin GT DB9 (2004-2017) - Engine Sealing

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	4G4E6A505AC	CVR ASY VLV RCKR ARM	4G4E6A505AC CVR ASY VLV RCKR ARM -	-	1	Enquire
-	4G4E6582AC	CVR ASY VLV RCKR ARM	4G4E6582AC CVR ASY VLV RCKR ARM -	-	1	Enquire
-	8G436582AA	COVER ASSY - VALVE ROCKER ARM RH	8G436582AA COVER ASSY - VALVE ROCKER ARM RH 09MY	-	1	Enquire
-	785056	Gasket, Valve Cover, RH ARRIVING SOON	785056 Gasket, Valve Cover, RH - ARRIVING SOON	-	1	Enquire
-	785062	COVER-COIL	785062 COVER-COIL -	-	2	Enquire
-	4G430710788	Stud and Grommet Assembly	4G430710788 Stud and Grommet Assembly 07MY	-	6	Enquire
-	4G430710763	Bolt and Grommet	4G430710763 Bolt and Grommet 07MY	-	27	Enquire
-	8G436D080AC	COVER - ENGINE FRONT	8G436D080AC COVER - ENGINE FRONT 09MY	-	1	Enquire
1	8G436A505AA	COVER ASSY - VALVE ROCKER ARM COVER LH	8G436A505AA COVER ASSY - VALVE ROCKER ARM COVER LH 09MY	-	1	Enquire
2	785057	Gasket, Valve Cover, LH ARRIVING SOON	785057 Gasket, Valve Cover, LH - ARRIVING SOON	-	1	Enquire
3	785055	BAFFLE-PCV	785055 BAFFLE-PCV -	-	2	Enquire
4	703175	SCREW M4 x 10 PAN TORX CHROME FREE	703175 SCREW M4 x 10 PAN TORX CHROME FREE -	-	4	Enquire
5	7G436P068AA	COIL COVER SPARK PLUG	7G436P068AA COIL COVER SPARK PLUG -	-	2	Enquire
6	703703	Bolt, Flange Head M8 x 16	703703 Bolt, Flange Head M8 x 16 -	-	20	Enquire
7	785059	GROMMET & STUD ASSY	785059 GROMMET & STUD ASSY 08MY	-	6	Enquire
8	702295	Nut, M5, Hex Flange Head	702295 Nut, M5, Hex Flange Head -	-	2	Enquire
9	785058	GROMMET & BOLT ASSY	785058 GROMMET & BOLT ASSY 08MY	-	27	Enquire
10	4G430710625	OIL FILLER CAP BLACK LETTERING NO AM WING	4G430710625 OIL FILLER CAP BLACK LETTERING NO AM WING -	-	1	Enquire
11	185003	Retainer, Crankshaft Oil Seal	185003 Retainer, Crankshaft Oil Seal -	-	1	Enquire
12	702603	SCREW M6X22 HEX FLNG	702603 SCREW M6X22 HEX FLNG -	-	6	Enquire
13	4G4E6D080AE	CVR - ENG FRT	4G4E6D080AE CVR - ENG FRT -	-	1	Enquire
14	385067	Oil Seal - Crankshaft Front	385067 Oil Seal - Crankshaft Front -	-	1	Enquire
15	1R120110434	Seal Crankshaft Rear	1R120110434 Seal Crankshaft Rear -	-	1	Enquire
16	4G430110194	Slinger, Rear Seal	4G430110194 Slinger, Rear Seal -	-	1	Enquire
17	702853	BOLT-M8 x 47.5 W/WSH	702853 BOLT-M8 x 47.5 W/WSH -	-	14	Enquire
18	702851	BOLT & WASHER M8 X 32 HEX FLANGE	702851 BOLT & WASHER M8 X 32 HEX FLANGE -	-	1	Enquire
19	385064	Gasket Engine Front Cover LH	385064 Gasket Engine Front Cover LH -	-	1	Enquire
20	385065	Gasket Front Cover Centre ARRIVING SOON	385065 Gasket Front Cover Centre - ARRIVING SOON	-	1	Enquire
21	385066	Gasket Engine Front Cover RH ARRIVING SOON	385066 Gasket Engine Front Cover RH - ARRIVING SOON	-	1	Enquire
22	785366	GASKET SPARK PLUG HOLE	785366 GASKET SPARK PLUG HOLE -	-	12	Enquire
23	585382	Gasket, Water Pump	585382 Gasket, Water Pump -	-	1	Enquire
24	785128	RADIO SUPP.CAP	785128 RADIO SUPP.CAP -	-	2	Enquire
