Exhaust Manifolds of Aston Martin Aston Martin GT DB9 (2004-2017)

View All

Aston Martin GT DB9 (2004-2017) - Exhaust Manifolds

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

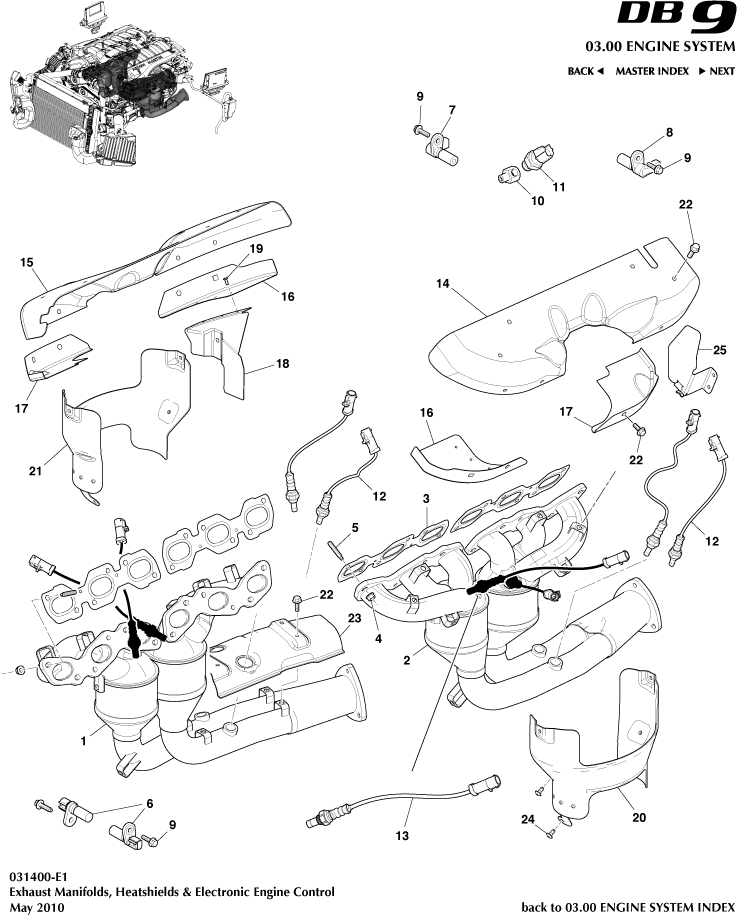

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	4G4E5G236BE	MANF &CONV ASY-EXH R	4G4E5G236BE MANF &CONV ASY-EXH R Pre 09MY	-	1	Enquire
-	4G4E5G232BD	MANF &CONV ASY-EXH L	4G4E5G232BD MANF &CONV ASY-EXH L Pre 09MY	-	1	Enquire
-	699736	Clip, Exhaust Heatshields	699736 Clip, Exhaust Heatshields -	-	4	Enquire
-	1R123910475	Sensor, Crankshaft, Front	1R123910475 Sensor, Crankshaft, Front Use when two sensors are fitted	-	2	Enquire
-	4G433910014	Sensor, Crankshaft, Rear	4G433910014 Sensor, Crankshaft, Rear -	-	1	Enquire
-	1R1E9B339AB	FTG-OIL PRESS SDR	1R1E9B339AB FTG-OIL PRESS SDR -	-	1	Enquire
-	1R120710230	SENSOR RING-IGNITION	1R120710230 SENSOR RING-IGNITION -	-	1	Enquire
1	8G435G236AA	MANF & CONV ASY EXHR	8G435G236AA MANF & CONV ASY EXHR 09MY Onwards	-	1	Enquire
2	8G435G232AA	MANF & CONV ASY EXHL	8G435G232AA MANF & CONV ASY EXHL 09MY Onwards	-	1	Enquire
3	4G433510003	Gasket Exhaust Manifold	4G433510003 Gasket Exhaust Manifold -	-	4	Enquire
4	670283677	ROOF UPHOLSTERY ASSEMBLY GRE	670283677 ROOF UPHOLSTERY ASSEMBLY GRE 12 per side	-	24	Enquire
5	703704	Stud, M8 x 13.6+16, Hex Head	703704 Stud, M8 x 13.6+16, Hex Head 12 per side	-	24	Enquire
6	3985756	SENSOR-CRANK TIMING	3985756 SENSOR-CRANK TIMING Use when one sensor is fitted	-	1	Enquire
7	785755	Sensor, Crankshaft Timing	785755 Sensor, Crankshaft Timing -	-	1	Enquire
8	785754	SENSOR-CID RH	785754 SENSOR-CID RH -	-	1	Enquire
9	702542	BOLT M6 x 20 HF PIL 8	702542 BOLT M6 x 20 HF PIL 8 -	-	4	Enquire
10	685664	ADAPTOR-O/PRESS SWTC	685664 ADAPTOR-O/PRESS SWTC -	-	1	Enquire
11	1R123910532	Switch, Oil Pressure	1R123910532 Switch, Oil Pressure -	-	1	Enquire
12	1R123910175	Sensor HEGO RH Rear Post Catalytic Converter	1R123910175 Sensor HEGO RH Rear Post Catalytic Converter -	-	4	Enquire
13	1R123910174	Heated Exhaust Gas Oxygen Sensor Rear	1R123910174 Heated Exhaust Gas Oxygen Sensor Rear -	-	4	Enquire
14	4G439A462AC	Heat Shield, Exhaust Manifold, LH	4G439A462AC Heat Shield, Exhaust Manifold, LH -	-	1	Enquire
15	4G439A462BC	Heat Shield, Exhaust Manifold, RH	4G439A462BC Heat Shield, Exhaust Manifold, RH -	-	1	Enquire
16	8D339A462BB	Heat Shield, Exhaust Manifold, LH Front	8D339A462BB Heat Shield, Exhaust Manifold, LH Front -	-	2	Enquire
17	4G439A462CC	EXHAUST MANIFOLD HEATSHIELD - PROTECTOR RH REAR	4G439A462CC EXHAUST MANIFOLD HEATSHIELD - PROTECTOR RH REAR -	-	2	Enquire
18	8G439A462AB	EXHAUST MAN HEATSHLD	8G439A462AB EXHAUST MAN HEATSHLD -	-	1	Enquire
19	00RB218	Clip - Finisher - Rear Quarter Glass	00RB218 Clip - Finisher - Rear Quarter Glass -	-	3	Enquire
20	4G439N454AD	SHLD ASY-EXH MANF HT	4G439N454AD SHLD ASY-EXH MANF HT -	-	1	Enquire
21	4G439N454BC	SHLD ASY-EXH MANF HT	4G439N454BC SHLD ASY-EXH MANF HT -	-	1	Enquire
22	703264	SCREW-M6 x 14 HEX HD	703264 SCREW-M6 x 14 HEX HD -	-	16	Enquire
23	AD23C5K286AA	SHIELD - EXHAUST PIPE HEAT RH	AD23C5K286AA SHIELD - EXHAUST PIPE HEAT RH -	-	1	Enquire
24	8G436K342BB	CRANK SENSOR HEATSHIELD	8G436K342BB CRANK SENSOR HEATSHIELD -	-	1	Enquire
25	703691	Screw, M6 x 12, Pan Head Internal Torx	703691 Screw, M6 x 12, Pan Head Internal Torx -	-	9	Enquire
