Evaporative Emissions of Aston Martin Aston Martin GT DB9 (2004-2017)

View All

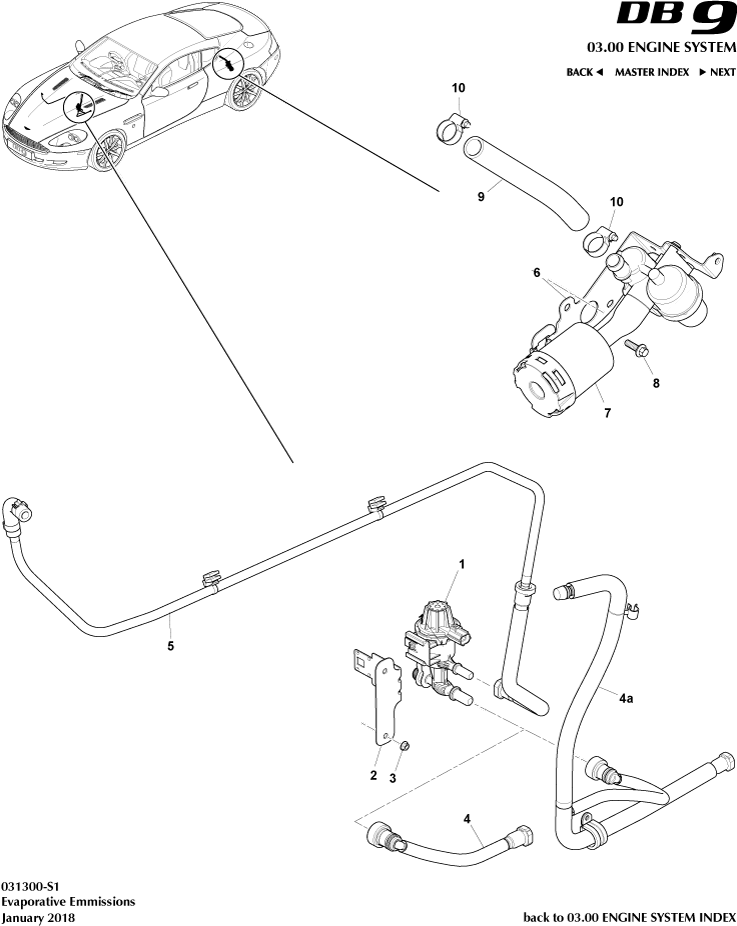

Aston Martin GT DB9 (2004-2017) - Evaporative Emissions

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	7G439D665AA	BRACKET ASSEMBLY DMTL AND FILTER	7G439D665AA BRACKET ASSEMBLY DMTL AND FILTER From 6.5MY To 08MY	-	1	Enquire
-	8D339D665AB	BRACKET ASSEMBLY DMTL & FILTER	8D339D665AB BRACKET ASSEMBLY DMTL & FILTER From 08MY, Federal	-	1	Enquire
-	8D339D665BA	BRACKET ASSEMBLY FILTER (NON FEDERAL)	8D339D665BA BRACKET ASSEMBLY FILTER (NON FEDERAL) From 08MY, ROW	-	1	Enquire
-	6H529C111BA	PMP ON BD DGNTL LEK	6H529C111BA PMP ON BD DGNTL LEK -	-	1	Enquire
-	7G439G271AA	Hose, DMTL to Filter	7G439G271AA Hose, DMTL to Filter -	-	1	Enquire
-	W506961S437	Screw, M5 x 10, Pan Head	W506961S437 Screw, M5 x 10, Pan Head -	-	3	Enquire
-	7G439F984AA	HOSE FUEL/VAPOUR CANISTER VENT INLET	7G439F984AA HOSE FUEL/VAPOUR CANISTER VENT INLET From 6.5MY To 08MY	-	1	Enquire
-	8D339F984AA	HOSE FUEL VAPOUR CANNISTER VENT INLET	8D339F984AA HOSE FUEL VAPOUR CANNISTER VENT INLET From 08MY To VIN A14277, Federal	-	1	Enquire
-	BG439F984AB	Hose, Fuel/Vapour Canister Vent Inlet	BG439F984AB Hose, Fuel/Vapour Canister Vent Inlet From VIN A14278, Federal	-	1	Enquire
-	8G439F984BA	HOSE FUEL/VAPOUR CANISTER VENT INLET	8G439F984BA HOSE FUEL/VAPOUR CANISTER VENT INLET From 08MY To VIN A14277, ROW	-	1	Enquire
-	BG439F984BB	Hose, Fuel/Vapour Canister Vent Inlet	BG439F984BB Hose, Fuel/Vapour Canister Vent Inlet From VIN A14278, ROW	-	1	Enquire
1	4L249G641BB	VALVE ASSY FUEL	4L249G641BB VALVE ASSY FUEL -	-	1	Enquire
2	4G439G743AA	Bracket, Electronic Fuel Vapour Management	4G439G743AA Bracket, Electronic Fuel Vapour Management -	-	1	Enquire
3	700114	NUT M5 HEX FLG 8	700114 NUT M5 HEX FLG 8 -	-	2	Enquire
4	AD239B051AA	TUBE - PURGE VALVE INLET	AD239B051AA TUBE - PURGE VALVE INLET -	-	1	Enquire
4a	4G439B051AD	TUBE - PURGE VALVE INLET	4G439B051AD TUBE - PURGE VALVE INLET -	-	1	Enquire
5	4G439D289BD	TUBE ASSY - EVMV TO MANIFOLD RH	4G439D289BD TUBE ASSY - EVMV TO MANIFOLD RH -	-	1	Enquire
6	4G439D665AD	BRACKET ASSY CCV & FILTER	4G439D665AD BRACKET ASSY CCV & FILTER Up To 6.5MY, 2 pin Connector to Pump	-	1	Enquire
7	4G439B995AA	Filter, Fuel/Vapour Storage Canister	4G439B995AA Filter, Fuel/Vapour Storage Canister -	-	1	Enquire
8	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	703203 Screw M6 x 20 Heex Flange 8 Chrome Free -	-	3	Enquire
9	4G439F984AC	HOSE ASSY - FUEL VAPOUR CANISTER VENT INLET	4G439F984AC HOSE ASSY - FUEL VAPOUR CANISTER VENT INLET Up To 6.5MY	-	1	Enquire
10	6G430310043	CLIP HOSE-SPRING	6G430310043 CLIP HOSE-SPRING -	-	2	Enquire
